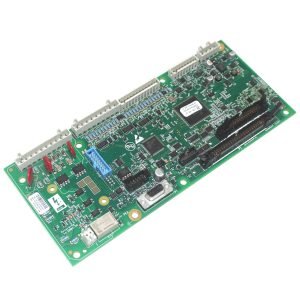

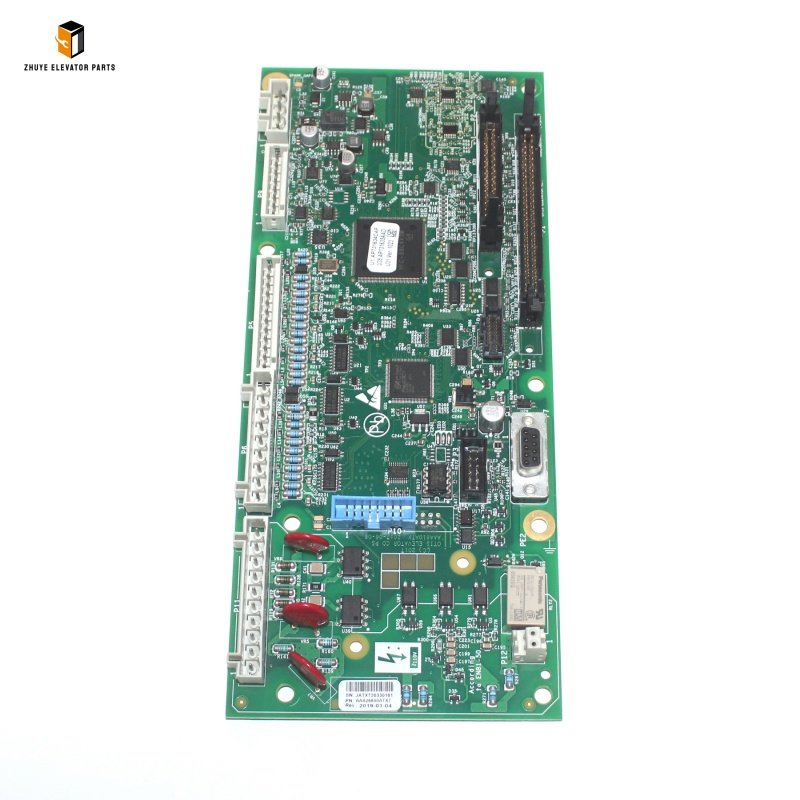

Otis Elevator Inverter Main Board AAA26800ATX7: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis AAA26800ATX7 Inverter Main Board

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the drive cabinet (located in the machine room) and locate the designated mounting position for the inverter main board. Disconnect the old board (if replacing) by labeling and removing power cables (AC input, DC link, AC output to traction motor), control connectors (from main controller, sensors), and communication cables—take detailed photos of the wiring/connector configuration to ensure accurate reinstallation. Clean the mounting surface and connector interfaces with compressed air to remove dust or debris.
  • Align the new AAA26800ATX7 board with the mounting pins or slots and secure it with the provided screws (torque to 0.8–1.2 Nm) to prevent vibration-induced damage. Reconnect power cables (ensuring correct polarity to avoid short circuits) and connectors—ensure all power terminals are tightened to Otis’ specified torque (1.5–2.0 Nm) to prevent loose connections and electrical arcing.
• Configuration Setup:
  • Power on the elevator’s control system (performed by certified Otis technicians only) and access the configuration menu via Otis’ diagnostic software (e.g., Otis Service Tool, CONNECT). Complete three critical steps:
    1. Traction Parameters Loading: Import the elevator’s specific traction settings (e.g., motor rated current, speed reference, acceleration/deceleration time, torque limit) from a backup or Otis’ database—these parameters are calibrated to the traction motor’s characteristics and ensure smooth operation.
    2. Firmware Verification: Confirm the board’s firmware version is compatible with the main controller; update if necessary (using Otis-approved firmware files provided by Nanjing Zhuye).
    3. System Sync: Initiate communication synchronization between the inverter main board and the main controller, verifying that speed commands, position feedback, and fault signals are transmitted accurately.
• Functional Testing:
  • Conduct comprehensive tests to validate performance:
    • Traction Motor Test: Run the elevator through empty, half-loaded, and full-loaded cycles to confirm the board delivers stable variable-frequency power—no speed fluctuations, jerking, or abnormal motor noise.
    • Fault Protection Test: Simulate overcurrent, overvoltage, or overtemperature conditions to verify the board triggers protective shutdowns and sends fault alerts to the main controller.
    • Energy Efficiency Test: Monitor power consumption and regenerative braking performance (where applicable) to ensure alignment with Otis’ factory specifications.
  • Document installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation, or component overheating (discoloration of the PCB, IGBT modules, or capacitors). Remove dust with compressed air—avoid blocking cooling vents or using water/chemical cleaners.
• Monthly Diagnostic Scans: Use Otis’ diagnostic software to review inverter logs, error codes, and parameter integrity. Address minor alerts (e.g., “Current Fluctuation,” “Parameter Drift”) promptly to prevent system degradation.
• Quarterly Connection Inspections: Inspect power cables, control connectors, and communication lines for fraying, corrosion, or loose contacts. Retighten terminals as needed or replace damaged components with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance inverter control logic, fix software bugs, and improve compatibility with system upgrades.
• Annual Performance Testing: Verify traction motor speed, torque response, and protective function triggering against Otis’ factory specifications. Conduct a full backup of inverter parameters for future maintenance.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Traction System Failures: Elevator experiences speed fluctuations, jerking, stalling, or inability to start—indicative of faulty inverter power conversion or control logic.
• Persistent Critical Errors: Repeated inverter-related error codes (e.g., “IGBT Fault,” “Motor Overload,” “Communication Failure”) that cannot be resolved with troubleshooting or parameter adjustment.
• Physical Damage: Cracked PCB substrate, burned IGBT modules, capacitor bulging/leakage, or water damage—compromising electrical safety and power control functionality.
• Performance Degradation: Increased energy consumption, reduced motor efficiency, delayed response to speed commands, or frequent protective shutdowns—attributed to aging power components or internal circuit damage.
• Safety Compromise: The board fails to trigger emergency stops or protective shutdowns during fault conditions—violating Otis’ safety standards and posing severe risks to passengers.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the drive cabinet clean, dry, and well-ventilated. Ensure temperature remains within the recommended range (-5°C to +45°C) and avoid dust accumulation (a major cause of power component overheating).
• Power Stabilization: Install surge protectors and voltage regulators to shield the board from input power spikes and transients—common causes of IGBT module and capacitor damage.
• Minimize Overload: Adhere to the elevator’s weight capacity limits and avoid frequent full-load acceleration/deceleration cycles—reduces stress on power components.
• Use Genuine Parts Only: For replacements, rely exclusively on authentic Otis AAA26800ATX7 inverter main boards from Nanjing Zhuye. Counterfeit boards use inferior power components, pirated firmware, or incorrect wiring—compromising performance, safety, and Otis’ warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Otis Compatibility: All boards meet Otis’ original manufacturing specifications, ensuring seamless integration with Otis elevator systems (Gen2, SkyRise, NCE) and compliance with global safety standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including power conversion precision, IGBT driver performance, protective function functionality, and thermal resilience—to guarantee reliable operation in critical traction systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Otis elevator systems, providing 24/7 assistance for installation, configuration, firmware updates, and troubleshooting (e.g., inverter faults, communication errors).
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers critical power control components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Otis elevator components.

Conclusion
