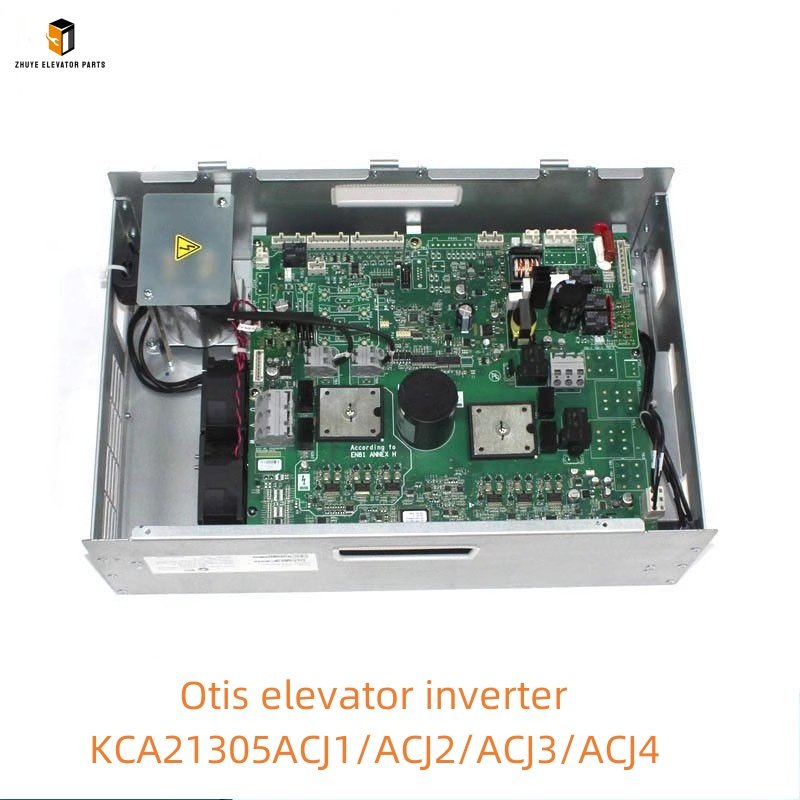

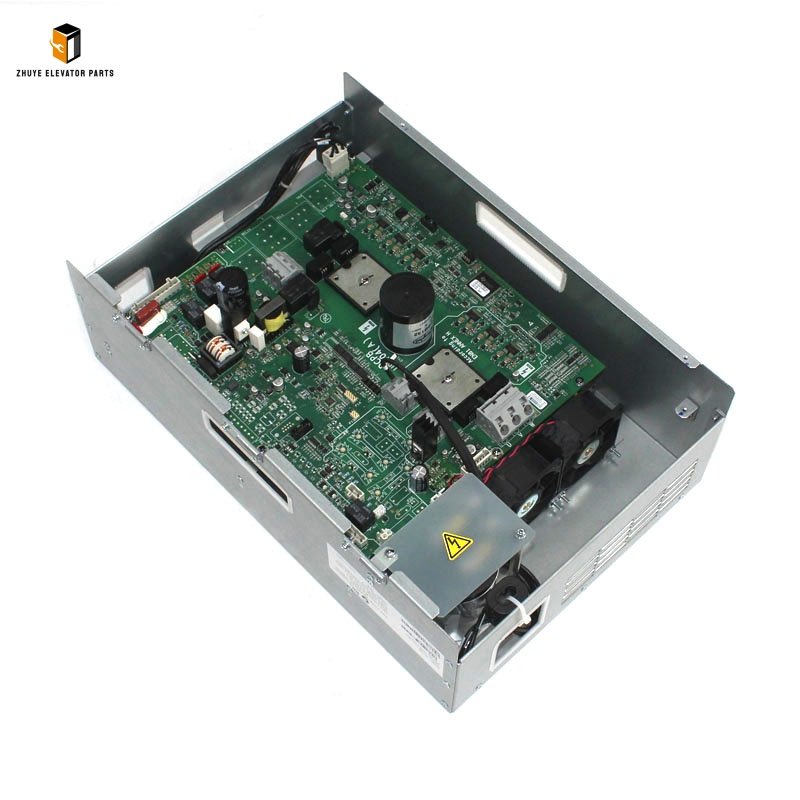

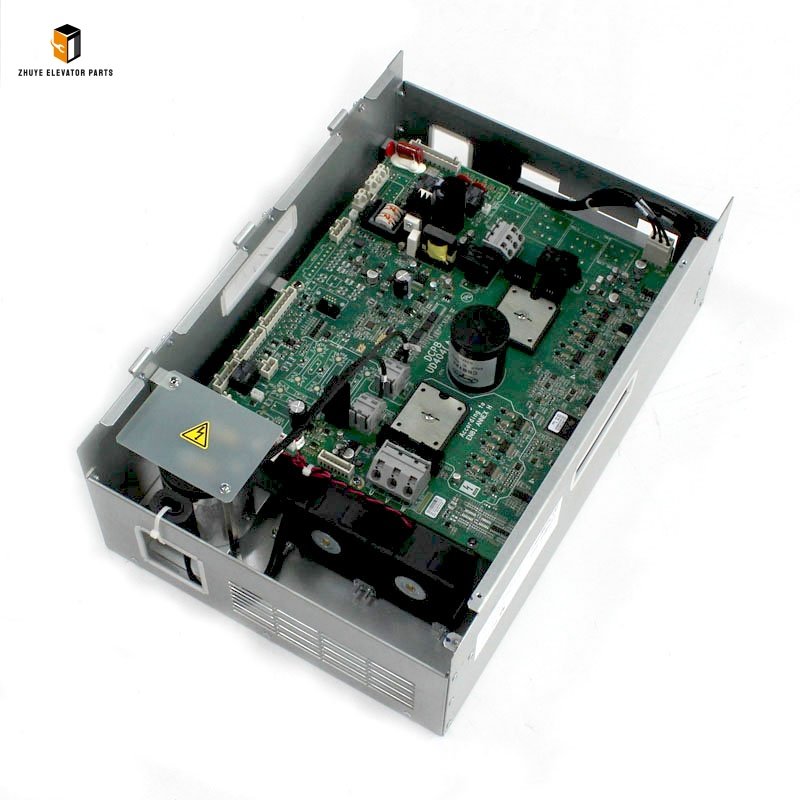

Otis elevator inverter KCA21305ACJ1/ACJ2/ACJ3/ACJ4 Brief Introduction

Product Name	Otis elevator inverter

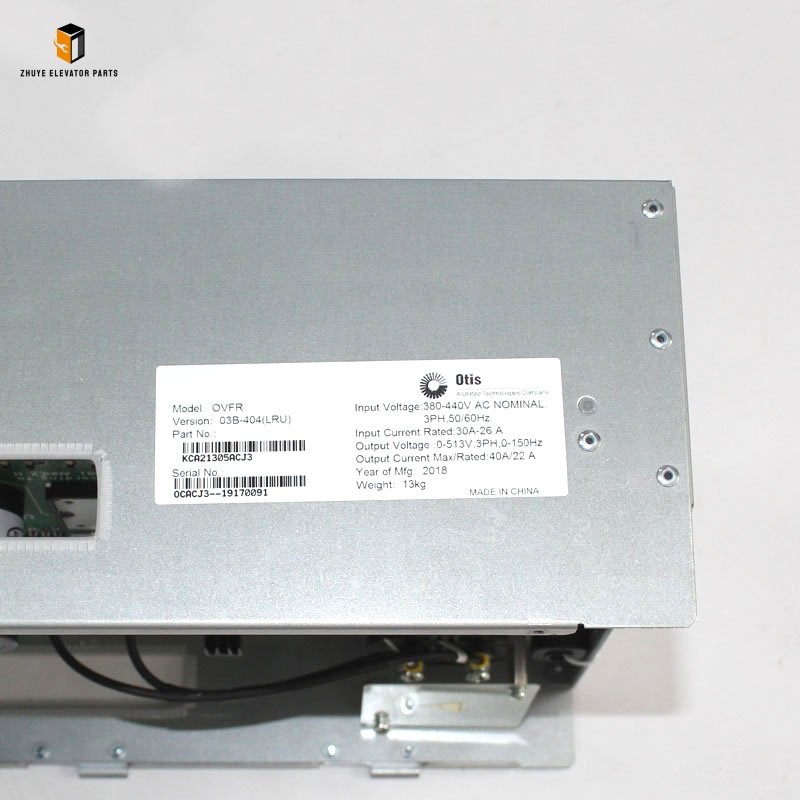

Model Number	KCA21305ACJ1 KCA21305ACJ2 KCA21305ACJ3 KCA21305ACJ4
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

ACJ4: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Inverter series KCA21305ACJ1/ACJ2/ACJ3/ACJ4 is a family of premium variable frequency drives (VFDs) exclusively engineered for Otis elevator traction systems—widely deployed in commercial high-rises, residential towers, and public transit facilities. As the core power control components of Otis’s drive architecture, these inverters convert fixed-frequency AC power to variable-frequency AC, enabling precise regulation of traction motor speed, torque, and regenerative braking across diverse elevator capacities. Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 61800, ISO 9001), the series features a robust, modular design: advanced IGBT power modules, intelligent thermal management, built-in protective functions (overcurrent/overvoltage/short-circuit), anti-interference circuitry, and Otis-specific firmware to withstand 24/7 operation and harsh machine room environments (temperature fluctuations, dust, electromagnetic interference). For maintenance teams, facility managers, and property operators, mastering the correct installation, configuration, and replacement timelines of these ACJ variants is vital to ensure Otis elevators’ signature efficiency, smooth operation, and safety compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the KCA21305ACJ series that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility, reliable performance, and long-term durability across all variants.

Proper Usage Methods of Otis Elevator Inverter KCA21305ACJ Series

1. Pre-Installation Preparation

Before installing any KCA21305ACJ variant (ACJ1/ACJ2/ACJ3/ACJ4), prioritize safety by shutting off the elevator’s main power supply and securing the inverter cabinet with a lockout tag. Inspect the inverter for physical damage—such as cracked housing, loose connectors, damaged cooling fans, burn marks on IGBT modules, or frayed wiring harnesses—defects that can cause short circuits, drive failures, or motor malfunctions. Nanjing Zhuye Elevator Parts conducts rigorous variant-specific quality control checks, so each unit arrives in optimal condition: intact IGBT modules, functional cooling systems, pre-loaded Otis firmware, and pre-tested electrical continuity. Additionally, verify variant compatibility with your Otis elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the inverter’s voltage rating (typically 380V AC three-phase), current capacity (variant-specific: 15–40A), and communication protocol (Otis proprietary CAN bus) match your traction motor and control system requirements.

2. Installation & Configuration Steps

Inverter Installation:
- Access the Otis inverter cabinet (located in the machine room) and locate the designated mounting position. Disconnect the old inverter (if replacing) by disconnecting power cables (L1, L2, L3 input; U, V, W output) and communication cables—label all cables clearly to ensure correct reconnection. Remove the old unit using Otis-specified tools and clean the mounting surface to remove dust or debris.
- Align the KCA21305ACJ variant with the cabinet’s guide rails and secure it with provided mounting bolts (torque to 6–8 Nm) to prevent vibration-induced loosening. Reconnect the power and communication cables to the corresponding terminals, matching the labeled connections to avoid phase or polarity errors. Ensure cables are routed neatly to prevent interference with cooling fans or other control components.
Configuration Setup:
- Power on the inverter cabinet and confirm the ACJ variant initializes correctly (LED status indicator illuminates green, and the startup screen displays “System Ready”). Access the configuration menu via Otis-approved diagnostic software (e.g., Otis Service Tool) by certified technicians:
  - Parameter Restoration: If replacing an existing ACJ inverter, restore elevator-specific parameters (e.g., motor rated speed, acceleration/deceleration time, regenerative braking intensity) from a backup (saved from the old inverter) to maintain operational consistency. Alternatively, load default parameters for your Otis model (provided by Nanjing Zhuye or Otis).
  - Motor Matching: Calibrate the inverter to the traction motor by inputting the motor’s rated voltage, current, and frequency—critical for precise speed control and energy efficiency.
  - Communication Sync: Ensure the inverter communicates seamlessly with the Otis main controller—verify data exchange for speed commands, motor status, and fault notifications.
Functional Testing:
- Conduct comprehensive tests (by certified technicians only), consistent across all ACJ variants:
  - Basic Operation: Operate the elevator through ascending/descending cycles at varying speeds to confirm smooth speed regulation, minimal motor noise, and no jitter—core performance metrics of Otis systems.
  - Load Capacity Test: Run the elevator with a simulated full load (100% of rated capacity) to ensure the inverter maintains stable current output and torque control, even under peak demand.
  - Regenerative Braking Test: Verify energy recovery during deceleration—confirm the inverter feeds excess energy back to the power grid to reduce consumption.
  - Protective Function Test: Simulate fault conditions (e.g., overcurrent, overvoltage, overheating) to confirm the inverter triggers a safe shutdown and logs fault codes for troubleshooting, adhering to Otis’s safety protocols.
- Document test results in maintenance records, noting the specific ACJ variant installed.

3. Routine Usage Maintenance

To preserve performance across the KCA21305ACJ series, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose cables, dust accumulation on the inverter, damaged cooling fans, or debris around the cabinet. Remove dust from vents and heat sinks with compressed air—clogged cooling systems are a leading cause of inverter failure.
Monthly Functional Checks: Use diagnostic software to monitor key parameters (current, voltage, temperature) and verify stability. Document any anomalies (e.g., fluctuating current, overheating alerts) for troubleshooting.
Quarterly Cable Inspections: Inspect power and communication cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye—poor connections can cause communication errors or performance issues.
Semi-Annual Cooling System Maintenance: Clean or replace cooling fans (if necessary) to ensure efficient heat dissipation. Check fan operation by listening for abnormal noises during inverter operation—effective thermal management is critical for long-term reliability.
Annual Firmware Updates: Update the inverter’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance features, fix software bugs, and improve energy efficiency algorithms across all ACJ variants.

Recommended Replacement Cycle

The service life of the Otis Elevator Inverter KCA21305ACJ series is consistent across all variants, depending on usage intensity (daily elevator cycles), environmental conditions (power stability, machine room temperature), and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable power supply), all ACJ variants should be replaced every 7–9 years. This timeframe accounts for gradual degradation of IGBT modules, capacitor aging, firmware obsolescence, and wear of communication ports—ensuring the inverter maintains required efficiency, speed control precision, and compatibility with system upgrades. Proactive replacement reduces the risk of unexpected drive failures, which can lead to costly elevator downtime or safety hazards.

2. Signs That Require Immediate Replacement

Replace any ACJ variant immediately if you encounter any of the following issues:

Drive System Malfunctions: Erratic elevator movement, uneven speed regulation, delayed acceleration/deceleration, or failure to reach rated speed—despite parameter resets and cable checks.
Persistent Fault Codes: Unresolvable overcurrent, overvoltage, overheating, or communication errors (e.g., “Motor Communication Error,” “Controller Mismatch”) that appear after firmware updates and cooling system maintenance.
Physical Damage: Cracked housing, water intrusion, burned IGBT modules, or non-functional cooling fans that cannot be repaired—compromising safety and performance.
Thermal Issues: The inverter triggers frequent overheating alerts, or the housing becomes excessively hot (≥90°C) during normal use—indicating cooling system failure or internal component degradation.
Energy Efficiency Drop: A significant increase in energy consumption (≥20% compared to baseline) due to reduced inverter efficiency.

3. Maintenance to Extend Service Life

To maximize the lifespan of all ACJ variants and minimize replacement costs:

Stabilize Input Voltage: Install industrial-grade surge protectors and voltage regulators in the main power line to shield the inverter from voltage spikes or sags—common causes of IGBT damage.
Ensure Proper Ventilation: Maintain the machine room temperature between 15–30°C and humidity between 30–60%. Ensure the inverter cabinet’s cooling system (fans, vents) is unobstructed.
Maintain Motor Health: Properly lubricate and align the traction motor to reduce load on the inverter. Faulty mechanical components increase stress on IGBT modules and capacitors.
Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit inverters lack Otis’s quality control, firmware compatibility, and safety features—compromising performance and voiding system warranties.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Otis Elevator Inverter KCA21305ACJ1/ACJ2/ACJ3/ACJ4, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:

Authenticity & Variant Compatibility: All ACJ variants are manufactured to Otis’s original specifications, ensuring seamless integration with Otis traction systems and compliance with global safety/electronic standards.
Strict Quality Assurance: Each unit undergoes rigorous testing—including power conversion accuracy, load capacity verification, thermal performance, and firmware compatibility—to guarantee reliable operation in critical drive scenarios.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from variant-specific installation and parameter configuration to troubleshooting inverter-specific issues (e.g., fault code resolution, firmware updates) in Otis elevators.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers inverters promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic commercial or residential buildings.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—ideal for bulk orders or fleet maintenance of Otis elevators.

Conclusion

The Otis Elevator Inverter KCA21305ACJ1/ACJ2/ACJ3/ACJ4 series is a cornerstone of Otis traction system performance, delivering precision control, energy efficiency, and reliability across diverse elevator applications. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you ensure your Otis elevators remain compliant, efficient, and downtime-free. Whether you need a specific ACJ variant (e.g., ACJ4 for high-capacity elevators) or bulk orders across the series, Nanjing Zhuye delivers premium Otis components and tailored support. Invest in drive system excellence—choose Nanjing Zhuye Elevator Parts for your Otis KCA21305ACJ series inverter requirements.
