Description

1. Safety Preparation: Before installation, shut off the elevator’s main power supply and disconnect the inverter cabinet power. Implement LOTO (Lockout/Tagout) procedures to prevent electrical hazards. Access the inverter cabinet using a stable platform, wearing insulating gloves, safety glasses, and an anti-static wristband to protect sensitive electronic components.

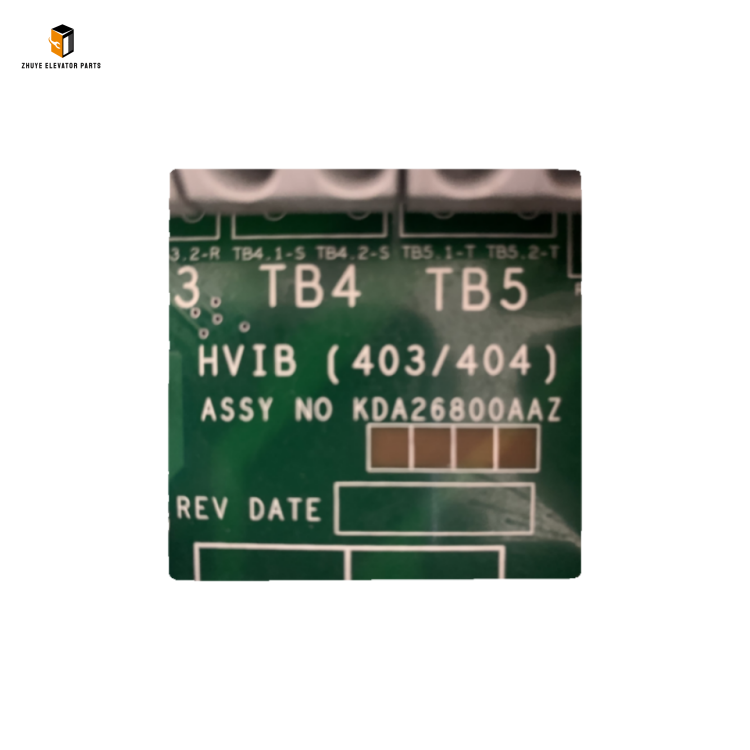

2. Remove the Old Board: Locate the existing KCA26800AAZ2 main board in the Otis HVIB inverter cabinet (typically mounted on the backplane with locking levers). Disconnect all wiring harnesses—take detailed photos of terminal connections (note labels like L1, L2, L3 for input; U, V, W for output; and communication ports) to ensure correct reconnection. Release the locking levers and carefully slide the old board out of the backplane, avoiding damage to connectors or traces.

3. Prepare the Mounting Area: Clean the backplane connectors with a dry, lint-free cloth to remove dust or debris. Inspect the connectors for bent pins or corrosion (straighten minor bends with a precision tool or replace the backplane if damaged) to ensure reliable electrical contact. Verify all wiring harnesses are in good condition (no fraying or insulation damage).

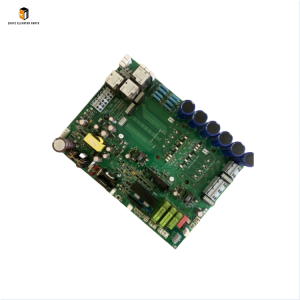

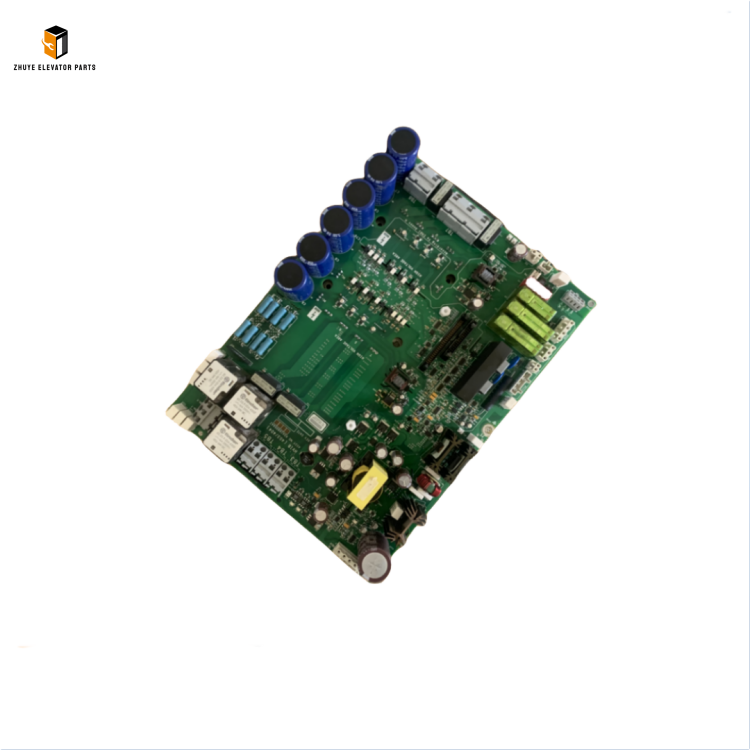

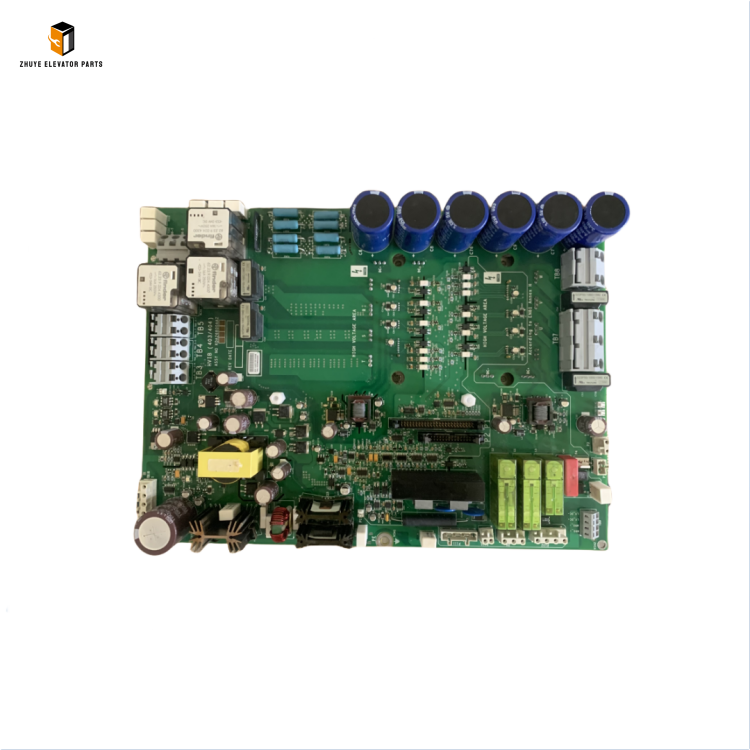

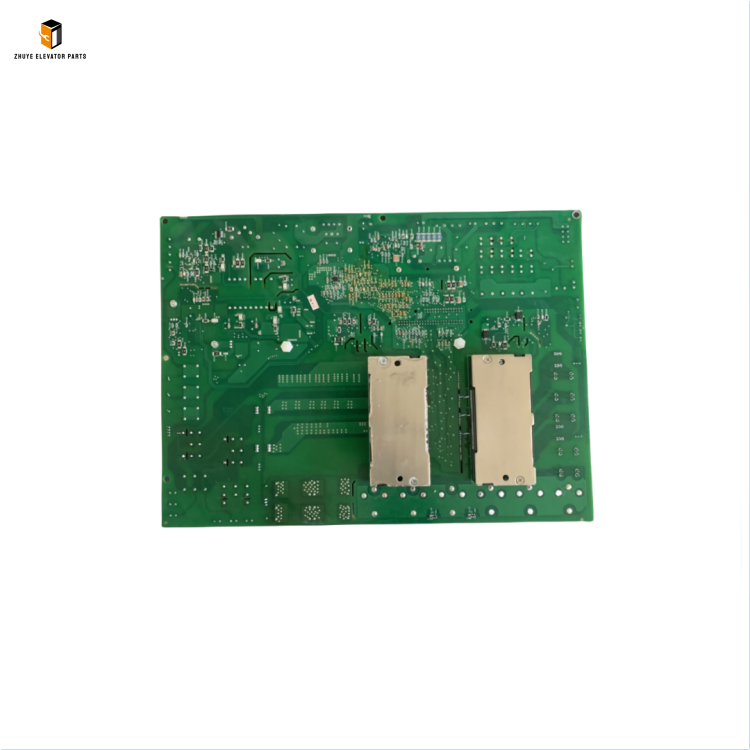

4. Install the New Board: Align the Nanjing Zhuye Elevator Parts KCA26800AAZ2 main board with the backplane guides, ensuring the edge connector fully seats into the backplane socket. Lock the board in place using the integrated levers. Reconnect all wiring harnesses according to the photos, ensuring each connector clicks into place to avoid loose connections. Double-check power input and output wiring to prevent reverse polarity (critical for board protection).

5. Configure and Test: Restore power to the inverter cabinet (follow Otis’ power-up sequence: main power → control power). Access Otis’ service software (e.g., Otis Service Tool) via the communication port to verify the board is recognized. Upload the original inverter parameters (saved from the old board) to the new board—this includes speed settings, current limits, and protection thresholds. Conduct a comprehensive test: run the elevator in inspection mode to check acceleration/deceleration smoothness, verify load capacity regulation, and confirm no fault codes (e.g., E01 for power module failure, E02 for communication error) appear on the Otis display. Run 20+ full elevator cycles to validate consistent performance under varying loads.

• Parameter Backup: Always back up the old board’s parameters before replacement. Lost or incorrect parameters can cause inverter malfunctions or safety hazards.

• Anti-Static Handling: Store the board in an anti-static bag when not in use. Never touch exposed circuits or connectors with bare hands, as static electricity can damage the DSP or power modules.

• Voltage Compatibility: Ensure the inverter cabinet’s input voltage matches the board’s requirements (380-480V AC, 3-phase)—using the wrong voltage can burn out the power module.

• Software Compatibility: Use only Otis-approved service software versions for configuration. Outdated software may cause parameter mismatches or communication failures.

• Ventilation Maintenance: Ensure the inverter cabinet’s cooling fan is functioning properly. Overheating can damage the board’s power components—clean dust from vents regularly.

• High-Traffic Areas: Shopping malls, airports, or high-rise buildings (Otis elevators operating 12+ hours daily, 1,000+ cycles per day) – replace every 7-9 years. Continuous power conversion and heat generation accelerate component aging.

• Medium-Traffic Areas: Residential buildings, hotels, or offices (8-10 hours daily, 500-1,000 cycles per day) – replace every 9-11 years.

• Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily, day) – replace every 11-13 years, with annual parameter and performance checks.

• Persistent Fault Codes: Recurring “inverter control error,” “power module failure,” or “parameter corruption” codes (e.g., E01, E03, E05 on Otis displays) that persist after software resets.

• Operational Failures: Elevator exhibits erratic speed fluctuations, fails to accelerate/decelerate smoothly, or cannot reach rated speed – indicating DSP or PWM module degradation.

• Physical Damage: Burnt components, swollen capacitors, or corrosion on the PCB – common in inverter cabinets exposed to humidity or power surges.

• Boot Failure: The board fails to initialize (no LED activity on status indicators) or enters a continuous reboot loop.

• Efficiency Drop: Significant increase in energy consumption (verified via Otis service software) or overheating of the inverter cabinet – indicating power conversion inefficiency.

• 1:1 Otis Compatibility: Engineered to match Otis’ original hardware and software specifications, ensuring seamless integration with HVIB inverter systems and no modifications required.

• Otis-Grade Reliability: Manufactured with industrial-grade power components and precision assembly, delivering the same durability and efficiency as Otis’ OEM boards.

• Rigorous Quality Assurance: 100% pre-delivery testing, including functional validation with Otis HVIB inverters, power conversion efficiency trials, and long-term stability testing.

• Expert Otis Support: Our team of engineers specializes in Otis drive systems, providing professional guidance on installation, parameter configuration, and troubleshooting.

• Fast Delivery: We maintain a large inventory of Otis-compatible main boards to fulfill emergency replacement orders within 24-48 hours, minimizing elevator downtime.
