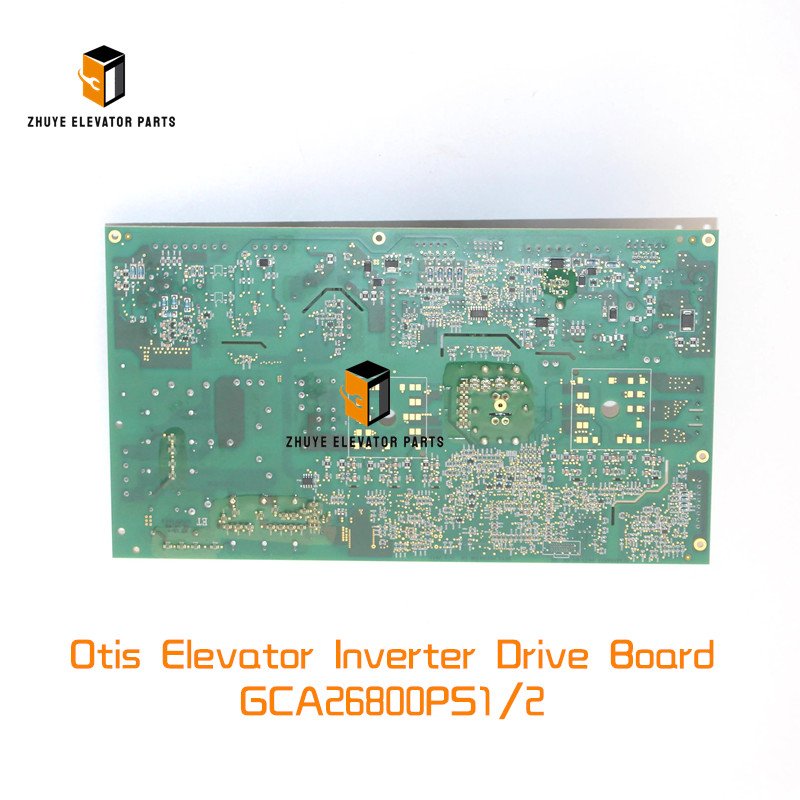

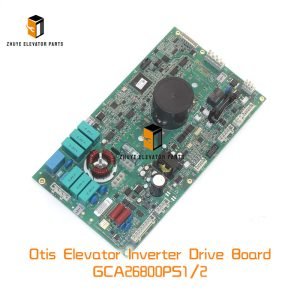

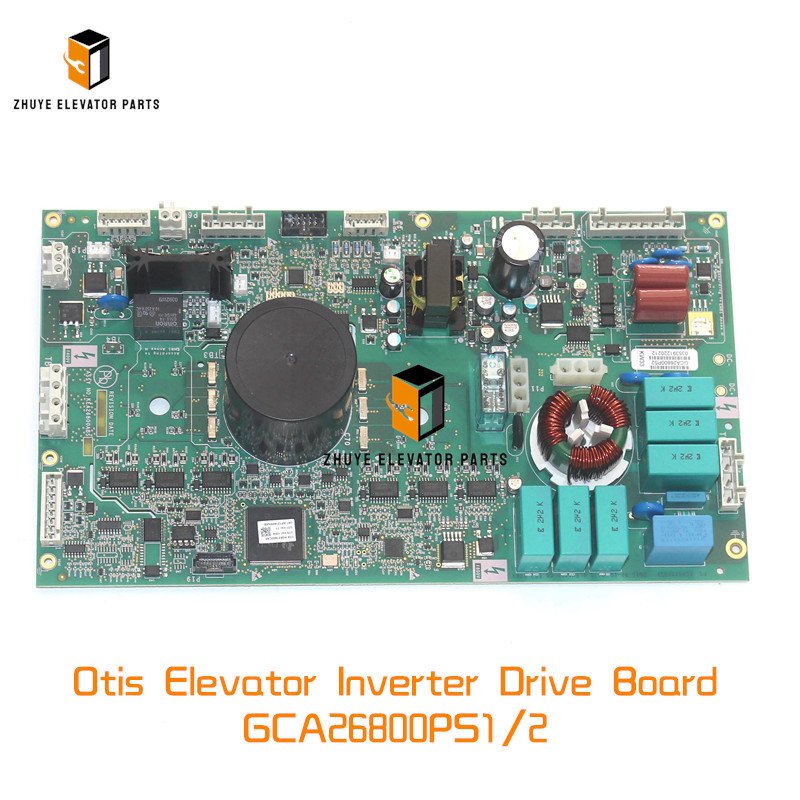

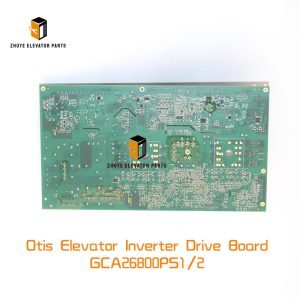

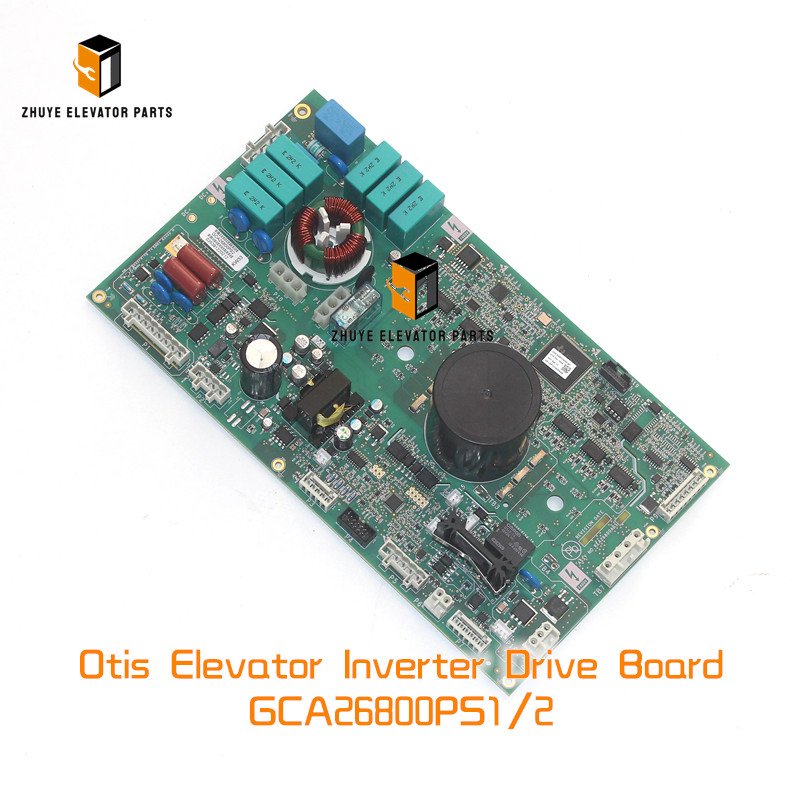

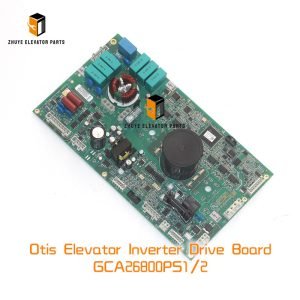

Otis Elevator Inverter Drive Board GCA26800PS1/2: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Inverter Drive Board GCA26800PS1/2

1. Pre-Installation Preparation

2. Installation & Operation Steps

• Mounting the Board:
  • Locate the designated slot in the elevator’s inverter cabinet—typically marked with the board model or “Inverter Drive Board” for easy identification.
  • Align the board’s edge connectors with the slot, ensuring a precise fit (avoid forcing the unit to prevent pin bending or circuit damage). Secure the board with the provided screws (torque to 0.5–0.8 Nm) to minimize vibration during operation, as loose installations can disrupt power transmission.
• Wiring Connection:
  • Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the board to the main motor, power supply, and elevator’s control system. Key steps include:
    • Connect the three-phase power input wires (L1, L2, L3) to the board’s input terminals, ensuring proper phase alignment and tight crimp connections to prevent arcing.
    • Attach the motor output wires (U, V, W) to the corresponding terminals, matching the motor’s phase configuration (refer to the motor nameplate for guidance).
    • Reconnect signal wires for speed sensors, current transducers, and the main control unit—use photos taken before removing the old board to avoid misconnections, which can lead to erratic motor behavior.
    • Secure all wiring with cable ties and route them away from high-temperature components to prevent insulation damage.
• Parameter Configuration:
  • Power on the inverter cabinet and access the board’s configuration menu via Otis-approved diagnostic software or the elevator’s control panel.
  • Set critical parameters: rated motor speed, acceleration/deceleration time, overcurrent protection threshold, and energy-saving modes. Use default values from Otis or Nanjing Zhuye’s technical guide for your specific elevator model.
  • Save parameters and restart the system to apply settings—ensure no error codes appear during initialization (refer to the diagnostic manual for code interpretation if issues arise).
• Functional Testing:
  • Conduct a comprehensive test sequence:
    • Operate the elevator through ascending/descending cycles to verify smooth speed transitions—no jitter, sudden surges, or unusual motor noise.
    • Test load capacity performance by running the elevator with simulated full load (per safety regulations) to confirm the board maintains stable current output.
    • Monitor the board’s temperature during a 2-hour test run; normal operating temperature should not exceed 70°C. Overheating indicates poor ventilation or wiring issues.
    • Verify protective functions by triggering a simulated overcurrent or overvoltage scenario—ensure the board shuts down safely to prevent motor damage.

3. Routine Usage Maintenance

• Conduct monthly visual inspections to check for loose wiring, dust accumulation, or signs of overheating (e.g., discolored circuits, burning odors).
• Clean the board and inverter cabinet quarterly with compressed air (low pressure) to remove dust and debris—contaminants can cause short circuits or thermal damage.
• Back up the board’s parameters semi-annually to a secure storage device, as parameter loss can lead to operational failures.
• Update firmware annually as recommended by Otis or Nanjing Zhuye to address bugs and improve compatibility with system upgrades.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Erratic elevator movement (e.g., uneven speed, delayed acceleration, or unexpected stops) that persists after troubleshooting wiring and parameter resets.
• Persistent error codes related to the inverter drive (e.g., overcurrent, overvoltage, or communication faults) that cannot be resolved by diagnostic tools.
• Physical damage: Burnt circuits, corroded terminals, water intrusion, or cracked casing.
• Unusual noises (e.g., buzzing, clicking, or sparking) from the inverter cabinet—indicative of internal component failure.
• Inability to update firmware or integrate with elevator system upgrades—older boards may lack compatibility with new safety features.

3. Maintenance to Extend Service Life

• Keep the inverter cabinet at a stable temperature (15–30°C) and low humidity (30–60%) to prevent component corrosion and capacitor degradation.
• Install industrial-grade surge protectors in the elevator’s power system to shield the board from voltage spikes.
• Ensure the main motor and traction system are properly maintained (e.g., lubricated bearings, aligned rails) to reduce load on the drive board.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit components can cause malfunctions or void safety certifications.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All GCA26800PS1/2 boards are manufactured to Otis’s original specifications, ensuring seamless integration with Otis inverter systems and adherence to global safety standards.
• Strict Quality Assurance: Each unit undergoes 100+ hours of testing—including power regulation accuracy, load capacity, temperature resistance, and durability—to guarantee reliable performance in critical scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from parameter configuration and firmware updates to troubleshooting diagnostic errors, ensuring a smooth user experience.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety compliance.
