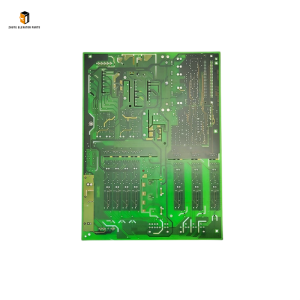

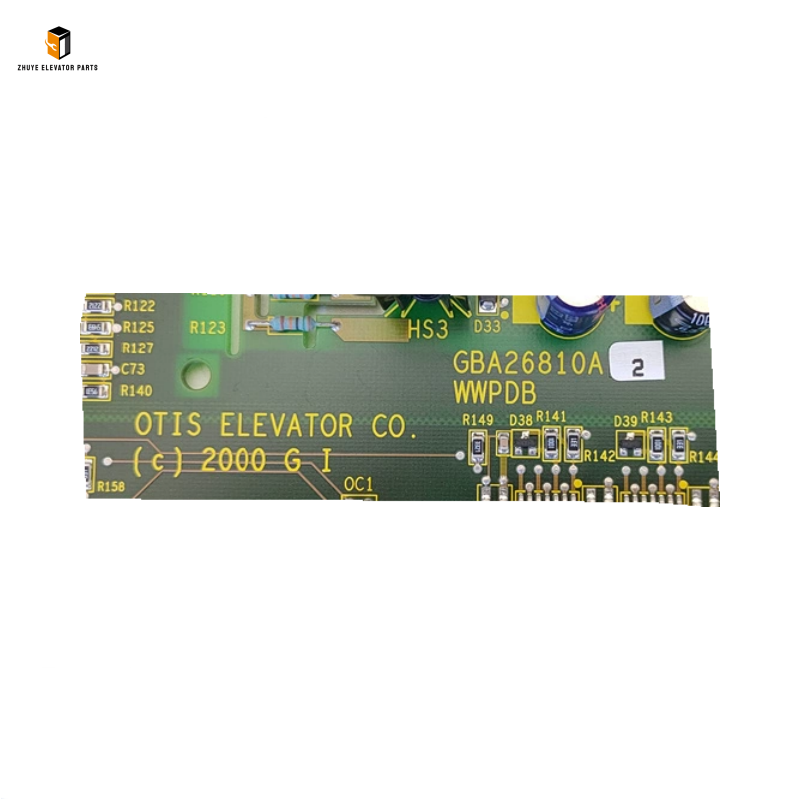

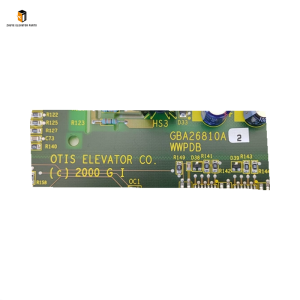

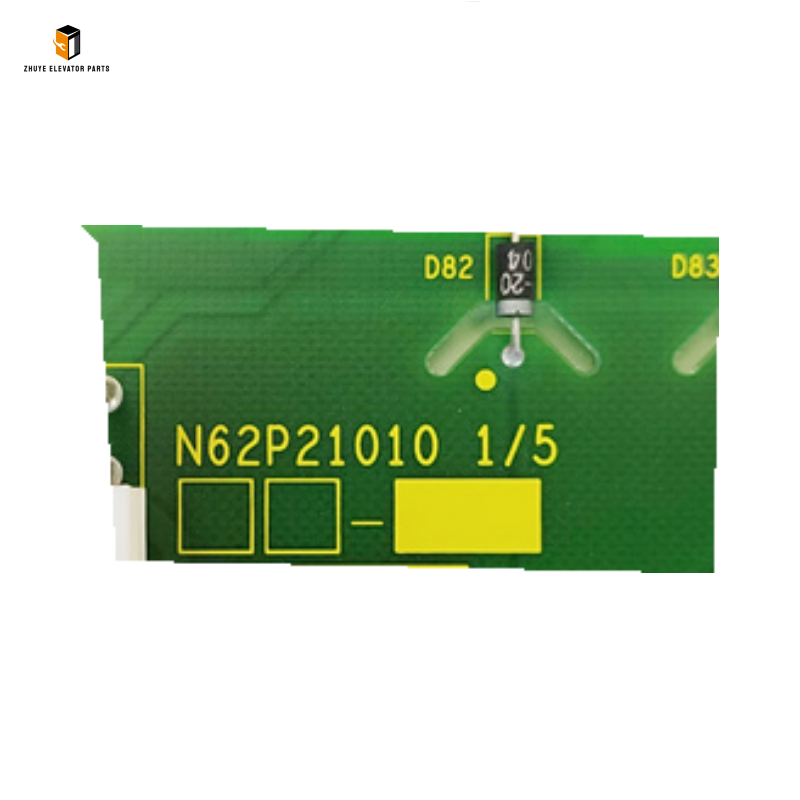

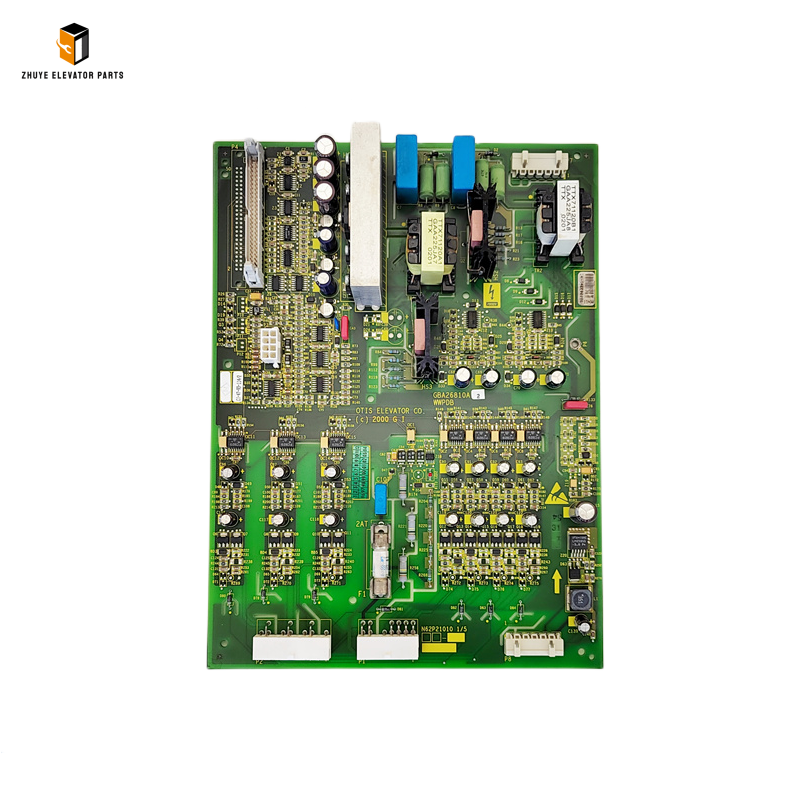

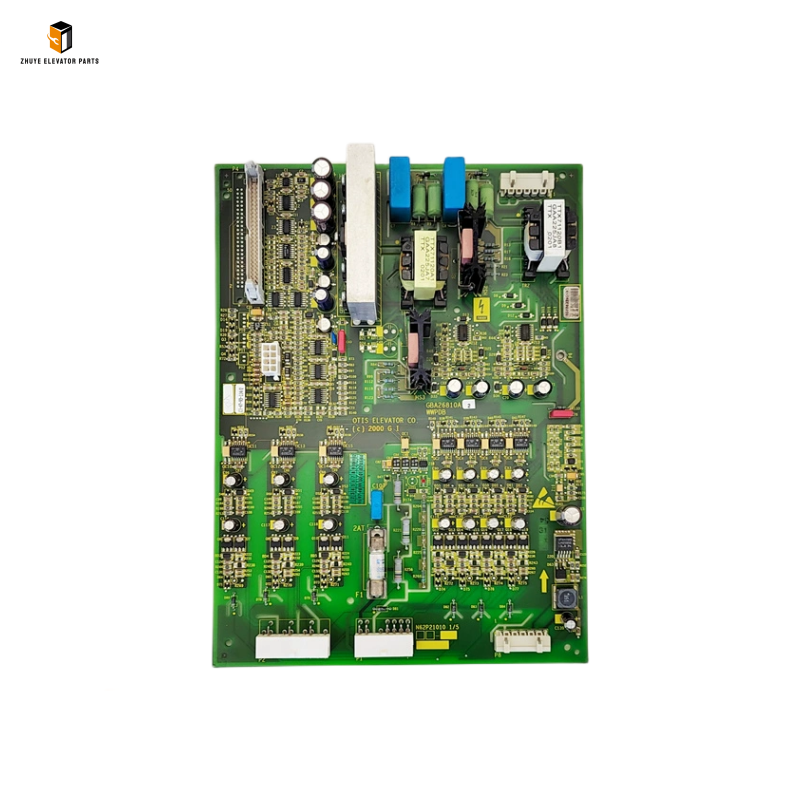

Otis elevator inverter drive board GBA26810A1 Brief Introduction

Product Name	Otis elevator inverter drive board
Model Number	GBA26810A1 GBA26810A2
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator Inverter Drive Board GBA26810A1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Inverter Drive Board GBA26810A1 is a mission-critical power control component exclusively engineered for Otis inverter systems—including OVFR03, LRU, and SPBC-II platforms—essential for high-traffic commercial high-rises, luxury residential buildings, transit hubs, and public facilities worldwide. As the “power core” of the elevator’s traction system, this drive board converts stable DC bus voltage into variable-frequency AC power, enabling smooth acceleration/deceleration, precise floor leveling (deviation ≤±2mm), and up to 35% energy savings compared to conventional drives. It integrates Otis’ proprietary vector control algorithm, high-performance IGBT (Insulated Gate Bipolar Transistor) modules, and real-time motor feedback calibration—upholding the brand’s strict standards for reliability, energy efficiency, and operational safety.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61800-5-1, UL 1012, ISO 9001), the GBA26810A1 features a rugged, high-temperature-resistant design: anodized aluminum alloy heat sink (ensures efficient heat dissipation), conformal-coated PCB (resists dust and moisture), high-voltage insulated terminals, and multi-layer protection mechanisms (overvoltage, overcurrent, short-circuit, overtemperature, ground fault). This construction withstands 24/7 operation under heavy loads, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the GBA26810A1 that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility, stable motor control, and long-term performance.

Proper Usage Methods of Otis GBA26810A1 Inverter Drive Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, discharging the inverter’s DC bus capacitors (wait a minimum of 20 minutes after power-off to avoid electric shock), and securing the work area (machine room inverter cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new GBA26810A1 for physical damage—cracked heat sink, bent IGBT pins, swollen capacitors, corroded terminals, or loose solder joints—defects that can cause short circuits, IGBT burnout, or drive failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact power modules, functional IGBT arrays, secure wiring connections, and pre-loaded Otis-compatible firmware.

Verify compatibility with your Otis inverter system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s power rating (typically 11kW–22kW) matches the traction motor’s specifications, (2) the control signal protocol is compatible with the elevator’s main control board (e.g., SPBC-II GCA26800NB4), and (3) the mounting dimensions (280x220x60mm standard) fit the inverter cabinet’s slot. Using an incompatible drive board can damage the motor, trigger persistent system faults, or cause erratic elevator movement. Additionally, prepare the installation area: Clean the inverter cabinet to remove dust and debris, ensure a minimum 10cm clearance around the board for airflow (critical for heat dissipation), and verify the DC bus cables and motor output cables are intact (no fraying, insulation damage, or corrosion).

2. Installation & Configuration Steps

Board Installation: Align the GBA26810A1 with the mounting brackets in the inverter cabinet, ensuring the heat sink faces the cabinet’s cooling fan. Secure the board with stainless steel screws (torque to 3.5–4.5 Nm) to prevent vibration-induced movement—loose mounting can disrupt heat dissipation or damage internal components. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to ensure electrical safety.
Wiring & Connection: Connect the DC bus cables (positive +/negative –) to the board’s power input terminals, ensuring tight connections (torque to 2.5–3.0 Nm) to prevent arcing or overheating. Connect the motor output cables (U/V/W) to the corresponding terminals—note that cable order directly impacts motor direction (adjust only if testing confirms reverse movement). Connect the control signal cable to the main control board, matching pin assignments exactly per Otis’ wiring schematic (incorrect pin connections are the leading cause of post-installation faults).
Post-Installation Configuration & Testing: Restore power to the inverter (performed exclusively by certified Otis technicians) and configure parameters via Otis’ diagnostic software (e.g., OTIS Service Tool). Input critical settings: motor rated voltage/current/frequency, acceleration/deceleration time (per elevator load capacity), PWM (Pulse Width Modulation) frequency (typically 8kHz), and protection thresholds—use values from the elevator’s technical manual or backup parameter files. Conduct three mandatory tests:
1. No-Load Test: Run the elevator without passengers to verify smooth motor operation, no abnormal noise (e.g., humming, grinding), and no drive board fault codes.
2. Load Test: Operate the elevator with rated load (up to 100% capacity) to confirm stable speed regulation, precise floor leveling, and drive board temperature ≤78°C.
3. Protection Function Test: Simulate an overcurrent (temporary motor short-circuit) or overvoltage (grid spike) to confirm the board triggers immediate protection and shuts down output—preventing motor or board damage.

  Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the GBA26810A1’s performance and extend its lifespan, implement proactive maintenance practices tailored to high-power inverter components:

Daily Visual Inspections: Check the drive board for loose wiring, physical damage, or signs of overheating (discoloration of heat sink, burning odors, or abnormal fan noise). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Cooling System Check: Clean dust from the inverter cabinet’s air intake grilles and cooling fan using a soft brush or low-pressure compressed air—dust buildup blocks airflow and causes overheating. Ensure the cooling fan operates smoothly without jamming.
Monthly Parameter Verification: Use diagnostic software to review drive board parameters—confirm no unintended changes (e.g., due to electrical interference) and back up settings to a secure location.
Quarterly Connection Inspections: Tighten DC bus and motor output terminal screws (vibration can loosen connections over time). Inspect control signal cables for fraying or insulation damage; replace with genuine Otis cables from Nanjing Zhuye if needed.
Semi-Annual IGBT & Capacitor Health Check: Use a multimeter to test IGBT module continuity and DC bus capacitor voltage retention—replace the drive board if components show signs of degradation (e.g., inconsistent resistance, rapid voltage discharge).

Recommended Replacement Cycle

The service life of the Otis GBA26810A1 Inverter Drive Board depends on usage intensity (daily operating hours, load frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -10°C to +60°C), the GBA26810A1 should be replaced every 7–9 years. This timeframe aligns with the typical lifespan of IGBT modules and high-voltage capacitors in elevator inverter applications, ensuring proactive replacement before component degradation leads to unexpected failures.

2. Signs That Require Immediate Replacement

Replace the drive board immediately if:

Drive Failures: The board displays persistent fault codes (e.g., “IGBT Fault,” “Overheat,” “Communication Loss”) that cannot be resolved by parameter adjustment, cooling system cleaning, or wiring checks.
Motor Malfunctions: The traction motor runs erratically, jitters, or fails to start—indicating unstable power output from the drive board.
Electrical Damage: Burned terminals, melted wires, or visible internal component damage—signaling short circuits or overload.
Performance Degradation: Elevator acceleration/deceleration becomes rough, leveling accuracy decreases (>±5mm), or energy consumption spikes (indicating reduced efficiency).
Safety Compromise: The board fails to trigger protection functions, risking motor burnout or elevator instability—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Maintain the machine room at 10°C–45°C with humidity <80%—extreme temperatures or moisture accelerate component aging. Install additional ventilation if the inverter cabinet is enclosed.
Power Stabilization: Install external surge protectors and voltage regulators in the main power circuit to shield the drive board from grid spikes and fluctuations.
Cooling System Care: Replace the inverter cabinet’s cooling fan every 3–4 years (regardless of operation status) to ensure reliable heat dissipation. Use only Otis-approved fans from Nanjing Zhuye.
Genuine Parts Only: Use exclusively authentic Otis GBA26810A1 drive boards from Nanjing Zhuye. Counterfeit units use inferior IGBT modules, lack Otis’ control algorithms, and risk catastrophic elevator failure.

Why Choose Nanjing Zhuye Elevator Parts for Otis GBA26810A1?

When sourcing a critical power control component like the Otis inverter drive board, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with Otis inverter systems and main control boards—eliminating compatibility risks.
Strict Quality Assurance: Each drive board undergoes rigorous testing (power conversion efficiency, IGBT performance, protection function reliability) to meet Otis’ original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and maintenance—even for complex Otis inverter systems.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where drive failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Otis Elevator Inverter Drive Board GBA26810A1 is a foundational power control component that defines elevator performance, energy efficiency, and safety. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Otis inverter-equipped elevators downtime-free, compliant with global safety standards, and optimized for cost savings. Whether you need a single replacement drive board, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in the reliability and efficiency of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your GBA26810A1 inverter drive board requirements.
