Description

1. Safety Preparation: Before installation, shut off the elevator’s main power supply and disconnect the inverter cabinet power. Implement LOTO (Lockout/Tagout) procedures to prevent electrical hazards. Access the inverter cabinet (typically located in the elevator machine room) using a stable platform, wearing insulating gloves, safety glasses, and an anti-static wristband to protect sensitive electronic components.

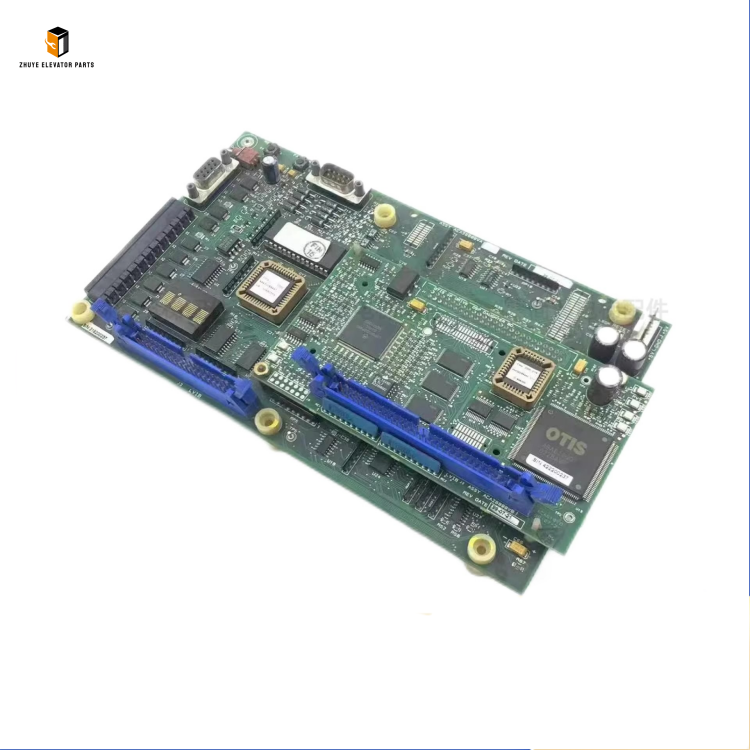

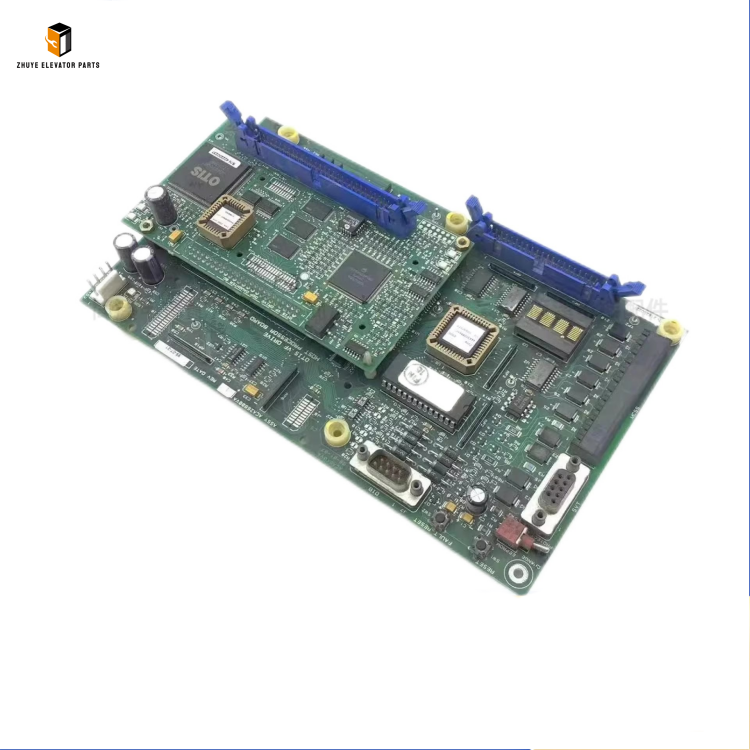

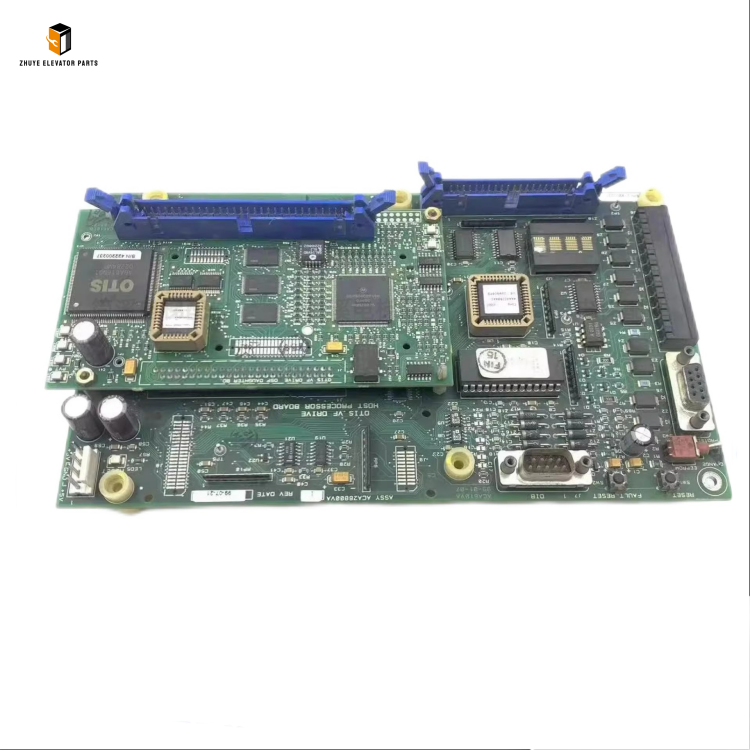

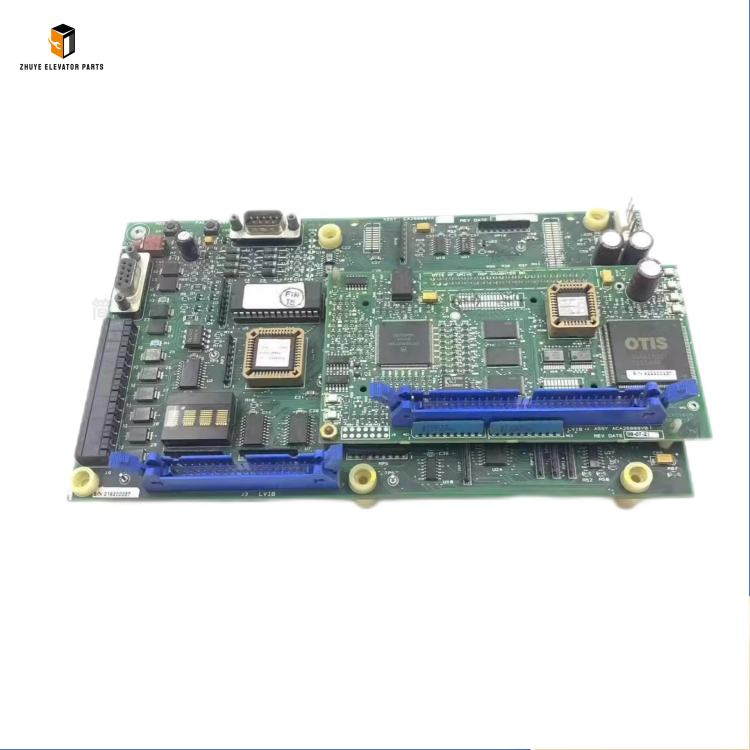

2. Remove the Old Board: Locate the existing ADA/ACA26800VA1 board in the Otis inverter cabinet (mounted on the backplane with locking levers or fixing screws). Disconnect all wiring harnesses—take detailed photos of terminal connections (note labels like L1/L2/L3 for input, U/V/W for motor output, and communication ports) to ensure correct reconnection. Release the locking levers or remove the screws, then carefully slide the old board out of the backplane, avoiding damage to connectors or traces.

3. Prepare the Mounting Area: Clean the backplane connectors with a dry, lint-free cloth to remove dust or debris. Inspect the connectors for bent pins or corrosion (straighten minor bends with a precision tool or replace the backplane if damaged) to ensure reliable electrical contact. Verify all wiring harnesses are in good condition (no fraying or insulation damage).

4. Install the New Board: Align the Nanjing Zhuye Elevator Parts ADA/ACA26800VA1 with the backplane guides, ensuring the edge connector fully seats into the backplane socket. Secure the board with locking levers or original screws (torque: 1.5-2.0 N·m) to prevent vibration-induced loosening. Reconnect all wiring harnesses according to the photos, ensuring each connector clicks into place to avoid loose connections. Double-check phase alignment for power input/output to prevent motor damage.

5. Configure and Test: Restore power to the inverter cabinet (follow Otis’ power-up sequence: main power → control power). Access Otis’ service software (e.g., Otis Service Tool) via the communication port to verify the board is recognized. Upload the original inverter parameters (saved from the old board) to the new board—this includes speed reference curves, acceleration/deceleration times, current limits, and protection thresholds. Conduct a comprehensive test: run the elevator in inspection mode to check speed control smoothness, verify load regulation, and test emergency stop functionality. Run 20+ full elevator cycles under varying loads to validate consistent performance, with no fault codes (e.g., E03 for IGBT failure, E09 for communication error) or operational anomalies.

• Parameter Backup: Always back up the old board’s parameters before replacement. Lost or incorrect parameters can cause severe inverter malfunctions, including motor damage or unsafe elevator operation.

• Anti-Static Handling: Store the board in an anti-static bag when not in use. Never touch exposed circuits or IGBT modules with bare hands, as static electricity can cause permanent component failure.

• Voltage Compatibility: Ensure the inverter cabinet’s input voltage matches the board’s requirements (380-480V AC, 3-phase). Voltage fluctuations beyond ±10% can trigger protection alarms or damage power components.

• Software Compatibility: Use only Otis-approved service software for parameter configuration. Outdated or non-Otis software may cause parameter corruption or communication failures with the main controller.

• Heat Dissipation Maintenance: Ensure the inverter cabinet’s cooling fan and heat sink are functioning properly. Overheating can damage the board’s components—clean dust from vents and heat sinks quarterly.

• High-Traffic Areas: Shopping malls, airports, or high-rise buildings (Otis elevators operating 12+ hours daily, 1,000+ cycles per day) – replace every 7-9 years. Continuous power conversion and heat generation accelerate component aging, particularly for IGBT drivers.

• Medium-Traffic Areas: Residential buildings, hotels, or offices (8-10 hours daily, 500-1,000 cycles per day) – replace every 9-11 years.

• Low-Traffic Areas: Villas, industrial facilities, or low-occupancy buildings (4-6 hours daily, 0 cycles per day) – replace every 11-14 years, with semi-annual performance and parameter checks.

• Persistent Fault Codes: Recurring “inverter control error,” “IGBT overheating,” or “communication failure” codes that persist after software resets and wiring checks.

• Operational Failures: Elevator exhibits erratic speed fluctuations, failed acceleration/deceleration, inability to reach rated speed, or unexpected stops – indicating DSP or PWM module degradation.

• Physical Damage: Burnt components, swollen capacitors, or corrosion on the PCB – common in cabinets exposed to humidity, dust, or power surges.

• Startup Failures: The board fails to initialize (no LED activity on status indicators) or enters a continuous reboot loop.

• Efficiency Drop: Significant increase in energy consumption (verified via Otis service software) or reduced drive system responsiveness – indicating power conversion inefficiency.

• 1:1 Otis Compatibility: Engineered to match Otis’ original hardware and software specifications, ensuring seamless integration with Otis inverter systems and no modifications required.

• Otis-Grade Reliability: Manufactured with industrial-grade IGBT modules, high-quality capacitors, and precision DSP chips – delivering the same durability and performance as Otis’ OEM boards.

• Rigorous Quality Assurance: 100% pre-delivery testing, including functional validation with Otis inverter systems, power conversion efficiency trials, and environmental stress testing (temperature, humidity, vibration).

• Expert Otis Support: Our team of certified engineers specializes in Otis drive systems, providing professional guidance on installation, parameter configuration, and troubleshooting via phone or email.

• Fast Emergency Delivery: We maintain a large inventory of ADA/ACA26800VA1 boards to fulfill urgent replacement orders within 24-48 hours, minimizing elevator downtime and operational disruptions.
