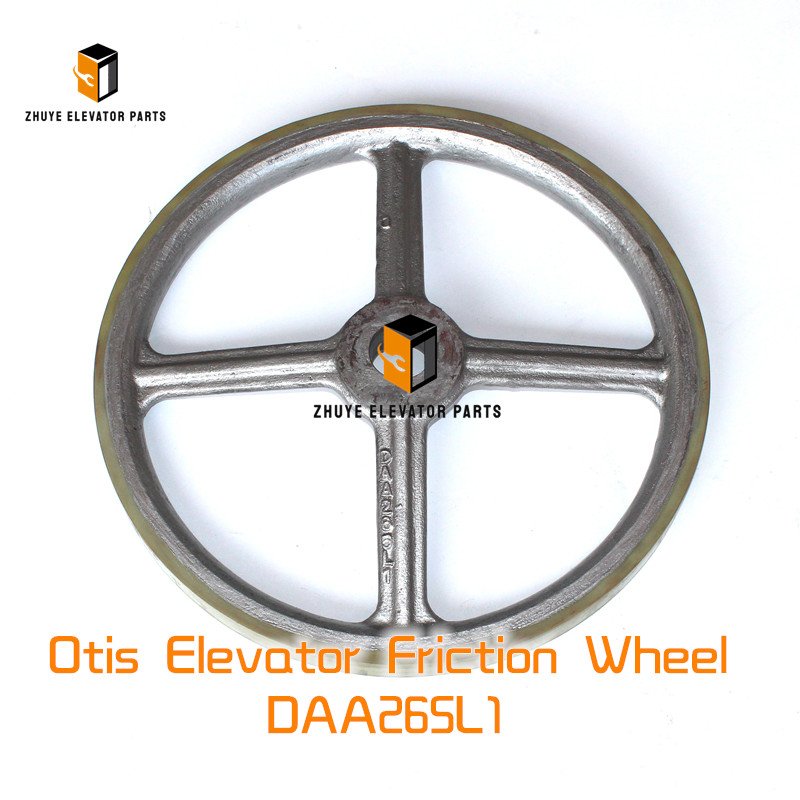

Otis Elevator Friction Wheel DAA265L1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Friction Wheel DAA265L1

1. Pre-Installation Preparation

2. Installation & Adjustment Steps

• Removal of Old Wheel:
  • Access the elevator machine room and locate the friction wheel mounted on the traction motor shaft or gearbox output. Disconnect the elevator ropes/belts from the wheel (use a rope tensioner to maintain tension and prevent slack).
  • Use a puller tool or torque wrench to remove the locking nut/keyway securing the old wheel to the shaft—support the wheel to prevent sudden movement. Remove the old wheel and clean the motor shaft with a wire brush and degreaser to eliminate rust, debris, or old lubricant.
• Installation of New Wheel:
  • Apply a thin layer of Otis-approved anti-seize compound to the motor shaft (avoiding the friction surface) to facilitate installation and prevent corrosion. Slide the DAA265L1 onto the shaft, ensuring it fits snugly against the shoulder or spacer.
  • Secure the wheel with the original locking nut or keyway, torquing to Otis’s recommended value (25–30 Nm) to prevent vibration-induced loosening. Verify the wheel rotates freely without wobble (runout ≤0.1mm) using a dial indicator.
• Rope/Belt Reinstallation & Adjustment:
  • Reconnect the elevator ropes/belts to the DAA265L1, ensuring proper alignment and tension (per Otis’s specifications). Adjust the rope tensioner to achieve uniform pressure across all ropes—insufficient tension can cause slippage, while over-tensioning accelerates wheel wear.
• Functional Testing:
  • Conduct mandatory safety tests (by certified technicians only):
    • Static Load Test: Hold the elevator car at a fixed position to confirm the friction wheel maintains grip without slippage.
    • Dynamic Operation Test: Operate the elevator through ascending/descending cycles at various speeds to verify smooth movement, minimal noise, and consistent traction.
    • Emergency Stop Test: Trigger an emergency stop to ensure the friction wheel engages with the brakes effectively, bringing the car to a halt without rope slippage.
  • Document test results in the elevator’s maintenance records to demonstrate compliance with safety standards.

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for loose mounting hardware, wear on the friction surface, rope marks, or debris accumulation. Remove dust or oil from the wheel surface with a dry cloth—avoid lubricants, as they reduce friction and grip.
• Inspect friction surface wear monthly: Measure the tread thickness—replace the wheel if wear exceeds 20% of the original thickness (per Otis’s specification) to maintain sufficient grip.
• Check rope/belt alignment and tension quarterly: Misaligned or loose ropes can cause uneven wear on the friction wheel; adjust as needed to ensure uniform contact.
• Clean the machine room semi-annually to prevent dust, oil, or chemical contaminants from accumulating on the wheel surface, which can accelerate wear and reduce grip.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Friction surface wear exceeding 20% of original thickness, or visible damage (cracks, chunks missing, or hardening of the rubber).
• Traction failures: Rope/belt slippage during operation, especially under load, or uneven car movement.
• Physical damage: Bent hub, cracked inner bore, or corrosion that impairs rotation or structural integrity.
• Abnormal noise: Squealing, grinding, or slipping sounds during operation—indicating loss of grip or misalignment.
• Rope damage: Excessive wear or fraying of elevator ropes traced to uneven contact with the friction wheel.

3. Maintenance to Extend Service Life

• Maintain the machine room at a stable temperature (10–35°C) and low humidity (≤60%) to prevent rubber aging and hub corrosion.
• Use only Otis-approved elevator ropes/belts, as incompatible materials can accelerate friction surface wear.
• Avoid overloading the elevator beyond its rated capacity, as excess load increases stress on the friction wheel and reduces grip.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit friction wheels may have inferior rubber quality, incorrect dimensions, or compromised performance.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All DAA265L1 wheels are manufactured to Otis’s original specifications, ensuring seamless integration with Otis traction systems and adherence to global safety standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including friction grip verification, wear resistance, dimensional accuracy, and load-bearing capacity—to guarantee reliable performance in critical power transmission scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and rope tension adjustment to troubleshooting traction issues specific to Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement while ensuring compliance.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs for Otis elevators.
