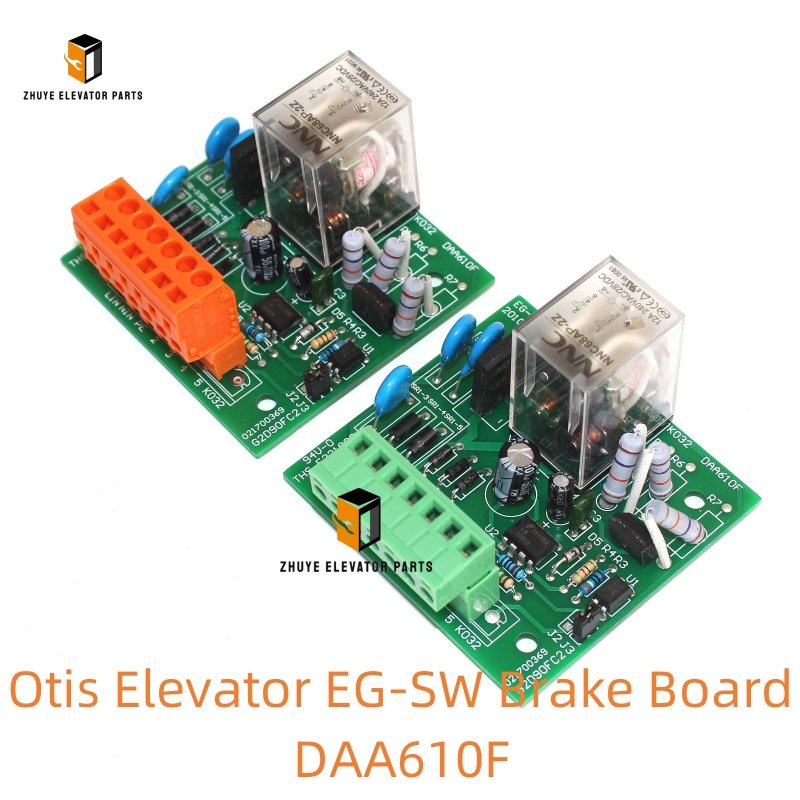

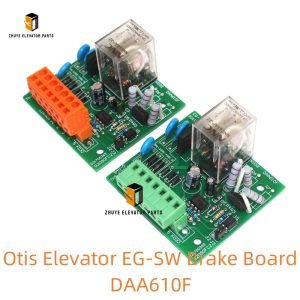

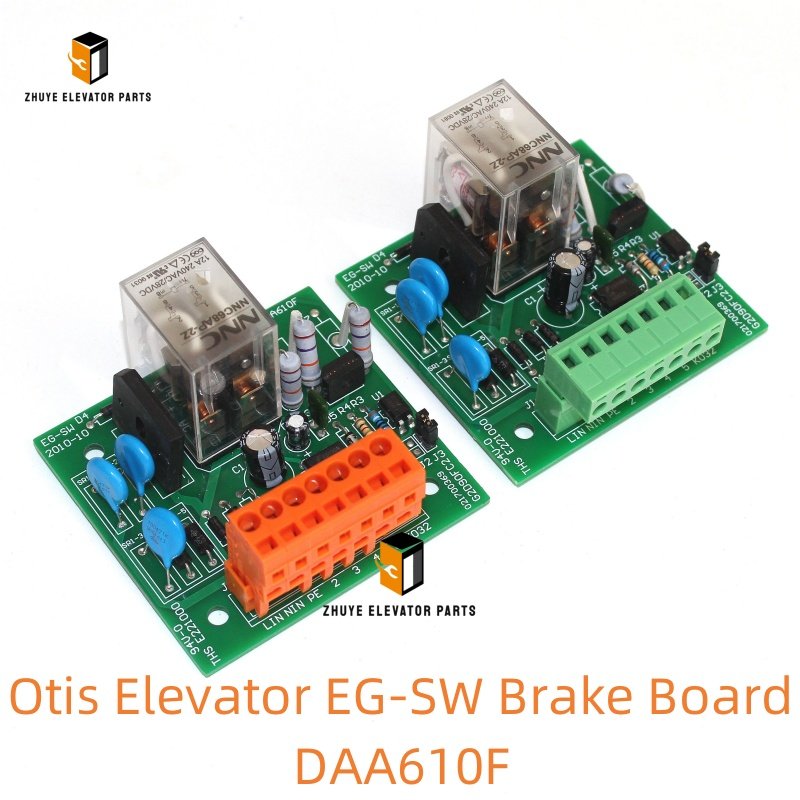

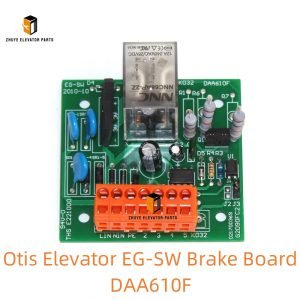

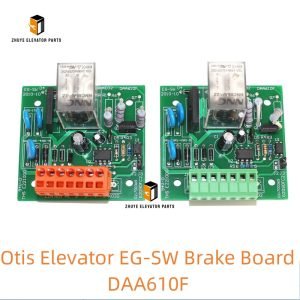

Otis Elevator EG-SW Brake Board DAA610F Brief Introduction
|
Product Name |
Otis Elevator EG-SW Brake Board |
| Model Number | DAA610F |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator EG-SW Brake Board DAA610F: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Otis Elevator EG-SW Brake Board DAA610F is a safety-critical electronic component exclusively engineered for Otis EG-SW series elevator brake systems—widely deployed in commercial high-rises, residential towers, and public transit facilities. As the core control hub of the elevator’s braking mechanism, this board regulates brake engagement/disengagement, monitors brake coil current, and coordinates with the main controller to ensure smooth, safe stopping and holding of the elevator car. Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 61010, ISO 9001), it features robust power modules, anti-interference circuitry, and built-in protective mechanisms (overcurrent, overvoltage, short-circuit protection) to withstand the demands of 24/7 elevator operation. For elevator maintenance teams, property managers, and facility operators, mastering the correct usage, installation, and replacement timelines of the DAA610F is non-negotiable to prevent brake failures, avoid safety hazards, and uphold compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the DAA610F that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility with EG-SW brake systems, reliable brake control, and long-term durability.
Proper Usage Methods of Otis Elevator EG-SW Brake Board DAA610F
1. Pre-Installation Preparation
Before installing the DAA610F, prioritize safety by shutting off the elevator’s main power supply and securing the brake control cabinet with a lockout tag to prevent electrical shock. Inspect the brake board for physical damage—such as bent pins, cracked circuit traces, loose power connectors, or burn marks on power modules—defects that can cause brake misoperation, short circuits, or system failures. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each DAA610F unit arrives in optimal condition, with intact components, pre-loaded EG-SW firmware, and pre-tested functionality. Additionally, verify compatibility with your Otis EG-SW elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the board’s voltage rating (typically 220V AC input, 24V DC control), current capacity (matching brake coil requirements), and communication protocol (e.g., CAN bus) match your system’s requirements.
2. Installation & Operation Steps
- Cabinet Preparation:
- Access the elevator brake control cabinet (located in the machine room) and locate the designated slot marked “EG-SW Brake Board” or “DAA610F.”
- Clean the slot’s backplane connectors with compressed air (low pressure) to remove dust, debris, or oxidation—contaminants that can cause poor contact or signal interference. Ensure the cabinet’s cooling system (fans, heat sinks) is functional to prevent overheating of the board’s power components.
- Board Installation:
- Align the DAA610F with the slot’s guide rails, ensuring the edge connectors align perfectly with the cabinet’s backplane. Insert the board firmly until it clicks into place—do not force the board, as this can bend pins or damage circuit traces.
- Secure the board with the provided locking screws (torque to 0.6–0.9 Nm) to prevent vibration-induced loosening during elevator operation, which can disrupt brake control signals.
- Wiring & Parameter Configuration:
- Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the board to the main power supply, brake coils, elevator main controller, and safety interlocks:
- Connect the power input wires (L/N for AC, positive/negative for DC) to the designated terminals, ensuring proper polarity to avoid component burnout.
- Attach the brake coil output wires (typically two channels for main and secondary brakes) to the corresponding terminals—match wire colors to the diagram to prevent misconnection.
- Connect signal wires to the main controller for brake status feedback (engaged/disengaged) and safety interlock signals (e.g., emergency stop, door lock).
- Power on the control cabinet and access the board’s configuration menu via Otis-approved diagnostic software:
- Set critical parameters: brake coil current limit, engagement/disengagement time (typically 0.3–0.5 seconds), and protective threshold values (overcurrent, overvoltage).
- Load default parameters for your EG-SW model (provided by Nanjing Zhuye or Otis) to ensure optimal brake performance.
- Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the board to the main power supply, brake coils, elevator main controller, and safety interlocks:
- Functional Testing:
- Conduct a comprehensive test sequence (by certified technicians only):
- Verify brake engagement: Trigger the elevator’s stop function to confirm the board sends the correct signal to engage the brake—ensure the car holds position securely.
- Test brake disengagement: Operate the elevator to ascend/descend, confirming the brake releases smoothly without delay or drag.
- Simulate fault conditions (e.g., overcurrent in brake coil) to ensure the board triggers protective shutdown and alerts the main controller.
- Monitor the board’s LED status indicators (steady green = normal operation; flashing codes = errors) and log test results in maintenance records.
- Conduct a comprehensive test sequence (by certified technicians only):
3. Routine Usage Maintenance
To preserve the DAA610F’s performance and prevent brake system failures, implement these routine practices:
- Conduct monthly visual inspections: Check for dust accumulation on the board, loose wiring, or signs of overheating (e.g., discolored components, burning odors). Use compressed air to clean the board and control cabinet.
- Test brake functionality quarterly using diagnostic software—verify brake engagement/disengagement speed, coil current stability, and protective function responsiveness. Document results in maintenance records.
- Inspect wiring connections semi-annually for corrosion, wear, or looseness; tighten terminals or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
- Update firmware annually (as recommended by Otis or Nanjing Zhuye) to address bugs, enhance compatibility with system upgrades, and improve brake control algorithm efficiency.
- Check the brake coils’ condition semi-annually (resistance measurement) to ensure they operate within the board’s current capacity—faulty coils can strain the DAA610F and lead to premature failure.
Recommended Replacement Cycle
The service life of the Otis Elevator EG-SW Brake Board DAA610F depends on operating conditions (power stability, temperature, brake usage frequency), and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable power supply), the DAA610F should be replaced every 6–8 years. This timeframe accounts for gradual degradation of power components (transistors, capacitors), connector wear, and firmware obsolescence—ensuring the board maintains reliable brake control and compatibility with EG-SW system upgrades. Proactive replacement is critical, as a faulty brake board can lead to catastrophic consequences (e.g., unintended car movement, failed braking).
2. Signs That Require Immediate Replacement
Replace the brake board immediately if you encounter any of the following issues:
- Brake control malfunctions: Delayed engagement/disengagement, brake drag (unintended friction), or failure to hold the car in position—despite coil and wiring checks.
- Persistent fault codes: Unresolvable overcurrent, overvoltage, or communication errors related to the DAA610F, even after firmware updates.
- Physical damage: Cracked circuit board, burnt power modules, water intrusion, or corrosion that affects component functionality.
- Safety interlock failures: The board does not respond to emergency stop signals or door lock interlocks, compromising passenger safety.
- Erratic LED indicators: Flashing error codes that cannot be diagnosed or resolved, indicating internal hardware failure.
3. Maintenance to Extend Service Life
To maximize the DAA610F’s lifespan:
- Maintain the brake control cabinet at a stable temperature (15–30°C) and low humidity (30–60%) to prevent component corrosion and capacitor degradation.
- Protect the board from power surges by installing industrial-grade surge protectors in the main power line.
- Ensure the brake coils are properly maintained (no short circuits, correct resistance) to avoid overloading the board’s power modules.
- Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit boards may have inferior power components, incorrect wiring, or compatibility issues with EG-SW brake systems.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Otis Elevator EG-SW Brake Board DAA610F, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All DAA610F boards are manufactured to Otis’s original specifications, ensuring seamless integration with EG-SW brake systems and adherence to global safety standards.
- Strict Quality Assurance: Each unit undergoes rigorous testing—including brake control accuracy, current regulation stability, temperature resistance, and protective function verification—to guarantee reliable performance in critical safety scenarios.
- Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from parameter configuration and firmware updates to troubleshooting brake system faults specific to EG-SW elevators.
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers safety-critical components promptly worldwide, minimizing elevator downtime during replacement while ensuring compliance.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs for EG-SW elevators.
Conclusion
The Otis Elevator EG-SW Brake Board DAA610F is a foundational safety component that directly impacts elevator braking reliability and passenger protection in EG-SW-series elevators. By following proper usage and installation methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Otis EG-SW elevators remain compliant, downtime-free, and safe. Whether you need a replacement brake board, technical support for brake system configuration, or bulk orders for an EG-SW fleet, Nanjing Zhuye is committed to delivering premium electronic components and tailored professional services. Invest in brake system integrity—choose Nanjing Zhuye Elevator Parts for your Otis DAA610F EG-SW brake board requirements.
