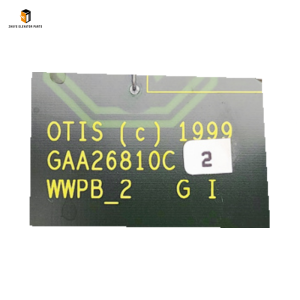

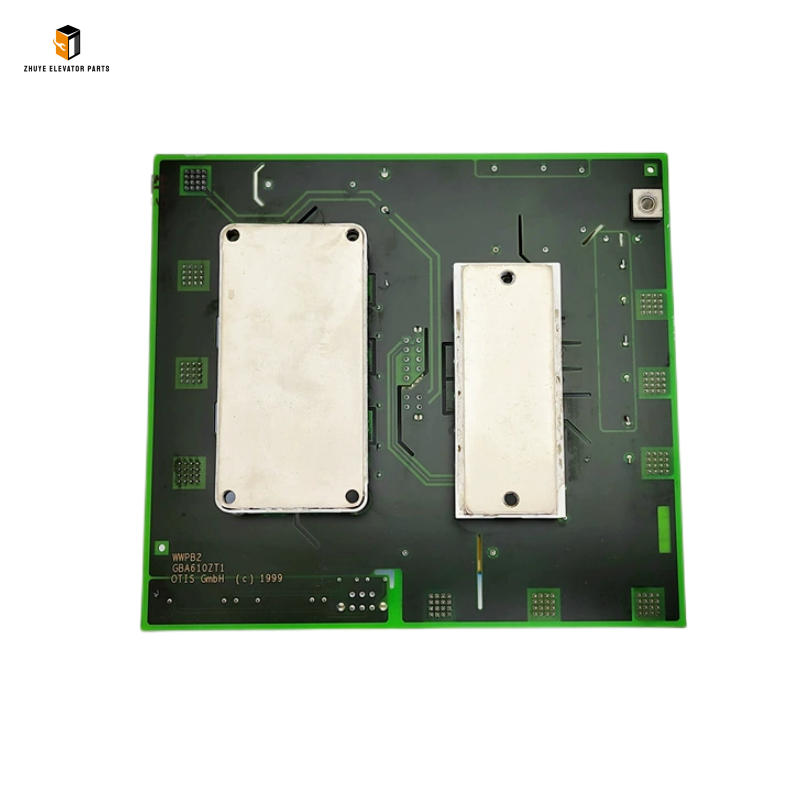

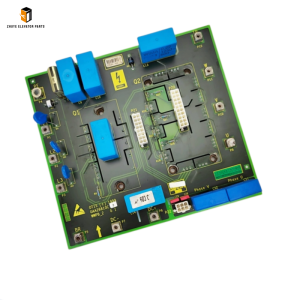

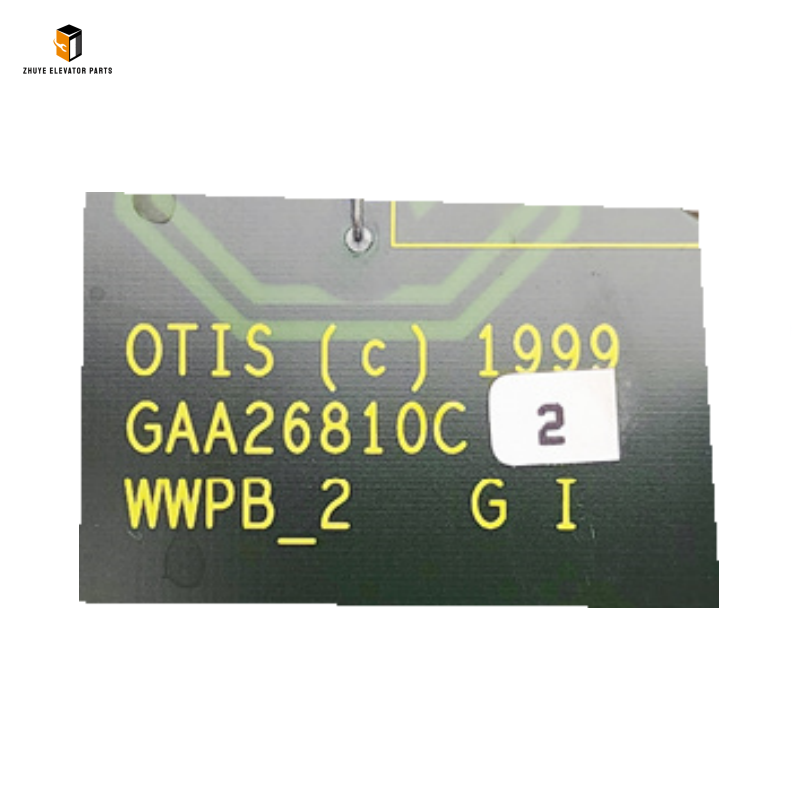

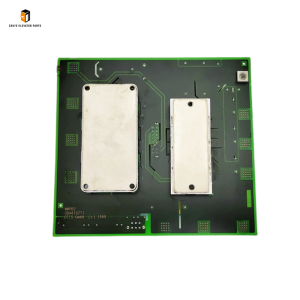

Otis Elevator Drive Board WWPB2 GAA26810C1/C2: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Drive Board WWPB2 GAA26810C1/C2

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the elevator’s drive cabinet (located in the machine room) and locate the designated slot for the WWPB2 drive board. Disconnect the old board (if replacing) by detaching the power cables, communication connectors, and sensor wires—label all cables clearly to avoid cross-connection errors. Clean the board slot and backplane connector with compressed air to remove dust or debris that could interfere with electrical contact.
  • Align the new WWPB2 GAA26810C1/C2 board with the slot guides and insert it firmly until it locks into the backplane. Secure the board with the provided mounting screws (torque to 0.8–1.2 Nm) to prevent vibration-induced loosening. Reconnect the power cables, communication lines (to the main controller), and sensor wires—ensure connectors are fully seated and locked to avoid intermittent connectivity.
• Configuration Setup:
  • Power on the drive cabinet (performed by certified technicians only) and access the configuration menu via Otis’s diagnostic software (e.g., Otis Service Tool, OCSS):
    • Motor Parameters: Load the elevator’s motor specifications (e.g., rated current, torque, speed) into the drive board—these parameters are critical for precise motor control and must match Otis’s factory settings.
    • Safety Limits: Verify or set safety thresholds (e.g., overcurrent trip level, voltage fluctuation range) to comply with Otis’s safety protocols.
    • Communication Sync: Sync the drive board with the main controller to ensure seamless data exchange for speed commands, safety alerts, and operational status.
• Functional Testing:
  • Conduct comprehensive tests to validate performance:
    • Motor Control Test: Run the elevator through empty and loaded cycles to confirm smooth acceleration, constant speed, and gentle deceleration—no jerking or speed fluctuations, consistent with Otis’s performance standards.
    • Safety Protection Test: Simulate fault conditions (e.g., overcurrent, voltage drop) to verify the drive board triggers protective shutdowns as required.
    • Communication Test: Monitor data transmission between the drive board and main controller—ensure no communication errors or latency (≤5ms response time).
  • Document configuration settings and test results in maintenance records to demonstrate compliance with Otis’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or overheating (discoloration of components). Remove dust with compressed air—avoid water or chemical cleaners that can damage electronic parts.
• Monthly Diagnostic Scans: Use Otis’s diagnostic software to review error logs, motor performance data, and safety threshold status. Address minor alerts (e.g., low voltage warnings) promptly to prevent system degradation.
• Quarterly Cable Inspections: Inspect power cables and communication wires for fraying, corrosion, or loose contacts. Tighten connectors as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance motor control algorithms, fix software bugs, and improve compatibility with system upgrades.
• Annual Comprehensive Inspection: Verify motor parameters and safety settings remain aligned with Otis’s specifications. Test the board’s redundancy features (if applicable) to ensure fail-safe operation.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Operational Failures: Elevator stalls, jerks during acceleration/deceleration, or fails to reach target floors—indicative of faulty motor control or communication breakdowns.
• Persistent Errors: Repeated error codes related to the drive system (e.g., “Overcurrent,” “Motor Speed Mismatch”) that cannot be resolved with troubleshooting or firmware updates.
• Physical Damage: Cracked circuit board, burned power modules, or water damage—compromising electrical safety and control functionality.
• Performance Degradation: Noticeable speed fluctuations, increased energy consumption, or reduced motor efficiency—attributed to aging components or internal circuit damage.
• Safety Trigger: The drive board fails to activate protective shutdowns during fault conditions—violating Otis’s safety standards and posing passenger risks.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from power spikes and transients—common causes of power module damage.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Ensure the drive cabinet is sealed to prevent dust, water, or corrosive gases from entering.
• Minimize EMI Interference: Route power cables and communication lines separately (minimum distance of 20cm) to reduce electromagnetic interference.
• Use Genuine Parts Only: For replacements or repairs, rely exclusively on authentic Otis WWPB2 GAA26810C1/C2 boards from Nanjing Zhuye. Counterfeit boards may use inferior components, untested firmware, or incorrect wiring—compromising performance, safety, and Otis’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Otis Compatibility: All boards are manufactured to Otis’s original specifications, ensuring seamless integration with Otis drive systems and compliance with global safety/electronic standards.
• Strict Otis-Specific Quality Assurance: Each unit undergoes rigorous testing—including motor control precision, safety protection functionality, communication reliability, and thermal performance—to guarantee reliable operation in critical Otis systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Otis elevator systems, providing 24/7 assistance for installation, configuration, and troubleshooting (e.g., drive errors, motor control issues) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers electronic components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Otis’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Otis elevator components.
