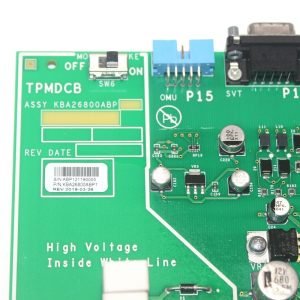

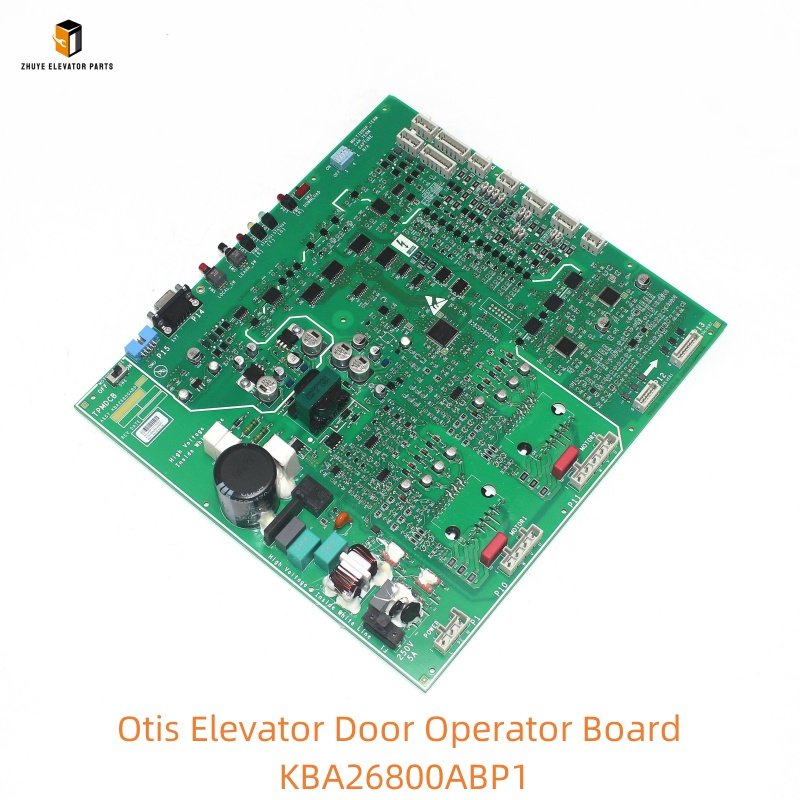

Otis Elevator Door Operator Board KBA26800ABP1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Door Operator Board KBA26800ABP1

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the door operator control box (located in the elevator cab or hoistway). Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, motor, sensor, and communication cables—label cables to ensure correct reconnection.
  • Align the KBA26800ABP1 with the control box’s guide rails and mounting points. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables to the corresponding terminals, matching the labeled connections to avoid polarity or signal errors. Ensure cables are routed neatly to prevent interference with moving parts.
• Configuration Setup:
  • Power on the door operator system and confirm the KBA26800ABP1 initializes correctly (LED status indicator illuminates green, and diagnostic lights display “System Ready”). Access the configuration menu via Otis-approved diagnostic software (by certified technicians):
    • Parameter Restoration: If replacing an existing board, restore door-specific parameters (e.g., opening/closing speed, acceleration/deceleration time, obstacle detection sensitivity) from a backup (saved from the old board) to maintain operational consistency. Alternatively, load default parameters for your Otis model (provided by Nanjing Zhuye or Otis).
    • Safety Interlock Calibration: Verify and calibrate signals from door lock sensors, obstacle detection beams, and emergency stop buttons—ensure the board recognizes valid safety states and triggers protective actions (e.g., door reversal, shutdown) when needed.
    • Communication Sync: Configure communication with the elevator main controller to enable real-time door status updates (open/closed, fault codes) and response to remote commands (e.g., door open/close requests).
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Basic Door Operation: Operate the elevator through automatic/manual door cycles to confirm smooth opening/closing, precise alignment with landing thresholds, and no jitter or hesitation. Verify door speed (typically 0.3–0.5 m/s) matches Otis’s specifications.
    • Safety Test: Trigger obstacle detection (e.g., place a test object in the door path) and door lock failures to confirm the board immediately reverses or halts the door, preventing entrapment or pinching.
    • Diagnostic Tool Test: Use the board’s built-in diagnostic functions to scan for subsystem errors (e.g., motor overload, sensor disconnection) and confirm fault codes are logged accurately for troubleshooting.
    • Load Test: Run the door through 50 consecutive cycles to simulate peak usage and monitor the board’s thermal performance—ensure no overheating or performance degradation occurs.
  • Document test results in maintenance records to demonstrate compliance with safety and performance standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged terminal blocks. Remove dust with compressed air—avoid water or cleaning agents that can damage components or corrode terminals.
• Monthly Diagnostic Scans: Use Otis diagnostic software to run full system checks, review fault logs, and verify parameter stability. Address minor issues (e.g., intermittent sensor signals) promptly to prevent major failures.
• Quarterly Cable Inspections: Inspect power, motor, and sensor cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance door control features, fix software bugs, and improve compatibility with system upgrades.
• Annual Thermal & Load Checks: Verify the board’s thermal performance during extended operation and ensure the door operator’s cooling system (if applicable) is functioning correctly. Overheating is a leading cause of control board failure.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Door Control Failures: Doors fail to open/close fully, move intermittently, or respond unpredictably to commands—despite parameter resets and cable checks.
• Safety Interlock Malfunctions: The board fails to detect obstacles, door lock status, or emergency stops—allowing unsafe door operation (e.g., closing on objects, operating with unlocked latches).
• Persistent Fault Codes: Unresolvable errors (e.g., “Motor Communication Error,” “Sensor Mismatch”) that appear after firmware updates and troubleshooting.
• Physical Damage: Cracked circuit board, burned components, water intrusion, or irreparable terminal block damage—posing electrical or safety risks.
• Performance Degradation: Significant increases in door operation noise, slower speed, or inconsistent alignment—indicative of internal component failure.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes or sags—common causes of microprocessor and capacitor damage.
• Control Environmental Conditions: Maintain the door operator area at a stable temperature (10–35°C) and humidity (30–60%). Avoid exposure to dust, water, or extreme temperatures.
• Maintain Mechanical Components: Regularly lubricate and align the door’s gears, belts, and rails to reduce load on the board’s motor drive circuits. Faulty mechanical parts increase stress on the control board.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit boards lack Otis’s quality control, firmware compatibility, and safety features—compromising door performance and passenger safety.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All KBA26800ABP1 boards are manufactured to Otis’s original specifications, ensuring seamless integration with Otis door systems and compliance with global safety standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including microprocessor performance, sensor signal processing, communication protocol validation, and thermal resistance—to guarantee reliable operation in critical door control scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation and parameter configuration to troubleshooting board-specific issues (e.g., fault codes, communication errors) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers control boards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant elevator components.
