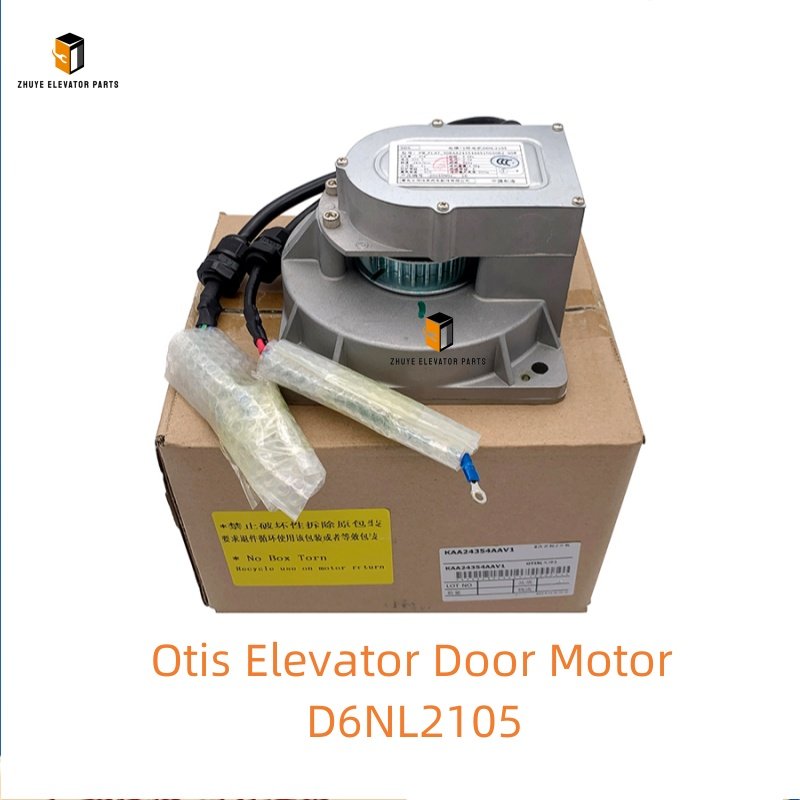

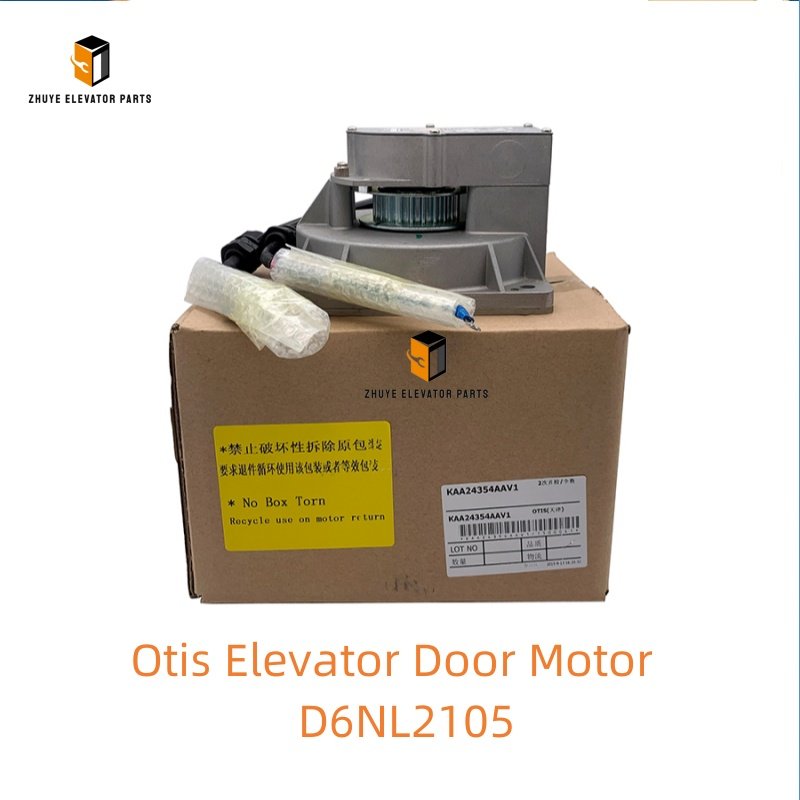

Otis Elevator Door Motor D6NL2105: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Door Motor D6NL2105

1. Pre-Installation Preparation

2. Installation & Testing Steps

• Removal of Old Motor:
  • Access the door operator assembly (located in the elevator cab or hoistway). Disconnect the wiring harness from the old motor (mark wires to ensure correct reconnection) and remove the mounting bolts using a torque wrench. Carefully lift out the old motor and clean the mounting surface with a wire brush to eliminate dust, debris, or rust—contaminants that can affect alignment.
• Installation of New Motor:
  • Align the D6NL2105 with the door operator’s mounting bracket, ensuring the motor shaft engages smoothly with the door’s gear mechanism or belt drive. Secure the motor with the provided high-strength bolts (torque to 4–6 Nm) to prevent vibration-induced loosening. Reconnect the wiring harness to the corresponding terminals, matching the marked connections to avoid polarity errors.
• Mechanical Alignment:
  • Manually operate the door to verify the motor shaft rotates freely without binding. Adjust the motor’s position (if needed) to ensure the door’s gear/belt drive is properly tensioned—over-tensioning can strain the motor, while under-tensioning causes slipping.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Basic Operation: Power on the elevator and test automatic/manual door modes to confirm smooth opening/closing cycles, with no jitter or hesitation.
    • Speed & Torque Verification: Ensure the motor delivers consistent speed (typically 0.3–0.5 m/s for door movement) and sufficient torque to overcome minor resistance (e.g., wind pressure in hoistways).
    • Safety Interlock Test: Trigger the door’s obstacle detection system (e.g., place a test object in the door path) to confirm the motor reverses promptly and safely.
    • Thermal Performance: Run the door through 50 consecutive cycles and check the motor housing temperature—ensure it remains within the safe range (≤70°C) to prevent thermal overload.
  • Document test results in maintenance records to demonstrate compliance with safety standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting bolts, damaged wiring, or debris around the motor. Remove dust or oil from the housing with a dry, lint-free cloth—avoid water or cleaning agents that can damage bearings or windings.
• Monthly Functional Checks: Verify door operation is smooth and quiet. Listen for unusual noises (e.g., grinding, squealing) that indicate misalignment, worn bearings, or gear issues.
• Quarterly Wiring & Connection Checks: Inspect the wiring harness for fraying, corrosion, or loose terminals. Tighten connections as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Lubrication: Apply Otis-approved lubricant to the motor’s shaft bearings and the door’s gear/belt drive (if applicable) to minimize friction and wear. Avoid over-lubrication, as excess grease attracts dust.
• Annual Performance Testing: Use diagnostic tools to measure motor current draw, speed, and torque. Compare results to Otis’s specifications and address any deviations (e.g., increased current may indicate bearing wear).

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Operational Failures: Doors fail to open/close fully, move intermittently, or require excessive force to operate—indicative of motor torque loss.
• Unusual Noises: Persistent grinding, squealing, or humming during operation—signals worn bearings, damaged windings, or gear misalignment.
• Thermal Overload: The motor triggers frequent thermal protection shutdowns, or the housing becomes excessively hot (≥80°C) during normal use.
• Electrical Issues: Increased current draw (≥20% above specifications), short circuits, or wiring harness damage that cannot be repaired.
• Physical Damage: Cracked housing, seized shaft, or water intrusion that impairs motor function or poses an electrical hazard.

3. Maintenance to Extend Service Life

• Protect from Environmental Damage: Ensure the door operator area is properly ventilated and free from water leaks. Keep dust and debris away from the motor to prevent bearing contamination.
• Maintain Mechanical Alignment: Regularly check and adjust the door’s gear/belt drive to avoid overloading the motor. Misalignment is a leading cause of premature motor failure.
• Avoid Overuse: Minimize unnecessary door cycles (e.g., disable automatic re-opening for high-traffic periods) to reduce wear on the motor and bearings.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on genuine Otis components from Nanjing Zhuye. Counterfeit motors may have inferior windings, untested bearings, or compatibility issues that compromise safety and performance.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All D6NL2105 motors are manufactured to Otis’s original specifications, ensuring seamless integration with Otis door systems and compliance with global safety/mechanical standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including torque output verification, bearing durability, thermal performance, and electrical continuity—to guarantee reliable operation in critical door systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and wiring to troubleshooting motor-specific issues (e.g., torque loss, thermal overload) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant elevator components.
