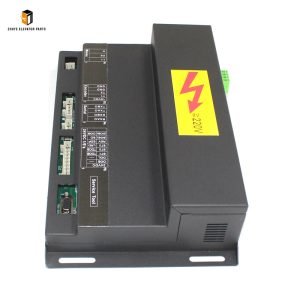

Product Name	Otis Elevator Door Controller Inverter
Model Number	GFA24350BD11
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator Door Controller Inverter GFA24350BD11: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Door Controller Inverter GFA24350BD11 is a precision-engineered electronic component exclusively designed for Otis elevator door systems—widely deployed in commercial high-rises, residential complexes, public transit hubs, and office buildings worldwide. As the backbone of the door control system, this inverter converts input AC power to regulated DC/AC output for the door drive motor, enabling smooth acceleration, precise speed control, soft stopping, and responsive obstacle detection. Tailored to Otis’s OEM standards, it seamlessly integrates with Otis door mechanisms (including Gen2, Compass, and NCE series elevators) while upholding the brand’s strict protocols for passenger safety, operational reliability, and user comfort.

Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 61800, ISO 9001), the GFA24350BD11 features a robust, fault-tolerant design: industrial-grade power switching modules, PWM (Pulse Width Modulation) control technology, overcurrent/overvoltage/short-circuit protection, integrated door sensor signal processing, and Otis-specific firmware optimized for door control logic. This construction withstands 24/7 operation and harsh environments (typically mounted on the elevator car top or in the hoistway)—including temperature fluctuations (-5°C to +45°C), electromagnetic interference (EMI), dust, and vibration. For maintenance teams and facility managers, mastering the correct installation, configuration, and replacement timelines of this inverter is critical to avoiding door malfunctions, passenger entrapment, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the GFA24350BD11 door controller inverter that meets Otis’s original manufacturing specifications—guaranteeing consistent door performance, responsive safety features, and long-term durability.

Proper Usage Methods of Otis GFA24350BD11 Door Controller Inverter

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, securing the car top (or hoistway access point), and applying a lockout tag to prevent unintended power restoration. Inspect the new GFA24350BD11 inverter for physical damage—such as cracked casings, damaged terminals, loose components, or burn marks on circuit boards—defects that can cause door misoperation or short circuits. Nanjing Zhuye Elevator Parts conducts rigorous Otis-specific quality control checks, so each unit arrives in optimal condition: intact electronic components, pre-loaded Otis-compatible firmware, functional protection circuits, and pre-tested output voltage stability.

Verify compatibility with your Otis elevator model and door system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the inverter’s voltage rating (typically 220V AC input, variable DC/AC output), motor compatibility, and signal interface match your elevator’s door mechanism requirements—using an incompatible inverter can damage the door motor or cause erratic door movement.

2. Installation & Configuration Steps

Inverter Installation:
- Access the door controller mounting location (car top or hoistway door panel). Disconnect the old inverter (if replacing) by detaching power cables (input AC, output to door motor), signal connectors (from door sensors, safety edges, and main controller), and ground wires—label all cables clearly to avoid cross-connection errors. Clean the mounting surface with compressed air to remove dust or debris that could hinder heat dissipation.
- Secure the new GFA24350BD11 inverter to the mounting bracket using the provided screws (torque to 0.8–1.2 Nm) for stable positioning. Reconnect power cables (ensuring correct polarity), signal connectors (matching sensor and controller interfaces), and ground wires—tighten terminal screws to Otis’s specified torque (0.5–0.8 Nm) to prevent loose connections and signal interference.
Configuration Setup:
- Power on the elevator’s control system (performed by certified technicians only) and access the configuration menu via Otis’s diagnostic software (e.g., Otis Service Tool, OCSS):
  - Door Parameters: Load the elevator’s specific door settings (opening/closing speed, acceleration/deceleration rate, soft stop delay, obstacle detection sensitivity) into the inverter—these parameters align with the door mechanism’s mechanical characteristics for smooth operation.
  - Safety Calibration: Verify or set safety thresholds (reverse force for obstacle detection, door closing timeout) to comply with Otis’s safety protocols and prevent passenger injury.
  - Signal Sync: Sync the inverter with the main elevator controller and door sensors to ensure seamless communication—confirm accurate transmission of door position signals, obstacle alerts, and control commands.
Functional Testing:
- Conduct comprehensive tests to validate performance:
  - Door Operation Test: Activate door cycles (manual and floor call-triggered) to confirm smooth movement—no jerking, squealing, or uneven speed. Verify consistent full open/closed positions and prompt response to stop commands.
  - Obstacle Detection Test: Place a safety-compliant test object in the door’s path to ensure immediate reversal or stopping—critical for passenger safety.
  - Timeout Test: Confirm the door closes automatically after the specified timeout and does not remain open unnecessarily.
- Document installation details, parameter settings, and test results to demonstrate compliance with Otis’s service requirements.

3. Routine Usage Maintenance

To preserve performance and extend lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose cables, dust accumulation, or component overheating (discoloration of the casing). Remove dust with compressed air—avoid blocking cooling vents or using water/chemical cleaners.
Monthly Diagnostic Scans: Use Otis’s diagnostic software to review door system logs, error codes, and parameter integrity. Address minor alerts (e.g., “Door Speed Mismatch,” “Sensor Signal Weak”) promptly to prevent system degradation.
Quarterly Cable & Sensor Inspections: Inspect power cables, signal wires, and door sensors for fraying, corrosion, or loose connections. Tighten terminals or replace damaged components with genuine Otis parts from Nanjing Zhuye.
Semi-Annual Firmware Updates: Update the inverter’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance control algorithms, fix bugs, and improve system compatibility.
Annual Performance Testing: Verify door speed, acceleration/deceleration rates, and obstacle detection response against Otis’s factory specifications. Test protection circuits (overcurrent, overvoltage) to ensure functionality.

Recommended Replacement Cycle

The service life of the Otis GFA24350BD11 Door Controller Inverter depends on usage intensity (daily door cycles), environmental conditions (temperature, dust, vibration), and maintenance quality. Based on Otis’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable environment), the inverter should be replaced every 7–9 years. This timeframe accounts for gradual degradation of power components, capacitor aging, reduced switching efficiency, and firmware obsolescence—ensuring consistent door performance and safety compliance. Proactive replacement reduces the risk of unexpected door failures and passenger entrapment.

2. Signs That Require Immediate Replacement

Replace the inverter immediately if:

Door Malfunctions: Door fails to open/close, moves erratically, or gets stuck—indicating faulty power conversion or control logic.
Persistent Errors: Repeated door-related error codes (e.g., “Inverter Overload,” “Sensor Communication Fault”) that cannot be resolved with troubleshooting.
Physical Damage: Cracked casing, burned components, or water damage—compromising electrical safety.
Performance Degradation: Increased door noise, slower operation, inconsistent speed, or delayed obstacle detection.
Safety Compromise: Inverter fails to reverse/stop the door when an obstacle is detected—violating Otis’s safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the mounting area clean and dry with adequate ventilation to prevent overheating.
Power Stabilization: Install surge protectors to shield the inverter from input power spikes and transients.
Mechanism Maintenance: Lubricate door rails, hinges, and moving parts regularly to reduce friction and stress on the inverter.
Genuine Parts Only: Use authentic Otis GFA24350BD11 inverters from Nanjing Zhuye—counterfeits use inferior components, risking performance and safety.

Why Choose Nanjing Zhuye Elevator Parts?

Authenticity & Compatibility: All inverters meet Otis’s original specifications, ensuring seamless integration with Otis door systems and global safety standards.
Strict Quality Assurance: Each unit undergoes rigorous testing for power efficiency, control precision, safety functionality, and thermal stability.
Expert Support: Nanjing Zhuye’s certified engineers specialize in Otis systems, offering 24/7 assistance for installation, configuration, and troubleshooting.
Global Delivery: Robust supply chains ensure prompt delivery, minimizing elevator downtime during replacement.
Competitive Pricing: Direct sourcing eliminates middlemen, providing cost-effective solutions without compromising quality.

Conclusion

The Otis Elevator Door Controller Inverter GFA24350BD11 is a critical component for safe, smooth elevator door operations. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can ensure Otis elevators remain compliant, downtime-free, and passenger-friendly. Whether you need a single replacement, technical support, or bulk orders, Nanjing Zhuye delivers premium Otis components and tailored services. Invest in elevator door safety and comfort—choose Nanjing Zhuye Elevator Parts for your Otis GFA24350BD11 inverter needs.
