Description

1. Pre-Installation Safety: Shut down the elevator’s main power supply and activate lockout-tagout (LOTO) procedures to prevent accidental electrical shock. Access the elevator door machine compartment (typically located at the top of the elevator car or adjacent to the landing door frame) and ensure the work area is clean, dry, and well-lit. Wear insulated gloves, safety glasses, and protective footwear as additional precautions.

2. Remove the Old Door Machine Box: Disconnect all power cables, control wiring harnesses, and sensor connectors from the old box—take detailed photos or label each connection to avoid misalignment. Loosen the mounting bolts or brackets securing the box to the door frame or car top. Carefully extract the old box, ensuring not to damage adjacent components like door rails, sensors, or motor linkages.

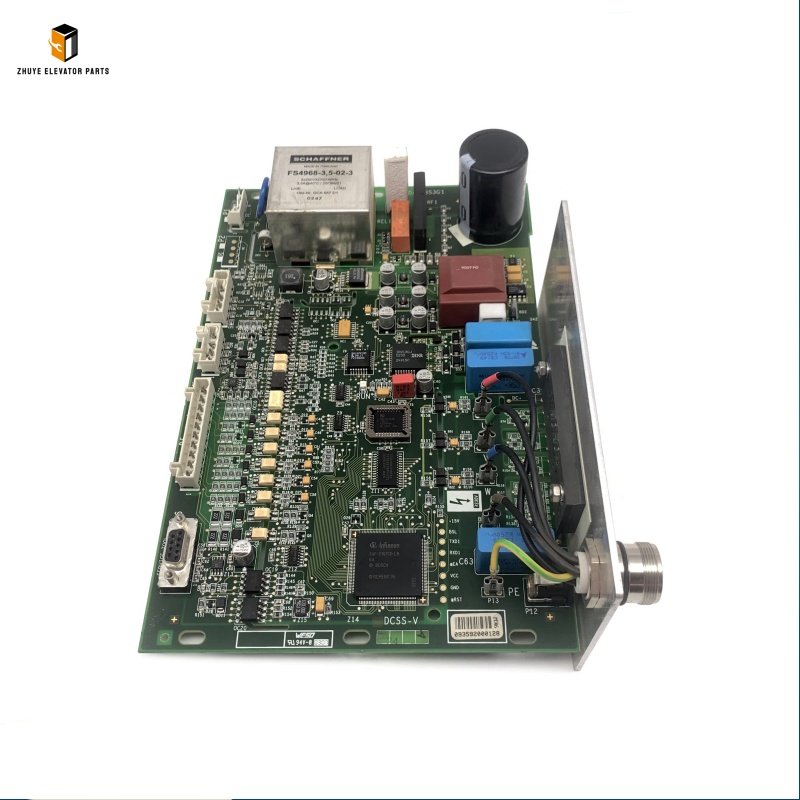

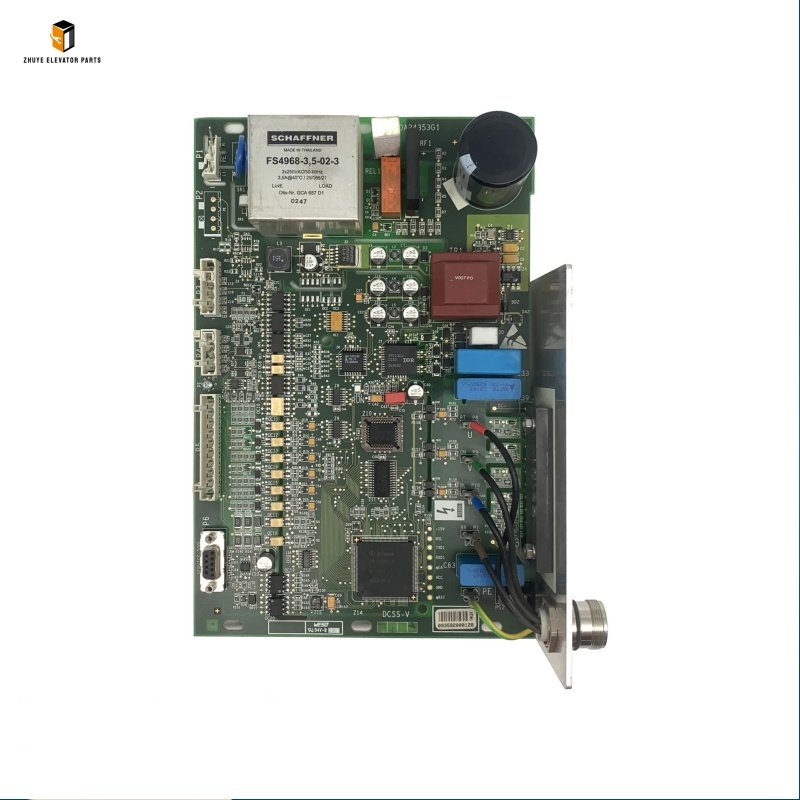

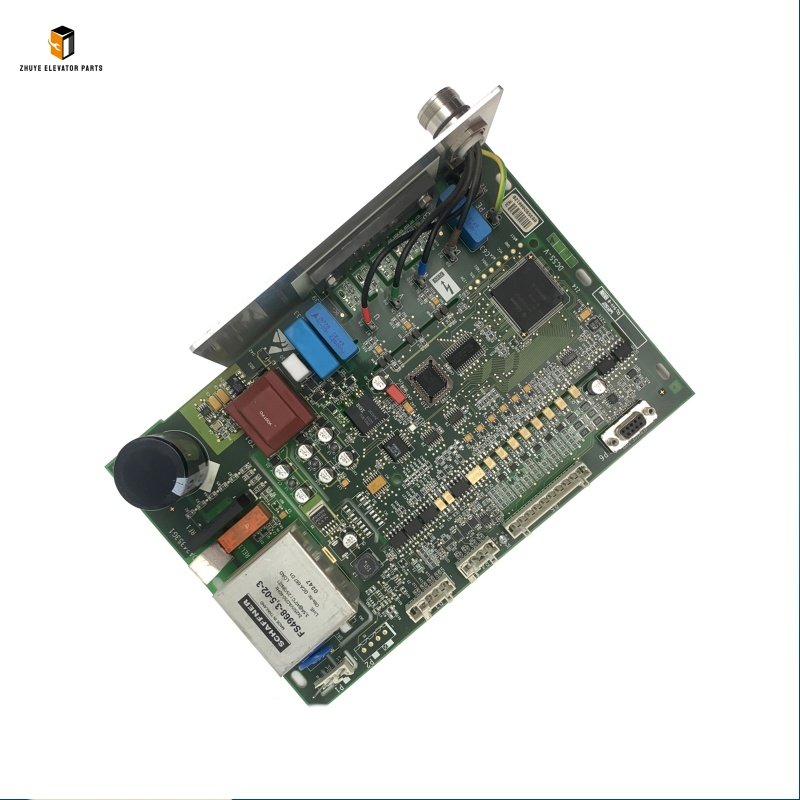

3. Install the New Door Machine Box: Unpack the new GDA24353G1 from Nanjing Zhuye Elevator Parts and inspect it for shipping damage (such as cracked enclosures, loose connectors, or bent pins). Align the box with the mounting points in the door machine compartment, ensuring the enclosure is properly oriented for wiring access. Secure the box firmly using the original bolts or compatible fasteners. Reconnect each power cable, control harness, and sensor connector to their corresponding ports—ensure connectors are fully seated to prevent signal loss or power fluctuations.

4. Testing and Calibration: Restore power to the elevator and switch to inspection mode. Test door operation by triggering opening and closing sequences manually. Verify that the doors move smoothly at the correct speed, with no jerking or unusual noise, and stop immediately when an obstacle is placed in the sensor path. Check the elevator’s diagnostic panel for error codes related to door control—refer to Otis DO2000 technical manual to resolve any issues. Calibrate door opening/closing speed and torque via the machine box’s adjustment potentiometers (if applicable) to match the elevator’s original operational parameters.

5. Routine Maintenance: During regular elevator inspections, clean the door machine box’s exterior and ventilation slots with a dry, anti-static cloth to remove dust and debris, ensuring proper heat dissipation. Inspect wiring for fraying, corrosion, or loose connections, and tighten any loose terminals. Check the enclosure’s seal to prevent moisture intrusion, and monitor the box’s operating temperature—abnormal heat indicates potential internal component issues that require immediate attention. Avoid using water or harsh chemicals for cleaning.

• Standard Usage (Residential Buildings): For elevators operating 8–10 hours daily with moderate traffic, replace the door machine box every 60–72 months. Low-traffic residential elevators may extend this cycle to 72 months if no performance issues (such as delayed door response or intermittent sensor errors) are detected.

• High Usage (Commercial/Industrial): Elevators in shopping malls, office towers, or airports—operating 12+ hours daily with heavy traffic—require more frequent replacement. Nanjing Zhuye advises replacing the box every 48–60 months to prevent sudden door system failures that can trap passengers or disrupt elevator operation.

• Signs of Immediate Replacement: Replace the GDA24353G1 immediately if you notice: unresponsive door operation, erratic opening/closing speed, frequent sensor-triggered false stops, persistent error codes related to door control, visible damage to the enclosure or internal components, or failure to communicate with the elevator’s main control system. Ignoring these signs can lead to safety hazards, including passenger entrapment or door panel damage.

• OEM-Grade Compatibility: The box is engineered to match Otis DO2000’s original design, ensuring seamless integration with existing door motors, sensors, and control systems without modifications.

• Superior Build Quality: Industrial-grade materials and strict quality control guarantee resistance to wear, dust, and temperature changes, even in high-demand environments with frequent door cycles.

• Expert Technical Support: Nanjing Zhuye’s team of engineers provides professional guidance for installation, troubleshooting, and calibration, helping resolve issues quickly and minimizing downtime.

• Global Logistics Efficiency: With a well-established supply chain, Nanjing Zhuye ensures timely delivery of replacement parts to customers worldwide, ensuring maintenance teams can complete repairs without unnecessary delays.
