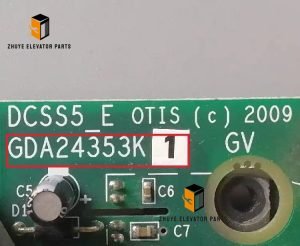

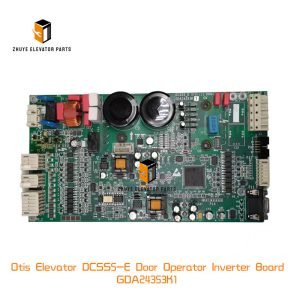

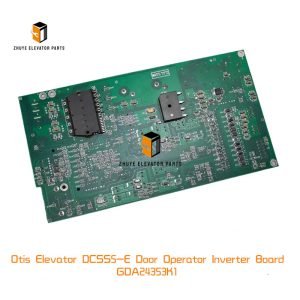

Otis Elevator DCSS5-E Door Operator Inverter Board GDA24353K1 Brief Introduction
|
Product Name |
Otis Elevator DCSS5-E Door Operator Inverter Board |
| Model Number | GDA24353K1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator DCSS5-E Door Operator Inverter Board GDA24353K1: Usage Guide, Replacement Cycle & Premium Supply from Nanjing Zhuye
The Otis Elevator DCSS5-E Door Operator Inverter Board GDA24353K1 is a core component that regulates the speed, smoothness, and safety of elevator door operations. As a vital part of the door control system, it converts AC power to DC for precise motor control, ensuring doors open and close gently, efficiently, and without jitter—critical for passenger comfort and safety. For elevator maintenance teams, property managers, and facility operators, mastering the correct usage methods and understanding replacement timelines of this inverter board is essential to minimize downtime and maintain compliance with global safety standards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic elevator components, delivers the GDA24353K1 board that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility and long-lasting performance for your elevator systems.
Proper Usage Methods of Otis DCSS5-E Inverter Board GDA24353K1
1. Pre-Installation Preparation
Before installing the GDA24353K1 inverter board, prioritize safety by shutting off the elevator’s main power supply and securing the control panel with a lockout tag to prevent accidental activation. Inspect the board for any physical damage—such as bent pins, cracked circuits, or loose connectors—defects that can compromise electrical performance. Nanjing Zhuye Elevator Parts conducts strict quality inspections on all products, so each GDA24353K1 unit arrives in optimal condition, free from manufacturing flaws. Additionally, verify compatibility with your Otis elevator model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team—ensuring the board matches the door operator’s voltage and motor requirements.
2. Installation & Operation Steps
- Mounting the Board: Locate the designated slot in the door operator control cabinet—typically marked with the model number for easy identification. Align the board’s connectors with the slot, ensuring a firm and accurate fit (avoid forcing the board to prevent pin damage). Secure the board with the provided screws to minimize vibration during operation, as loose installations can cause signal interruptions.
- Wiring Connection: Follow the wiring diagram provided by Nanjing Zhuye or Otis to connect the board to the door operator motor, power supply, and control system. Key steps include:
- Connect the AC input terminals to the elevator’s main power (ensure voltage matches the board’s specifications—usually 220V AC).
- Attach the DC output terminals to the door motor, confirming correct polarity to avoid motor damage.
- Reconnect all signal wires (e.g., door position sensors, safety interlocks) according to the original configuration—take photos of the wiring before removing the old board to prevent misconnections.
- Parameter Calibration: After wiring, calibrate the board’s settings to match your elevator’s door operation requirements:
- Use the control panel’s diagnostic interface to adjust door opening/closing speed, acceleration/deceleration rates, and door holding time.
- Set safety parameters such as obstacle detection sensitivity (to prevent door entrapment).
- Refer to the GDA24353K1 user manual or Nanjing Zhuye’s technical guide for precise calibration values.
- Functional Testing: Restore power and conduct a comprehensive test:
- Verify smooth door operation—no jitter, hesitation, or unusual noise during opening/closing.
- Test obstacle detection by placing an object in the door path (the doors should reverse immediately).
- Check the board’s LED indicators (steady green = normal operation; flashing red = fault—refer to the manual for error code interpretation).
3. Routine Usage Maintenance
To preserve the board’s performance, implement these routine practices:
- Conduct monthly visual inspections to check for loose wiring, dust accumulation, or signs of overheating (e.g., discolored circuits).
- Clean the control cabinet and board surface quarterly to remove dust and debris—contaminants can block ventilation and cause short circuits.
- Monitor door operation regularly; inconsistent speed or frequent reversals may indicate power supply issues or sensor malfunctions related to the board.
Recommended Replacement Cycle
The service life of the Otis DCSS5-E Inverter Board GDA24353K1 depends on operational frequency, environmental conditions, and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, moderate passenger traffic), the GDA24353K1 should be replaced every 5–7 years. This timeframe accounts for the gradual wear of internal components (e.g., capacitors, transistors) and ensures the board maintains precise motor control—critical for door safety and passenger experience. Proactive replacement reduces the risk of sudden door failures, which can lead to costly downtime and safety hazards.
2. Signs That Require Immediate Replacement
Replace the board immediately if you encounter any of the following issues:
- Erratic door operation (e.g., slow opening/closing, unexpected reversals, or failure to open/close) that persists after troubleshooting wiring and sensors.
- Frequent fault codes related to the inverter board (e.g., overcurrent, overvoltage) that cannot be resolved by parameter adjustments.
- Physical damage to the board, such as burnt circuits, corroded terminals, or water intrusion.
- Unusual odors (e.g., burning plastic) or overheating—signs of electrical malfunction that pose fire risks.
- Obsolete parts: Older GDA24353K1 models may become difficult to repair due to discontinued components, making timely replacement with a new unit from Nanjing Zhuye more cost-effective.
3. Maintenance to Extend Service Life
To maximize the board’s lifespan, adopt these maintenance measures:
- Keep the control cabinet at a stable temperature (15–30°C) and low humidity to prevent component corrosion and overheating.
- Protect the board from voltage fluctuations by installing surge protectors in the elevator’s power system.
- Use only genuine replacement parts from Nanjing Zhuye for repairs, as counterfeit components can cause malfunctions and void safety certifications.
- Train maintenance staff on proper handling and troubleshooting to avoid accidental damage during inspections.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Otis Elevator DCSS5-E Door Operator Inverter Board GDA24353K1, Nanjing Zhuye Elevator Parts offers unmatched advantages for elevator professionals:
- Authenticity & Compatibility: All GDA24353K1 boards are manufactured to Otis’s original specifications, ensuring full compatibility with your elevator’s door operator system and adherence to global safety standards (e.g., EN 81, ASME A17.1).
- Strict Quality Control: Each board undergoes comprehensive testing—including voltage stability, motor control precision, and durability—to guarantee reliable operation in critical scenarios.
- Expert Technical Support: Nanjing Zhuye’s team of certified engineers provides 24/7 assistance, from installation guidance to parameter calibration and troubleshooting, ensuring a smooth user experience.
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly to locations worldwide, minimizing elevator downtime and ensuring timely maintenance.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and compliance.
Conclusion
The Otis Elevator DCSS5-E Door Operator Inverter Board GDA24353K1 is an indispensable component that directly impacts elevator door safety, efficiency, and passenger comfort. By following proper usage methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your elevator systems remain reliable, compliant, and user-friendly. Whether you need a replacement board, technical support, or customized solutions, Nanjing Zhuye is committed to delivering premium elevator parts and professional services tailored to your needs. Invest in safety and performance—choose Nanjing Zhuye Elevator Parts for your Otis GDA24353K1 inverter board requirements.
