Otis elevator counterweight wheel XAA266AE1/16/17/25 Brief Introduction

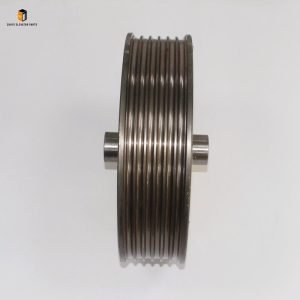

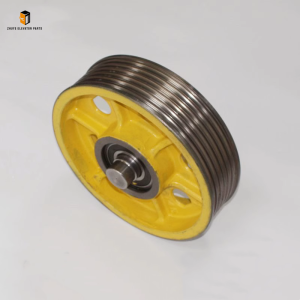

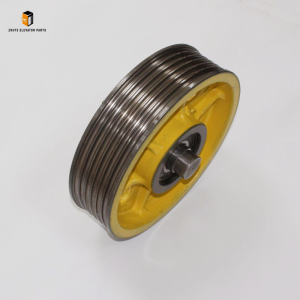

Product Name	Otis elevator counterweight wheel XAA266AE1/AE16/17/25
Model Number	XAA266AE1 XAA266AE16 XAA266AE17 XAA266AE25
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

25: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Counterweight Wheel XAA266AE1/16/17/25 is a mission-critical mechanical component exclusively engineered for Otis elevator systems—including GEN2, Sigma, Series 300/400, and MRL (Machine-Room-Less) models—essential for commercial high-rises, residential complexes, transit hubs, and public facilities worldwide. As a core part of the elevator’s balancing system, this counterweight wheel guides and supports the counterweight assembly, reducing friction between the hoist rope and counterweight, balancing the elevator car’s load, and ensuring smooth, energy-efficient vertical movement. It integrates Otis’ proprietary high-strength steel construction, precision-machined bearings, and corrosion-resistant coating—upholding the brand’s strict standards for durability, load capacity, and operational safety.

Compliant with global elevator safety and mechanical standards (EN 81-1/2, ASME A17.1, ISO 9001), the XAA266AE1/16/17/25 series features a rugged, heavy-duty design: high-carbon steel rim (supports loads up to 5,000kg), sealed ball bearings (prevents dust and moisture intrusion), zinc-plated or powder-coated finish (resists rust and wear), and precision-balanced structure (minimizes vibration). This construction withstands continuous operation under heavy loads, enduring temperature fluctuations (-10°C to +60°C), humidity, and mechanical stress—critical for preventing rope wear, counterweight misalignment, or catastrophic elevator failure. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, inspection, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the XAA266AE1/16/17/25 series that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility, stable load balancing, and long-term performance.

Proper Usage Methods of Otis XAA266AE1/16/17/25 Counterweight Wheel

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (elevator hoistway or machine room) with warning signs and lockout-tagout (LOTO) devices. Use a hoist or lifting equipment to safely support the counterweight assembly—prevents accidental movement during installation. Inspect the new XAA266AE1/16/17/25 wheel for physical damage—cracked rim, damaged bearings, bent axle, or uneven coating—defects that can compromise load capacity or cause premature wear. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact steel structure, smooth-rotating bearings, secure axle mounting, and consistent coating.

Verify compatibility with your Otis elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the wheel’s diameter (typically 200–300mm, varies by model: AE1/AE16/AE17/AE25) matches the counterweight assembly requirements, (2) the bearing type (sealed ball or roller) is compatible with the elevator’s load capacity, and (3) the axle hole dimensions fit the existing counterweight shaft. Using an incompatible counterweight wheel can cause rope slippage, counterweight misalignment, or excessive vibration. Additionally, prepare the installation area: Clean the counterweight shaft and mounting brackets to remove dust, rust, or debris, inspect the hoist rope for wear or fraying (replace if needed), and gather necessary tools (wrench set, torque wrench, bearing grease).

2. Installation & Replacement Steps

Removal of Old Wheel: Loosen the locking nuts or bolts securing the old wheel to the counterweight axle. Carefully slide the wheel off the axle, taking note of the bearing orientation for proper reinstallation. Inspect the axle for rust, wear, or damage—clean with a wire brush or replace if bent or pitted. Remove any old grease residue from the axle and mounting brackets.
Mounting the New Wheel: Apply a thin layer of high-temperature bearing grease to the counterweight axle (compatible with Otis specifications) to reduce friction. Slide the new XAA266AE1/16/17/25 wheel onto the axle, ensuring it aligns with the hoist rope path (no misalignment with adjacent wheels). Secure the wheel using the original locking nuts or bolts, tightening to Otis’ recommended torque (typically 45–60 Nm)—over-tightening can damage bearings, while under-tightening causes movement.
Post-Installation Testing: Remove the lifting equipment and restore power to the elevator (performed exclusively by certified Otis technicians). Conduct three mandatory tests:
1. Rotation Test: Manually rotate the counterweight wheel to ensure smooth, friction-free movement (no grinding or resistance).
2. Alignment Test: Run the elevator through a full vertical cycle to verify the wheel guides the counterweight without misalignment, rope slippage, or unusual noise.
3. Load Test: Operate the elevator with rated load to confirm the wheel supports the counterweight effectively, with no vibration or excessive rope wear.

  Document the installation/replacement date, wheel model/serial number, and test results in maintenance records to track lifespan and compliance.

3. Routine Usage Maintenance

To preserve the XAA266AE1/16/17/25’s performance and extend its lifespan, implement proactive maintenance practices tailored to mechanical components:

Daily Visual Inspections: Check the counterweight wheel (via hoistway inspection windows) for visible damage—cracked rim, loose mounting, or rope indentations. Verify the wheel rotates smoothly during elevator operation (no wobble or grinding noise).
Monthly Grease Inspection: Inspect the bearing seals for grease leakage—reapply high-temperature bearing grease if levels are low. Ensure the grease does not attract dust or debris (use Otis-approved grease from Nanjing Zhuye).
Quarterly Alignment Check: Use a laser alignment tool to verify the wheel is properly aligned with the hoist rope and adjacent wheels—misalignment causes premature rope and wheel wear. Adjust mounting brackets if needed.
Semi-Annual Bearing Test: Measure the wheel’s rotational resistance using a torque gauge—excessive resistance indicates bearing wear. Check for bearing noise during operation (grinding or squeaking) and address immediately.
Annual Comprehensive Inspection: Schedule a full hoistway inspection to remove the counterweight wheel (if necessary) and inspect the rim for wear, bearings for damage, and axle for rust. Clean all components and replace grease annually.

Recommended Replacement Cycle

The service life of the Otis XAA266AE1/16/17/25 Counterweight Wheel depends on usage intensity (daily elevator cycles, load frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular greasing, ambient temperature -10°C to +60°C), the XAA266AE1/16/17/25 should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of heavy-duty bearings and steel rims in elevator applications, ensuring proactive replacement before structural wear or bearing failure risks safety.

2. Signs That Require Immediate Replacement

Replace the counterweight wheel immediately if:

Structural Damage: Cracked or bent rim, worn rope grooves (depth <5mm), or damaged axle hole—compromises load capacity and risks rope slippage.
Bearing Failure: Wheel rotates with resistance, makes grinding/squeaking noises, or seized bearings—causes excessive vibration and rope wear.
Misalignment: Wheel wobbles during operation, or hoist rope shows uneven wear—indicates mounting or axle damage.
Corrosion: Severe rust on the rim or axle hole that cannot be cleaned—weakens the steel structure and reduces load capacity.
Regulatory Non-Compliance: Fails annual safety inspections due to wear or damage—violates EN 81/ASME standards for elevator mechanical components.

3. Maintenance to Extend Service Life

Environmental Control: Keep the hoistway clean, dry, and well-ventilated—reduce humidity to prevent corrosion. Install dust covers for machine-room-less elevators to protect wheels from debris.
Grease Maintenance: Use only Otis-approved high-temperature bearing grease (available via Nanjing Zhuye) and reapply every 3–6 months—prevents bearing dryness and wear.
Rope Care: Ensure the hoist rope is properly tensioned and inspected regularly—worn or frayed ropes accelerate wheel groove wear.
Genuine Parts Only: Use exclusively authentic Otis XAA266AE1/16/17/25 counterweight wheels from Nanjing Zhuye. Counterfeit units use inferior steel and bearings, lack load capacity certification, and risk catastrophic failure.

Why Choose Nanjing Zhuye Elevator Parts for Otis XAA266AE1/16/17/25?

When sourcing a critical mechanical component like the Otis counterweight wheel, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Otis components, ensuring seamless integration with Otis elevator systems and counterweight assemblies—eliminating fit or load capacity issues.
Strict Quality Assurance: Each wheel undergoes rigorous testing (load capacity, bearing durability, structural integrity) to meet Otis’ original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, alignment, troubleshooting, and compatibility verification—even for legacy Otis models.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where mechanical failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Otis’ authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Otis Elevator Counterweight Wheel XAA266AE1/16/17/25 is a foundational mechanical component that ensures elevator balance, smooth operation, and safety. By following proper installation, maintenance, and replacement practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Otis elevators downtime-free, compliant with global safety standards, and optimized for performance. Whether you need a single replacement wheel, bulk orders for a building fleet, or technical support for maintenance teams, Nanjing Zhuye delivers premium Otis components and tailored professional services. Invest in the reliability and safety of your Otis elevators—choose Nanjing Zhuye Elevator Parts for your XAA266AE1/16/17/25 counterweight wheel requirements.
