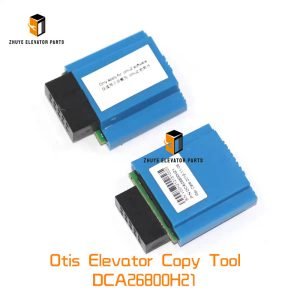

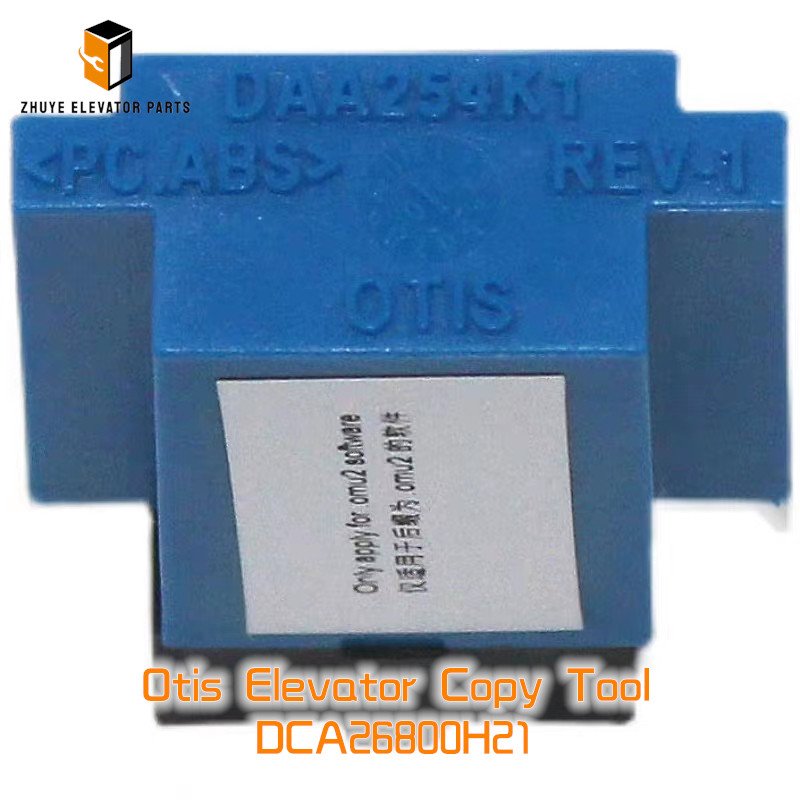

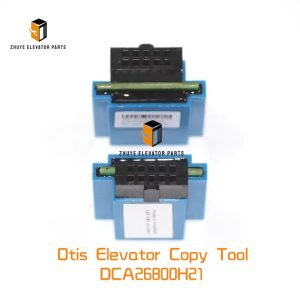

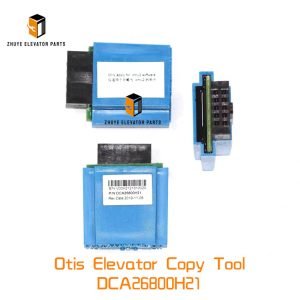

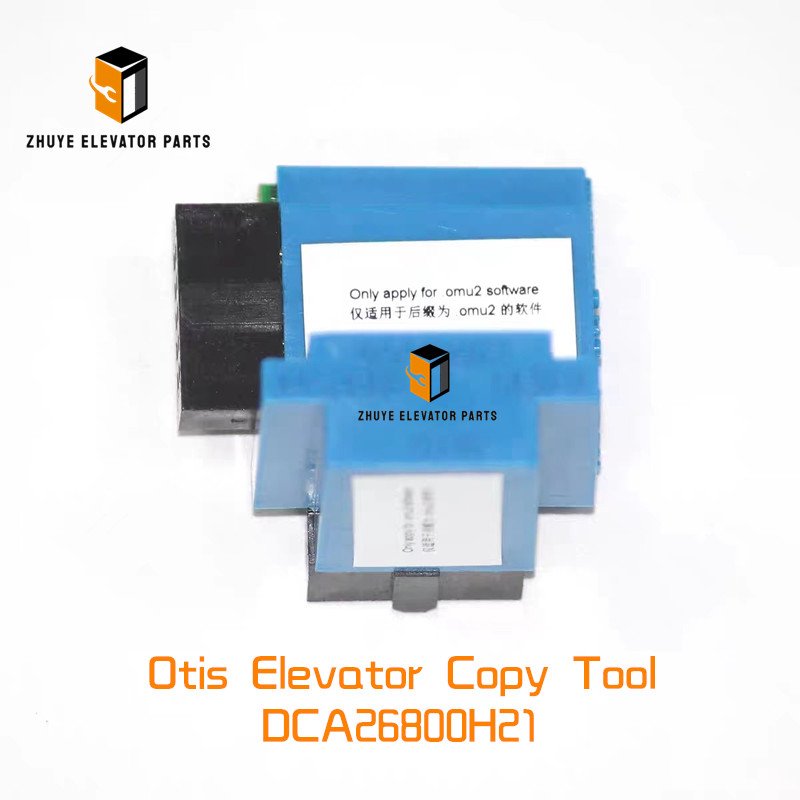

Description

• Direct Board-Level Duplication: Unlike chip-specific tools, the DCA26800H21 connects directly to the control board’s data port—eliminating the need to remove memory chips (reducing risk of board damage from chip extraction).

• 100% Data Accuracy: Uses error-correcting code (ECC) technology to ensure a bit error rate of ≤0.0001%, preserving even the most sensitive parameters (e.g., safety margin settings for emergency stops).

• Broad Compatibility: Includes 6 interchangeable adapter cables (supplied in the kit) to fit Otis’s most common control board ports—no need to purchase additional adapters for different Otis models.

• Portable & Rugged: Powered by a 7.4V rechargeable lithium battery (providing 8 hours of continuous use) for on-site maintenance; features an IP54 dustproof and water-resistant shell, making it suitable for use in dusty or damp machine rooms.

1. Pre-Operation Preparation:

• • Power Safety: Disconnect the Otis control board from the elevator’s main power supply (execute the Lockout-Tagout (LOTO) procedure) to prevent voltage spikes from damaging the tool or board.

• • Confirm Compatibility: Use Nanjing Zhuye Elevator Parts’ free online compatibility checker (via their official website) to verify the DCA26800H21 supports your specific Otis control board model (e.g., “Otis Gen2 GECB JAA26807BGZ1”).

• • Gather Tools: The DCA26800H21 kit (provided by Nanjing Zhuye Elevator Parts) includes the main tool, 6 adapter cables, a USB charging cable, a data storage SD card (16GB), and a user manual with Otis board connection diagrams.

2. Data Backup (From Original Control Board):

• • Connect the Tool: Select the adapter cable that matches the control board’s data port (e.g., 16-pin for Gen2 GECB) and plug one end into the DCA26800H21’s “Board Port” and the other end into the control board’s data interface.

• • Power On the Tool: Press the power button— the LCD display will boot to the main menu. Select “Backup Data” from the menu.

• • Start Backup: The tool will automatically detect the board model and display “Detected Otis [Board Model]”. Press “Confirm” to start the backup (takes 15-25 seconds, depending on data size). The display will show a progress bar, and a “Backup Successful” message will appear once completed (data is saved to the internal memory and the SD card for double redundancy).

3. Data Duplication (To New Control Board):

• • Prepare the New Board: Ensure the new Otis control board (supplied by Nanjing Zhuye Elevator Parts, guaranteed compatible) is powered off and connected to the tool via the same adapter cable.

• • Select Backup File: On the DCA26800H21’s menu, select “Duplicate Data” and choose the backup file from the SD card (labeled with the original board model and backup time, e.g., “Gen2_GECB_20250610.bin”).

• • Start Duplication: Press “Confirm”— the tool will begin writing data to the new board. Do not disconnect the cable or power off the tool during this process (interruption will corrupt the data). Once done, the display will show “Duplication Complete” and automatically run a verification check. A “Verification Passed” message confirms the new board’s data matches the original.

4. Post-Duplication Testing:

• • Disconnect the tool and reconnect the new control board to the elevator’s power supply (follow Otis’s wiring specifications).

• • Enter Maintenance Mode: Use the elevator’s service panel to enter maintenance mode and verify key functions:

• • • Check floor alignment (ensure the elevator stops within ±2mm of each floor).

• • • Test door operation (confirm smooth opening/closing with no delays).

• • • Verify safety functions (e.g., emergency stop response, overload protection).

• • Troubleshooting: If errors occur, recheck the data duplication (use the tool’s “Verify Data” function) or contact Nanjing Zhuye Elevator Parts’ 24/7 technical support team for guidance.

• Normal Use (15-20 times per month, for routine backups and occasional board replacements): Service life of 6 to 8 years.

• High-Frequency Use (40-50 times per month, for large maintenance companies servicing 50+ Otis elevators): Service life of 4 to 5 years.

• Harsh Use (frequent use in high-humidity machine rooms >75% RH or dusty industrial environments): Service life may shorten to 3 to 4 years.

1. Battery Care: Charge the tool’s lithium battery after each use (avoid fully discharging it—stop using when the battery level drops to 10%). Use only the USB charger provided by Nanjing Zhuye Elevator Parts (generic chargers may damage the battery). Replace the battery every 2-3 years (Nanjing Zhuye offers genuine replacement batteries).

2. Adapter Cable Maintenance: Inspect the adapter cables for frayed wires or bent pins before each use—replace damaged cables with genuine Nanjing Zhuye parts (using third-party cables can cause data errors). Clean cable connectors monthly with a dry cotton swab to remove dust.

3. Tool Storage: Store the DCA26800H21 in the provided EVA foam case (included in the kit) when not in use. Avoid storing it near heat sources (e.g., elevator motor vents) or magnetic devices (e.g., large screwdrivers), as extreme heat and magnetic fields can damage the data module.

4. Firmware Updates: Connect the tool to a computer quarterly via the USB port and download the latest firmware from Nanjing Zhuye Elevator Parts’ official website. Updates include compatibility for new Otis control board models and improved data security features.

• Persistent Data Errors: Frequent “Verification Failed” messages (even after using new adapters and rechecking connections) indicate a faulty data transmission module.

• Hardware Malfunctions: The LCD display is unresponsive, the battery no longer holds a charge (after replacement), or the tool fails to detect Otis boards—repairs are typically more costly than replacing the tool.

• Compatibility Gaps: The tool cannot support newly released Otis control board models (e.g., updated Gen2 GECB versions) and firmware updates do not resolve the issue.

• Genuine Otis Compatibility: Each DCA26800H21 is calibrated in partnership with Otis technical specifications, ensuring it works seamlessly with Otis control boards (avoiding data corruption risks from generic tools).

• Comprehensive Support: The tool includes a 2-year warranty, free online training webinars (hosted monthly by Nanjing Zhuye’s Otis specialists), and on-site support for bulk buyers.

• Value-Added Services: Nanjing Zhuye offers a “Data Recovery Service”—if the original control board is severely damaged (e.g., water or fire damage), their engineers can use the DCA26800H21 to extract residual data (exclusive to tool purchasers).

• Fast Global Delivery: The tool ships to major markets (Europe, North America, Southeast Asia) in 3-4 business days, ensuring maintenance teams can quickly resolve control board failures.
