Description

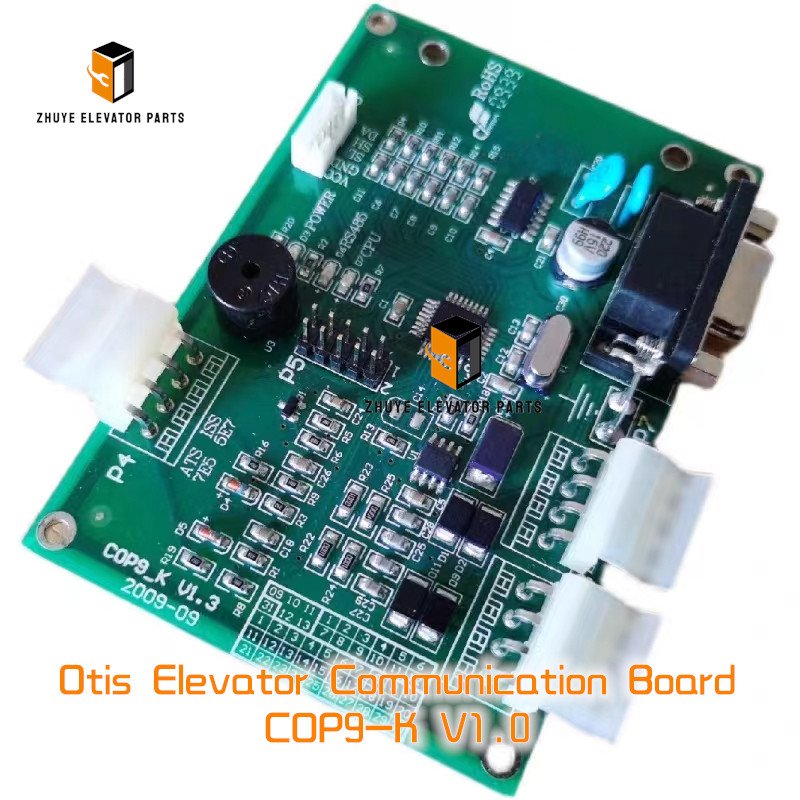

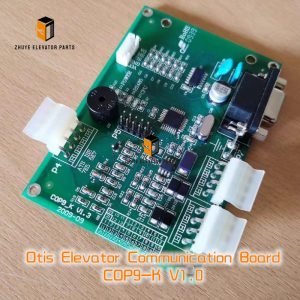

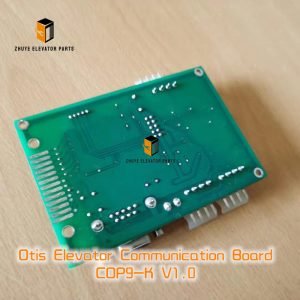

Otis Elevator COP9-K Communication Board V1.0 Signal Board Brief Introduction
|
Product Name |
Otis Elevator Communication Board Signal Board |
| Model Number | COP9-K V1.0 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator COP9-K Communication Board V1.0 Signal Board – The Silent Messenger Behind Every Car Call | Nanjing Zhuye Elevator Parts
Inside every modern Otis COP9-K car operating panel, the V1.0 Signal Board is the silent messenger that turns finger presses into fault-free communication. This compact, SIL-2 rated module links up to 48 capacitive buttons, RGB halos, EnDat encoder and CAN-FD car-top chain — all over one shielded pair. When it hesitates, the car loses calls, halos freeze and the whole group stops talking. Nanjing Zhuye Elevator Parts keeps genuine COP9-K V1.0 boards in anti-static packaging, pre-flashed with the latest firmware and ready for same-day despatch — helping you restore crystal-clear communication without costly OEM delays.
Product snapshot
-
Otis part number COP9-K V1.0 Signal Board, hardware rev. V1.0, firmware COP9-V10-27.4
-
48 capacitive-touch inputs, 64 RGB PWM outputs, 1 ms debounce, 3 million cycle rating
-
24 V DC supply, 2 A peak, short-circuit and surge protected
-
2 × CAN-FD (car-top, door operator), 1 × RS-485 (display), 1 × EnDat 2.2 (encoder)
-
On-board 4 GB eMMC for fault log, encrypted firmware update via USB-C
-
Operating temperature −10 °C to +70 °C, conformal-coated both sides, UL 94-V0
-
IP20 plastic housing, 180 × 120 × 35 mm, 0.32 kg, DIN-rail or screw mount
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Otis Gen2® Switch, Gen2® Life, OH5000 COP9-K car operating panels 600-1 100 mm width
-
Modernisation packages replacing obsolete V0.9 or relay-based COP racks
-
Any controller expecting SIL-2 car-top communication and RGB confirmation
Installation method – 10-minute field swap
-
Place lift on inspection mode; switch OFF car-top breaker; lock & tag.
-
Remove COP face-plate; photograph button wiring and CAN-FD orientation.
-
Release DIN-rail clips; slide old V1.0 board upwards and out.
-
Clip new COP9-K V1.0 onto TS-35 rail until latch clicks — no tools required.
-
Re-connect 24 V, CAN-FD, button harnesses, RGB common, USB-C dust cap.
-
Power up; rainbow sweep runs across all halos for 3 s, then turns off.
-
Press each button; controller input LED must illuminate and halo change to blue (customisable).
-
Run 100 manual presses; verify no missed clicks, halo uniformity.
-
Apply torque-stripe paint; log serial number and firmware v27.4 in maintenance book.
Replacement cycle & preventive cycle
Otis bulletin SB-COP9-2024-03 recommends:
-
Visual inspection every 6 months: check for cracked bezel, faded halo, loose clips.
-
Functional test every 12 months: contact resistance < 50 mΩ, RGB intensity > 80 %.
-
Replace entire board every 1 million button cycles or 5 years in high-traffic.
-
Immediate replacement if:
– RGB dead or colour shift > 20 %,
– CAN-FD error frames > 1 %,
– USB-C not recognised,
– missed clicks > 1 per 100 operations.
Pro tip: 70 % of premature failures are traced to over-torqued face-plates — re-torque to 0.8 Nm every year.
Maintenance tips from Nanjing zhuye elevatorparts
-
Always use gold-plated M12 connectors for 24 V DC; tin contacts oxidise and cause missed calls.
-
Never apply WD-40; it attracts dust and turns halos grey.
-
Keep a spare COP9-K V1.0 in every service van; at 0.32 kg it costs less than one callback.
-
After heavy cleaning, run 100 presses and check halo uniformity.
-
Order the “COP9 Bundle” (board + USB-C cable + torque tool) from nanjing zhuye elevatorparts to eliminate parts hunting and ensure matched components.
Why buy from nanjing zhuye elevatorparts?
We are an Otis-authorised distributor, importing COP9-K V1.0 directly from the Czech factory, gold-plating every contact and shipping with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent LED fading. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at three pieces; we can pre-load your logo splash and include a loaner board to keep your cars communicating during the swap.
Conclusion
The Otis Elevator COP9-K Communication Board V1.0 Signal Board is the silent maestro behind every button press and halo glow. By installing the genuine unit, calibrating RGB correctly and replacing it before the halo fades, you ensure every call is answered, every colour shines, and every passenger steps in with confidence. Stock genuine V1.0 from nanjing zhuye elevatorparts today — because when the signal board stops, the car stops.
