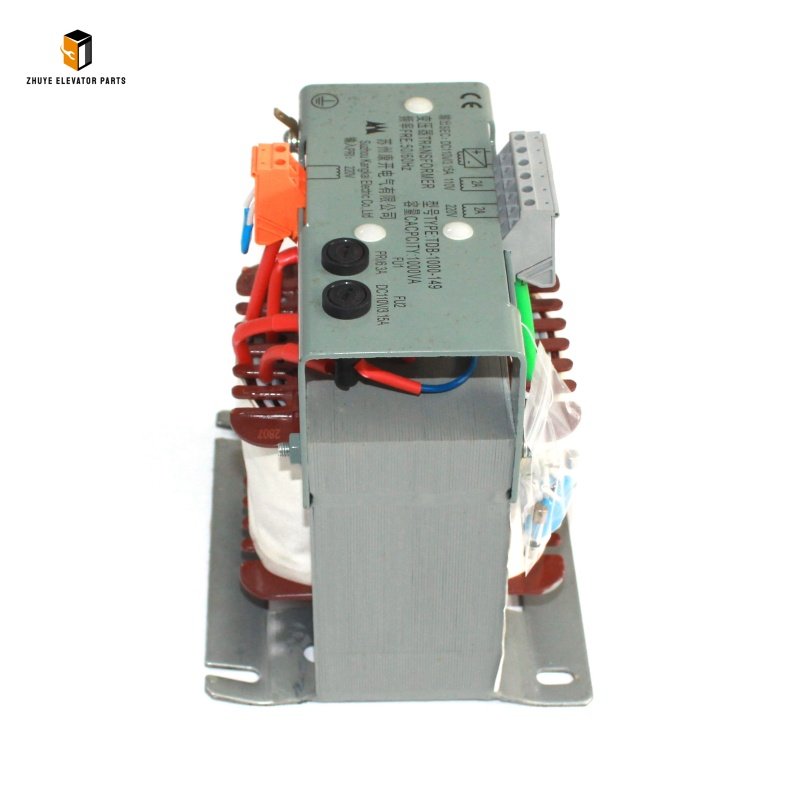

Otis Elevator Control Cabinet Transformer TDB-1000-149/128/165/122: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Control Cabinet Transformer TDB-1000 Series

1. Pre-Installation Preparation

2. Installation & Testing Steps

• Mounting the Transformer:
  • Locate the designated installation position in the control cabinet (typically a dedicated shelf or bracket). The mounting surface must be flat, rigid, and well-ventilated to ensure heat dissipation—transformers generate moderate heat during operation. Maintain a minimum clearance of 10cm around the unit to avoid thermal buildup, consistent across all TDB-1000 variants.
  • Secure the transformer with provided mounting bolts (torque to 6–8 Nm) to prevent vibration-induced loosening. Ensure vertical installation (per Otis’s recommendations) to optimize heat dissipation and winding stability, regardless of the variant.
• Wiring Connection:
  • Follow the variant-specific wiring diagram (provided by Otis or Nanjing Zhuye) to connect the transformer to the control cabinet’s main power supply and internal components:
    • Connect high-voltage input wires (L1, L2, L3) to the primary terminals—use copper cables of specified gauge (typically 2.5–4mm²) and secure with terminal blocks. Ensure proper phase alignment and tight connections to prevent arcing.
    • Attach low-voltage output wires to the secondary terminals, matching the variant’s rated output (e.g., 24V for TDB-1000-122, 110V for TDB-1000-165) to the corresponding control cabinet subsystems. Use color-coded wires or labels to avoid misconnection across variants.
    • Install a dedicated circuit breaker (matching the transformer’s rated current, 4–5A for 1000VA) in the input line to provide overload and short-circuit protection.
• Functional Testing:
  • Conduct comprehensive tests (by certified electricians/technicians only), consistent across all TDB-1000 variants:
    • Insulation Resistance Test: Use a megohmmeter to verify insulation resistance between windings and ground—ensure it meets or exceeds 10MΩ.
    • Voltage Regulation Test: Power on the transformer and measure input/output voltages under no-load and full-load conditions. Confirm the output voltage remains stable (±3% of rated value) to avoid subsystem damage.
    • Load Test: Operate the control cabinet and associated subsystems (e.g., door operators, sensors) to simulate real-world load. Monitor the transformer’s output voltage for drops or fluctuations.
    • Thermal Performance Test: Run the transformer continuously for 2 hours and check the enclosure temperature—ensure it remains within the safe range (≤80°C) to prevent thermal overload.
  • Document test results in maintenance records to demonstrate compliance with electrical safety standards, noting the specific TDB-1000 variant installed.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting bolts, damaged enclosures, or debris accumulation around the transformer. Remove dust or oil with a dry, lint-free cloth—avoid water or cleaning agents that can damage insulation.
• Monthly Voltage Checks: Use a multimeter to measure input/output voltages and verify stability, regardless of the variant. Document any fluctuations (≥5% of rated value) for troubleshooting.
• Quarterly Terminal Inspections: Inspect input/output terminals for corrosion, wear, or loose connections. Tighten terminals as needed or replace damaged terminal blocks with genuine Otis parts from Nanjing Zhuye.
• Semi-Annual Insulation Resistance Test: Re-test insulation resistance to detect early signs of winding degradation, a critical step for all variants. Address values below 10MΩ immediately.
• Annual Thermal & Load Checks: Verify the transformer’s thermal performance and load-carrying capacity. Clean ventilation grilles to ensure unobstructed heat dissipation, consistent across the series.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Voltage Instability: Output voltage fluctuates beyond ±5% of rated value, or drops significantly under load—causing subsystem malfunctions (e.g., unresponsive control boards, erratic door operation).
• Insulation Failure: Insulation resistance falls below 5MΩ, or short circuits occur between windings or to ground.
• Thermal Overload: The transformer enclosure becomes excessively hot (≥90°C) during normal use, or triggers frequent overload protection shutdowns.
• Physical Damage: Cracked enclosure, oil leaks (oil-immersed variants), burned terminals, or frayed wiring that cannot be repaired.
• Audible Anomalies: Persistent humming, buzzing, or cracking sounds—indicative of loose windings, core damage, or electrical arcing.

3. Maintenance to Extend Service Life

• Stabilize Input Voltage: Install a surge protector or voltage regulator in the main power line to shield the transformer from voltage spikes or sags—common causes of winding damage across all variants.
• Ensure Proper Ventilation: Keep the machine room well-ventilated and maintain ambient temperature between 10–35°C. Avoid installing the control cabinet near heat sources (e.g., motors, heaters).
• Prevent Overloading: Avoid connecting additional non-Otis devices to the transformer’s output—overloading accelerates winding degradation regardless of the variant.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on genuine Otis components from Nanjing Zhuye. Counterfeit transformers may have inferior copper windings, substandard insulation, or incorrect voltage ratings that compromise safety and performance across all TDB-1000 variants.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Variant Compatibility: All TDB-1000 variants are manufactured to Otis’s original specifications, ensuring seamless integration with Otis control cabinets and compliance with global safety/electrical standards.
• Strict Quality Assurance: Each variant undergoes rigorous testing—including voltage regulation verification, insulation resistance, thermal performance, and overload protection—to guarantee stable power conversion in critical control cabinet systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from variant-specific installation wiring and voltage calibration to troubleshooting transformer-specific issues (e.g., voltage fluctuations, thermal overload) in Otis control cabinets.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers all TDB-1000 variants promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for reliable, compliant transformers across your Otis elevator fleet.
