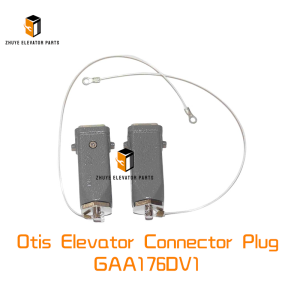

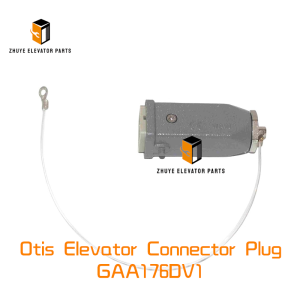

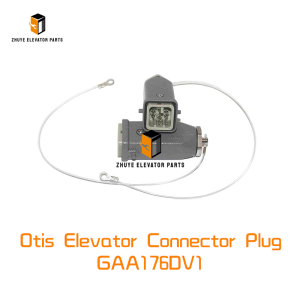

Otis Elevator Connector Plug GAA176DV1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Connector Plug GAA176DV1

1. Pre-Installation Preparation

2. Installation & Operation Steps

• Wiring Preparation:
  • Strip the insulation from the ends of the connecting wires (1.5–2.0mm stripping length, as recommended) to expose clean, untarnished conductors. Avoid damaging wire strands, as frayed wires can cause poor contact or overheating.
  • Crimp or solder the wires to the connector’s terminals (follow Otis’s wiring diagram for pin assignments) to ensure secure, low-resistance connections. Use heat-shrink tubing to insulate soldered joints and prevent short circuits.
• Plug Connection:
  • Align the GAA176DV1 with the mating connector (typically installed on elevator control boards or component housings) ensuring the keyway (alignment notch) is properly engaged to prevent pin bending.
  • Insert the plug firmly until you hear a distinct “click,” indicating the locking mechanism is engaged. Pull gently on the cable to verify the connection is secure—no movement or disconnection should occur.
  • Route the connected cable away from moving parts (e.g., door rails, motor shafts) and high-temperature components to prevent mechanical damage or insulation melting. Use cable ties to secure the cable and reduce strain on the connector.
• Functional Testing:
  • Restore power to the elevator and conduct a system check:
    • Verify the connected component (e.g., sensor, door operator) operates correctly without intermittent failures.
    • Use a multimeter to test continuity across the connector and confirm no voltage drop (should be ≤0.1V) which indicates a secure connection.
    • Operate the elevator through full cycles (ascending, descending, door opening/closing) to ensure vibration does not disrupt the connection.

3. Routine Usage Maintenance

• Conduct monthly visual inspections: Check for loose connections, cable strain, or signs of damage to the plug housing. Ensure the locking mechanism is intact and functions properly.
• Clean the connector’s contacts quarterly using a dry, lint-free cloth or contact cleaner (avoid oil-based products) to remove dust, corrosion, or oxidation—contaminants that can impair signal transmission.
• Inspect the cable insulation semi-annually for cracks, fraying, or wear; replace the cable if damage is detected to prevent short circuits.
• Avoid pulling or twisting the cable at the connector base, as this can damage internal wiring or contacts.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Intermittent operation of connected components (e.g., sensors failing to trigger, door operators stalling) that persists after cleaning contacts and verifying wiring.
• Visible damage: Bent pins, cracked housing, or exposed wiring that cannot be repaired.
• Corrosion on contacts (green/black deposits) that affects conductivity, even after cleaning.
• Loose connection: The plug disengages easily or moves when the cable is gently pulled.
• Voltage drop exceeding 0.3V across the connector, indicating high resistance from worn contacts.

3. Maintenance to Extend Service Life

• Keep the elevator control cabinet and connector area dry (humidity ≤60%) to prevent contact corrosion and housing degradation.
• Apply a thin layer of dielectric grease to the contacts annually (if recommended by Otis) to protect against oxidation and improve conductivity.
• Avoid over-tightening cables or subjecting the connector to excessive vibration by using cable management solutions (clips, ties) to reduce strain.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit connectors may have poor-quality contacts or incompatible pin configurations.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All GAA176DV1 connector plugs are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and adherence to global safety standards (EN 61076, IEC 60309, ISO 9001).
• Strict Quality Assurance: Each unit undergoes rigorous testing—including contact resistance measurement, durability cycling, and environmental stress tests—to guarantee reliable performance in critical electrical connections.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from wiring guidance and compatibility verification to troubleshooting connection issues, ensuring a smooth user experience.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and operational efficiency.
