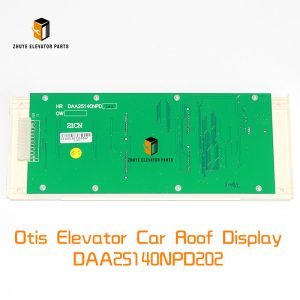

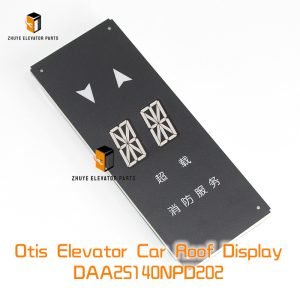

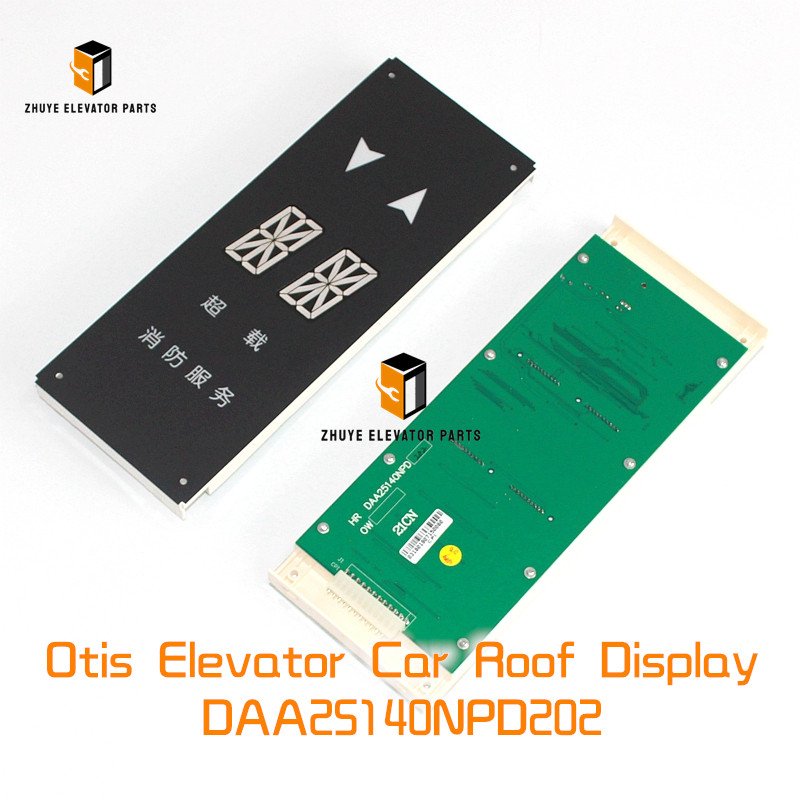

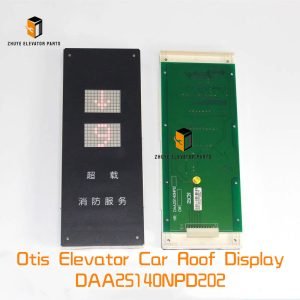

Otis Elevator Car Roof Display DAA25140NPD202: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Car Roof Display DAA25140NPD202

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Mounting the Display:
  • Access the elevator car roof and locate the designated installation position—typically near the car top control box, in a well-visible area for technicians (avoiding moving parts like door mechanisms or counterweight cables). The mounting surface must be flat, rigid, and free from debris to prevent vibration-induced damage.
  • Secure the DAA25140NPD202 to the car roof using the provided anti-vibration bolts (torque to 0.8–1.2 Nm) to protect internal components from elevator movement. Ensure the display is angled for optimal visibility (30–45° from horizontal) and not obstructed by cables or equipment.
• Wiring Connection:
  • Follow the wiring diagram provided by Otis or Nanjing Zhuye to connect the display to the elevator’s main controller and power supply:
    • Connect the power wires (positive/negative) to the designated terminals—incorrect polarity can damage the LED modules or circuitry.
    • Attach the communication wires to the main controller to transmit real-time data (floor position, door status, fault codes). Use shielded cables to minimize electromagnetic interference (EMI) from elevator motors or power systems.
    • Secure all connections with terminal blocks and route wiring neatly along the car roof frame, using cable clips to avoid contact with moving parts or sharp edges.
• Functionality Configuration:
  • Restore power to the elevator and confirm the display initializes correctly (LEDs illuminate briefly during startup). Access the configuration menu via the car top control panel or Otis-approved diagnostic software (by certified technicians):
    • Set display parameters: LED brightness (adjust for shaft lighting conditions), fault code language (if applicable), and data refresh rate (typically 1–2 seconds).
    • Sync status data: Verify floor numbers, direction arrows, and door status indicators update accurately as the elevator operates.
• Functional Testing:
  • Validate all display functions:
    • Operate the elevator through ascending/descending cycles to confirm floor position and direction indicators work correctly.
    • Trigger door open/closed cycles to verify door status LEDs (typically green for closed, red for open) respond promptly.
    • Simulate a minor fault (e.g., door sensor obstruction) to ensure fault codes are displayed clearly and match Otis’s diagnostic manual.
  • Document test results in maintenance records to demonstrate proper functionality.

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for loose mounting bolts, damaged housing, or non-illuminated LEDs. Clean the display surface with a dry, lint-free cloth to remove dust or debris (avoid water or cleaning agents that can damage the housing).
• Test functionality monthly: Verify all LEDs illuminate correctly, status data syncs in real time, and fault codes are displayed accurately. Document any dim or non-functional LEDs for replacement.
• Inspect wiring connections quarterly for corrosion, wear, or looseness; tighten terminals or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
• Check the display’s sealing (IP54) semi-annually to ensure protection against dust and moisture—replace the unit if the housing is cracked or the seal is compromised.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Visibility failures: Dim, flickering, or non-functional LEDs that impair status recognition (more than 20% of LEDs non-operational).
• Data sync errors: Floor position, direction, or door status indicators do not update in real time, or display incorrect information.
• Fault code issues: Failure to display fault codes, or display of unrecognizable codes that cannot be resolved via troubleshooting.
• Physical damage: Cracked housing, water intrusion, or damaged wiring harnesses that cannot be repaired.
• Communication failures: No data transmission despite verified power and wiring connections—traced to internal circuitry failure.

3. Maintenance to Extend Service Life

• Maintain the elevator shaft at a stable temperature (10–35°C) and low humidity (≤60%) to prevent LED degradation and circuitry corrosion.
• Protect the display from physical damage: Avoid placing tools or equipment on the display during maintenance, and install a protective cover (if not factory-equipped) to shield against impacts.
• Keep the shaft clean of dust and debris to prevent accumulation on the display surface, which can reduce visibility and overheat LEDs.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit displays may have inferior LEDs, poor sealing, or compatibility issues with Otis systems.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All DAA25140NPD202 displays are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and adherence to global safety standards.
• Strict Quality Assurance: Each unit undergoes comprehensive testing—including LED brightness verification, data transmission accuracy, environmental durability (dust, vibration, temperature), and fault code functionality—to guarantee reliable performance in shaft environments.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and configuration to troubleshooting data sync or LED issues specific to Otis systems.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers operational-critical components promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you streamline maintenance workflows while managing budgets.
