Description

LMRS32-v3.0/RS32v2.0/RS32-C Brief Introduction

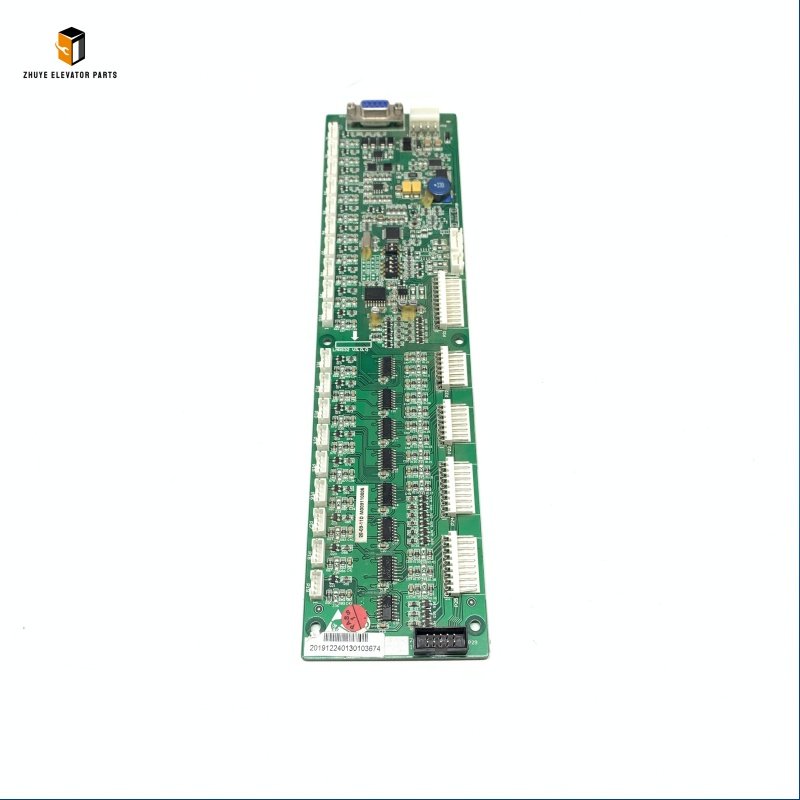

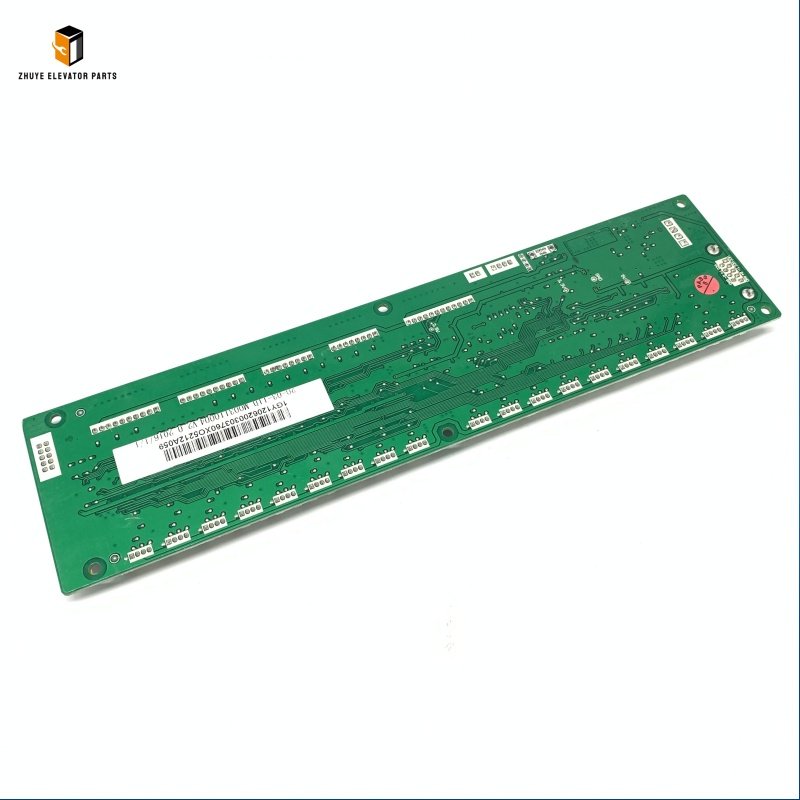

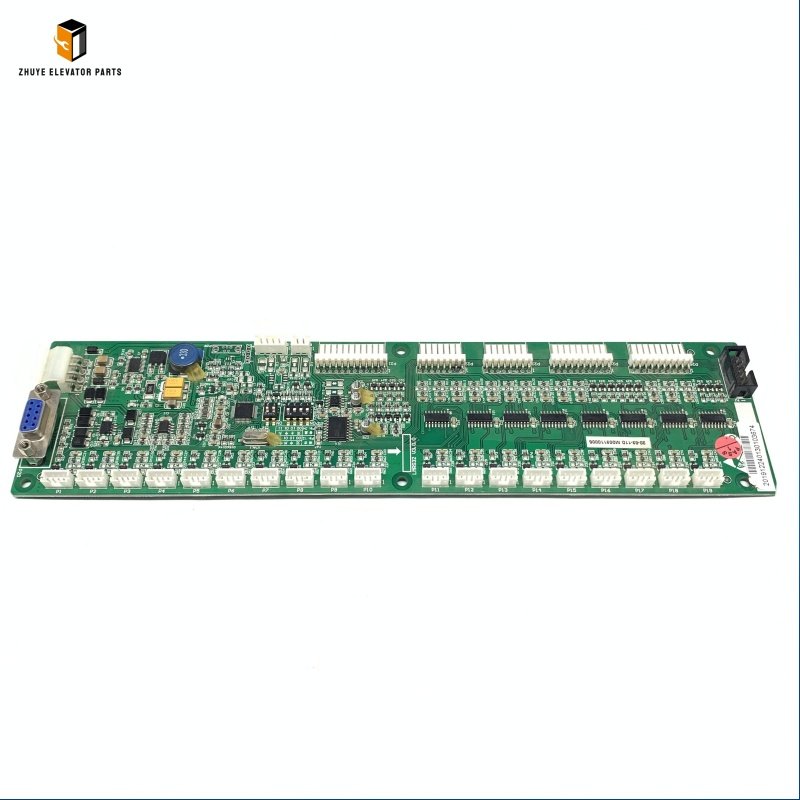

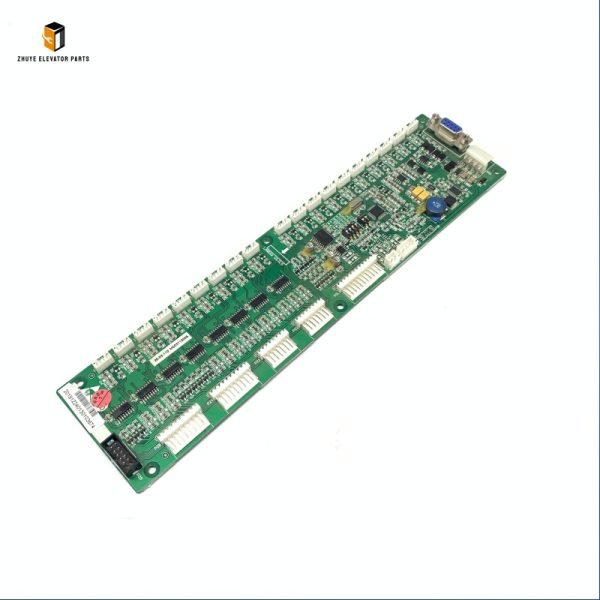

Product Name	Otis elevator car communication board
Model Number	LMRS32-v3.0 RS32v2.0 RS32-C
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

RS32-C: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator Car Communication Board series—LMRS32-v3.0, RS32v2.0, and RS32-C—is a family of high-performance connectivity components exclusively engineered for Otis elevator systems, widely deployed in commercial high-rises, residential complexes, public transit facilities, and smart buildings worldwide. As the central “in-car communication hub” for Otis Gen2, SkyRise, and NCE series elevators, these boards facilitate seamless interaction between passengers, the elevator car, and building management systems. Key functions include car call button signal processing, floor position display control, intercom communication with the monitoring center, emergency call activation, and data transmission to the elevator’s main controller. While sharing core functionality, the variants offer incremental upgrades: RS32-C (basic model) supports essential communication protocols, RS32v2.0 enhances data transmission speed, and LMRS32-v3.0 adds smart features like remote diagnostic integration—all upholding Otis’ strict standards for safety, reliability, and passenger experience.

Compliant with global safety and electronic standards (EN 81, IEC 61010, ISO 9001), the LMRS32/RS32 series features a robust, interference-resistant design: multi-layer PCB substrates for signal integrity, industrial-grade communication chips and transceivers, integrated ESD protection (±15kV contact), and Otis-specific firmware optimized for low-latency data exchange. This construction withstands 24/7 operation in elevator cars, enduring temperature fluctuations (-5°C to +40°C), vibration during movement, and dust accumulation. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, configuration, and replacement timelines of these boards is critical to ensuring passenger safety, operational efficiency, and compliance with communication regulations. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the LMRS32-v3.0/RS32v2.0/RS32-C series that meets Otis’ original manufacturing specifications—guaranteeing seamless compatibility, reliable connectivity, and long-term durability.

Proper Usage Methods of Otis LMRS32-v3.0/RS32v2.0/RS32-C Car Communication Boards

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s car power supply, isolating the communication circuit, and securing the car interior work area with warning signs. Inspect the selected board (matching the elevator’s model and firmware requirements) for physical damage—such as cracked PCB substrates, damaged connectors, loose components, or burn marks on communication chips—defects that can cause call button failures, display malfunctions, or emergency communication breakdowns. Nanjing Zhuye Elevator Parts conducts rigorous Otis-specific quality control checks, so each unit arrives in optimal condition: intact circuit traces, functional button interfaces, pre-loaded Otis-compatible firmware, and clear wiring/connector markings.

Verify compatibility with your Otis elevator model and control system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Confirm three key details: (1) the variant (LMRS32-v3.0/RS32v2.0/RS32-C) aligns with the elevator’s software version, (2) the communication protocol support (e.g., Modbus, Otis proprietary protocols) matches the main controller, and (3) the interface configuration (button inputs, display outputs, intercom connections) fits the car’s hardware setup. Using an incompatible variant can disrupt in-car communication, render call buttons unresponsive, or disable emergency call functions.

2. Installation & Configuration Steps

Board Installation:
- Access the car control panel (typically behind the call button fascia) and remove the existing board by labeling and removing communication cables (to main controller, intercom, and display), power wires, and button connectors—take detailed photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting area with compressed air to remove dust or debris that could interfere with connections.
- Align the new LMRS32/RS32 board with the mounting brackets and secure it with the provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced damage during elevator movement. Reconnect all cables and connectors, ensuring each is fully seated and locked—loose connections are the leading cause of intermittent communication failures.
Configuration Setup:
- Restore power to the car communication circuit (performed by certified Otis technicians only) and access the configuration menu via Otis’ diagnostic software (e.g., Otis Service Tool, CONNECT). Complete three critical steps:
  1. Variant Calibration: Select the board model (LMRS32-v3.0/RS32v2.0/RS32-C) in the software to load matching protocol settings and 功能 parameters.
  2. Car Identification: Program the board to recognize the elevator car number and floor range, ensuring accurate call signal transmission and display.
  3. System Sync: Initiate synchronization with the main controller, intercom system, and car display, verifying that call buttons, emergency calls, and floor status updates function correctly.
Functional Testing:
- Conduct comprehensive tests to validate performance:
  - Call Button Test: Press each car call button to confirm signals are transmitted to the main controller and the display updates accordingly.
  - Communication Test: Verify intercom connectivity with the monitoring center and test emergency call activation (ensuring immediate response).
  - Display & Status Test: Confirm floor position, direction, and fault alerts (e.g., “Maintenance Mode”) are displayed clearly and updated in real time.
- Document installation details, configuration settings, and test results in maintenance records to demonstrate compliance with Otis’ service requirements.

3. Routine Usage Maintenance

To preserve the board’s performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for unresponsive call buttons, display flicker, or loose fascia panels. Wipe the car control panel with a soft, dry cloth to remove dust—avoid liquid cleaners.
Monthly Functional Checks: Test all call buttons, intercom communication, and emergency call functions. Use Otis’ diagnostic software to scan for communication errors or firmware mismatches.
Quarterly Connection Inspections: Remove the control panel fascia to inspect wiring and connectors for fraying, corrosion, or loose contacts. Retighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye.
Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance compatibility, fix software bugs, and unlock new features (especially for LMRS32-v3.0).
Annual Performance Testing: Verify call response time, communication latency, and display accuracy against Otis’ factory specifications. Conduct a backup of configuration settings for future maintenance.

Recommended Replacement Cycle

The service life of Otis LMRS32-v3.0/RS32v2.0/RS32-C Car Communication Boards depends on usage intensity (daily call volume, emergency call frequency), environmental conditions, and maintenance quality. Based on Otis’ engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

RS32-C (Basic Variant): Replace every 6–8 years under normal operating conditions.
RS32v2.0 (Mid-Range Variant): Replace every 7–9 years.
LMRS32-v3.0 (Advanced Variant): Replace every 8–10 years (benefiting from more durable components and firmware updates).

This timeframe accounts for gradual wear of button interfaces, communication chip degradation, and firmware obsolescence—ensuring reliable passenger communication and system integration.

2. Signs That Require Immediate Replacement

Replace the board immediately if:

Communication Failures: Unresponsive call buttons, failed intercom connections, or no emergency call functionality—impairing passenger safety and convenience.
Persistent Errors: Repeated board-related error codes (e.g., “Communication Timeout,” “Button Input Fault”) that cannot be resolved with troubleshooting.
Physical Damage: Cracked PCB, water intrusion, or damaged connectors—compromising electrical safety and functionality.
Performance Degradation: Delayed call response, frequent display freezes, or intermittent loss of communication with the main controller.
Safety Compromise: Inability to activate emergency calls or transmit fault alerts—violating Otis’ safety standards and regulatory requirements.

3. Maintenance to Extend Service Life

Environmental Protection: Ensure the car control panel is sealed properly to prevent dust and moisture intrusion (critical for elevator cars exposed to varying humidity).
Power Stabilization: Install surge protectors in the car communication circuit to shield the board from voltage spikes during elevator operation.
Gentle Usage Promotion: Post signage encouraging passengers to press buttons lightly to reduce wear on button interfaces.
Genuine Parts Only: Rely on authentic Otis LMRS32/RS32 boards from Nanjing Zhuye. Counterfeits use inferior chips, weak connectors, or pirated firmware—risking communication failures and safety hazards.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing Otis LMRS32-v3.0/RS32v2.0/RS32-C car communication boards, Nanjing Zhuye offers unmatched advantages:

Authenticity & Compatibility: All units meet Otis’ OEM specs, ensuring seamless integration with Gen2, SkyRise, and NCE series elevators.
Strict Quality Assurance: Rigorous testing (communication reliability, button response, firmware integrity) guarantees performance in critical passenger-facing functions.
Expert Support: Certified engineers provide 24/7 assistance for variant selection, installation, configuration, and troubleshooting.
Global Delivery: Prompt shipment minimizes elevator car downtime, ensuring uninterrupted passenger service.
Competitive Pricing: Direct sourcing eliminates middlemen, offering cost-effective solutions without quality compromises.

Conclusion

The Otis LMRS32-v3.0/RS32v2.0/RS32-C Car Communication Board series is a foundational component for safe, user-friendly elevator operation, serving as the critical link between passengers and elevator systems. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can ensure Otis elevators remain compliant, reliable, and passenger-centric. Whether you need a basic RS32-C for standard applications, an RS32v2.0 for enhanced performance, or an LMRS32-v3.0 for smart features, Nanjing Zhuye is your trusted partner for premium Otis components and expert support. Invest in passenger safety and communication reliability—choose Nanjing Zhuye Elevator Parts for your LMRS32/RS32 car communication board needs.
