Otis elevator car command board

Description

Otis elevator car command board A3N3589 Brief introduction

Product Name	Otis elevator car command board
Model Number	A3N35898
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator Car Command Board A3N35898 – Installation, Programming & Replacement Guide
Nanjing Zhuye Elevator Parts – Global stock, OEM traceability, next-day dispatch

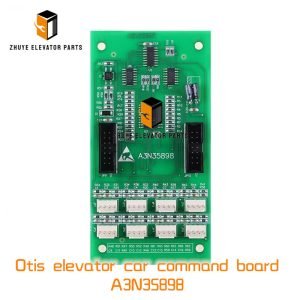

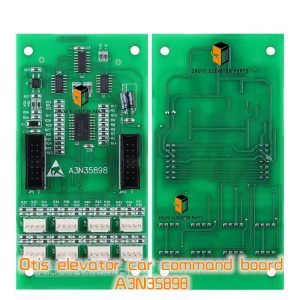

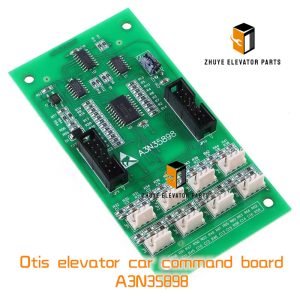

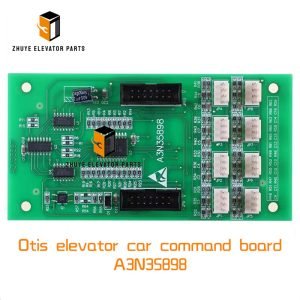

The A3N35898 is the “nerve centre” of every modern Otis cab. Mounted behind the car-operating panel, this 24 Vdc multi-layer PCB decodes button presses, drives the halo LEDs, sends serial packets to the iController, and still has spare I/O for load-weighing, emergency light feedback, and gong control. When it fails, every button goes dark and the car parks itself on Phase-II recall. Nanjing Zhuye Elevator Parts keeps thousands of factory-flashed A3N35898 boards in Rotterdam and Nanjing so you can restore full cab functionality the same day. Below is an 800-word field manual that explains correct usage, on-car programming, and the replacement cycle that keeps your elevators code-compliant and passenger-friendly.

1. What the A3N35898 does

48-button matrix with diode protection eliminates ghost calls
STM32 ARM processor runs Otis COB 4.6 firmware, SIL 2 certified
Two CAN-bus ports (MS-CAN & Car-CAN) provide 1 ms response to controller
On-board buck converter delivers 5 Vdc for accessories, 3 A max
UL/CE recognised to EN 81-20, CSA B44.1 for 5 million cycles

2. Tools to carry

A3N35898 board (Nanjing Zhuye part #OT-COB-A3N35898) in anti-static foam
2 mm & 2.5 mm flat screwdrivers, TX10 Torx
Otis Service Tool (OST) laptop with COB 4.x licence
RJ-45 and micro-USB cables (shielded, 2 m)
Multimeter with continuity beeper
Lock-out / tag-out kit

3. Installation – 20 minutes if you save the database first

Safety: place the car on inspection, open the main disconnect and verify 0 V on the 24 Vdc rail.

Photograph every connector – note J1 (power), J2 (MS-CAN), J3 (buttons), J4 (options).
Remove four TX10 screws; slide the old board out of the plastic stand-offs.
Transfer the SD-micro card from old to new board – it holds the car-specific button map.
Mount the new A3N35898; torque screws to 1.0 N·m.
Re-connect all plugs; tug-test each one.
Power up – STATUS LED blinks green 3 times then stays solid.
Launch OST → Car → Parameter Upload; select the XML file exported earlier.
Run a 48-button lamp test – all halos must illuminate within 100 ms.
Cycle the elevator five times; confirm every call registers and cancels correctly.

4. Functional test – prove it to the inspector

a) Button actuation force: 1.5 N ±0.3 N at plunger centre.
b) Halo illumination: 120 cd/m² measured with lux meter.
c) CAN-bus latency: <1 ms between button press and controller receipt.
d) Phase-II recall: pressing fire-service key overrides all calls and lights the red LED.
e) Log all values in OST and export PDF for the site file.

5. Preventive maintenance schedule

Monthly – visual sweep for dark buttons or cracked lenses.
Quarterly – check 24 Vdc ripple (<200 mV) and CAN-bus termination (60 Ω).
Annually – clean button mat with IPA; inspect for carbon tracks from arcing.
Every two years – replace the coin-cell battery (BR2032) that keeps the button map during power-down.

6. Replacement cycle – calendar or condition, whichever comes first

Otis baseline: 5 million cycles ≈ 10 years at 400 starts/day. Nanjing Zhuye analytics refine this:

Light duty (<150 starts/day, office): 12 years
Standard duty (150–400 starts, residential): 10 years
Heavy duty (>400 starts, hospital, mall): 7 years
High humidity (>80 % RH, coastal): 5 years – edge connectors corrode.

Replace immediately if:

STATUS LED shows red double-blink – CPU watchdog fault
Random dark buttons – row/column driver IC blown
24 Vdc rail drops below 22 V – on-board buck converter failing
CAN-bus error frame count >1 % – differential transceiver cracked

7. Eco-disposal & warranty

Return the old board in the prepaid anti-static box; Nanjing Zhuye recovers gold, copper and aluminium and issues a €10 recycling credit. Every A3N35898 ships with a 24-month replacement warranty, extendable to 60 months when you join our annual button-mat replacement program.

8. Why buy from Nanjing Zhuye Elevator Parts

2,500 units in stock, Rotterdam & Nanjing, flashed with latest firmware
Factory-sealed Otis packaging with hologram – no grey-market clones
QR code on box links to parameter template and 5-minute install video
24/7 technical hotline staffed by ex-Otis commissioning engineers
Bundle pricing: buy 5 boards and get a free BR2032 battery kit plus freight credit

9. Bottom line

A dead command board turns every ride into a service call. Keep a genuine, pre-flashed A3N35898 on every truck, swap it in 20 minutes, and your cabs will respond to every button press for the full ten-year design cycle. Order today from Nanjing Zhuye Elevator Parts—the fastest route from “dark cab” to “perfect ride.”
