Description

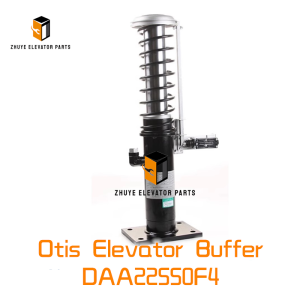

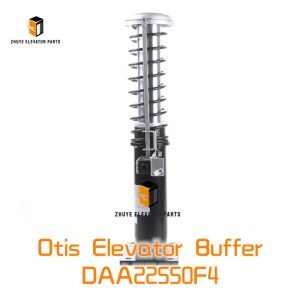

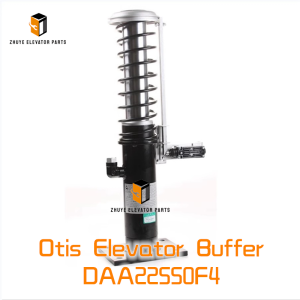

Otis Elevator Buffer DAA22550F4 Brief Introduction
|
Product Name |
Otis Elevator Buffer |
| Model Number | DAA22550F4 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Elevator Buffer DAA22550F4: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Otis Elevator Buffer DAA22550F4 is a life-saving safety component designed to absorb impact energy in the event of an elevator overrun—preventing catastrophic damage to the elevator car, counterweight, and most importantly, protecting passengers. As a mandatory component under global safety standards (EN 81, ASME A17.1, ISO 9001), this hydraulic buffer acts as the final line of defense, decelerating the elevator smoothly and safely if it exceeds its normal travel limits. For elevator maintenance teams, property managers, and facility operators, understanding the correct usage, installation, and replacement timelines of the DAA22550F4 is non-negotiable to uphold safety compliance and mitigate liability risks. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic elevator safety components, delivers the DAA22550F4 buffer that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility, reliable shock absorption, and long-term durability for Otis elevator systems.
Proper Usage Methods of Otis Elevator Buffer DAA22550F4
1. Pre-Installation Preparation
Before installing the DAA22550F4 buffer, prioritize safety by shutting off the elevator’s main power supply, locking the hoistway access doors, and securing the control panel with a lockout tag. Inspect the buffer for physical damage—such as dented cylinders, leaking hydraulic fluid, bent rods, or damaged mounting brackets—defects that can compromise its shock-absorbing capacity. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each DAA22550F4 unit arrives in optimal condition, with intact seals, full hydraulic fluid levels, and calibrated pressure settings. Additionally, verify compatibility with your Otis elevator model by cross-referencing the elevator’s technical manual or consulting Nanjing Zhuye’s technical support team—ensure the buffer’s load capacity (typically 2000–3000 kg), stroke length, and mounting dimensions match your elevator’s specifications.
2. Installation & Operation Steps
- Mounting the Buffer:
- Locate the designated installation position in the elevator hoistway pit—typically centered beneath the elevator car and counterweight. Ensure the mounting surface is flat, level, and capable of supporting the buffer’s impact load (consult structural engineering guidelines if needed).
- Secure the buffer to the mounting plate using the provided high-strength bolts, torquing them to the manufacturer’s recommended value (8–10 Nm) to ensure stability during impact. Use shims if necessary to align the buffer’s rod with the elevator car’s impact plate—misalignment can reduce effectiveness or cause damage.
- Hydraulic System Checks:
- Inspect the hydraulic fluid level (marked on the buffer’s reservoir) and top up with Otis-approved hydraulic oil if low (consult Nanjing Zhuye’s technical guide for oil specifications).
- Check for fluid leaks around seals, fittings, and the cylinder—leaks can reduce pressure and render the buffer inoperable. Replace damaged seals immediately with genuine parts from Nanjing Zhuye.
- Functional Testing:
- Conduct a static test: Use a hydraulic jack to compress the buffer’s rod to 50% of its stroke length, then release. Verify the rod retracts smoothly and fully without sticking—this confirms proper hydraulic flow.
- Perform a dynamic test (by certified technicians only): Simulate a controlled overrun using the elevator’s test mode. Ensure the buffer decelerates the car to a stop within the maximum allowable g-force (≤1.5g for passenger elevators) and the rod retracts completely after the test.
- Document test results in the elevator’s maintenance records to demonstrate compliance with safety regulations.
3. Routine Usage Maintenance
To preserve the DAA22550F4’s safety performance, implement these routine practices:
- Conduct monthly visual inspections of the buffer and hoistway pit: Check for fluid leaks, corrosion, physical damage, or debris accumulation (remove debris to prevent interference with the buffer’s rod).
- Inspect hydraulic fluid levels and condition quarterly—replace fluid if it appears discolored or contaminated (typically every 2 years).
- Test the buffer’s retraction function semi-annually by manually compressing the rod (wear safety gear) and confirming smooth retraction.
- Keep the hoistway pit dry and free from standing water to prevent corrosion of the buffer’s metal components.
Recommended Replacement Cycle
The service life of the Otis Elevator Buffer DAA22550F4 depends on environmental conditions (humidity, corrosion), usage intensity, and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:
1. Standard Replacement Cycle
Under normal operating conditions (protected hoistway pit, regular maintenance), the DAA22550F4 should be replaced every 8–10 years. This timeframe accounts for hydraulic fluid degradation, seal wear, and metal fatigue—ensuring the buffer maintains its shock-absorbing capacity. Proactive replacement is critical, as a failed buffer can have catastrophic consequences in an overrun scenario.
2. Signs That Require Immediate Replacement
Replace the buffer immediately if you encounter any of the following issues:
- Hydraulic fluid leaks that persist after seal replacement.
- The buffer’s rod fails to retract fully or sticks during testing.
- Physical damage: Bent cylinder, cracked reservoir, or damaged mounting brackets.
- Corrosion that penetrates the cylinder wall or compromises structural integrity.
- Test results show deceleration exceeds the maximum allowable g-force or the buffer fails to stop the car within the required stroke length.
3. Maintenance to Extend Service Life
To maximize the DAA22550F4’s lifespan:
- Keep the hoistway pit at a stable temperature (10–35°C) and low humidity to prevent corrosion and fluid degradation.
- Apply anti-corrosion coating to the buffer’s external surfaces annually (if installed in harsh environments).
- Use only genuine hydraulic oil and replacement parts from Nanjing Zhuye—counterfeit products can damage the buffer or reduce performance.
- Train maintenance staff on proper buffer handling and testing to avoid accidental damage.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Otis Elevator Buffer DAA22550F4, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Compliance: All DAA22550F4 buffers are manufactured to Otis’s original specifications, ensuring seamless compatibility with Otis elevator systems and adherence to global safety standards (EN 81, ASME A17.1, ISO 9001).
- Strict Quality Assurance: Each unit undergoes rigorous testing—including hydraulic pressure tests, impact absorption simulations, and corrosion resistance checks—to guarantee reliable performance in critical scenarios.
- Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation guidance and testing protocols to troubleshooting hydraulic issues, ensuring the buffer meets safety requirements.
- Global Efficient Delivery: With a robust supply chain, Nanjing Zhuye delivers orders promptly worldwide, minimizing downtime during replacement and keeping your elevators compliant.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs.
Conclusion
The Otis Elevator Buffer DAA22550F4 is a non-negotiable safety component that protects passengers and elevator systems from catastrophic overrun incidents. By following proper installation and maintenance methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Otis elevators remain compliant, reliable, and safe. Whether you need a replacement buffer, technical support, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium safety components and professional services tailored to your needs. Invest in passenger safety—choose Nanjing Zhuye Elevator Parts for your Otis DAA22550F4 buffer requirements.
