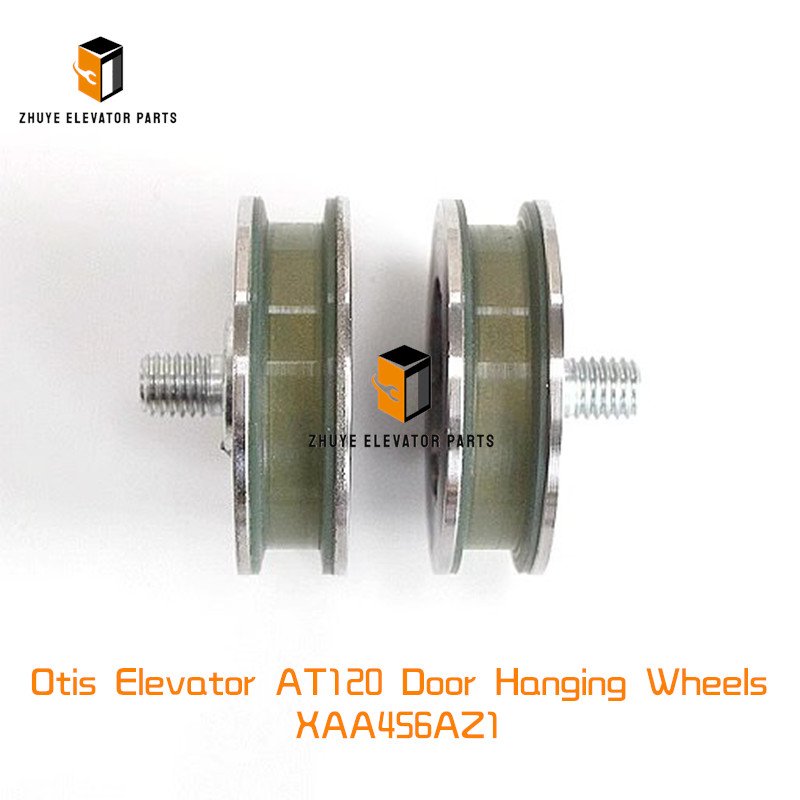

Otis Elevator AT120 Door Hanging Roller XAA456AZ1 Brief Introduction

Product Name	Otis Elevator AT120 Door Hanging Roller
Model Number	XAA456AZ1 56MM6201Z 5611*12
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis Elevator AT120 Door Hanging Roller XAA456AZ1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis Elevator AT120 Door Hanging Roller XAA456AZ1 is a precision mechanical component exclusively designed for Otis AT120 series elevator door systems—widely deployed in commercial buildings, residential complexes, and public transit facilities. As the core load-bearing and sliding element of the door suspension system, this hanging roller supports the elevator car and hoistway doors (typically 30–50kg per door) while enabling smooth, quiet movement along the door rails. Compliant with global safety and mechanical standards (EN 81, ASME A17.1, ISO 9001), it features a robust construction: high-strength steel hub, wear-resistant polyurethane (PU) tread, and sealed precision ball bearings to minimize friction, reduce operational noise, and withstand the repetitive stress of daily door cycles (often 1,000+ openings/closing per day). For elevator maintenance teams, property managers, and facility operators, mastering the correct installation, inspection, and replacement timelines of the XAA456AZ1 is vital to prevent door jams, reduce equipment wear, and uphold safety compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the XAA456AZ1 that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility with AT120 door systems, reliable performance, and long-term durability.

Proper Usage Methods of Otis Elevator AT120 Door Hanging Roller XAA456AZ1

1. Pre-Installation Preparation

Before installing the XAA456AZ1, prioritize safety by shutting off the elevator’s main power supply, locking the car top/hoistway access doors, and securing the control panel with a lockout tag. Inspect the hanging roller for physical damage—such as cracked PU tread, worn bearings, bent axles, or rusted hubs—defects that can cause uneven door movement, increased noise, or sudden failure. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each XAA456AZ1 unit arrives in optimal condition, with intact tread, smooth-rotating bearings, and pre-lubricated axles. Additionally, verify compatibility with your Otis AT120 elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the roller’s diameter (typically 80mm), tread thickness (10–12mm), and mounting hole dimensions match your door system’s requirements.

2. Installation & Adjustment Steps

Removal of Old Rollers:
- Access the elevator car top or hoistway door header (depending on door type) and locate the door hanging bracket assembly. Use a torque wrench to remove the locking nuts/bolts securing the old rollers—support the door weight with a hydraulic jack or safety strap to prevent accidental movement or damage to the door mechanism.
- Remove the old rollers and clean the bracket’s mounting surface, axle holes, and door rails with a wire brush and degreaser to eliminate dust, debris, rust, or old lubricant—contaminants that can impair roller rotation and accelerate rail wear.
Installation of New Rollers:
- Align the XAA456AZ1 with the door hanging bracket’s axle holes, ensuring the PU tread faces the door rail (avoid reversing the roller, as this will cause premature wear). Insert the axle bolt through the roller and bracket, then secure with the provided locknut—torque to 6–8 Nm (per Otis’s specification) to prevent loosening under vibration.
- Install the required number of rollers (typically 2–4 per door) symmetrically to ensure balanced weight distribution. Adjust the bracket’s position to ensure the rollers make uniform contact with the rail (no tilting or gaps) and the door maintains a consistent 5–8mm clearance from the floor.
Functional Testing:
- Manually slide the door back and forth to verify:
  - Smooth, quiet operation with no squeaking, grinding, or resistance.
  - Proper door alignment (no rubbing against the frame, floor, or adjacent doors).
  - Full travel range without jams or hesitation at any point.
- Restore power to the elevator and test automatic door operation (via floor buttons and motion sensors) to confirm the rollers perform reliably under motor-driven movement. Document installation and test results in maintenance records for compliance audits.

3. Routine Usage Maintenance

To preserve the XAA456AZ1’s performance and extend its lifespan, implement these routine practices:

Conduct weekly visual inspections: Check for tread wear, loose mounting hardware, or debris on the door rails that may cause abnormal friction.
Clean the door rails and roller treads monthly: Use a dry cloth to remove dust, oil, or foreign objects—avoid lubricants on the PU tread (they can cause swelling, loss of grip, or premature degradation).
Inspect roller rotation quarterly: Manually spin the rollers to ensure smooth, noiseless operation—replace rollers if bearing resistance, grinding sounds, or wobble is detected.
Check door alignment semi-annually: Verify the rollers maintain uniform rail contact and adjust the hanging bracket if misalignment (e.g., door rubbing, uneven gap) occurs.

Recommended Replacement Cycle

The service life of the Otis Elevator AT120 Door Hanging Roller XAA456AZ1 depends on usage intensity (door cycle frequency), environmental conditions (humidity, dust, rail cleanliness), and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise, the following replacement guidelines are recommended:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, clean door rails), the XAA456AZ1 should be replaced every 3–5 years. This timeframe accounts for gradual PU tread wear, bearing fatigue, and minor hub corrosion—ensuring the roller maintains smooth operation and prevents excessive wear on the door rails (a costly repair). Proactive replacement reduces the risk of sudden door failures (e.g., jams, stuck doors) that can trap passengers or disrupt operations.

2. Signs That Require Immediate Replacement

Replace the hanging roller immediately if you encounter any of the following issues:

Tread wear: PU tread thickness reduced by 30% or more (≤7mm remaining), or visible cracks, chunks missing, or hardening (brittleness) of the tread surface.
Bearing failure: Rollers spin with resistance, emit grinding/noisy sounds, or seize up completely.
Physical damage: Bent axles, cracked hubs, or loose mounting that cannot be repaired with new hardware.
Door operation problems: Uneven movement, squeaking/grinding noises during operation, or door jams directly linked to roller misalignment or wear.
Corrosion: Rust on the hub or axle that impairs rotation or structural integrity (common in humid hoistways).

3. Maintenance to Extend Service Life

To maximize the XAA456AZ1’s lifespan:

Keep door rails clean: Regularly remove dust, debris, or oil to prevent abrasive wear on the PU tread.
Maintain a dry operating environment (humidity ≤60%) and temperature range of 10–35°C to prevent tread degradation and bearing corrosion.
Avoid overloading the door system: Ensure no foreign objects (e.g., luggage, boxes) block door movement, which strains the rollers and bearings.
Use only genuine replacement parts from Nanjing Zhuye—counterfeit rollers often have inferior PU treads, low-quality bearings, or incorrect dimensions that accelerate wear or cause compatibility issues with AT120 door systems.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Otis Elevator AT120 Door Hanging Roller XAA456AZ1, Nanjing Zhuye Elevator Parts offers unmatched advantages for elevator professionals:

Authenticity & Compatibility: All XAA456AZ1 rollers are manufactured to Otis’s original specifications, ensuring seamless integration with AT120 door systems and adherence to global safety standards.
Strict Quality Assurance: Each unit undergoes rigorous testing—including tread wear resistance, bearing durability, rotation smoothness, and load-bearing capacity—to guarantee reliable performance in high-frequency door operations.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and adjustment to troubleshooting door operation issues specific to AT120 elevators.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you reduce maintenance costs while maintaining safety and operational efficiency for AT120 elevators.

Conclusion

The Otis Elevator AT120 Door Hanging Roller XAA456AZ1 is a foundational component that directly impacts elevator door safety, smooth operation, and passenger experience in AT120 series elevators. By following proper installation, adjustment, and maintenance methods, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Otis AT120 elevators remain compliant, downtime-free, and user-friendly. Whether you need replacement hanging rollers, technical support for installation, or bulk orders for an AT120 fleet, Nanjing Zhuye is committed to delivering premium mechanical components and tailored professional services. Invest in door system integrity—choose Nanjing Zhuye Elevator Parts for your Otis XAA456AZ1 AT120 door hanging roller requirements.
