Description

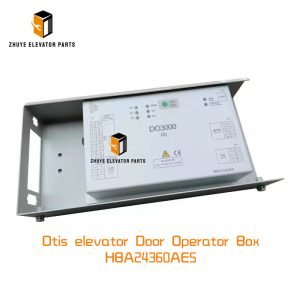

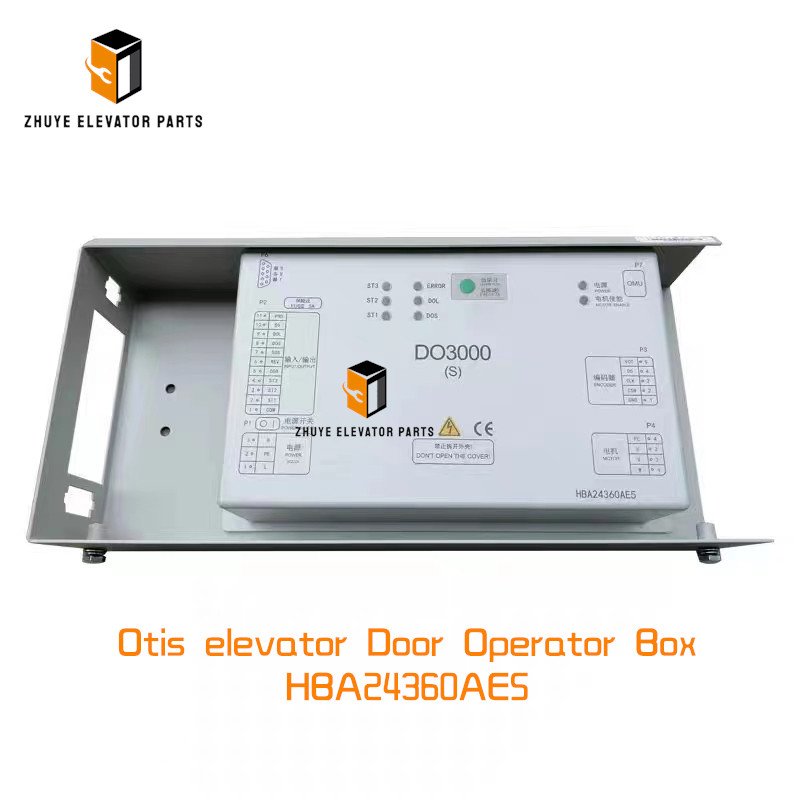

Otis elevator Door Operator Box HBA24360AE5 Brief Introduction
|
Product Name |
Otis elevator Door Operator Box |
| Model Number |
HBA24360AE5 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Door Operator Box HBA24360AE5 – The Compact Brain Behind Every Silent Door Movement | Nanjing Zhuye Elevator Parts
When passengers press the door-open button, they expect instant, whisper-quiet action. Behind the scenes, the Otis HBA24360AE5 door-operator box orchestrates motor torque, encoder feedback, and safety-edge logic in real time. This all-in-one IP54 enclosure houses a 400 W VVVF inverter, brake relay, CAN-bus interface, 24 VDC logic supply, and dedicated terminals for light-barrier, nudging, and fire-service inputs. If the box hiccups, the door either stalls mid-stroke or cycles endlessly—both unacceptable. Nanjing Zhuye Elevator Parts keeps factory-fresh HBA24360AE5 units on the shelf for global 24-hour shipment, helping contractors restore perfect door motion without costly OEM delays.
Product snapshot
-
Part number 713B6120-AE5, firmware bundle DCB-4.11, superseding AE3 and AE4 (backward-compatible)
-
3-phase 220 V ±10 % input, 50/60 Hz, 2.2 A; output 0-230 V, 0-400 Hz, sine-wave PWM with 4 kHz carrier
-
Built-in class A EMI filter, meeting EN 61000-6-3 for residential buildings
-
24 V logic supply 3 A, short-circuit protected, powers light-barrier, sills and LOP buttons
-
Dual CAN 2.0B ports—one for car-top network, one for future group monitoring
-
Encoder interface: incremental 5 V or 12 V, single-ended or differential, up to 100 kHz
-
Ambient −10 °C to +55 °C, humidity 5-95 % RH non-condensing, altitude ≤ 2 000 m
-
IP54 powder-coated steel box, 380 × 300 × 140 mm, 9.5 kg, removable gland plate for easy retrofit
-
RoHS, REACH, CE and UL 508C certified
Where it works
-
Gen2® Life, Gen2® Switch, Gen2® Flex MRL side-opening and centre-opening doors
-
4200/5200 high-speed gearless with OCLF flat-belt or steel-rope operators
-
Modernisation packages replacing obsolete HBA24340 or analog SCR controllers
-
Any Otis door motor 0.25-0.4 kW, 4-pole asynchronous or PMSM with 1 024 ppr encoder
Installation method – car-top swap (average 25 min)
-
Place lift on inspection mode; stop at mid-shaft for easy access.
-
Switch OFF main breaker and door-operator breaker; lock & tag.
-
Photograph existing wiring; note encoder plug orientation.
-
Remove four M6 mounting bolts; lower old box onto pad to avoid straining cables.
-
Transfer gland plate if re-using; otherwise install new plate supplied.
-
Connect mains L1/L2/L3, earth 6 mm², motor U/V/W, brake B+/B-, encoder, safety-edge 24 V, CAN-H/L.
-
Power up; HMI auto-detects “HBA-AE5” and prompts “Auto-Tune?” Press YES.
-
Door runs full stroke twice, measuring motor resistance, inductance and encoder offset—takes 60 s.
-
Verify parameters: rated speed 0.7 m/s, acceleration 1.2 m/s², jerk 2.5 m/s³, closing force ≤ 150 N (EN 81-20).
-
Run 50 continuous cycles; check temperature < 65 °C on heat-sink.
-
Seal gland plate; log serial number and firmware version in maintenance book.
Replacement cycle & preventive maintenance
Although solid-state, door-operator electronics live in a hostile world—vibration, brake dust, summer heat and voltage spikes from regenerative drives. Otis bulletin SB-2024-05 recommends:
-
Visual inspection every 6 months: clean dust from fan guard, check for swollen DC-bus capacitors.
-
Measure brake switching transistor: Vce sat < 1.2 V at 2 A; replace if > 2 V.
-
Replace cooling fan (24 V, 60 mm) every 4 years—bearing failure is primary cause of thermal shutdown.
-
Full electrolytic capacitor reform every 7 years or after 1 M cycles; if ESR > 150 % of spec, replace entire box.
-
Immediate replacement if:
– HMI shows “Over-current 02” at start-up (IGBT short),
– encoder fault persists after cable swap,
– brake drops randomly (relay contact weld),
– box temperature > 75 °C with clean filter.
Pro tip: 70 % of premature failures are traced to undersized supply cable (< 2.5 mm²) causing voltage dips > 10 % at motor start.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use shielded encoder cable, foil facing inward, grounded at box only, to prevent Hall-sensor noise.
-
Never run 230 V motor wires in the same trunking as 24 V logic—induced spikes kill opto-couplers.
-
Keep a spare HBA24360AE5 on high-traffic sites; at 9.5 kg it fits under a car seat and saves a callback night.
-
After heavy storm, check DC-bus voltage ripple < 5 V; mains sag forces higher current and overheats IGBTs.
-
Order the “Retrofit Bundle” (box + pre-matched encoder cable + mounting template) from Nanjing Zhuye Elevator Parts to eliminate field splicing errors.
Why buy from Nanjing Zhuye Elevator Parts?
We are an Otis-authorised channel partner, importing HBA24360AE5 directly from the Florence factory, pre-loading firmware DCB-4.11 and testing every unit on a 0.4 kW motor rig for 30 min under full load. Boards are shipped in anti-static foam with a 24-month replacement warranty. Our Nanjing warehouse holds 300+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at three pieces; we can laser-engrave your company asset tag and preload site-specific parameters to cut on-site commissioning to under 15 minutes.
Conclusion
The HBA24360AE5 door-operator box is the unsung conductor of every smooth door movement. By installing the genuine Otis unit, following the auto-tune procedure and replacing it before capacitors age, you eliminate door reversals, noise complaints and costly entrapments. Stock genuine HBA24360AE5 from Nanjing Zhuye Elevator Parts today—because when a door opens flawlessly, nobody notices; when it doesn’t, everybody does.
