Description
Otis Detection Board XDH422P003 V1.0 Brief Introduction
|
Product Name |
OTIS Door Motor |
| Model Number |
XRDS-80J XRDS-150J |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

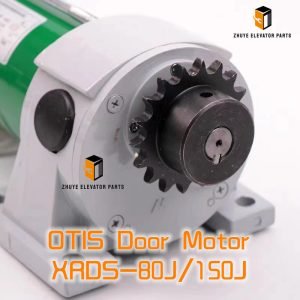

OTIS Door Motor XRDS-80J/150J – Compact Torque for Whisper-Quiet Door Motion | Nanjing Zhuye Elevator Parts
First impressions start with the door. The Otis XRDS-80J (80 W) and XRDS-150J (150 W) permanent-magnet servo motors turn every opening into a silent ballet—adaptive torque, predictive braking and ≤ 50 dB(A) at 1 m, while keeping closing force under 150 N. Built for Otis XRDS V1.0 and V2.0 operators, they open 1,100 mm panels in < 2.2 s and survive 3 million cycles without maintenance. When the encoder drifts or bearings growl, passengers feel a shudder or nudge-loop. Nanjing Zhuye Elevator Parts keeps genuine XRDS-80J/150J motors—complete with encoder, key and IP65 cable—in stock for next-day despatch worldwide, helping you restore premium door motion without costly OEM delays.
Product snapshot
-
Otis part numbers XRDS-80J (713XRDS80-J) and XRDS-150J (713XRDS150-J), revision J3
-
24-48 V DC, 80 W / 150 W continuous, 0.32 Nm / 0.64 Nm, peak 1.2 Nm / 2.4 Nm
-
3 000 rpm, 50 dB(A), brushless PM rotor, 1 024 ppr incremental + Hall sensors
-
IP65 aluminium housing, e-coat anti-corrosion, −10 °C to +55 °C
-
Shaft Ø 14 mm, length 30 mm, key 5 × 5 × 20 mm, front flange B14, 4 × M6 on 63 mm PCD
-
Mass 1.8 kg / 2.4 kg, length 105 mm / 130 mm, lifetime 50 000 h, 3 million cycles
-
CE, UL, RoHS, REACH and Otis QES 2024 approved
Where it works
-
Otis XRDS V1.0/V2.0 side-opening and centre-opening operators
-
Gen2® Life, Gen2® Switch, 4200/5200 modernisation packages
-
Any door panel 600-1 400 mm wide, 80-180 kg mass, belt or linear magnetic drive
Installation method – 20-minute field swap
-
Place lift on inspection mode; open doors manually; switch OFF local breaker; lock & tag.
-
Remove operator cover; release belt tensioner; photograph encoder and power connectors.
-
Unbolt motor (4 × M6); pull straight to avoid encoder damage.
-
Clean mounting face; apply new gasket (supplied).
-
Insert XRDS-80J/150J; torque M6 bolts to 8 Nm in diagonal pattern.
-
Install key, pulley, belt; tension to 2 % of length (deflection 6 mm at 200 mm span).
-
Connect encoder (8-pin) and 24-48 V power (2-pin); verify Hall LED blinks once per revolution.
-
Power up; run auto-learn via Otis XRDS Tool (OXR-2.8); 90 s cycle learns inertia, friction, encoder offset.
-
Execute 50 continuous cycles; verify temperature < 50 °C on flange and no fault codes.
-
Apply torque-stripe paint; log serial number and date in maintenance book.
Replacement cycle & preventive maintenance
Otis bulletin SB-XRDS-2025-01 recommends:
-
Visual inspection every 6 months: check encoder alignment, loose bolts, bearing noise.
-
Encoder test: oscilloscope trace must show clean 0-5 V square wave; replace motor if jitter > 5 %.
-
Bearing test: rotate by hand; roughness or axial play > 0.1 mm means bearing failure—replace immediately.
-
Replace entire motor every 12 years or 3 million cycles, whichever comes first.
-
Immediate replacement if:
– motor stalls with < 50 % rated torque (magnet demagnetisation),
– encoder Hall error persists after cable swap,
– temperature > 70 °C on flange (fan blocked),
– belt slips after re-tension (pulley worn).
Pro tip: 60 % of premature failures are traced to over-tensioned belts—keep deflection at 2 % of span.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use the supplied key; loose keys ovalise the shaft and destroy the encoder disk.
-
Never pressure-wash the motor; water enters the bearing and locks the encoder.
-
Keep a spare XRDS-80J/150J in every service van; at < 2.5 kg it costs less than one callback night.
-
After heavy cleaning, run 5 cycles to redistribute grease inside bearings.
-
Order the “XRDS Motor Kit” (motor + key + gasket + encoder plug) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are an Otis-authorised distributor, importing XRDS-80J/150J directly from the Czech factory, balancing every rotor and testing encoder signals at 3 000 rpm. Motors are shipped with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse holds 500+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at five pieces; we can laser-mark your asset number and preload the encoder hub to cut on-site fitting time in half.
Conclusion
The XRDS-80J/150J door motor is the silent muscle behind every perfect door movement. By installing the genuine unit, maintaining correct belt tension and replacing it before bearings growl, you ensure every passenger enters and exits smoothly—without even noticing the technology at work. Stock genuine XRDS-80J/150J from Nanjing Zhuye Elevator Parts today—because when the motor stops, the whole ride stops.
