Description

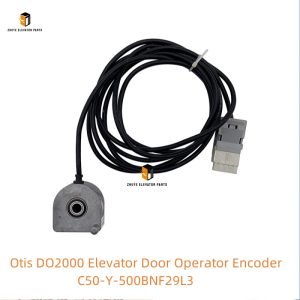

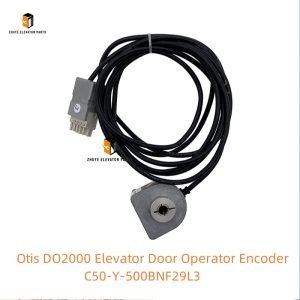

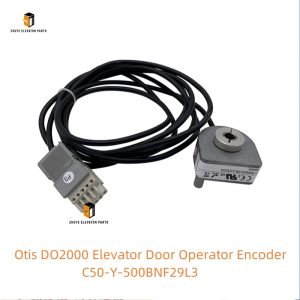

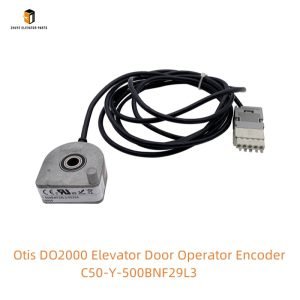

Otis DO2000 Elevator Door Operator Encoder C50-Y-500BNF29L3 Brief Introduction

Product Name	Otis DO2000 Elevator Door Operator Encoder
Model Number	C50-Y-500BNF29L3
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Otis DO2000 Elevator Door Operator Encoder C50-Y-500BNF29L3: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Otis DO2000 Elevator Door Operator Encoder C50-Y-500BNF29L3 is a precision feedback component exclusively engineered for Otis DO2000 series door systems—widely deployed in commercial buildings, residential complexes, and public transit facilities. As the core position and speed sensing device for elevator doors, this incremental encoder converts the door motor’s mechanical rotation into digital signals (500 pulses per revolution), enabling the DO2000 controller to regulate door opening/closing speed, precise positioning (fully open/closed limits), and obstacle detection response. Compliant with global safety and electronic standards (EN 81, ASME A17.1, IEC 60950, ISO 9001), it features a rugged sealed housing (IP54 protection), anti-interference circuitry, and durable shaft design to withstand vibration, dust, and temperature fluctuations in elevator cabs and hoistways. For maintenance teams, facility managers, and property operators, mastering the correct installation, calibration, and replacement timelines of the C50-Y-500BNF29L3 is vital to prevent door jams, uneven movement, or safety hazards—ensuring smooth, reliable door operation for passengers. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Otis components, delivers the C50-Y-500BNF29L3 that meets Otis’s original manufacturing specifications, guaranteeing seamless compatibility with DO2000 systems, accurate signal transmission, and long-term durability.

Proper Usage Methods of Otis DO2000 Door Operator Encoder C50-Y-500BNF29L3

1. Pre-Installation Preparation

Before installing the C50-Y-500BNF29L3, prioritize safety by shutting off the elevator’s main power supply and securing the door operator control panel with a lockout tag. Inspect the encoder for physical damage—such as cracked housing, bent shafts, damaged connector pins, or frayed signal cables—defects that can cause signal loss, position errors, or door control malfunctions. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each unit arrives in optimal condition: calibrated internal optics, smooth-rotating shafts, intact shielding, and pre-tested electrical continuity. Additionally, verify compatibility with your Otis DO2000 elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the encoder’s resolution (500 PPR), voltage rating (typically 5V DC or 24V DC), output type (differential line driver), and shaft diameter match your door motor and controller requirements.

2. Installation & Calibration Steps

Mounting the Encoder:
- Locate the designated installation position on the DO2000 door operator motor—aligned with the motor’s rotating shaft. The mounting surface must be flat, clean, and free from debris to ensure concentricity (maximum runout ≤0.1mm) between the encoder shaft and motor shaft—misalignment leads to signal distortion or premature wear.
- Secure the encoder to the motor flange using the provided mounting bolts (torque to 0.8–1.2 Nm) to prevent vibration-induced loosening. Use the factory-supplied flexible coupling (if included) to compensate for minor misalignment and protect the encoder shaft from mechanical stress during door operation.
Wiring Connection:
- Follow the DO2000-specific wiring diagram provided by Otis or Nanjing Zhuye to connect the encoder to the door controller:
  - Connect power wires (positive/negative) to the designated terminals—incorrect polarity can damage the encoder’s internal circuitry.
  - Attach signal wires (A, B, Z channels for incremental feedback) to the controller’s encoder input terminals. Use shielded cables to minimize electromagnetic interference (EMI) from door motor windings or other elevator electrical components.
  - Secure all connections with terminal blocks and route wiring away from moving parts (e.g., door rails, gears) to prevent mechanical damage or signal interference.
Calibration Process:
- Power on the elevator and access the DO2000 controller’s calibration menu via Otis-approved diagnostic software (by certified technicians):
  - Zero-Position Calibration: Operate the door to the fully closed position and trigger the encoder’s zero-calibration function to set the reference point for door limits.
  - Speed & Position Calibration: Run the door through full opening/closing cycles to verify the encoder’s pulse count (500 pulses per motor revolution) matches the controller’s expected values. Adjust the controller’s parameters if position errors (e.g., incomplete door closure, overshoot) are detected.
  - Obstacle Detection Sync: Ensure the encoder’s speed feedback is synchronized with the door’s obstacle detection system—confirm the door reverses promptly when resistance is encountered.
Functional Testing:
- Validate all door operator functions:
  - Test automatic and manual door modes to confirm smooth speed transitions and accurate positioning (no overshoot/undershoot).
  - Monitor the encoder’s signal output via diagnostic software to check for missing pulses, jitter, or signal dropouts during operation.
  - Simulate an obstacle (e.g., place a test object in the door path) to confirm the door reverses correctly, using the encoder’s speed feedback to trigger the response.
- Document test results in maintenance records to demonstrate compliance with safety standards.

3. Routine Usage Maintenance

To preserve the C50-Y-500BNF29L3’s precision and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose mounting bolts, damage to the encoder housing, or frayed signal cables. Remove dust or debris from the housing with a dry, lint-free cloth—avoid water or cleaning agents that can damage internal components.
Monthly Signal Integrity Tests: Use diagnostic software to verify pulse consistency, resolution accuracy, and signal-to-noise ratio. Document any anomalies (e.g., intermittent pulses) for troubleshooting.
Quarterly Wiring Checks: Inspect terminal connections for corrosion, wear, or looseness; tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye. Corroded connections are a common cause of signal degradation.
Semi-Annual Shaft & Coupling Inspection: Ensure the encoder shaft and coupling are free from wear, rust, or misalignment. Lubricate the coupling (if applicable) with Otis-approved lubricant to minimize friction.
Annual Environmental Check: Verify the door operator area temperature (10–35°C) and humidity (30–60%) remain within the encoder’s operating range—extreme conditions accelerate component degradation.

Recommended Replacement Cycle

The service life of the Otis DO2000 Door Operator Encoder C50-Y-500BNF29L3 depends on operating conditions (door cycle frequency, humidity, vibration), usage intensity, and maintenance quality. Based on industry standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, stable environment), the C50-Y-500BNF29L3 should be replaced every 5–7 years. This timeframe accounts for gradual wear of internal components (optical sensors, bearings, shaft couplings), signal degradation, and firmware obsolescence—ensuring the encoder maintains precision positioning and compatibility with DO2000 system upgrades. Proactive replacement reduces the risk of unexpected door system failures that can lead to passenger entrapment or downtime.

2. Signs That Require Immediate Replacement

Replace the encoder immediately if you encounter any of the following issues:

Positioning Errors: Doors fail to fully open/close, or exhibit inconsistent gaps (e.g., uneven closure) despite controller adjustments.
Signal Failures: Missing pulses, jitter, or complete signal loss—confirmed via diagnostic software—despite wiring checks and calibration.
Physical Damage: Cracked housing, bent shaft, water intrusion, or worn coupling that impairs rotation or signal transmission.
Mechanical Issues: Unusual clicking, grinding, or resistance when rotating the encoder shaft—indicates bearing failure.
Calibration Failure: Inability to complete zero-position calibration or maintain consistent pulse counts, even after replacing wiring.

3. Maintenance to Extend Service Life

To maximize the C50-Y-500BNF29L3’s lifespan and minimize replacement costs:

Protect from Physical Damage: Install a protective cover (if not factory-equipped) to shield the encoder from impacts, dust, or oil splatters in the door operator assembly.
Prevent EMI Interference: Ensure signal cables are routed away from high-voltage power lines (minimum distance of 30cm) to avoid electromagnetic interference.
Maintain Door Motor Health: Properly lubricate and align the door motor to reduce vibration and stress on the encoder shaft.
Use Genuine Parts Only: For repairs or replacements, rely exclusively on genuine Otis components from Nanjing Zhuye. Counterfeit encoders may have inaccurate resolution (less than 500 PPR), poor shielding, or compatibility issues that compromise door safety and performance.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Otis DO2000 Door Operator Encoder C50-Y-500BNF29L3, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All C50-Y-500BNF29L3 encoders are manufactured to Otis’s original specifications, ensuring seamless integration with DO2000 door systems and compliance with global safety/electronic standards.
Strict Quality Assurance: Each unit undergoes rigorous testing—including 500 PPR resolution verification, signal stability checks, vibration resistance, and environmental durability simulations—to guarantee precision in critical door feedback scenarios.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation alignment and calibration to troubleshooting signal issues specific to DO2000 elevators.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers precision components promptly worldwide, minimizing elevator downtime during replacement.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for reliable, high-precision door system components.

Conclusion

The Otis DO2000 Elevator Door Operator Encoder C50-Y-500BNF29L3 is a foundational component that directly impacts door operation precision, passenger safety, and maintenance efficiency in DO2000-series elevators. By following proper installation, calibration, and maintenance practices, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your Otis DO2000 elevators remain compliant, downtime-free, and user-friendly. Whether you need a replacement encoder, technical support for calibration, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium electronic components and tailored professional services. Invest in door system precision—choose Nanjing Zhuye Elevator Parts for your Otis C50-Y-500BNF29L3 DO2000 door operator encoder requirements.
