Description

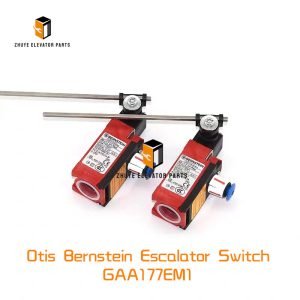

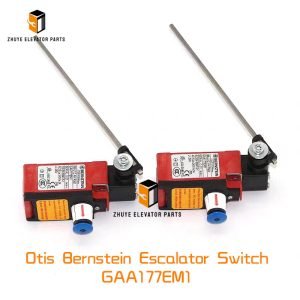

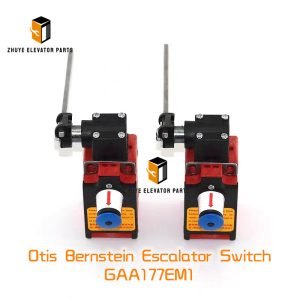

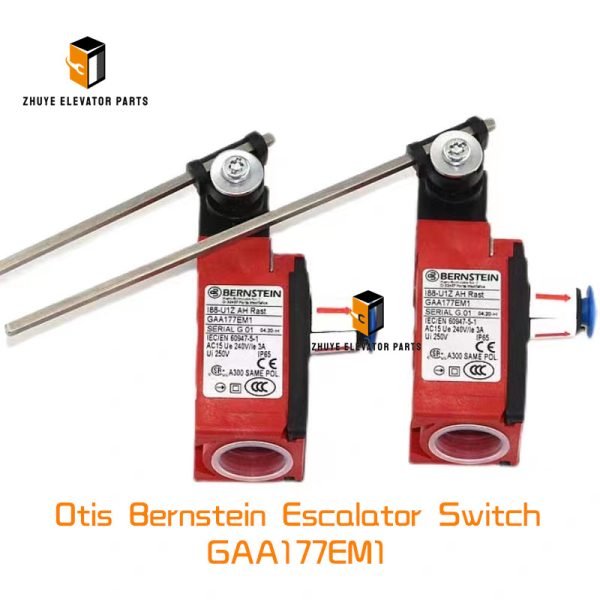

Otis Bernstein Escalator Switch GAA177EM1 Brief Introduction
|
Product Name |
Otis Bernstein Escalator Switch |
| Model Number | GAA177EM1 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Otis Bernstein Escalator Switch GAA177EM1 – SIL-2 Safety in Every Step | Nanjing Zhuye Elevator Parts
Inside every Otis escalator, a silent sentinel watches every step. The GAA177EM1 Bernstein switch is that sentinel — a positive-opening, roller-lever safety device that triggers emergency stop when a step or skirt deflects by just 2 mm. Rated 10 A at 250 VAC and SIL-2 certified, it ensures passengers are protected before they feel a jolt. When the roller cracks or contacts oxidise, the escalator drags on or refuses to start. Nanjing Zhuye Elevator Parts keeps genuine GAA177EM1 switches in anti-static packaging, ready for next-day despatch worldwide — helping you restore absolute safety without costly OEM delays.
Product snapshot
-
Otis part number GAA177EM1, alternate Bernstein SRF C2-010/230
-
10 A 250 VAC, 1 × SPDT positive-opening, gold-plated contacts
-
Roller lever 17 mm, operating force ≤ 1.2 N, pre-travel 1.5 mm, over-travel 4 mm
-
IP65 aluminium housing, PUR cable 3 m, M12 4-pin connector, −25 °C to +85 °C
-
Compatible with Otis XECB 1.0/1.1/2.0, 506/508/510 NCE escalators
-
CE, UL, RoHS, REACH and SIL-2 suitable under IEC 61508
Where it works
-
Step or skirt side-mount on Otis 506 NCE, 508 NCE, 510 NCE up to 12 m rise, 0.65 m/s
-
Modernisation packages replacing obsolete GAA177EM0 or reed-switch sensors
-
Any controller expecting SIL-2 certified emergency-stop input
Installation method – 10-minute precision swap
-
Place escalator on inspection mode; stop at upper landing; switch OFF main breaker; lock & tag.
-
Remove old switch; photograph M4 bracket and roller orientation.
-
Clean bracket surface; check for burrs — dress lightly with 400 grit.
-
Mount GAA177EM1 so roller contacts step/skirt 2 mm before full deflection.
-
Torque M4 screws to 1.2 Nm; apply thread-locker.
-
Connect NC contact in series with safety chain; NO contact for position feedback.
-
Hand-rotate step; listen for click; multimeter must show safety chain open.
-
Run full-speed up/down 10 cycles; verify no missed clicks.
-
Seal cable gland; apply torque-stripe paint; log serial number and date.
Replacement cycle & preventive maintenance
Otis bulletin SB-SWITCH-2024-05 recommends:
-
Visual inspection every 6 months: check roller wear, contact burn, cable entry.
-
Functional test every 12 months: contact resistance < 50 mΩ, operating force ≤ 1.2 N.
-
Replace entire switch every 1 million cycles or 5 years in high-traffic.
-
Immediate replacement if:
– contact resistance > 100 mΩ,
– operating force > 2 N,
– housing cracked exposing live parts,
– missed clicks > 1 per 100 operations.
Pro tip: 70 % of premature failures are traced to misaligned roller — re-align every year.
Maintenance tips from Nanjing zhuye elevatorparts
-
Always use gold-plated M12 connector for 24 V DC; tin contacts oxidise and cause missed stops.
-
Never apply grease; dust turns into grinding paste.
-
Keep a box of GAA177EM1 in every service van; at 120 g it costs less than one callback.
-
After heavy cleaning, run 100 clicks and check contact resistance.
-
Order the “Switch Kit” (GAA177EM1 + M12 connector + torque tool) from nanjing zhuye elevatorparts to eliminate parts hunting and ensure matched components.
Why buy from nanjing zhuye elevatorparts?
We are an Otis-authorised distributor, importing GAA177EM1 directly from the German factory, gold-plating every contact and shipping with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent contact oxidation. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at ten pieces; we can laser-mark your asset number and include a spare roller free of charge.
Conclusion
The GAA177EM1 Bernstein switch is the silent sentinel that stops every escalator exactly when it should. By installing the genuine unit, aligning the roller correctly and replacing it before the contact burns, you ensure every step is safe, every stop is smooth, and every passenger walks away with confidence. Stock genuine GAA177EM1 from nanjing zhuye elevatorparts today — because when the switch stops, safety stops.
