Description

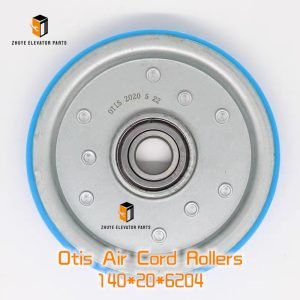

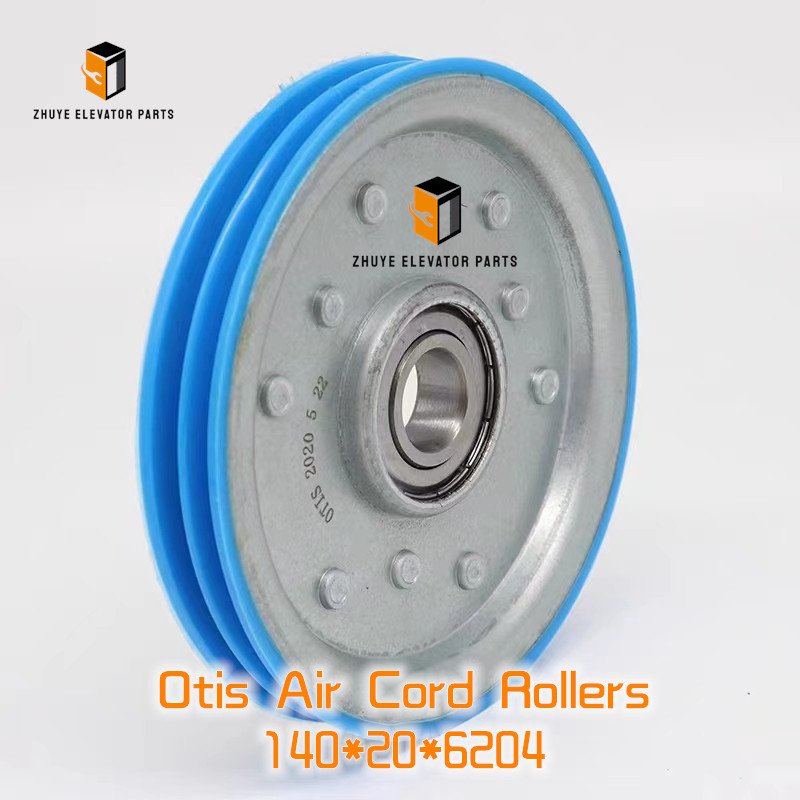

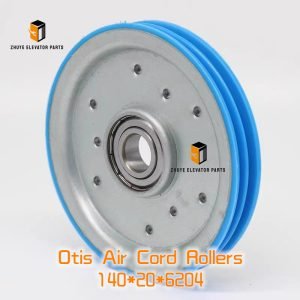

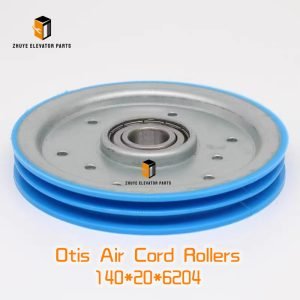

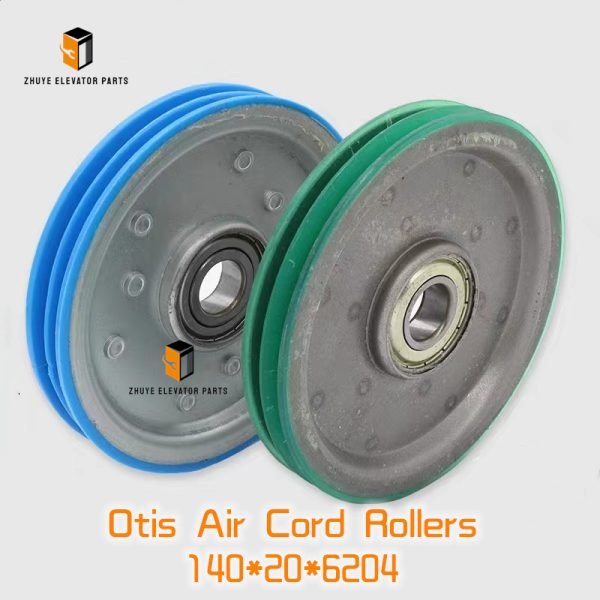

• Precise Cable Guidance: The 140mm outer diameter and 20mm width are tailored to Otis’s 12-16mm diameter air cords, preventing cable slippage or lateral displacement during elevator movement.

• Wear & Corrosion Resistance: The PA66+glass fiber shell resists abrasion (service life 40% longer than standard nylon rollers) and the galvanized steel core prevents rust—ideal for damp elevator shafts or machine rooms.

• Smooth Rotation: The 6204 ball bearing (with double seals) reduces friction coefficient to ≤0.08, minimizing noise (≤50dB during operation) and ensuring the roller rotates freely even under continuous use.

• Universal Compatibility: Mounting holes (M8 thread, 30mm center distance) align 100% with Otis air cord bracket specifications, requiring no drilling or adapter modifications for installation.

1. Pre-Installation Preparation:

• • Execute the Lockout-Tagout (LOTO) procedure: Shut down the elevator’s main power, secure the elevator car at a middle floor (to keep air cords relaxed), and use a safety harness if working in the elevator shaft.

• • Confirm compatibility: Use Nanjing Zhuye Elevator Parts’ free online tool (via their official website) to verify the 140206204 rollers match your Otis elevator’s air cord model (e.g., Otis Gen2, 3300 Series).

• • Gather tools: Socket wrench (10mm), torque wrench (8-12 N·m), cable tie cutter, lithium-based grease (ISO VG 32), and a straightedge (for alignment).

2. Removal of Old Rollers:

• • Locate the air cord roller assembly: Typically mounted on the elevator car top or shaft guide rails (6-8 rollers per air cord to ensure even guidance).

• • Disconnect the air cord: Gently lift the air cord out of the old roller’s groove and secure it with temporary cable ties (to prevent tangling or damage).

• • Remove old rollers: Use the socket wrench to loosen the M8 mounting bolts, then detach the old rollers from the bracket. Inspect the bracket for wear—replace if there are bent edges or stripped threads (Nanjing Zhuye Elevator Parts supplies matching brackets if needed).

3. Installation of New 140206204 Rollers:

• • Prepare the new rollers: Apply a thin layer of lithium-based grease to the 6204 bearing’s outer race (avoid grease on the roller groove, which may attract dust).

• • Mount the rollers: Align the new roller with the bracket’s mounting holes and tighten the M8 bolts to 10 N·m (use the torque wrench to avoid over-tightening, which can distort the roller). Use the straightedge to ensure all rollers are aligned in a straight line—misalignment causes uneven cable wear.

• • Reattach the air cord: Carefully place the air cord into the roller’s groove (ensure it sits centered, with no tension) and remove temporary cable ties. Check that the cord moves freely within the groove when the elevator car is manually adjusted.

4. Post-Installation Testing:

• • Restore power to the elevator (keep it in maintenance mode) and run the car up/down the full shaft 3 times. During testing:

• • • Check air cord movement: Ensure the cord stays within the roller groove (no slipping or rubbing against the roller edge).

• • • Listen for noise: No squeaking or grinding sounds—this indicates proper bearing rotation and alignment.

• • • Inspect roller rotation: Verify each roller spins smoothly as the cord moves (no sticking or uneven rotation).

• • Troubleshooting: If the cord slips, recheck roller alignment; if noise occurs, add a small amount of grease to the bearing (contact Nanjing Zhuye Elevator Parts for bearing replacements if issues persist).

5. Daily Operation Tips:

• • Facility managers should schedule monthly visual checks: Inspect the roller groove for cracks or wear, and ensure the air cord remains centered in the groove.

• • Every 3 months, maintenance teams should clean the roller groove with a dry cloth (remove dust or debris) and reapply grease to the bearing—this prevents dry friction and extends roller life.

• Normal Use (residential buildings, 8-12 hours daily operation, clean shaft environment): Replacement cycle of 3 to 5 years.

• High-Intensity Use (commercial towers, airports, 18-24 hours daily operation, frequent car movement): Replacement cycle shortened to 2 to 3 years.

• Harsh Environments (shafts with high dust, humidity >70%, or temperature fluctuations >30°C): Replacement cycle of 1.5 to 2.5 years.

• Roller groove wear: The groove depth is reduced by >2mm (measured with a depth gauge), or there are sharp edges that could damage the air cord.

• Bearing failure: The roller does not spin freely, or there is visible rust on the bearing.

• Air cord damage: Frayed or cracked cords—this often signals uneven roller guidance and requires immediate roller replacement.

• Abnormal noise: Persistent squeaking even after grease application—indicates worn bearing components.

• Genuine Quality: Each roller uses imported PA66+glass fiber (from BASF, Germany) and SKF 6204 bearings, with a 2-year warranty against manufacturing defects.

• Technical Support: Free installation videos and a dedicated team to assist with roller alignment—reducing on-site maintenance time by 30%.

• Fast Global Delivery: Ships to major markets (Europe, North America, Asia) in 3-5 business days, ensuring minimal elevator downtime for urgent replacements.
