Description

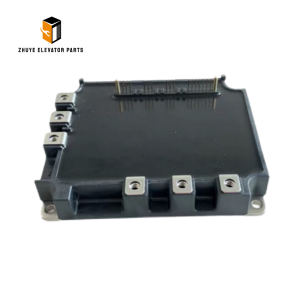

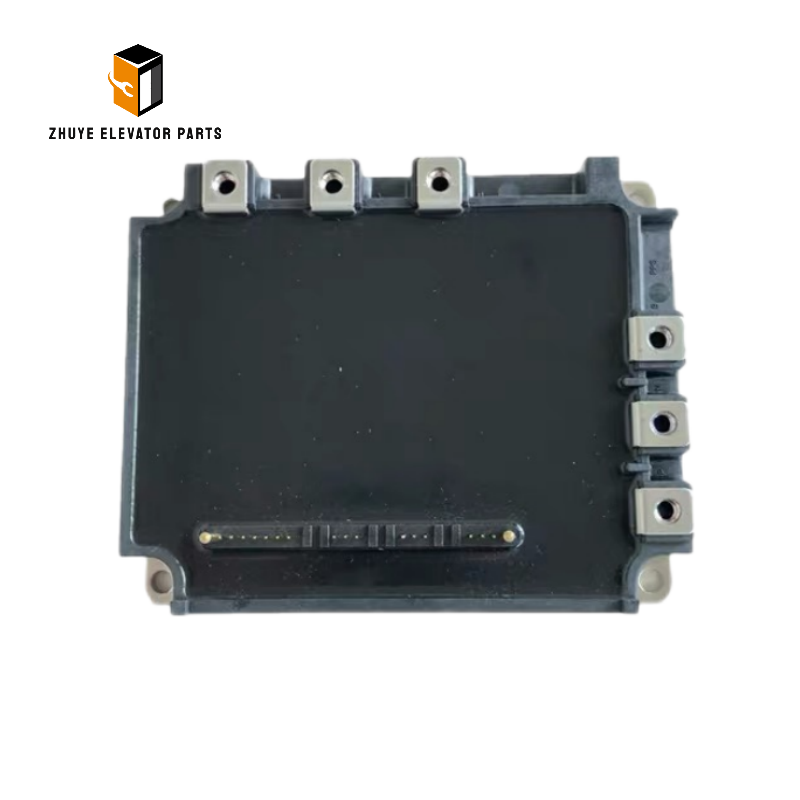

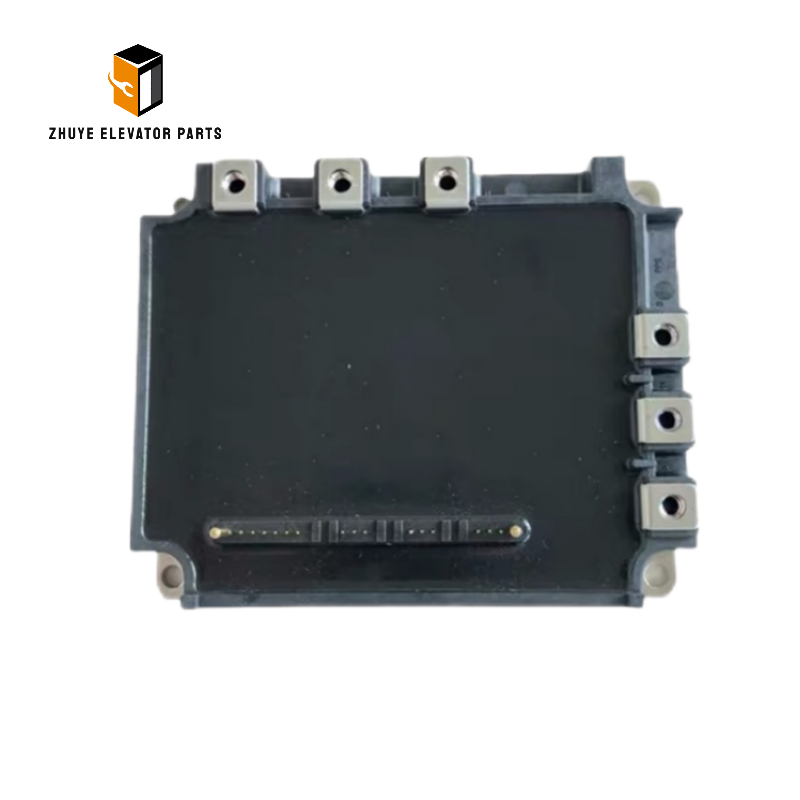

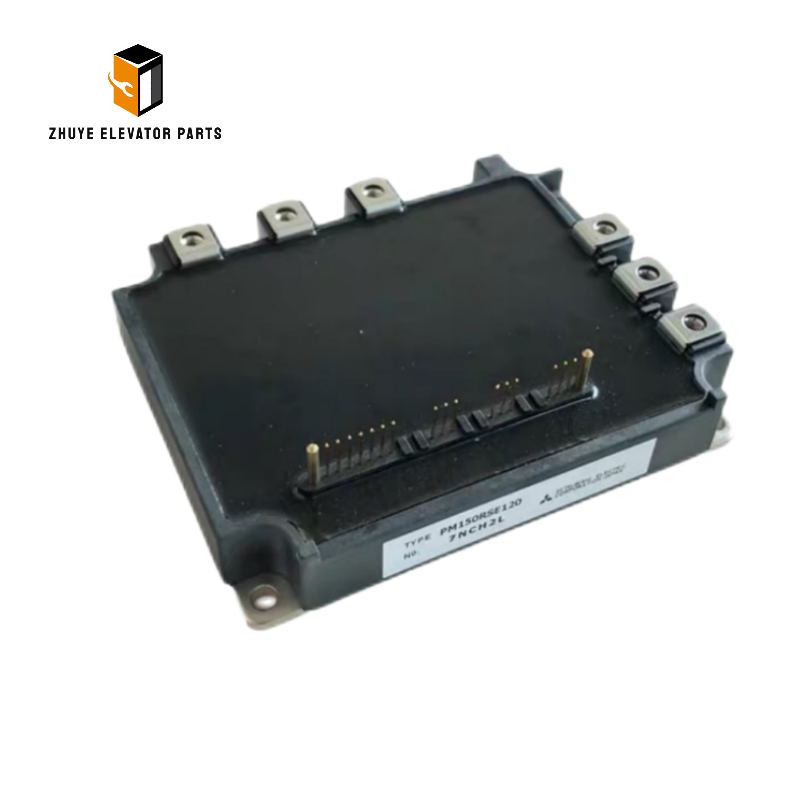

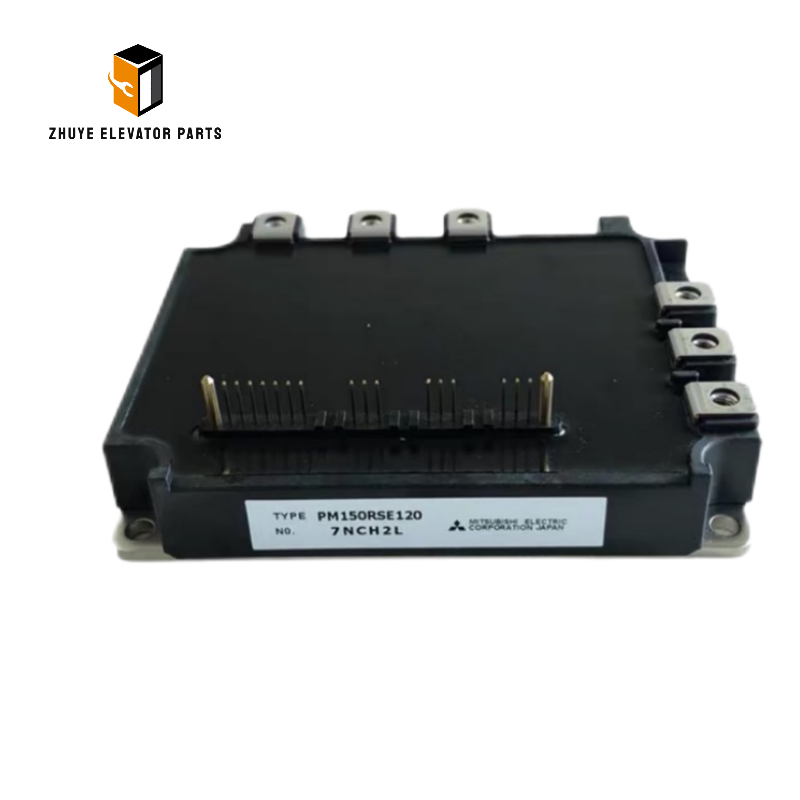

Mitsubishi IGBT module PM100RSE120 PM150RSE120 Brief Introduction
|
Product Name |
Mitsubishi IGBT module |
| Model Number | PM100RSE120 PM150RSE120 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Mitsubishi IGBT Module PM100RSE120: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Mitsubishi IGBT Module PM100RSE120 is a high-performance power semiconductor component exclusively engineered for Mitsubishi elevator traction drive systems—widely deployed in commercial high-rises, residential complexes, public transit hubs, and office buildings. As a core power conversion unit, this IGBT (Insulated Gate Bipolar Transistor) module converts DC power from the elevator’s inverter to controlled AC power for the traction motor, enabling precise speed regulation, smooth acceleration/deceleration, and efficient energy management. It is tailored to Mitsubishi’s OEM standards, ensuring seamless integration with Mitsubishi’s elevator drive systems (such as those in the NexWay, ELENESSA, and MAXIEZ series) while upholding the brand’s strict protocols for power efficiency, thermal stability, and operational reliability.
Compliant with global industrial and safety standards (EN 60747, IEC 61287, ISO 9001), the PM100RSE120 features a robust, heat-resistant design: 100A/1200V rated IGBT chips, low-loss power switching technology, integrated freewheeling diodes, and a ceramic substrate for enhanced thermal conductivity. This construction withstands high current loads, rapid switching cycles, and harsh machine room environments—including temperature fluctuations (-10°C to +150°C operating junction temperature), voltage transients, dust, and vibration. For maintenance teams, facility managers, and property operators, mastering the correct installation, cooling, and replacement timelines of this module is vital to avoid drive system failures, elevator stalling, or catastrophic power-related hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the PM100RSE120 IGBT module that meets Mitsubishi’s original manufacturing specifications—guaranteeing consistent power conversion, thermal stability, and long-term durability.
Proper Usage Methods of Mitsubishi IGBT Module PM100RSE120
1. Pre-Installation Preparation
Before installing the IGBT module, prioritize safety by shutting off the elevator’s main power supply, discharging the DC link capacitor (per Mitsubishi’s safety procedures), and securing the drive cabinet with a lockout tag. Inspect the new PM100RSE120 module for physical damage—such as cracked casings, damaged terminal pins, loose bonding wires, or signs of overheating (discoloration)—defects that can cause short circuits, power loss, or module failure. Nanjing Zhuye Elevator Parts conducts rigorous Mitsubishi-specific quality control checks, so each unit arrives in optimal condition: intact semiconductor chips, pre-tested forward voltage drop (VCE(sat)), functional freewheeling diodes, and clean mounting surfaces for thermal transfer.
Additionally, verify compatibility with your Mitsubishi elevator model and drive system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure the module’s ratings (100A/1200V), pin configuration, and thermal requirements match your elevator’s drive system specifications—using an incompatible IGBT module can damage the drive board or traction motor.
2. Installation & Cooling Setup
- Module Installation:
- Access the elevator’s drive cabinet (located in the machine room) and locate the designated mounting position on the heat sink. Disconnect the old IGBT module (if replacing) by detaching power terminals (DC+, DC-, AC output) and gate driver connectors—label all connections clearly to avoid cross-connection errors. Clean the heat sink surface with a lint-free cloth and thermal paste remover to eliminate old paste residue and debris.
- Apply a thin, uniform layer of Mitsubishi-recommended thermal paste (or use the pre-applied paste on the module) to the bottom of the PM100RSE120 to ensure optimal thermal conductivity. Align the module with the heat sink mounting holes and secure it with high-torque bolts (torque to 4–6 Nm) to prevent air gaps that reduce heat dissipation. Reconnect the power terminals (ensuring correct polarity) and gate driver connectors—tighten terminal screws to Mitsubishi’s specified torque (1.5–2.0 Nm) to prevent loose connections and arcing.
- Cooling System Verification:
- Confirm the drive system’s cooling fan or liquid cooling circuit is functioning properly—adequate cooling is critical to prevent the IGBT module from exceeding its maximum junction temperature (150°C). Check fan speed, air flow, and heat sink temperature (should remain ≤80°C during full-load operation) using a thermal sensor.
- Functional Testing:
- Conduct comprehensive tests (by certified technicians only) using Mitsubishi’s diagnostic software (e.g., MES-100, Elevator Service Tool):
- Power Conversion Test: Run the elevator through empty and loaded cycles to confirm the IGBT module delivers stable AC power to the traction motor—no voltage fluctuations, current spikes, or abnormal noise.
- Thermal Test: Monitor the module’s junction temperature during extended full-load operation to ensure it stays within Mitsubishi’s safe range.
- Fault Protection Test: Simulate overcurrent, overvoltage, or overtemperature conditions to verify the drive system triggers protective shutdowns and isolates the IGBT module.
- Document installation details, thermal readings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.
- Conduct comprehensive tests (by certified technicians only) using Mitsubishi’s diagnostic software (e.g., MES-100, Elevator Service Tool):
3. Routine Usage Maintenance
To preserve the module’s performance and extend its lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for loose terminals, damaged wires, or cooling fan malfunctions. Remove dust from the heat sink and module surface with compressed air—avoid blocking cooling vents.
- Monthly Thermal Checks: Use a thermal imaging camera or sensor to monitor the heat sink and module temperature during operation. Log readings to track long-term thermal stability.
- Quarterly Connection Inspections: Inspect power terminals and gate driver connectors for corrosion, oxidation, or loose contacts. Retighten terminals as needed or replace damaged connectors with genuine Mitsubishi parts from Nanjing Zhuye.
- Semi-Annual Cooling System Maintenance: Clean the cooling fan blades and air filters to ensure unobstructed airflow. Replace worn or noisy fans promptly to prevent overheating.
- Annual Performance Testing: Use diagnostic software to check the IGBT module’s switching characteristics, forward voltage drop, and leakage current—compare results to Mitsubishi’s factory specifications to identify degradation.
Recommended Replacement Cycle
The service life of the Mitsubishi PM100RSE120 IGBT Module depends on usage intensity (daily switching cycles), load frequency, environmental conditions (temperature, dust), and cooling system efficiency. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, and proper cooling), the IGBT module should be replaced every 6–8 years. This timeframe accounts for gradual degradation of semiconductor chips, increased switching losses, and reduced thermal stability—ensuring the module maintains efficient power conversion, reliable performance, and compatibility with Mitsubishi drive systems. Proactive replacement reduces the risk of unexpected module failure and costly elevator downtime.
2. Signs That Require Immediate Replacement
Replace the IGBT module immediately if you encounter any of the following issues:
- Power Conversion Failures: Elevator experiences speed fluctuations, jerking, or stalling—indicative of faulty switching or reduced power output from the module.
- Thermal Overload Alerts: Repeated overtemperature error codes (e.g., “IGBT Overtemp”) that cannot be resolved with cooling system maintenance.
- Physical Damage: Cracked module casing, burned terminals, or visible damage to the semiconductor chips—compromising electrical safety and power conversion functionality.
- Performance Degradation: Increased energy consumption, reduced motor efficiency, or abnormal noise from the drive system—attributed to worn IGBT chips or degraded freewheeling diodes.
- Faulty Switching: The module fails to switch on/off properly, causing current spikes or voltage surges that damage the drive board or traction motor.
3. Maintenance to Extend Service Life
To maximize the module’s lifespan and minimize replacement costs:
- Optimize Cooling: Ensure the drive cabinet’s cooling system is properly sized and maintained—replace cooling fans every 3–4 years as preventive maintenance. Avoid blocking air vents or placing heat-generating components near the IGBT module.
- Stabilize Power Supply: Install surge protectors and voltage regulators to shield the module from input power spikes and transients—common causes of semiconductor damage.
- Minimize Overload: Adhere to the elevator’s weight capacity limits and avoid frequent full-load acceleration/deceleration cycles—reduces stress on the IGBT module.
- Use Genuine Parts Only: For replacements, rely exclusively on authentic Mitsubishi PM100RSE120 IGBT modules from Nanjing Zhuye. Counterfeit modules may use inferior semiconductor chips, inadequate thermal design, or incorrect ratings—compromising performance, safety, and Mitsubishi’s warranty coverage.
Why Choose Nanjing Zhuye Elevator Parts?
When sourcing the Mitsubishi IGBT Module PM100RSE120, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:
- Authenticity & Mitsubishi Compatibility: All modules are manufactured to Mitsubishi’s original specifications, ensuring seamless integration with Mitsubishi drive systems and compliance with global industrial standards.
- Strict Mitsubishi-Specific Quality Assurance: Each unit undergoes rigorous testing—including power handling capacity, switching efficiency, thermal stability, and diode functionality—to guarantee reliable operation in critical Mitsubishi systems.
- Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Mitsubishi elevator systems, providing 24/7 assistance for installation, cooling system setup, compatibility verification, and troubleshooting (e.g., IGBT overheating, power conversion issues).
- Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers power semiconductor components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Mitsubishi’s reliability.
- Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Mitsubishi elevator components.
Conclusion
The Mitsubishi IGBT Module PM100RSE120 is a foundational power conversion component that ensures efficient, reliable operation of Mitsubishi elevator traction drive systems. By following proper installation, cooling system maintenance, and routine performance checks—paired with Nanjing Zhuye’s authentic components—you can ensure your Mitsubishi elevators remain compliant, downtime-free, and energy-efficient. Whether you need a single replacement module, technical support for cooling setup, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Mitsubishi components and tailored professional services. Invest in the power conversion efficiency of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your Mitsubishi PM100RSE120 IGBT module requirements.
