Description

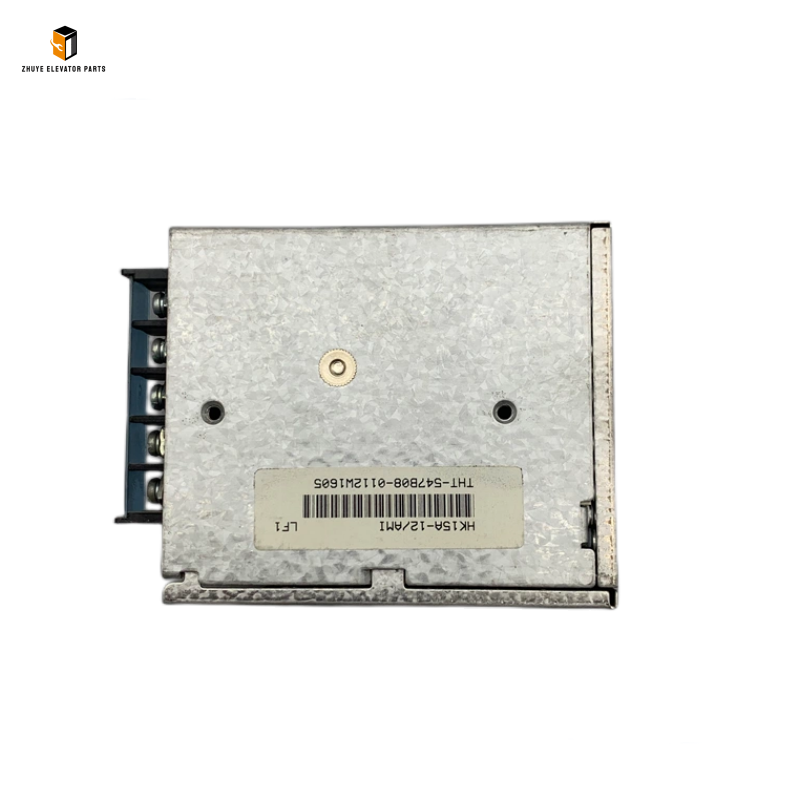

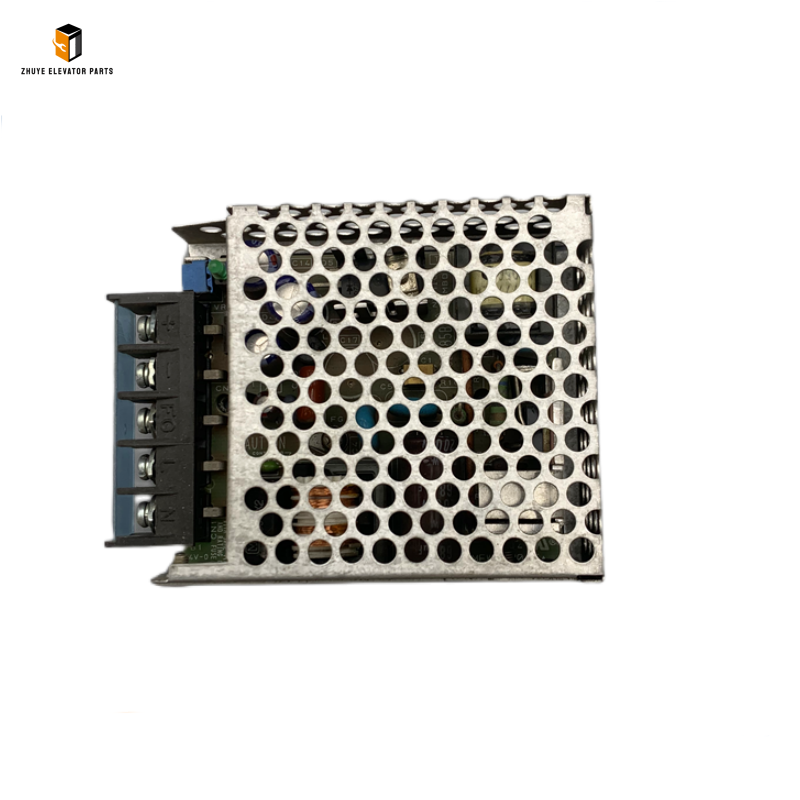

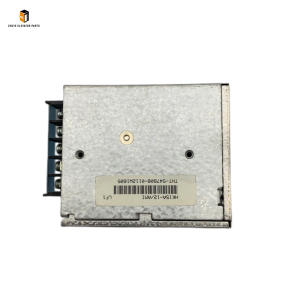

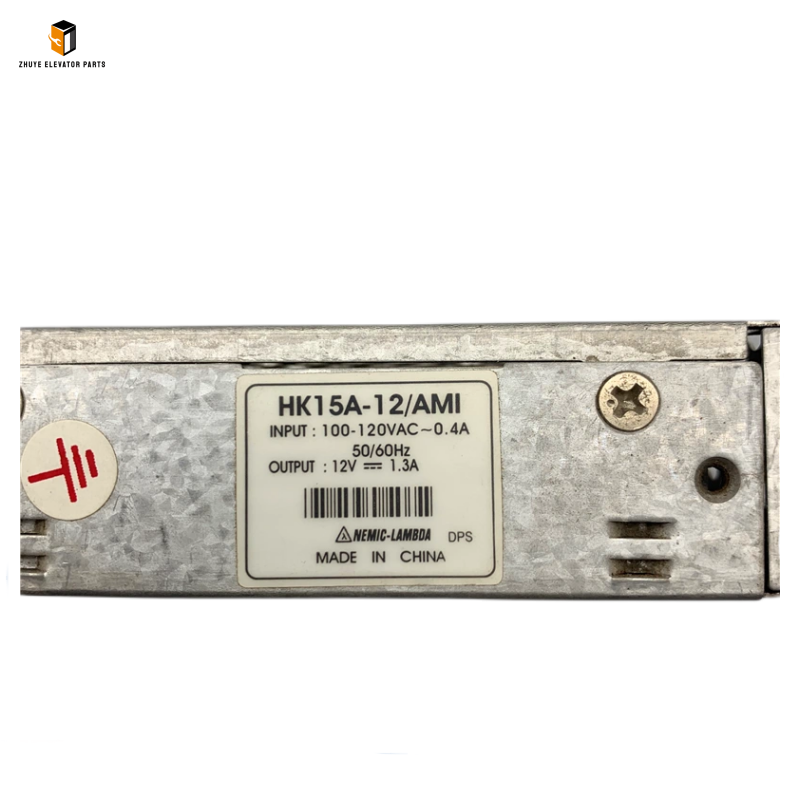

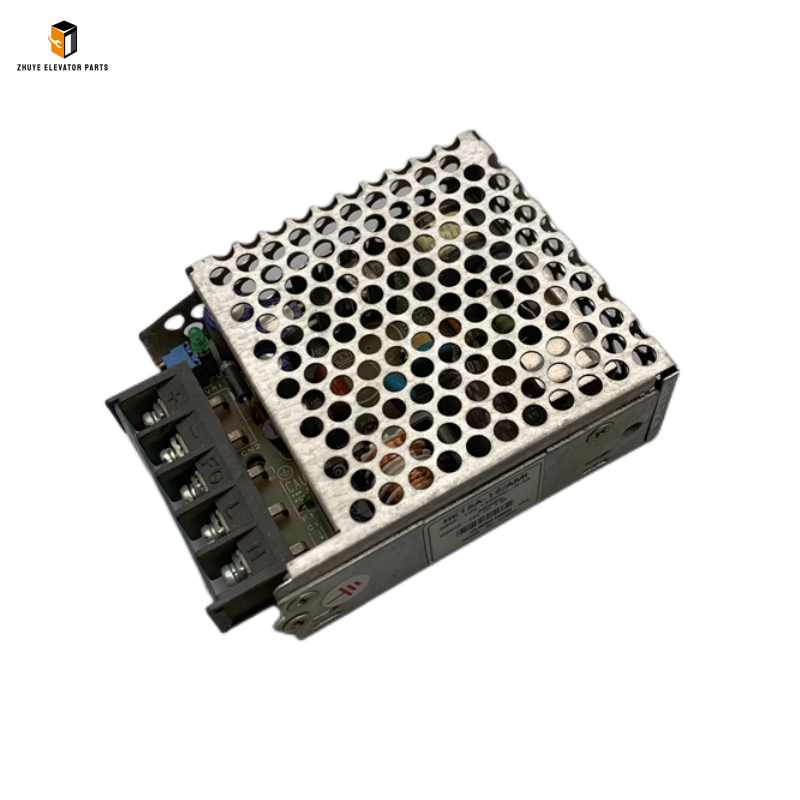

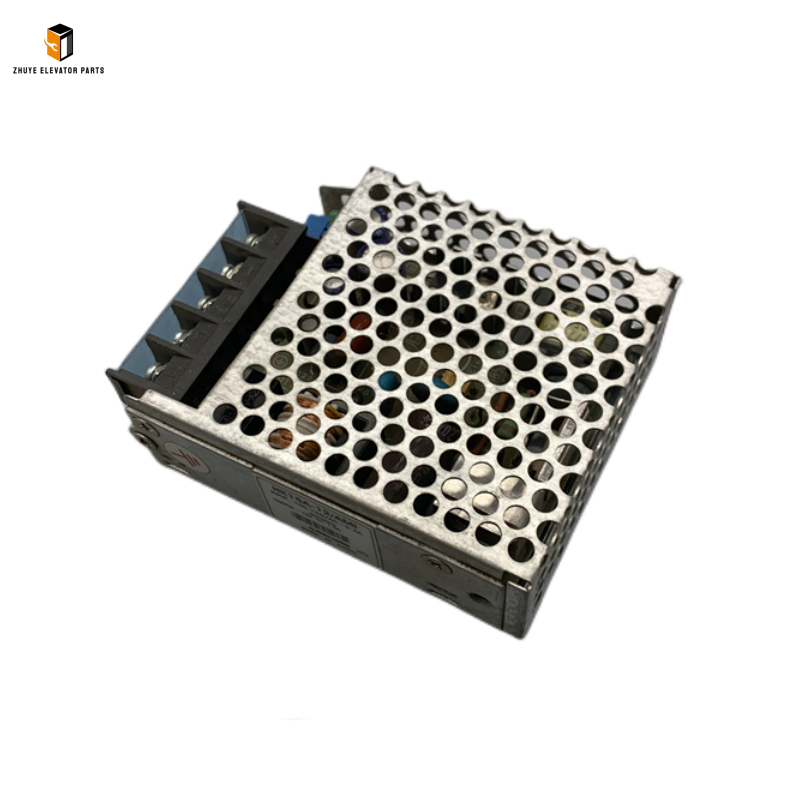

Mitsubishi elevator switching power supply HK15A-12/AMI Brief Introduction

Product Name	Mitsubishi elevator switching power supply
Model Number	HK15A-12/AMI
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Switching Power Supply HK15A-12/AMI: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Switching Power Supply HK15A-12/AMI is a mission-critical energy-delivery component exclusively engineered for Mitsubishi elevator systems—essential for commercial high-rises, residential complexes, office buildings, and public transit facilities worldwide. As a core power source for Mitsubishi NexWay, ELENESSA, and MAXIEZ series elevators, this compact switching power supply converts AC mains voltage (100–240V AC) into stable 12V DC power to energize critical subsystems: control panels, car display boards, door sensors, communication modules, and safety circuit auxiliaries. It integrates Mitsubishi’s proprietary voltage regulation technology, overvoltage/overcurrent/short-circuit protection, and low-noise operation—ensuring consistent power delivery while upholding the brand’s strict standards for safety, reliability, and energy efficiency (up to 85% conversion efficiency).

Compliant with global electrical and elevator safety standards (EN 81, IEC 60950-1, UL 1012, ISO 9001), the HK15A-12/AMI features a rugged, space-saving design: flame-retardant plastic housing (UL94 V0 rating), integrated heat-dissipating structure for thermal management, sealed input/output terminals to prevent dust and moisture intrusion, and surge protection (up to 2kV) against grid fluctuations. This design withstands 24/7 operation in machine rooms or elevator car control boxes, enduring temperature fluctuations (-10°C to +50°C), mechanical vibration, and electrical stress—critical for preventing control system failures, erratic sensor performance, or unexpected elevator downtime. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, inspection, and replacement timelines is vital to avoiding costly repairs, electrical hazards, or regulatory non-compliance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the HK15A-12/AMI that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable 12V DC output, and long-term durability.

Proper Usage Methods of Mitsubishi HK15A-12/AMI Switching Power Supply

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, applying lockout-tagout (LOTO) procedures, and securing the work area (machine room or car control box) with warning signs. Inspect the new HK15A-12/AMI for physical damage—cracked housing, bent terminals, damaged power cords, or loose internal components—defects that can cause short circuits, overheating, or power failure. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact housing, secure terminals, functional heat dissipation, and pre-tested voltage regulation.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the input voltage range (100–240V AC) matches the building’s mains supply, (2) the output specifications (12V DC, 15A maximum current) support the connected subsystems’ power demands, and (3) the compact dimensions (typically 120x80x40mm) fit the designated mounting space. Using an incompatible power supply can damage sensitive electronics, trigger safety circuit shutdowns, or cause intermittent system malfunctions. Additionally, prepare the installation area: Clean the mounting surface, ensure a minimum 5cm clearance around the unit for heat dissipation (critical for compact designs), and confirm access to the mains power cable and elevator control system wiring.

2. Installation & Wiring Steps

Power Supply Mounting:
- Secure the HK15A-12/AMI to the designated bracket or control box using the provided screws (torque to 1.5–2.0 Nm) to prevent vibration-induced movement. Install the unit vertically with the heat-dissipating side facing outward—avoid blocking airflow, as compact power supplies are prone to overheating if ventilation is restricted.
- If replacing an old power supply, disconnect the existing unit by labeling and removing the mains input cable and DC output wires. Take detailed photos of the wiring configuration—note terminal assignments (L/N for AC input, +/– for 12V DC output), wire colors, and grounding connections—to ensure accurate reinstallation.
Wiring & Connection:
- Connect the mains power cable to the AC input terminals (L = live, N = neutral, PE = ground), following Mitsubishi’s wiring schematic. Use crimp terminals for stranded wires and torque terminal screws to 1.0–1.5 Nm to avoid loose connections and arcing. Ensure the grounding wire (green/yellow) is securely fastened to the PE terminal—poor grounding increases electrical noise and hazard risks.
- Connect the 12V DC output wires to the elevator’s subsystems, matching positive (+) and negative (–) terminals to the corresponding components (e.g., display board, sensors). Route AC and DC wires separately to reduce electromagnetic interference (EMI), and secure all wiring with cable ties to minimize vibration stress on terminals.
Post-Installation Testing:
- Restore power to the elevator (performed by certified Mitsubishi technicians only) and conduct three critical tests:
  1. Voltage Stability Test: Use a multimeter to measure the 12V DC output—verify it remains within ±3% of the rated value (11.64–12.36V DC) under no-load and full-load conditions (e.g., activating all connected subsystems).
  2. Load Test: Operate the elevator through full cycles (door opening/closing, vertical movement) to confirm the power supply handles peak current demands without voltage drop or overheating (housing temperature ≤65°C after 1 hour of operation).
  3. Protection Function Test: Simulate an overcurrent (e.g., short-circuit output terminals with a test resistor) to confirm the power supply’s built-in protection triggers and cuts output power—preventing damage to downstream electronics.
- Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the HK15A-12/AMI’s performance and extend its lifespan, implement these proactive maintenance practices:

Daily Visual Inspections: Check the power supply for physical damage, loose wires, or signs of overheating (discoloration of housing, burning odors, or hot surfaces). Verify the status LED (if equipped) indicates normal operation (green = active, red = fault).
Weekly Ventilation Check: Clean dust from the unit’s surface and surrounding area using a soft brush or low-pressure compressed air—dust buildup blocks heat dissipation in compact designs. Ensure the installation space remains free from debris.
Monthly Voltage Verification: Use a multimeter to recheck the 12V DC output voltage—address fluctuations immediately, as they can cause display glitches, sensor errors, or control system malfunctions.
Quarterly Connection Inspections: Tighten all terminal screws and cable ties—vibration during elevator operation can loosen connections over time. Replace frayed or damaged wires with genuine Mitsubishi-compatible parts from Nanjing Zhuye.
Semi-Annual Comprehensive Test: Conduct a full load test and verify protection functions (overvoltage/overcurrent/short-circuit). Check the mains input voltage for stability and install a surge protector if grid fluctuations are common in the facility.

Recommended Replacement Cycle

The service life of the Mitsubishi HK15A-12/AMI Switching Power Supply depends on usage intensity, environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -10°C to +50°C), the HK15A-12/AMI should be replaced every 4–6 years. This timeframe accounts for gradual capacitor degradation (common in compact power supplies), thermal stress on components, and voltage regulation fatigue—proactive replacement avoids unexpected power failure.

2. Signs That Require Immediate Replacement

Replace the power supply immediately if you encounter any of the following issues:

Power Failures: No 12V DC output, frequent voltage drops, or inability to power connected subsystems—resulting in display blackouts, sensor inactivity, or control system shutdowns.
Electrical Damage: Burned terminals, melted wires, or visible damage to the housing—indicating short circuits or overheating.
Overheating Risks: Housing temperature >75°C during operation, burning odors, or smoking—posing a fire hazard in enclosed control boxes.
Performance Degradation: Unstable output voltage (fluctuations >±5%), frequent tripping of protection functions, or audible noise (buzzing/humming) from internal components.
Safety Compromise: Failed grounding continuity test, or power supply failure that disables safety circuit auxiliaries—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the installation area (machine room or control box) clean, dry, and well-ventilated. Install ventilation fans if the space is enclosed and prone to heat buildup.
Power Stabilization: Install external surge protectors and voltage regulators in the mains circuit to shield the power supply from grid spikes and fluctuations.
Load Management: Avoid connecting non-essential 12V DC devices to the power supply—stay within its 15A maximum current rating to reduce thermal stress.
Genuine Parts Only: For replacements or repairs, use exclusively authentic Mitsubishi HK15A-12/AMI switching power supplies and components from Nanjing Zhuye. Counterfeit units use inferior capacitors, lack proper protection functions, and risk damaging critical elevator subsystems.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi HK15A-12/AMI?

When sourcing the Mitsubishi Elevator Switching Power Supply HK15A-12/AMI, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators—eliminating compatibility risks.
Strict Quality Assurance: Each power supply undergoes rigorous testing (voltage stability, load capacity, thermal resilience, protection functions) to meet Mitsubishi’s original manufacturing standards and global safety certifications.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring, troubleshooting, and maintenance—even for compact power system setups.
Global Efficient Delivery: Fast shipping to worldwide locations minimizes elevator downtime, critical for high-traffic facilities where subsystem failures impact operation.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Mitsubishi Elevator Switching Power Supply HK15A-12/AMI is a foundational energy-delivery component that ensures the reliable operation of critical 12V DC subsystems—directly impacting passenger experience, control performance, and operational uptime. By following proper installation, wiring, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Mitsubishi elevators downtime-free, compliant with global safety regulations, and optimized for performance. Whether you need a single replacement power supply, technical support for power system upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Mitsubishi components and tailored professional services. Invest in the power reliability of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your HK15A-12/AMI switching power supply requirements.
