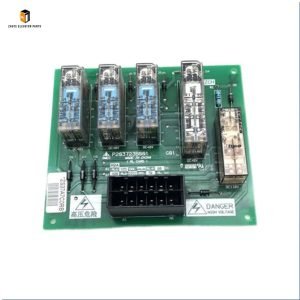

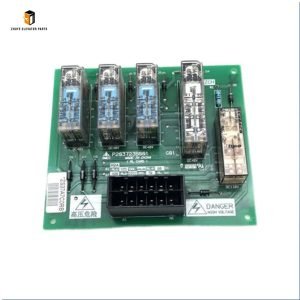

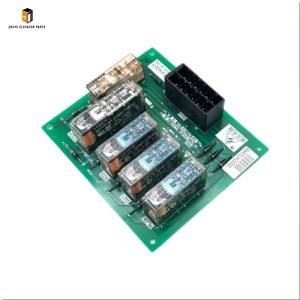

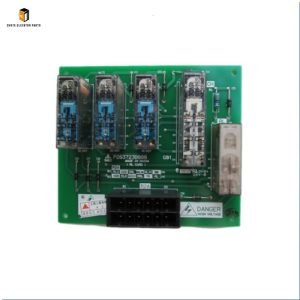

Mitsubishi Elevator Relay Board P203723B000G01: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi P203723B000G01 Relay Board

1. Pre-Installation Preparation

2. Installation & Wiring Steps

• Board Installation:
  • Align the P203723B000G01 with the guide rails in the control cabinet slot and slide it into place until fully seated. Secure the board with the provided retaining screws (torque to 0.5–0.8 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB.
  • If replacing an old relay board, disconnect the existing unit by labeling and removing all wiring harnesses. Take detailed photos of the original wiring (terminal numbers, wire colors) to ensure accurate reinstallation—incorrect wiring is the leading cause of post-replacement failures.
• Wiring & Connection:
  • Connect the wiring harnesses to the corresponding terminals on the relay board, following Mitsubishi’s wiring schematic. Match power wires (24V DC positive/negative) to the board’s power input terminals and signal wires to the designated relay channels. Use crimp terminals for stranded wires and torque terminal screws to 1.0–1.5 Nm to avoid loose connections and arcing. Route signal wires away from high-voltage cables to reduce EMI.
• Post-Installation Testing:
  • Restore power to the elevator (performed by certified Mitsubishi technicians only) and conduct three critical tests:
    1. Relay Activation Test: Use the main controller’s diagnostic software to trigger each relay channel—verify audible clicking (confirms relay activation) and correct subsystem response (e.g., door opens when door relay is activated).
    2. Signal Continuity Test: Use a multimeter to check contact continuity for each relay—ensure low resistance (≤0.5Ω) when activated and infinite resistance when deactivated.
    3. Load Test: Operate the elevator through full cycles (door opening/closing, vertical movement) to confirm the board handles peak signal loads without relay sticking or signal delay.
  • Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

• Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discoloration of PCB, burning odors, or hot relays). Verify the board’s status LEDs (if equipped) indicate normal operation (green = active, red = fault).
• Weekly Relay Function Test: Use diagnostic software to cycle all relays 5–10 times—prevents contact oxidation and ensures smooth activation.
• Monthly Connection Inspections: Tighten terminal screws and inspect wiring harnesses for fraying or corrosion. Replace compromised wires with genuine Mitsubishi-compatible parts from Nanjing Zhuye.
• Quarterly Cleaning: Remove dust from the board’s surface and relays using low-pressure compressed air—dust buildup traps heat and causes relay malfunctions. Clean the control cabinet to maintain airflow.
• Semi-Annual Comprehensive Test: Conduct a full relay activation test and signal continuity check. Inspect relay contacts for arcing or wear using a magnifying glass—replace the board if contacts show signs of damage.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Signal Failures: Relays fail to activate/deactivate, causing subsystem unresponsiveness (e.g., doors won’t open, motor won’t start) or incorrect operation (e.g., elevator moves when it shouldn’t).
• Electrical Damage: Burned PCB traces, melted terminals, or visible relay arcing—indicating short circuits or overload.
• Persistent Faults: Repeated controller error codes (e.g., “Relay Communication Loss,” “Contact Stuck”) that cannot be resolved with wiring checks or cleaning.
• Performance Degradation: Delayed signal transmission, intermittent relay activation, or increased contact resistance (≥1Ω)—affecting elevator responsiveness and safety.
• Safety Compromise: Failure to trigger safety circuits (e.g., emergency stop) or incorrect signal routing—violating EN 81/ASME safety standards and risking passenger injury.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the control cabinet clean, dry, and well-ventilated. Install a dehumidifier if humidity exceeds 80%—moisture causes PCB corrosion.
• Power Stabilization: Install external surge protectors in the main power circuit to shield the board from grid spikes and voltage fluctuations.
• Relay Care: Avoid excessive relay cycling (e.g., frequent test activations) to reduce contact wear. Use diagnostic software sparingly for routine checks.
• Genuine Parts Only: For replacements, use exclusively authentic Mitsubishi P203723B000G01 relay boards from Nanjing Zhuye. Counterfeit units use inferior relays, lack surge protection, and risk catastrophic subsystem damage.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi P203723B000G01?

• Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators—eliminating compatibility risks.
• Strict Quality Assurance: Each relay board undergoes rigorous testing (relay activation speed, contact durability, signal stability, surge resistance) to meet Mitsubishi’s original manufacturing standards.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring, troubleshooting, and maintenance—even for complex control systems.
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes elevator downtime, critical for high-traffic facilities where subsystem failures disrupt operation.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
