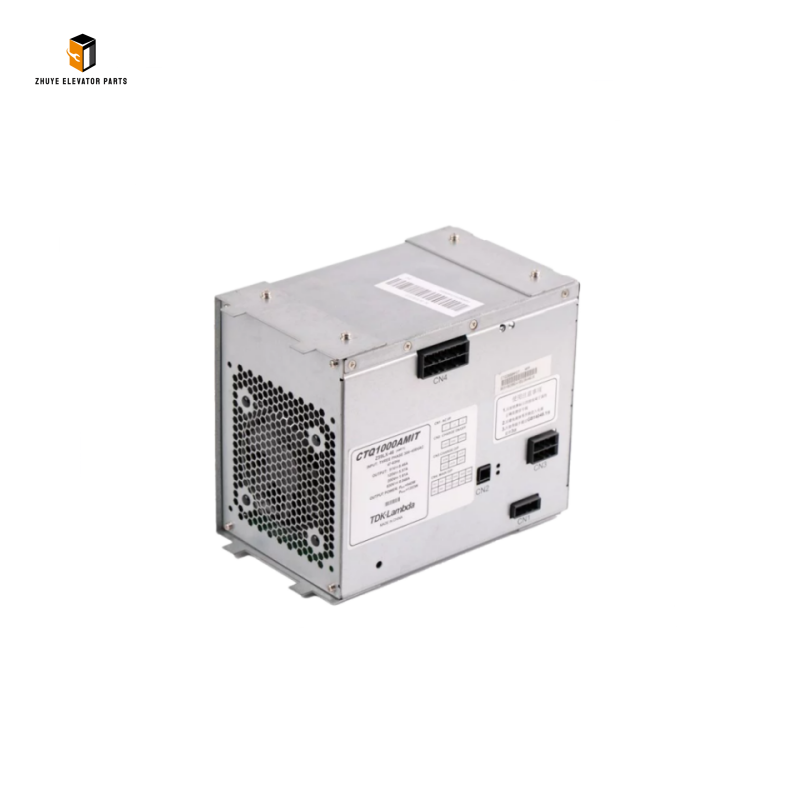

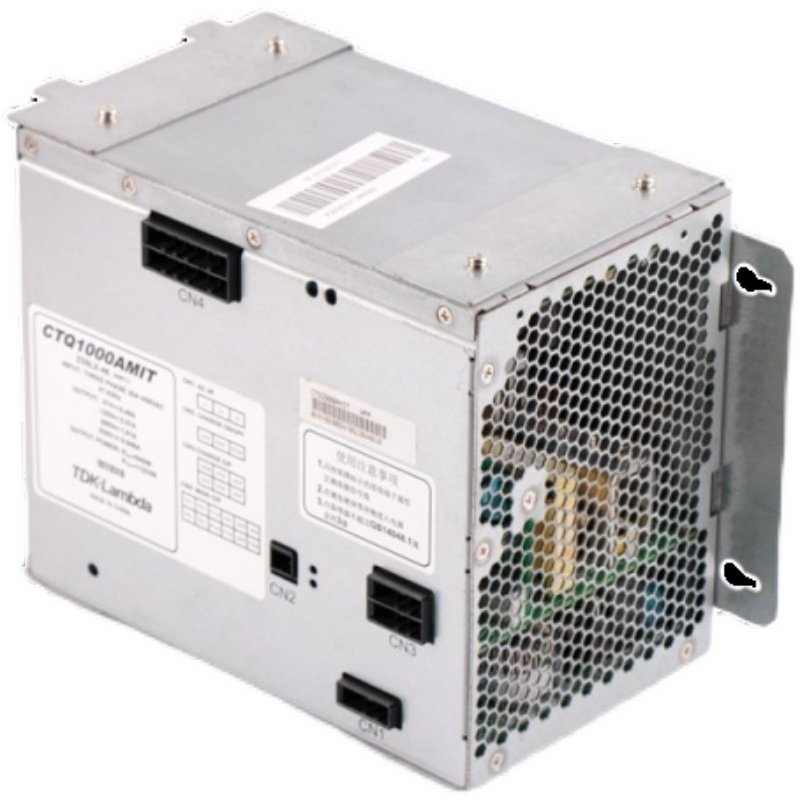

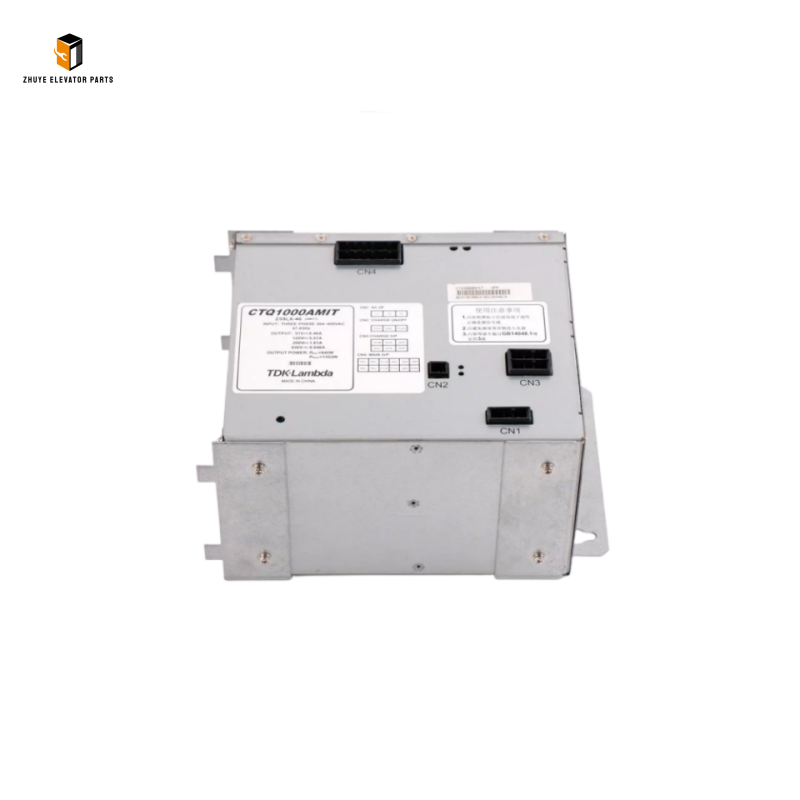

Mitsubishi Elevator Power supply CTQ1000AMIT Brief Introduction
|
Product Name |
Mitsubishi Elevator Power supply |

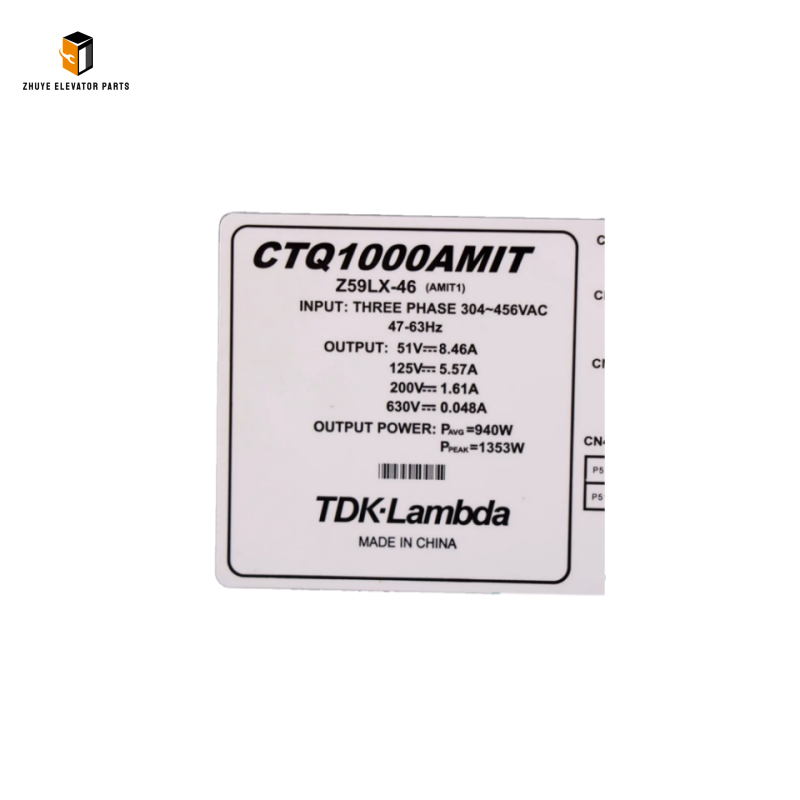

| Model Number | CTQ1000AMIT
Z59LX-42 Z59LX-46 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Mitsubishi Elevator Power Supply CTQ1000AMIT: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Mitsubishi Elevator Power Supply CTQ1000AMIT is a high-performance energy conversion component exclusively engineered for Mitsubishi elevator systems—widely deployed in commercial high-rises, residential complexes, public transit facilities, and smart buildings worldwide. As the “stable energy backbone” of Mitsubishi NexWay, ELENESSA, and MAXIEZ series elevators, this power supply converts AC mains power (380V/220V) to regulated DC power (typically 24V/48V) to supply critical subsystems: main controller, communication boards, LOP display panels, safety interlocks, and emergency backup systems. It features a 1000W output capacity, high conversion efficiency (≥88%), and low ripple voltage (<50mV), ensuring consistent power delivery even under fluctuating load conditions. Designed to meet Mitsubishi’s strict standards for safety, stability, and durability, the CTQ1000AMIT is a mission-critical component that directly impacts elevator operational reliability and passenger safety.
Compliant with global safety and electrical standards (EN 81, IEC 60950, ISO 9001), the CTQ1000AMIT boasts a robust, interference-resistant design: sealed metal housing for dust and moisture protection, industrial-grade rectifier bridges and capacitors for long-term stability, integrated overvoltage/overcurrent/overtemperature protection, and EMI filters to reduce electromagnetic interference. This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +50°C), voltage surges, and mechanical vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, configuration, and replacement timelines of this power supply is critical to avoiding system shutdowns, subsystem malfunctions, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the CTQ1000AMIT power supply that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable power output, and long-term durability.
Proper Usage Methods of Mitsubishi CTQ1000AMIT Power Supply
1. Pre-Installation Preparation
Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging residual voltage from the existing power supply, and securing the machine room work area with lockout tags. Inspect the new CTQ1000AMIT power supply for physical damage—such as dented housing, damaged power connectors, loose internal components, or burn marks on terminals—defects that can cause short circuits, power leakage, or unstable output. Nanjing Zhuye Elevator Parts conducts rigorous Mitsubishi-specific quality control checks, so each unit arrives in optimal condition: intact packaging, functional internal modules, pre-calibrated output parameters, and clear wiring/terminal markings.
Verify compatibility with your Mitsubishi elevator model and power system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the power supply’s input voltage range (380V AC three-phase or 220V AC single-phase) matches the building’s electrical system, (2) the output voltage (24V DC or 48V DC) and current capacity (up to 41.7A for 24V, 20.8A for 48V) meet the elevator’s subsystem requirements, and (3) the mounting dimensions fit the designated space in the machine room. Using an incompatible power supply can damage sensitive electronic components or cause frequent system failures.
2. Installation & Configuration Steps
- Power Supply Mounting:
- Select a well-ventilated location in the machine room (away from heat sources like traction motors) and secure the CTQ1000AMIT to the mounting bracket using the provided screws (torque to 2.0–2.5 Nm). Ensure a minimum clearance of 15cm around the power supply for airflow—insufficient ventilation leads to overheating and shortened lifespan.
- Disconnect the old power supply (if replacing) by labeling and removing input power cables (L1, L2, L3, N, PE) and output DC cables (+V, -V, GND). Take detailed photos of the wiring configuration to ensure accurate reinstallation of the CTQ1000AMIT.
- Wiring & Connection:
- Connect input power cables to the AC terminal block, ensuring correct phase (for three-phase input) and grounding (PE) to prevent electrical shock. Use appropriately sized cables: 4mm² copper wire for input, 6mm² copper wire for output (24V/48V). Tighten terminal screws to Mitsubishi’s specified torque (1.5–2.0 Nm) to avoid loose connections and arcing.
- Connect output DC cables to the elevator’s power distribution board, ensuring correct polarity (+V to positive terminals, -V to negative terminals). Install a fuse (matching the power supply’s output current rating) in the output circuit for additional protection against short circuits.
- Post-Installation Configuration & Testing:
- Restore power to the machine room (performed by certified Mitsubishi technicians only) and conduct the following critical tests:
- Output Voltage Check: Use a multimeter to verify the DC output voltage is within the acceptable range (±5% of the rated voltage, e.g., 24V ±1.2V).
- Load Test: Activate all connected subsystems (controller, displays, intercom) to ensure the power supply maintains stable output without voltage drop.
- Protection Function Test: Simulate overcurrent or overvoltage conditions (per Mitsubishi’s test procedures) to confirm the power supply triggers automatic shutdown and resets safely.
- Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.
- Restore power to the machine room (performed by certified Mitsubishi technicians only) and conduct the following critical tests:
3. Routine Usage Maintenance
To preserve the CTQ1000AMIT’s performance and extend its lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for abnormal noise (buzzing/humming), overheating (hot housing), or loose cables. Inspect the power supply’s cooling fan (if equipped) for unobstructed airflow.
- Monthly Voltage Monitoring: Use a multimeter to measure the DC output voltage under no-load and full-load conditions. Record readings to identify voltage drift trends.
- Quarterly Connection Checks: Tighten input/output terminal screws (loose connections cause voltage fluctuations) and inspect cables for fraying, corrosion, or insulation damage. Replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye.
- Semi-Annual Cleaning: Remove dust from the power supply’s housing and cooling vents using compressed air—avoid liquid cleaners or high-pressure air that can damage internal components.
- Annual Performance Testing: Conduct a comprehensive test using diagnostic tools to verify conversion efficiency, ripple voltage, and protection function responsiveness. Compare results against Mitsubishi’s factory specifications.
Recommended Replacement Cycle
The service life of the Mitsubishi CTQ1000AMIT Power Supply depends on usage intensity (daily operating hours), load stability, environmental conditions (temperature, humidity), and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -10°C to +50°C), the power supply should be replaced every 7–9 years. This timeframe accounts for gradual degradation of internal components (capacitors, rectifiers), reduced conversion efficiency, and increased risk of unexpected failures—proactive replacement ensures uninterrupted elevator operation.
2. Signs That Require Immediate Replacement
Replace the power supply immediately if you encounter any of the following issues:
- Power Failure: No output voltage, frequent shutdowns, or inability to power on subsystems—causing elevator misoperation or complete shutdown.
- Voltage Instability: Fluctuating DC output (exceeding ±5% of rated voltage) that leads to communication errors, display malfunctions, or safety interlock failures.
- Physical Damage: Dented housing, water intrusion, burned terminals, or internal component leakage—compromising electrical safety and functionality.
- Overheating: Persistent hot housing (temperature >60°C) or triggered overtemperature protection—indicates cooling system failure or internal component degradation.
- Safety Compromise: Failure to trigger overcurrent/overvoltage protection during faults—risking damage to critical subsystems and passenger safety.
3. Maintenance to Extend Service Life
- Environmental Control: Keep the machine room clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 50°C or humidity exceeds 85%.
- Power Stabilization: Install surge protectors and voltage regulators in the input circuit to shield the power supply from mains voltage spikes and transients.
- Load Management: Avoid frequent full-load switching (reduces stress on internal components) and ensure the total connected load does not exceed the power supply’s 1000W rating.
- Genuine Parts Only: For replacements, rely exclusively on authentic Mitsubishi CTQ1000AMIT power supplies from Nanjing Zhuye. Counterfeit power supplies use inferior components, lack safety certifications, and pose fire hazards.
Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi CTQ1000AMIT?
When sourcing the Mitsubishi CTQ1000AMIT power supply, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All units meet Mitsubishi’s original manufacturing specifications, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
- Strict Quality Assurance: Each power supply undergoes rigorous testing (output stability, conversion efficiency, protection functions) to guarantee reliable operation in critical elevator systems.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, and troubleshooting—even for complex power system setups.
- Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator service.
- Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality.
Conclusion
The Mitsubishi Elevator Power Supply CTQ1000AMIT is a foundational energy component that ensures stable, reliable power delivery to critical elevator subsystems—directly impacting operational safety and efficiency. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Mitsubishi elevators remain compliant, downtime-free, and safe for passengers. Whether you need a single replacement power supply, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Mitsubishi components and tailored professional services. Invest in the power stability of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your CTQ1000AMIT power supply requirements.
