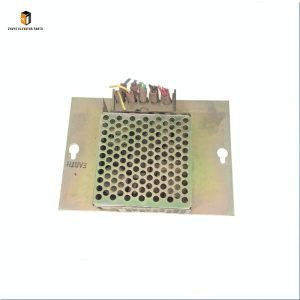

Mitsubishi Elevator Power Box X59LX-81: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi X59LX-81 Power Box

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Mounting the Power Box:
  • Secure the X59LX-81 to the designated concrete or metal mounting bracket using the provided high-torque bolts (torque to 4.0–5.0 Nm) to handle the box’s weight and prevent vibration-induced movement. Ensure the box is installed upright with the terminal cover easily accessible for future maintenance.
  • Disconnect the old power box (if replacing) by labeling and removing all input/output cables (mains power, subsystem connections, grounding wires). Take detailed photos of the wiring configuration—note cable colors, terminal assignments, and grounding points—to ensure accurate reinstallation.
• Wiring & Connection:
  • Connect the building’s three-phase mains power cable to the power box’s input terminals, ensuring correct phase alignment (L1, L2, L3) and secure grounding (PE) to prevent electrical shock. Use cable glands to seal entry points and protect wires from abrasion.
  • Connect subsystem cables (to main controller, motor, door operator, etc.) to the corresponding output terminals, following Mitsubishi’s wiring schematic. Tighten terminal screws to Mitsubishi’s specified torque (2.5–3.0 Nm) to avoid loose connections—common causes of voltage drops or arcing. Double-check that power and signal cables are routed separately to reduce electromagnetic interference (EMI).
• Post-Installation Testing:
  • Restore power to the elevator (performed by certified Mitsubishi technicians only) and conduct three critical tests:
    1. Power Output Test: Use a multimeter to verify output voltage matches the elevator’s requirements (e.g., 24V DC for control systems, 380V AC for the traction motor) with a tolerance of ±5%.
    2. Overload Protection Test: Simulate a minor overload (per Mitsubishi’s guidelines) to confirm the built-in circuit breaker trips and cuts power to prevent damage.
    3. System Sync Test: Operate the elevator through full cycles to ensure all subsystems receive stable power and function correctly—check for flickering displays, erratic door movement, or motor hesitation.
  • Document installation details, test results, and wiring diagrams in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check the power box for physical damage, loose cables, or signs of overheating (discoloration of housing, burning odors). Verify circuit breakers are in the “ON” position and terminal covers are securely fastened.
• Monthly Power Monitoring: Use a power quality analyzer to measure input/output voltage, current, and frequency. Record data to identify trends in grid fluctuations or internal component degradation.
• Quarterly Connection Inspections: Tighten all terminal screws and cable glands—vibration during elevator operation can loosen connections over time. Replace frayed or damaged cables with genuine Mitsubishi parts from Nanjing Zhuye.
• Semi-Annual Cleaning: Remove dust from the power box’s exterior, vents, and terminal cover using compressed air (low pressure to avoid component damage). Clean the machine room to maintain airflow and prevent dust buildup.
• Annual Comprehensive Inspection: Remove the terminal cover (by authorized technicians) to inspect internal components: circuit breakers for wear, wiring for corrosion, and power regulation modules for damage. Test the ground connection’s continuity to ensure electrical safety.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Power Distribution Failures: Intermittent power cuts to subsystems, voltage fluctuations exceeding ±10%, or complete loss of output power—resulting in elevator stalling or misoperation.
• Overheating & Damage: Persistent overheating (housing temperature >60°C), burning odors, or melted wiring insulation—indicating internal component failure and fire risk.
• Physical Damage: Severe dents, water intrusion, or corrosion on terminals that cannot be cleaned—compromising electrical safety and power distribution.
• Persistent Faults: Repeated circuit breaker trips (without a clear overload cause) or error codes related to power supply (e.g., “Voltage Unstable,” “Power Module Fault”) that cannot be resolved with troubleshooting.
• Safety Compromise: Failed grounding continuity test or inability to protect subsystems from overloads—violating Mitsubishi’s safety standards and regulatory requirements.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the machine room clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 45°C or humidity exceeds 85%—extremes accelerate component degradation.
• Power Stabilization: Install external surge protectors and voltage regulators in the mains power circuit to shield the power box from grid spikes and fluctuations.
• Cable Management: Secure cables with clips to minimize vibration-induced stress on terminals. Replace aging cables (typically every 5–7 years) with genuine Mitsubishi cables from Nanjing Zhuye.
• Genuine Parts Only: For replacements or repairs, use exclusively authentic Mitsubishi components supplied by Nanjing Zhuye. Counterfeit parts lack proper insulation, overload protection, and compatibility—risking system failure or electrical hazards.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi X59LX-81?

• Authenticity & Compatibility: All units meet Mitsubishi’s original manufacturing specifications, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
• Strict Quality Assurance: Each power box undergoes rigorous testing (power output stability, overload protection, thermal resilience) to guarantee reliable performance in critical energy distribution.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring, troubleshooting, and maintenance—even for complex power system setups.
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator operation.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Mitsubishi Elevator Power Box X59LX-81 is a foundational energy distribution component that ensures stable, safe power delivery to all critical elevator subsystems—directly impacting operational reliability and passenger safety. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Mitsubishi elevators remain downtime-free, compliant with safety regulations, and efficient. Whether you need a single replacement power box, technical support for wiring upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Mitsubishi components and tailored professional services. Invest in the power reliability of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your X59LX-81 power box requirements.
