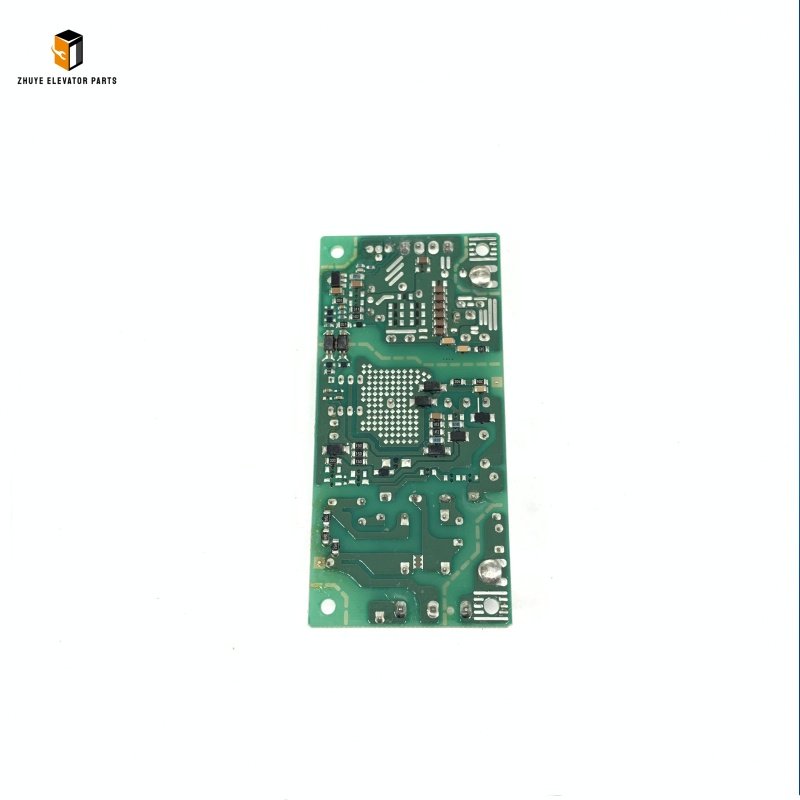

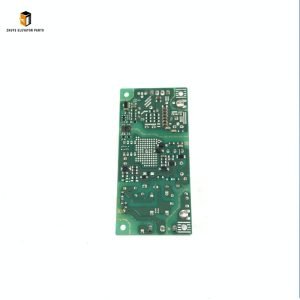

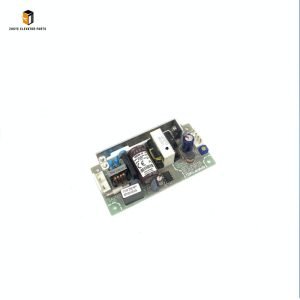

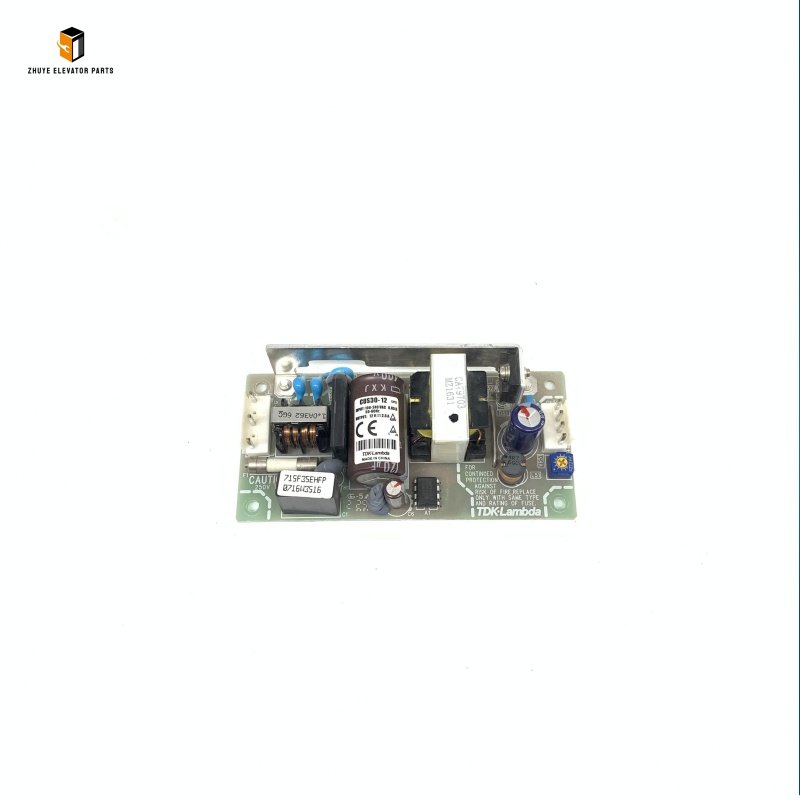

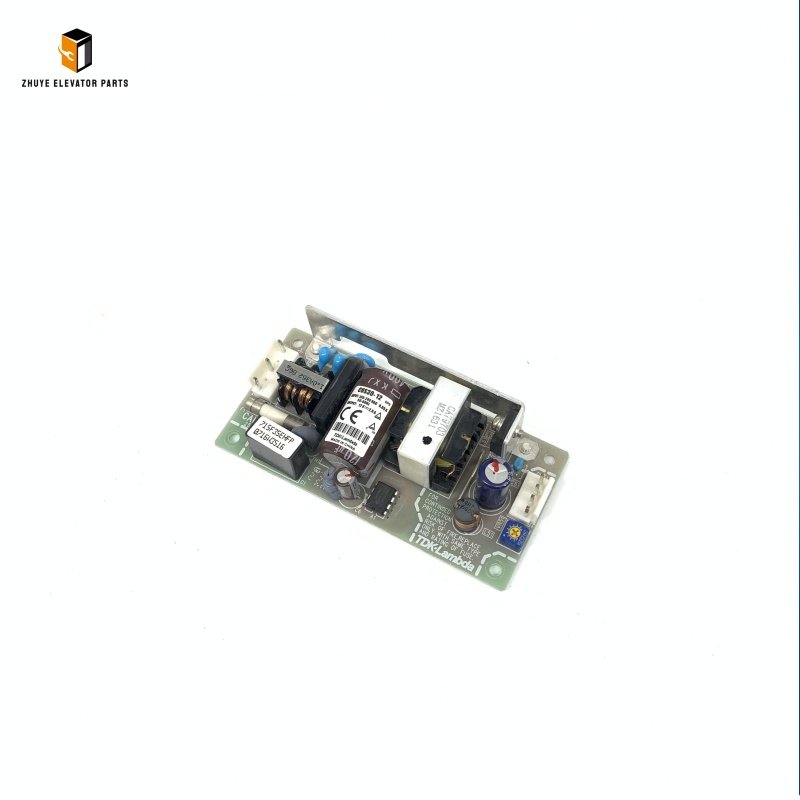

Mitsubishi Elevator Power Board CUS30-12: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi CUS30-12 Power Board

1. Pre-Installation Preparation

2. Installation & Wiring Steps

• Power Board Mounting:
  • Secure the CUS30-12 to the control cabinet’s mounting rail or bracket using the provided screws (torque to 2.0–2.5 Nm) to prevent vibration-induced movement. Install the unit vertically with the heat-dissipating fins facing outward—avoid blocking airflow, as high-current operation generates significant heat.
  • If replacing an old power board, disconnect the existing unit by labeling and removing the mains input cable and DC output wires. Take detailed photos of the wiring configuration—note terminal assignments (L/N for AC input, +/– for 12V DC output), wire colors, and grounding connections—to ensure accurate reinstallation.
• Wiring & Connection:
  • Connect the mains power cable to the AC input terminals (L = live, N = neutral, PE = ground), following Mitsubishi’s wiring schematic. Use heavy-gauge wires (minimum 2.5mm² for AC input, 4mm² for DC output) to handle the 30A current and torque terminal screws to 1.5–2.0 Nm to avoid loose connections and overheating. Ensure the grounding wire (green/yellow) is securely fastened to the PE terminal—poor grounding increases electrical noise and hazard risks.
  • Connect the 12V DC output wires to the elevator’s subsystems, matching positive (+) and negative (–) terminals to the corresponding components (e.g., display board, sensors). Route AC and DC wires separately to reduce electromagnetic interference (EMI), and secure all wiring with cable ties to minimize vibration stress on terminals.
• Post-Installation Testing:
  • Restore power to the elevator (performed by certified Mitsubishi technicians only) and conduct three critical tests:
    1. Voltage Stability Test: Use a multimeter to measure the 12V DC output—verify it remains within ±2% of the rated value (11.76–12.24V DC) under no-load and full-load conditions (e.g., activating all connected subsystems simultaneously).
    2. Load Test: Operate the elevator through full cycles (door opening/closing, vertical movement) to confirm the power board handles peak current demands without voltage drop or overheating (housing temperature ≤70°C after 1 hour of operation).
    3. Protection Function Test: Simulate an overcurrent (e.g., short-circuit output terminals with a test resistor) to confirm the power board’s built-in protection triggers and cuts output power—preventing damage to downstream electronics.
  • Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

• Daily Visual Inspections: Check the power board for physical damage, loose wires, or signs of overheating (discoloration of housing, burning odors, or hot fins). Verify the status LED (if equipped) indicates normal operation (green = active, red = fault).
• Weekly Heat Dissipation Check: Clean dust from the housing and heat fins using a soft brush or low-pressure compressed air—dust buildup blocks heat dissipation in high-current boards. Ensure the control cabinet’s ventilation fans (if equipped) are functioning.
• Monthly Voltage Verification: Use a multimeter to recheck the 12V DC output voltage—address fluctuations immediately, as they can cause display glitches, sensor errors, or control system malfunctions.
• Quarterly Connection Inspections: Tighten all terminal screws and cable ties—vibration during elevator operation can loosen connections over time. Replace frayed or damaged wires with genuine Mitsubishi-compatible parts from Nanjing Zhuye.
• Semi-Annual Comprehensive Test: Conduct a full load test and verify protection functions (overvoltage/overcurrent/short-circuit/overtemperature). Check the mains input voltage for stability and install a surge protector if grid fluctuations are common in the facility.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Power Failures: No 12V DC output, frequent voltage drops, or inability to power connected subsystems—resulting in display blackouts, sensor inactivity, or control system shutdowns.
• Electrical Damage: Burned terminals, melted wires, or visible damage to the housing—indicating short circuits or overheating.
• Overheating Risks: Housing temperature >80°C during operation, burning odors, or smoking—posing a fire hazard in enclosed control cabinets.
• Performance Degradation: Unstable output voltage (fluctuations >±5%), frequent tripping of protection functions, or audible noise (buzzing/humming) from internal components.
• Safety Compromise: Failed grounding continuity test, or power board failure that disables safety circuit auxiliaries—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the installation area (machine room or control cabinet) clean, dry, and well-ventilated. Install additional ventilation fans if the space is enclosed and prone to heat buildup.
• Power Stabilization: Install external surge protectors and voltage regulators in the mains circuit to shield the power board from grid spikes and fluctuations.
• Load Management: Avoid connecting non-essential 12V DC devices to the power board—stay within its 30A maximum current rating to reduce thermal stress.
• Genuine Parts Only: For replacements or repairs, use exclusively authentic Mitsubishi CUS30-12 power boards and components from Nanjing Zhuye. Counterfeit units use inferior capacitors, lack proper protection functions, and risk damaging critical elevator subsystems.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi CUS30-12?

• Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators—eliminating compatibility risks.
• Strict Quality Assurance: Each power board undergoes rigorous testing (voltage stability, load capacity, thermal resilience, protection functions) to meet Mitsubishi’s original manufacturing standards and global safety certifications.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, wiring, troubleshooting, and maintenance—even for high-current power system setups.
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes elevator downtime, critical for high-traffic facilities where subsystem failures impact operation.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
