Description

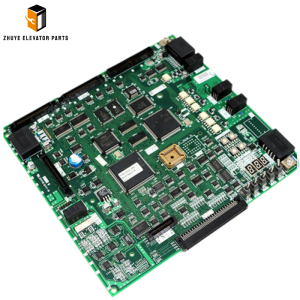

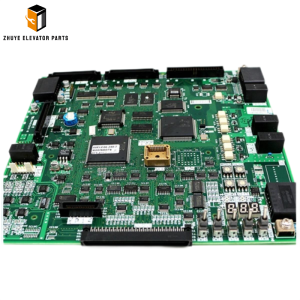

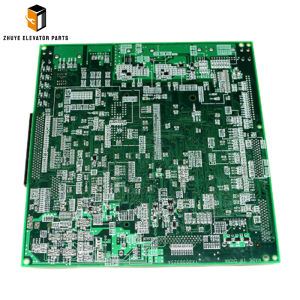

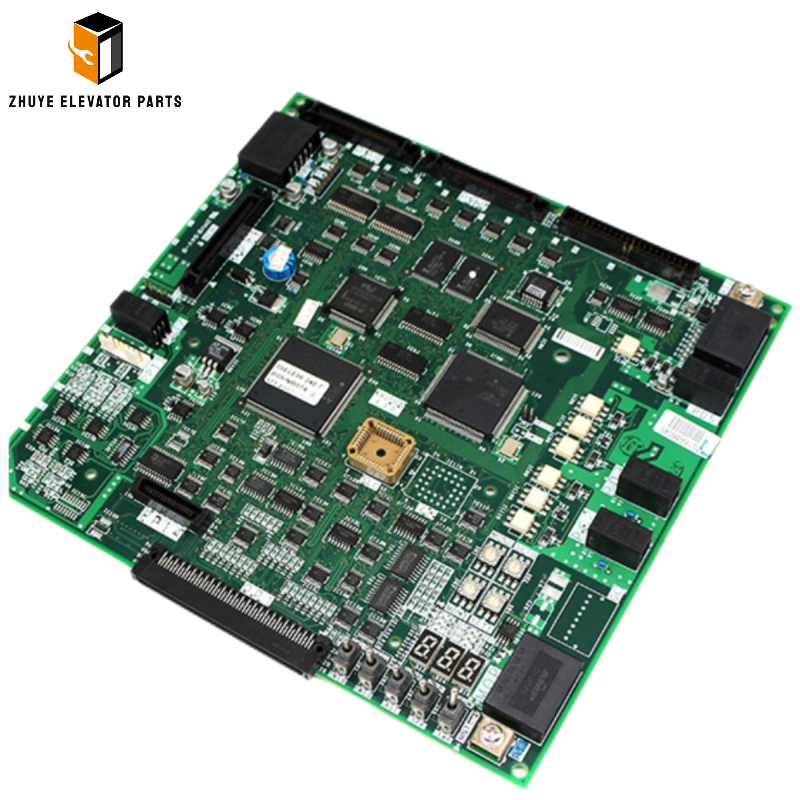

Mitsubishi elevator main board KCD-912B Brief Introduction

Product Name	Mitsubishi elevator pcb board Arrival light board L
Model Number	KCD-911A KCD-912B KCD-911 KCD-912
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Main Board KCD-912B: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Main Board KCD-912B is a mission-critical control component—often referred to as the “elevator brain”—exclusively engineered for Mitsubishi elevator systems, including NexWay, ELENESSA, and MAXIEZ series. Essential for commercial high-rises, residential complexes, transit hubs, and public facilities worldwide, this main board coordinates all core elevator operations: call signal processing, car positioning, traction motor control, door operator management, safety circuit monitoring, and emergency response. It integrates Mitsubishi’s proprietary 32-bit microprocessor, real-time communication protocols (Modbus, CANopen), and redundant safety logic—ensuring precise, synchronized operation while upholding the brand’s strict standards for reliability, safety, and user experience.

Compliant with global elevator safety and electronic standards (EN 81-20/50, IEC 61010, UL 1012, ISO 9001), the KCD-912B features a rugged, fault-tolerant design: multi-layer PCB with conformal coating (resists dust, moisture, and corrosion), flame-retardant ABS housing (UL94 V0 rating), gold-plated communication ports (minimizes signal loss), and built-in surge protection (up to 2kV) against electrical interference. This construction withstands 24/7 operation in machine rooms or control cabinets, enduring temperature fluctuations (-5°C to +50°C), mechanical vibration, and grid instability—critical for preventing system crashes, erratic elevator movement, or safety circuit failures. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the KCD-912B that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable system coordination, and long-term performance.

Proper Usage Methods of Mitsubishi KCD-912B Main Board

1. Pre-Installation Preparation

Before installation, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (machine room or control cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new KCD-912B for physical damage—cracked PCB traces, bent pins, swollen capacitors, loose components, or corrosion on terminals—defects that can cause system malfunctions or safety hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact circuits, functional microprocessor, secure solder joints, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s firmware version matches the elevator’s subsystem hardware (e.g., inverter, door operator), (2) the mounting dimensions (typically 200x150x50mm) fit the control cabinet’s slot, and (3) the power supply requirements (24V DC ±10%) are compatible with the elevator’s power system. Using an incompatible main board can disrupt subsystem communication, trigger safety locks, or render the elevator inoperable. Additionally, prepare the installation area: Clean the control cabinet slot to remove dust and debris, ensure 5cm clearance for ventilation, and back up the old main board’s parameters (via Mitsubishi’s diagnostic software) to preserve elevator-specific settings (e.g., floor heights, call priorities).

2. Installation & Configuration Steps

Board Installation: Align the KCD-912B with the guide rails in the control cabinet and slide it into place until fully seated. Secure the board with the provided retaining screws (torque to 0.8–1.2 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or terminal blocks. Ensure all communication ports (for inverter, door operator, call panel, and safety circuit) are easily accessible for wiring.
Wiring & Connection: Connect the wiring harnesses to the corresponding terminals on the KCD-912B, following Mitsubishi’s wiring schematic exactly. Key connections include: 24V DC power supply (positive +/negative –), inverter control signal cable, door operator communication cable, car/call panel signal wires, and safety circuit feedback cables. Use crimp terminals for stranded wires and torque terminal screws to 1.0–1.5 Nm to avoid loose connections or signal interference. Label all cables during removal of the old board to ensure accurate reinstallation.
Post-Installation Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and upload the backed-up parameters to the new KCD-912B via Mitsubishi’s diagnostic software (e.g., MELDAS). Conduct a full system calibration to synchronize the main board with subsystems:
1. Position Calibration: Run the elevator through all floors to verify accurate car positioning and floor height detection.
2. Function Test: Test call signal processing (hall/car calls), door opening/closing cycles, speed regulation, and safety circuit triggers (e.g., overload, emergency stop).
3. Emergency Response Test: Simulate a power outage or emergency stop to confirm the main board activates backup systems and safe evacuation protocols.

  Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

To preserve the KCD-912B’s performance and extend its lifespan, implement proactive maintenance practices tailored to the elevator’s “brain” component:

Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discoloration of PCB, burning odors, or hot components). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Parameter Backup: Use diagnostic software to back up the main board’s parameters to a secure location—prevents data loss in case of electrical interference or component degradation.
Monthly Communication Check: Verify seamless communication between the KCD-912B and subsystems (inverter, door operator, call panels) via the diagnostic software—address any communication errors immediately.
Quarterly Cleaning: Remove dust from the board’s surface and control cabinet using low-pressure compressed air—dust buildup traps heat and causes electrical interference. Avoid using liquid cleaners.
Semi-Annual Firmware Update: Check for Mitsubishi’s official firmware updates (via Nanjing Zhuye’s technical support) and install them if compatible—updates often include performance improvements and safety patches.

Recommended Replacement Cycle

The service life of the Mitsubishi KCD-912B Main Board depends on usage intensity (daily operating hours, call frequency), environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -5°C to +50°C), the KCD-912B should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of microprocessors and capacitors in high-demand control systems, ensuring proactive replacement before firmware obsolescence or component degradation leads to system failures.

2. Signs That Require Immediate Replacement

Replace the main board immediately if:

System Crashes: The elevator frequently shuts down, freezes, or fails to respond to calls—indicating microprocessor or firmware failure.
Communication Failures: Persistent errors in subsystem communication (e.g., “Inverter No Response,” “Door Operator Disconnected”) that cannot be resolved by wiring checks or parameter resets.
Physical Damage: Cracked PCB, water intrusion, or burned components—signaling irreparable internal damage.
Performance Degradation: Slow call response, inaccurate floor leveling (>±5mm), or erratic door operation—affecting user experience and safety.
Safety Compromise: The main board fails to trigger safety circuits (e.g., overload protection, emergency stop) or allows unsafe operation—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the control cabinet clean, dry, and well-ventilated. Maintain temperature between 10°C–40°C and humidity <80%—extreme conditions accelerate component aging.
Power Stabilization: Install external surge protectors and voltage regulators in the main power circuit to shield the board from grid spikes and fluctuations.
Firmware Management: Avoid unapproved firmware modifications—use only Mitsubishi’s official updates to prevent system instability.
Genuine Parts Only: Use exclusively authentic Mitsubishi KCD-912B main boards from Nanjing Zhuye. Counterfeit units use inferior components, lack Mitsubishi’s safety logic, and risk catastrophic elevator failure.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi KCD-912B?

When sourcing the “brain” of your Mitsubishi elevator, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ elevators and subsystems—eliminating compatibility risks.
Strict Quality Assurance: Each main board undergoes rigorous testing (microprocessor performance, communication stability, safety logic validation) to meet Mitsubishi’s original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, firmware updates, and troubleshooting—even for complex control systems.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities where system failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Mitsubishi Elevator Main Board KCD-912B is the backbone of elevator operation—coordinating every function to ensure safe, efficient, and reliable service. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Mitsubishi elevators downtime-free, compliant with global safety standards, and optimized for user experience. Whether you need a single replacement main board, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye delivers premium Mitsubishi components and tailored professional services. Invest in the reliability and safety of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your KCD-912B main board requirements.
