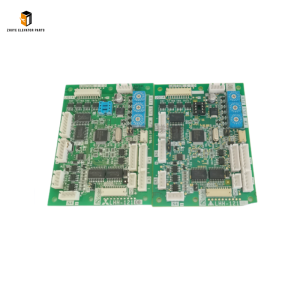

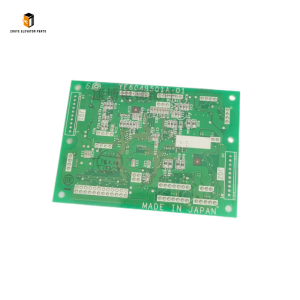

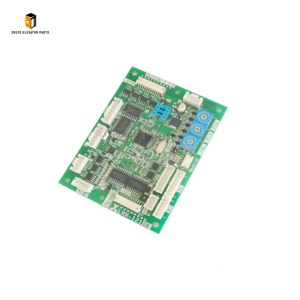

Mitsubishi Elevator Arrival Light Board LHH-1210B: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi LHH-1210B Arrival Light Board

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Remove the existing arrival light board from the landing panel (using precision screwdrivers to avoid damaging the wall or panel fascia). Disconnect the old board by labeling and removing power wires and communication cables—take detailed photos of the wiring configuration to ensure accurate reinstallation. Clean the recess with a dry cloth to remove dust or debris.
  • Align the new LHH-1210B with the mounting holes and secure it with the provided screws (torque to 0.3–0.5 Nm) to prevent vibration-induced damage. Ensure the board is flush with the panel fascia for a neat, passenger-friendly finish. Reconnect the power cables (typically 24V DC) and communication wires to the main controller, ensuring connectors are fully seated and locked—loose connections are the primary cause of flickering lights or unresponsive signaling.
• Configuration Setup:
  • Restore power to the landing circuit (performed by certified Mitsubishi technicians only) and access the configuration menu via Mitsubishi’s diagnostic software (e.g., MELDAS, GX Works) or the elevator’s main controller. Complete two critical steps:
    1. Floor Assignment: Program the board to recognize its designated floor number (e.g., 5th floor) to ensure accurate floor digit display and synchronized signaling with the elevator’s travel path.
    2. Signal Calibration: Adjust LED brightness (typically 30–100% adjustable) and chime volume (if integrated) to align with building accessibility requirements and passenger comfort.
• Functional Testing:
  • Conduct comprehensive tests to validate performance:
    • Direction Signal Test: Operate the elevator to the installed floor from above and below to confirm the up/down LEDs activate correctly and turn off once the elevator departs.
    • Visibility Test: Check LED brightness from various distances (1–5 meters) and angles to ensure clarity in both bright lobbies and dim corridors.
    • Sync Test: Verify the arrival light board triggers the landing chime (if applicable) simultaneously with LED activation—ensuring audio-visual consistency for passengers with visual or hearing impairments.
  • Document installation details, configuration settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and accessibility standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for flickering LEDs, dim lighting, or non-functional direction signals. Wipe the polycarbonate cover with a soft, lint-free cloth to remove fingerprints and dust—avoid abrasive cleaners that can scratch the surface.
• Monthly Functional Checks: Test the arrival light board by calling the elevator to the floor and confirming correct signaling. Adjust brightness if needed to compensate for seasonal lighting changes (e.g., brighter in direct sunlight).
• Quarterly Connection Inspections: Remove the landing panel (by authorized technicians) to inspect wiring and connectors for fraying, corrosion, or loose contacts. Retighten terminals as needed or replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Mitsubishi or Nanjing Zhuye) to enhance signal synchronization, fix software bugs, and support new accessibility features.
• Annual Performance Testing: Verify LED luminance, response time (≤0.5 seconds for signal activation), and communication reliability against Mitsubishi’s factory specifications. Replace any dim or failed LEDs with genuine Mitsubishi components to maintain consistency across all landings.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Signaling Failures: Non-functional LEDs (more than 1 per direction), incorrect direction activation (e.g., up light for a down-bound elevator), or failure to turn off after the elevator departs—confusing passengers and compromising safety.
• Communication Errors: Delayed signal activation (more than 1 second after elevator arrival), no chime trigger, or unsynchronized signaling with other landings—indicating a breakdown in communication with the main controller.
• Physical Damage: Cracked PCB, water intrusion (visible condensation behind the cover), or damaged connectors—compromising electrical safety and functionality.
• Performance Degradation: Persistently dim LEDs (50% or less brightness compared to adjacent floors), frequent flickering, or inconsistent chime activation—attributed to aging components or solder joint failure.
• Accessibility Compromise: Failure to meet visibility standards (LED brightness <200 cd/m²) or audio-visual sync issues—violating accessibility regulations (e.g., ADA, EN 81-70) and excluding passengers with disabilities.

3. Maintenance to Extend Service Life

• Environmental Protection: Ensure the landing panel is sealed properly to prevent dust and moisture intrusion. Avoid direct sunlight exposure by installing anti-glare covers if the panel is near windows—reducing LED degradation.
• Power Stabilization: Install surge protectors in the landing power circuit to shield the board from voltage spikes (common during building power fluctuations or lightning strikes).
• Gentle Handling: Train maintenance teams to handle the board carefully during inspections, avoiding pressure on the LED array or pulling on wiring—preventing solder joint damage.
• Genuine Parts Only: For replacements or LED repairs, use exclusively authentic Mitsubishi LHH-1210B boards and components from Nanjing Zhuye. Counterfeit boards use low-quality LEDs, lack surge protection, and risk mismatched signaling—compromising passenger safety and accessibility.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi LHH-1210B?

• Authenticity & Compatibility: All units meet Mitsubishi’s original manufacturing specifications, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
• Strict Quality Assurance: Each board undergoes rigorous testing (LED brightness, signal response time, durability) to guarantee reliable signaling and compliance with accessibility standards.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting (e.g., sync errors, dim LEDs).
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes downtime for landing signaling systems—critical for maintaining passenger trust and building accessibility.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or usability.
