Description

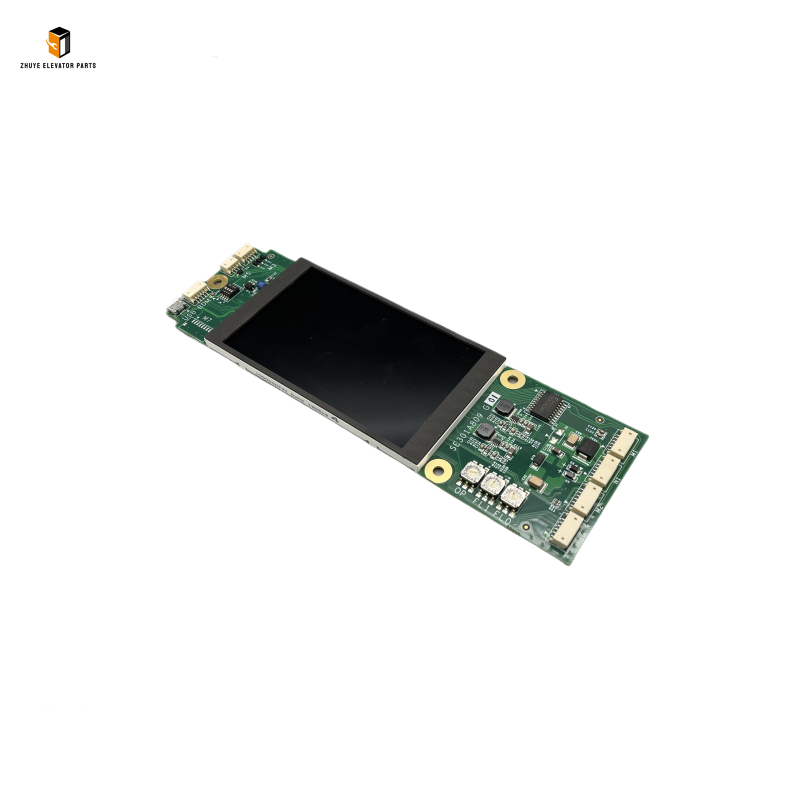

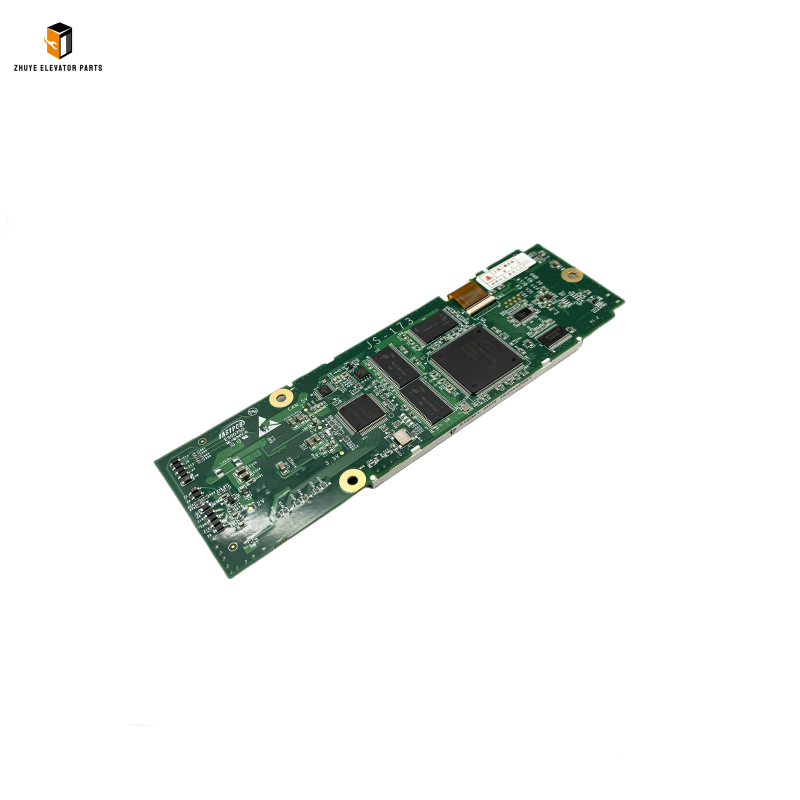

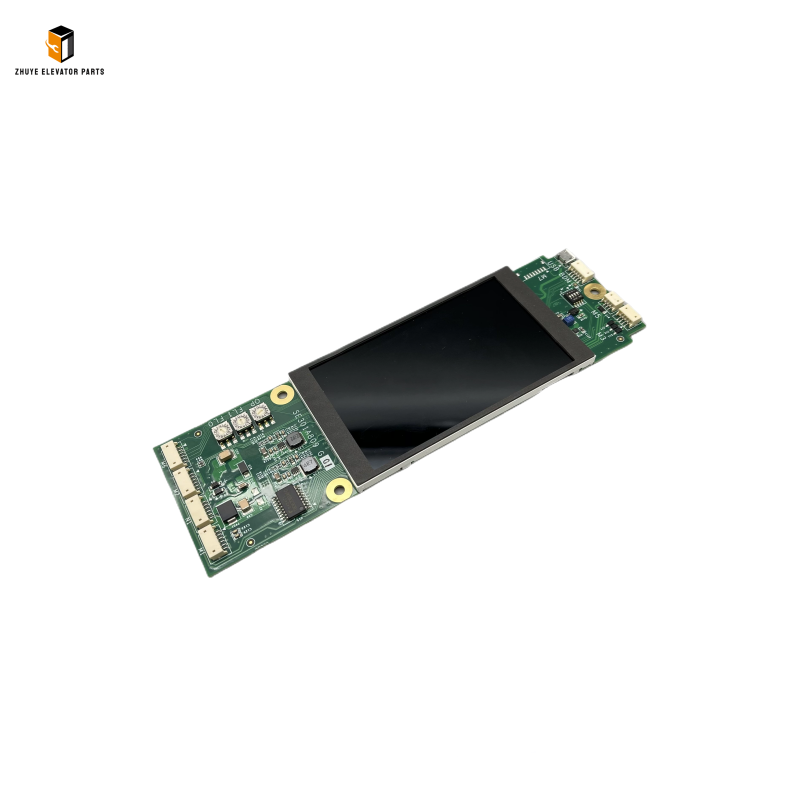

Mitsubishi elevator lop display board SE301A807G01 Introduction

Product Name	Mitsubishi elevator lop display board

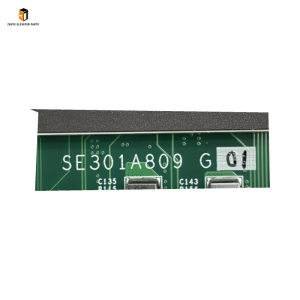

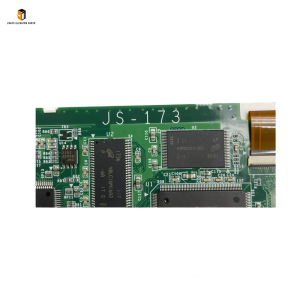

Model Number	SE301A807G01 SE301A809G01 SE301A809G03 JS-173
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator LOP Display Board SE301A807G01: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator LOP Display Board SE301A807G01 is a critical landing-side user interface component exclusively engineered for Mitsubishi elevator systems—including NexWay, ELENESSA, and MAXIEZ series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As a dedicated Landing Operation Panel (LOP) display, it serves as the primary information hub for waiting passengers, delivering clear real-time feedback: elevator car position, direction of travel, door status, overload alerts, and maintenance notifications. It integrates Mitsubishi’s proprietary high-brightness LED technology, anti-glare optics, and ruggedized design—upholding the brand’s strict standards for visibility (viewing angle ≥170°, brightness ≥450 cd/m²), responsiveness (display update latency ≤25ms), and durability in high-traffic public environments.

Compliant with global elevator safety and usability standards (EN 81-20/50, ISO 13407, UL 94, JIS A4300), the SE301A807G01 features an industrial-grade robust construction: a scratch-resistant tempered glass front panel, flame-retardant ABS housing (UL94 V0 rating), energy-efficient LED modules (power consumption ≤3W), and dust/water-resistant connectors (IP54 protection). This rugged design withstands the harsh conditions of elevator landings—temperature fluctuations (-15°C to +55°C), humidity (up to 90% non-condensing), mechanical vibration, and frequent passenger interaction—critical for preventing display failures, unreadable information, or passenger confusion that could compromise safety. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring user experience, regulatory compliance, and elevator operational efficiency. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the SE301A807G01 that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, clear visibility, and long-term reliability.

Proper Usage Methods of Mitsubishi SE301A807G01 Elevator LOP Display Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the landing panel/work area with warning signs and lockout-tagout (LOTO) devices. Position the elevator car at a safe floor (away from the installation landing) to prevent accidental movement. Inspect the new SE301A807G01 for physical damage—cracked glass panel, scratched display, loose connectors, bent pins, or damaged circuit board—defects that compromise functionality or user safety. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact LED modules, functional communication circuits, secure wiring harnesses, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the display board’s mounting dimensions (160x100x32mm) fit the landing panel cutout, (2) the communication protocol (Mitsubishi’s CANopen) is compatible with the main control board, and (3) the voltage requirement (24V DC) matches the landing panel’s power supply. Using an incompatible display board can result in mismatched floor numbers, unresponsive status updates, or communication errors. Additionally, prepare the installation area: Clean the landing panel cutout to remove dust and debris, disconnect the old board’s wiring harness (label cables by function/pin for easy reinstallation), and gather necessary tools (Phillips screwdriver, anti-static wristband, wire crimpers, multimeter).

2. Installation & Configuration Steps

Panel Preparation: Remove the old LOP display board by unscrewing the mounting brackets (2–4 screws) from the landing panel housing. Disconnect the wiring harness by pressing the locking tab—avoid pulling cables directly to prevent insulation damage. Inspect the internal wiring for fraying, corrosion, or loose connections—repair or replace with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Board Installation: Align the SE301A807G01 with the landing panel cutout, ensuring the glass panel faces outward and mounting holes align with the housing. Secure the board with corrosion-resistant screws (torque to 0.6–0.8 Nm) to prevent vibration-induced loosening—over-tightening can crack the glass panel or damage the circuit board. Connect the wiring harness to the board’s connector until it clicks into place, verifying correct pin alignment (refer to Mitsubishi’s wiring schematic to avoid reverse polarity).
Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and conduct functional tests:
1. Display Calibration: Verify floor numbers, direction arrows, and status LEDs (door open/close, overload, maintenance) illuminate clearly—adjust brightness via the main control board (range: 300–500 cd/m²) for optimal visibility in bright lobbies or dim corridors.
2. Communication Validation: Run the elevator through multiple floors to ensure the LOP display accurately tracks car position and direction—no mismatched information or “LOP Communication Error” alerts.
3. Function Test: Trigger status updates (e.g., overload simulation, maintenance mode) to confirm the display responds immediately and clearly—critical for passenger safety and awareness.

  Document installation details, calibration settings, and test results in maintenance records to demonstrate compliance.

3. Routine Usage Maintenance

To preserve the SE301A807G01’s performance and extend its lifespan, implement proactive maintenance practices tailored to landing-side display components:

Daily Visual Inspections: Check the display for dimness, dead LEDs, flickering, or unreadable text. Verify the glass panel is free of cracks, scratches, or debris that could obscure visibility.
Weekly Cleaning: Wipe the glass panel with a soft, lint-free cloth and mild detergent (avoid abrasive cleaners, solvents, or ammonia-based products) to remove fingerprints, dust, and smudges—maintain optimal visibility. For stubborn grime, use a glass cleaner designed for touchscreens (if applicable).
Monthly Wiring Check: Inspect the wiring harness connection (accessible via the landing panel’s access cover) for looseness, corrosion, or overheating (discolored wires)—re-seat the connector or clean contacts with a contact cleaner if needed.
Quarterly Function Test: Use the elevator’s diagnostic system to check for “LOP Display Fault” codes and verify all display functions (floor tracking, status alerts) operate correctly.
Semi-Annual Firmware Update: Install recommended firmware updates via Mitsubishi’s official portal—updates enhance display stability, resolve compatibility issues, and add safety-related features.

Recommended Replacement Cycle

The service life of the Mitsubishi SE301A807G01 Elevator LOP Display Board depends on usage intensity (daily passenger interaction, environmental exposure), and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (regular cleaning, moderate to high traffic, ambient temperature -15°C to +55°C), the SE301A807G01 should be replaced every 7–9 years. This timeframe aligns with the typical lifespan of LED modules (60,000–80,000 operating hours) and tempered glass panels, ensuring proactive replacement before visibility degrades or functionality is compromised.

2. Signs That Require Immediate Replacement

Replace the display board immediately if:

Display Failures: Dim, flickering, or non-functional LEDs that make floor numbers, directions, or alerts unreadable—compromises passenger safety by creating confusion about car position or wait times.
Communication Errors: The main control board displays recurring “LOP Communication Loss” codes—cannot be resolved by re-seating the wiring harness or firmware updates.
Physical Damage: Cracked glass panel, broken housing, or water intrusion into the circuit board—risks electrical shorts, further component damage, or passenger injury from sharp edges.
Functionality Loss: Status alerts (overload, maintenance, emergency) fail to display—violates EN 81-20/50 safety communication requirements and endangers passengers.
Visibility Compromises: Permanent scratches or discoloration on the glass panel that obscures display information—reduces user experience and may lead to passenger frustration or unsafe behavior.

3. Maintenance to Extend Service Life

User Care Promotion: Post gentle usage guidelines (e.g., “Do not tap or scratch the display panel”) to reduce physical damage from passengers. Install a protective bezel (if not factory-equipped) to shield the glass panel from impacts.
Environmental Control: Ensure the landing area is well-ventilated and protected from extreme moisture (e.g., rainwater from open doors)—extreme conditions accelerate LED degradation and circuit board corrosion.
Connector Protection: Apply dielectric grease to the wiring harness connector annually to prevent corrosion and ensure stable signal transmission.
Genuine Parts Only: Use exclusively authentic Mitsubishi SE301A807G01 boards from Nanjing Zhuye. Counterfeit units use low-quality LEDs, fragile glass, and lack compatibility with Mitsubishi control systems—risking passenger inconvenience, safety hazards, or costly system malfunctions.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi SE301A807G01?

When sourcing a critical landing-side user interface component like the Mitsubishi SE301A807G01, Nanjing Zhuye offers unmatched advantages for safety and user experience-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ systems—eliminating display mismatches, communication errors, or functionality gaps.
Strict Quality Assurance: Each board undergoes rigorous testing (display visibility, communication stability, panel durability, environmental resistance) to meet Mitsubishi’s original manufacturing and safety standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting—even for legacy Mitsubishi models.
Global Efficient Delivery: Fast shipping minimizes downtime, critical for facilities where LOP display failures disrupt passenger flow and elevator accessibility.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising display quality, user experience, or safety.

Conclusion

The Mitsubishi Elevator LOP Display Board SE301A807G01 is a foundational landing-side user interface component that bridges communication between waiting passengers and the elevator system—safeguarding usability, transparency, and regulatory compliance. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can extend the board’s lifespan, enhance passenger satisfaction, and reduce operational downtime. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for custom display configurations, Nanjing Zhuye delivers premium Mitsubishi parts and tailored professional services. Invest in elevator user experience and safety—choose Nanjing Zhuye for your SE301A807G01 elevator LOP display board needs.
