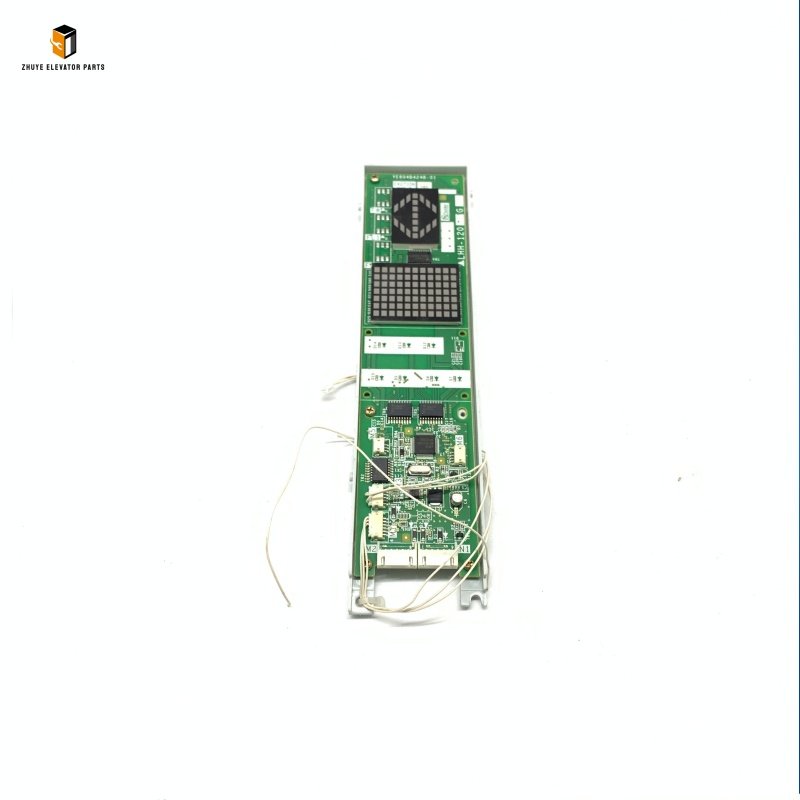

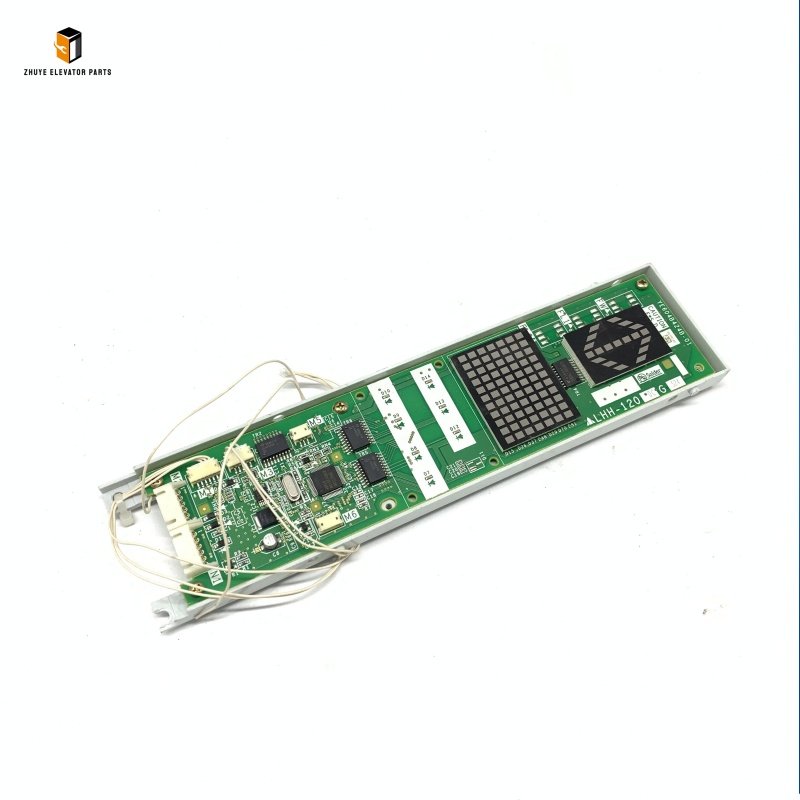

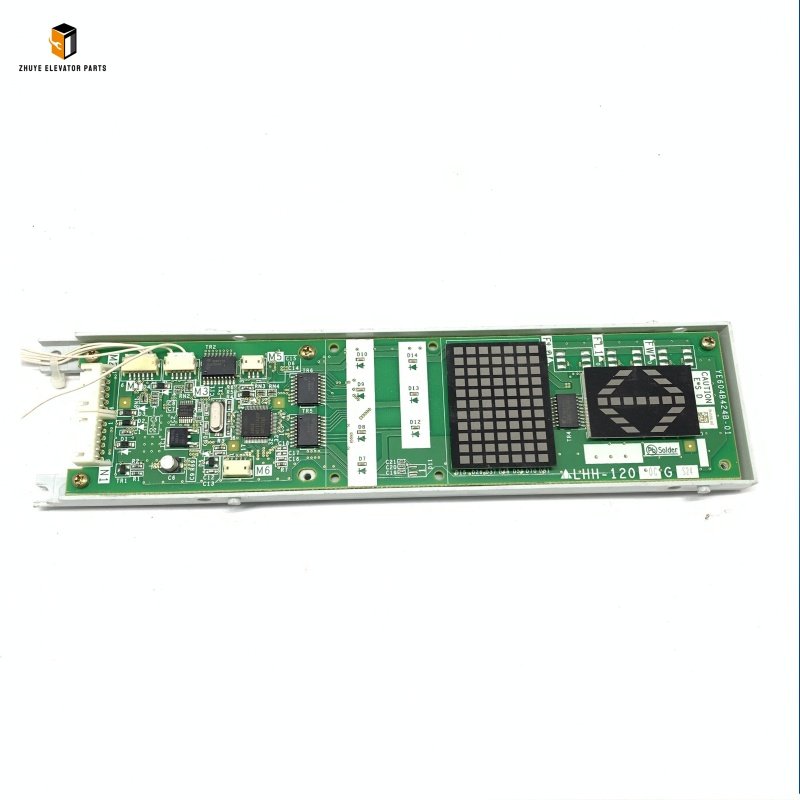

Mitsubishi elevator lop display board LHH-1200CGS24/EGS24 Brief Introduction

Product Name	Mitsubishi elevator lop display board
Model Number	LHH-1200CGS24 LHH-1200EGS24
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator LOP Display Board LHH-1200CGS24/EGS24: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator LOP Display Board LHH-1200CGS24/EGS24 is a mission-critical user interface component exclusively engineered for Mitsubishi elevator systems—including NexWay, ELENESSA, and MAXIEZ series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As the “visual command center” of elevator landing operations, this LOP (Landing Operation Panel) display board provides passengers with real-time status updates: floor numbers, elevator car position, directional indicators (up/down), door opening/closing status, and service alerts (e.g., “Out of Service,” “Fire Mode”). It integrates Mitsubishi’s proprietary high-visibility LED technology, anti-glare display, and intuitive button layout—upholding the brand’s strict standards for clarity, durability, and user-friendliness.

Compliant with global elevator safety and accessibility standards (EN 81-20, IEC 60529, ISO 9001), the LHH-1200CGS24/EGS24 series features a rugged, user-centric design: scratch-resistant acrylic front panel (resists daily wear), dustproof and moisture-resistant housing (IP54 rating), vibration-resistant mounting, and low-power LED backlighting (ensures visibility in bright or dim environments). This construction withstands 24/7 operation in elevator lobbies and landing areas, enduring temperature fluctuations (-10°C to +55°C), mechanical impact, and ambient light variations—critical for guiding passengers, reducing wait-time anxiety, and ensuring smooth elevator operation. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring user satisfaction, regulatory compliance, and operational efficiency. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the LHH-1200CGS24/EGS24 series that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, clear visual performance, and long-term reliability.

Proper Usage Methods of Mitsubishi LHH-1200CGS24/EGS24 LOP Display Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (elevator landing panel enclosure) with warning signs and lockout-tagout (LOTO) devices. Inspect the new LHH-1200CGS24/EGS24 for physical damage—cracked display panel, broken buttons, loose wiring terminals, or corroded circuit connections—defects that can cause display malfunctions or electrical hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact LED modules, functional control buttons, secure solder joints, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the display type (CGS24: color display, EGS24: monochrome display) matches the elevator’s user interface requirements, (2) the mounting dimensions (typically 180x120x40mm) fit the landing panel enclosure, and (3) the power supply (24V DC ±10%) and communication protocol are compatible with the elevator’s main control system. Using an incompatible LOP display board can result in non-functional buttons, unsynchronized status updates, or communication failures with the main control unit. Additionally, prepare the installation area: Clean the landing panel enclosure to remove dust and debris, disconnect the old board’s wiring (label power, signal, and button cables for easy reinstallation), and gather necessary tools (screwdriver set, wire strippers, multimeter).

2. Installation & Configuration Steps

Board Installation: Align the LHH-1200CGS24/EGS24 with the mounting brackets in the landing panel enclosure, ensuring the display faces outward for maximum visibility. Secure the board with the provided screws (torque to 0.6–0.9 Nm) to prevent vibration-induced movement—over-tightening can damage the display panel or PCB. Connect the enclosure’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference.
Wiring & Connection: Connect the power cables (24V DC ±10%) to the board’s positive (+) and negative (-) terminals, and the communication cable to the elevator’s main control board—following Mitsubishi’s wiring schematic exactly. Connect button interface cables to the corresponding terminals (e.g., up/down call buttons, alarm buttons) to ensure functional user input. Tighten terminal screws to 1.0–1.2 Nm to avoid loose connections or signal loss.
Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and configure the display board via Mitsubishi’s diagnostic software (e.g., MELDAS):
1. Display Calibration: Verify floor number alignment, directional indicator functionality, and backlight brightness (adjust to 300–500 cd/m² for optimal visibility).
2. Button Function Test: Press each call button to confirm registration (visual feedback on the display) and communication with the main control system.
3. Status Update Test: Operate the elevator through multiple floors to ensure real-time synchronization of car position, door status, and service alerts.

  Document configuration settings, installation details, and test results in maintenance records to track performance and compliance.

3. Routine Usage Maintenance

To preserve the LHH-1200CGS24/EGS24’s functionality and extend its lifespan, implement proactive maintenance practices tailored to user interface components:

Daily Visual Inspections: Check the display board for loose wiring, physical damage, or display issues (flickering, dead LEDs, faded text). Verify all buttons are responsive and provide visual feedback when pressed.
Weekly Cleaning: Wipe the acrylic front panel with a soft, lint-free cloth and mild cleaner to remove fingerprints, dust, and smudges—avoids scratching the surface and maintains display clarity.
Monthly Function Test: Test all call buttons and display functions (directional indicators, door status, service alerts) to ensure full functionality. Confirm backlight brightness remains consistent.
Quarterly Wiring Check: Inspect power, communication, and button cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Semi-Annual Display Calibration: Use diagnostic software to verify display synchronization with the main control system. Adjust backlight brightness if environmental conditions (e.g., new lighting in the lobby) affect visibility.

Recommended Replacement Cycle

The service life of the Mitsubishi LHH-1200CGS24/EGS24 LOP Display Board depends on usage intensity (daily button presses, environmental conditions), and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular cleaning, ambient temperature -10°C to +55°C), the LHH-1200CGS24/EGS24 should be replaced every 6–8 years. This timeframe aligns with the typical lifespan of LED modules and button switches in elevator LOP boards, ensuring proactive replacement before display clarity degrades or buttons fail.

2. Signs That Require Immediate Replacement

Replace the LOP display board immediately if:

Display Malfunctions: LEDs flicker, burn out, or display incorrect floor numbers; text is faded or unreadable; or status updates are delayed/unsynchronized—confuses passengers and disrupts operation.
Button Failure: Buttons are unresponsive, stuck, or do not provide visual feedback; repeated presses are required to register a call—impairs user experience and elevator efficiency.
Physical Damage: Cracked acrylic panel, broken buttons, or exposed internal components—poses safety hazards and reduces durability.
Communication Errors: The main control board displays “LOP Communication Loss” or similar faults that cannot be resolved by wiring checks or reconfiguration.
Regulatory Non-Compliance: Fails safety or accessibility inspections due to non-functional display or buttons—violates EN 81-20 or local accessibility regulations.

3. Maintenance to Extend Service Life

Environmental Control: Protect the display board from extreme temperatures, moisture, or direct sunlight—install protective covers for outdoor-facing landing panels. Avoid exposing the unit to harsh cleaning chemicals or abrasive materials.
Power Stabilization: Ensure the elevator’s electrical system is equipped with surge protectors—prevents voltage spikes from damaging LED modules or control circuits.
Button Care: Avoid excessive force when pressing buttons—reduces wear on switch mechanisms. Promptly clean spills to prevent liquid damage.
Genuine Parts Only: Use exclusively authentic Mitsubishi LHH-1200CGS24/EGS24 display boards from Nanjing Zhuye. Counterfeit units use low-quality LEDs, lack compatibility with Mitsubishi control systems, and fail to meet safety standards.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi LHH-1200CGS24/EGS24?

When sourcing a critical user interface component like the Mitsubishi LOP display board, Nanjing Zhuye offers unmatched advantages for user-centric professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ elevator systems—eliminating display synchronization or button functionality issues.
Strict Quality Assurance: Each board undergoes rigorous testing (display clarity, button responsiveness, durability) to meet Mitsubishi’s original manufacturing and safety standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, troubleshooting, and compatibility verification—even for legacy Mitsubishi models.
Global Efficient Delivery: Fast shipping minimizes downtime, critical for maintaining user experience and operational efficiency in residential, commercial, and public facilities.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising display quality or functionality.

Conclusion

The Mitsubishi Elevator LOP Display Board LHH-1200CGS24/EGS24 is a foundational user interface component that guides passengers, enhances operational efficiency, and ensures regulatory compliance. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can maintain clear visual communication, optimize user experience, and support smooth elevator operation. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for maintenance teams, Nanjing Zhuye delivers premium Mitsubishi components and tailored professional services. Invest in elevator user experience and reliability—choose Nanjing Zhuye Elevator Parts for your LHH-1200CGS24/EGS24 LOP display board requirements.
