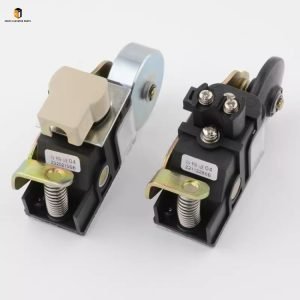

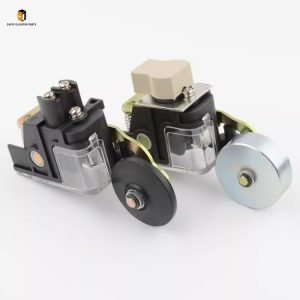

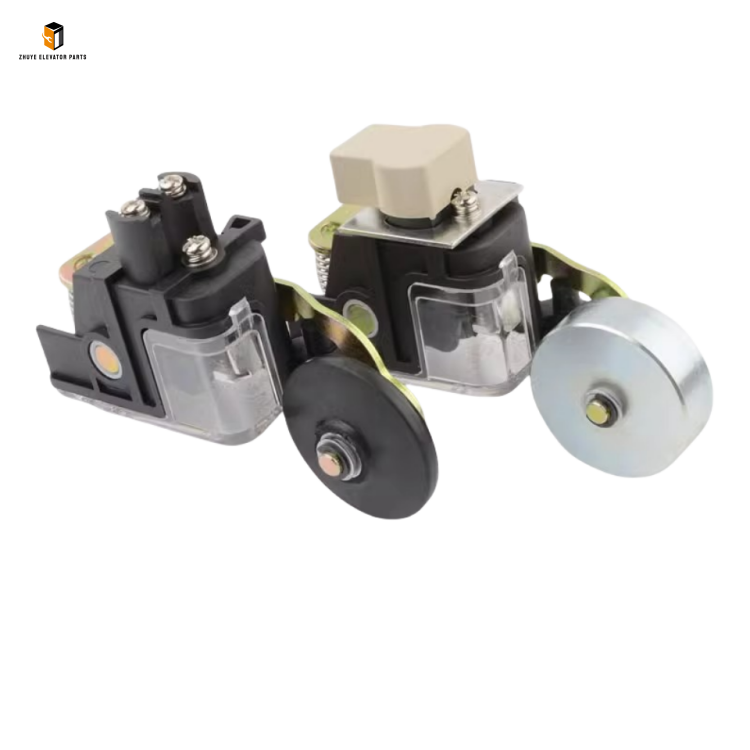

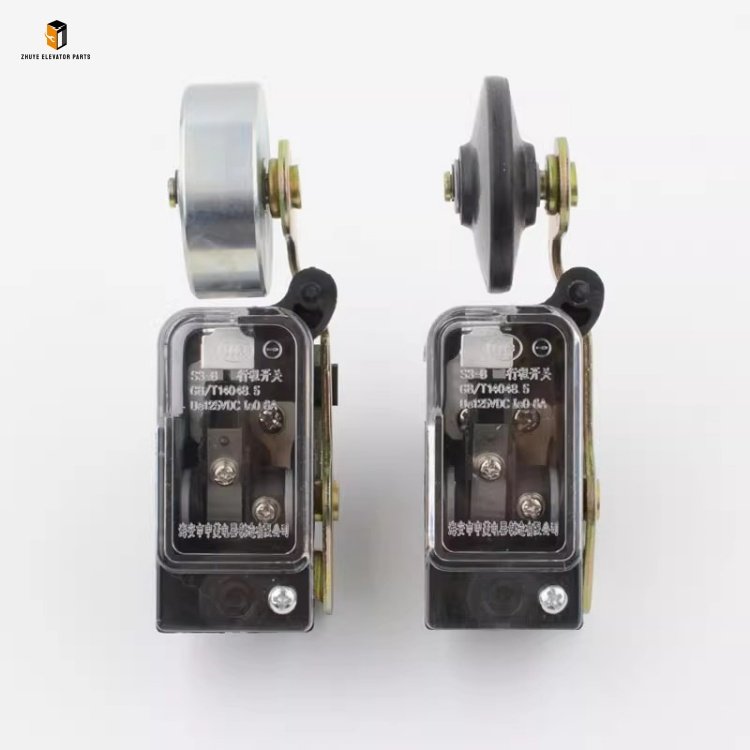

Mitsubishi Elevator Limit Switch S3-B: Safety Protection Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Mitsubishi Elevator Limit Switch S3-B

1. Professional Installation & Calibration

• Safety Preparation: Cut off the elevator’s main power supply and fix the elevator car to a safe position (middle floor) using a safety clamp. Locate the upper and lower limit switch mounting positions in the shaft (usually on the guide rail or shaft frame, corresponding to the collision block on the car). Clean the installation area to remove dust, oil stains, and debris that may affect trigger accuracy.
• Switch Installation: Fix the S3-B limit switch to the dedicated mounting bracket using genuine high-strength bolts provided by Nanjing Zhuye Elevatorparts. Adjust the switch’s position and angle to ensure the collision block on the car can accurately touch the switch’s trigger lever when reaching the limit position. Connect the switch’s signal terminal to Mitsubishi elevator’s main control system according to the original wiring diagram, ensuring correct polarity and tight connections (loose wiring may cause delayed or failed signal transmission).
• Trigger Position Calibration: After wiring, restore the power supply and switch the elevator to inspection mode. Operate the car to slowly move up to the upper limit position—verify that the S3-B switch is triggered accurately and the elevator stops immediately without overtravel. Repeat the operation for the lower limit position. Use a ruler to confirm the trigger position error is ≤ 5mm (consistent with Mitsubishi’s original factory standards). If the trigger position is inaccurate, adjust the switch’s mounting position until it meets the requirement.
• Post-Installation Testing: Conduct comprehensive functional tests under inspection mode. Continuously trigger the upper and lower limit switches 5–10 times to ensure stable trigger performance (no false triggers or failure to trigger). Simulate shaft vibration by tapping the switch lightly to verify anti-interference ability. If there is inaccurate trigger, unstable signal, or no emergency stop response, recheck the installation and wiring immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During shaft patrols, check the external condition of the S3-B limit switch. Ensure the zinc alloy shell is free of cracks, deformation, or severe corrosion; the trigger lever is intact with no bending or wear; the wiring terminals are tight without looseness, oxidation, or burning marks; the collision block on the car is free of deformation (which may affect trigger accuracy).
• Weekly Functional Check: Operate the elevator to the upper and lower limit positions in inspection mode to verify the switch’s trigger reliability and the elevator’s emergency stop response. Use a multimeter to detect the switch’s contact resistance (should be ≤ 10mΩ when closed) and open-circuit voltage (consistent with the control system’s rated voltage). Record the test data for future comparison.
• Monthly Parameter Monitoring: Turn off the power supply and clean the switch’s shell, trigger lever, and wiring terminals with a dry, lint-free cloth to remove dust and debris. Apply a small amount of special lubricant (recommended by Nanjing Zhuye Elevatorparts, compatible with Mitsubishi components) to the trigger lever’s rotating shaft to ensure flexible operation. Check the tightness of the mounting bolts to prevent loosening due to shaft vibration.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply, remove the switch from the mounting bracket, and thoroughly clean the shell, internal contacts, and trigger mechanism with a professional electrical cleaner. Inspect the mechanical contacts for wear (replace the switch if the wear depth exceeds 0.3mm) and the trigger lever for elasticity (ensure it resets quickly after triggering). Reinstall the switch and reconfirm the trigger position and signal transmission stability.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including trigger accuracy, contact stability, and environmental adaptability. Use a professional signal tester to simulate the switch’s output signal and verify compatibility with Mitsubishi’s main control system. For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, heavy dust), increase the test frequency to once every 3 months.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team (familiar with Mitsubishi elevator systems). Replace aging or worn switches with genuine S3-B limit switches. Inspect the mounting bracket and collision block for wear or deformation and replace them with genuine Mitsubishi parts if necessary. Recalibrate the trigger position to meet Mitsubishi’s original factory standards.

Recommended Replacement Cycle for Mitsubishi Elevator Limit Switch S3-B

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For Mitsubishi elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or shafts with strong vibration (near construction areas), the replacement cycle should be shortened to 2–3 years. Harsh conditions accelerate the corrosion of the shell, wear of mechanical contacts, and aging of internal components, significantly reducing the switch’s reliability.
• Low-Frequency Use Scenarios: For Mitsubishi elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and clean, stable shaft environments, the replacement cycle can be extended to 4–5 years—only if Nanjing Zhuye’s professional inspection confirms the switch’s trigger accuracy, contact stability, and component integrity are intact (consistent with Mitsubishi’s performance requirements).

3. Immediate Replacement Conditions

• The switch’s trigger position error exceeds 10mm, and the error cannot be corrected through calibration, posing a risk of elevator overtravel.
• The switch has frequent false triggers (elevator stops unexpectedly) or failure to trigger (no emergency stop when reaching limit position), confirmed by multiple tests.
• The mechanical contacts are severely worn, burned, or stuck; the trigger lever is bent or broken, resulting in inability to trigger normally.
• The switch’s shell is severely cracked, deformed, or corroded, and internal components are damaged (with obvious burning marks or odor), making maintenance ineffective.
