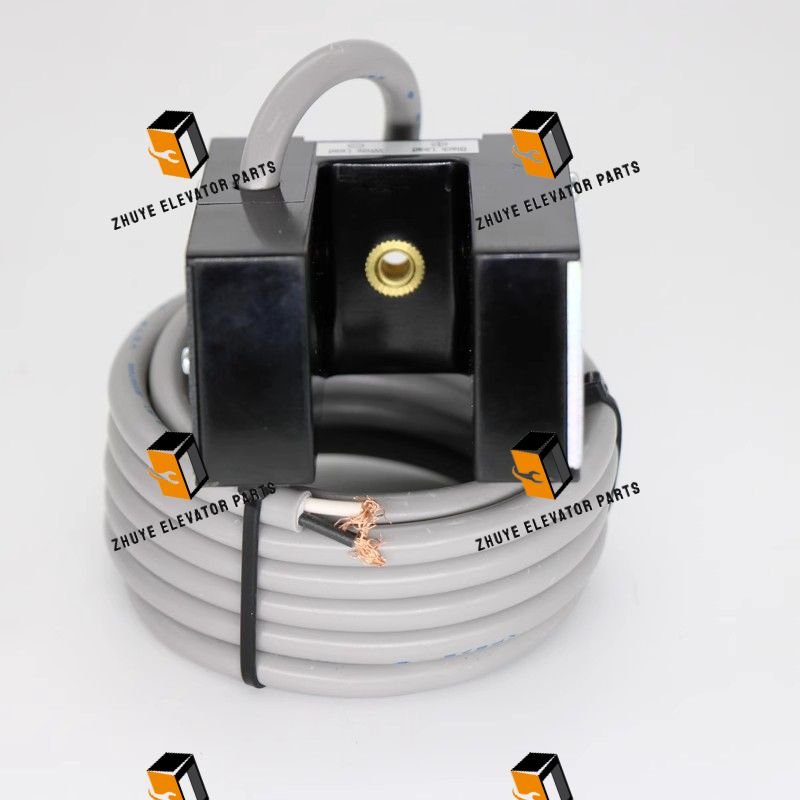

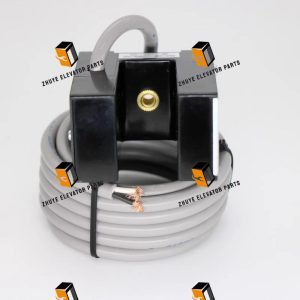

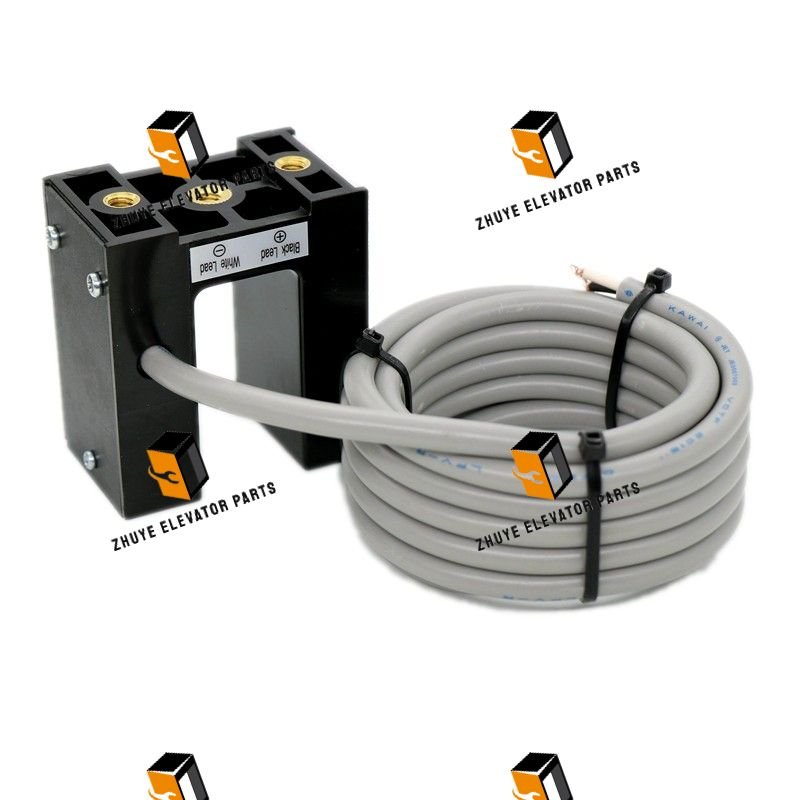

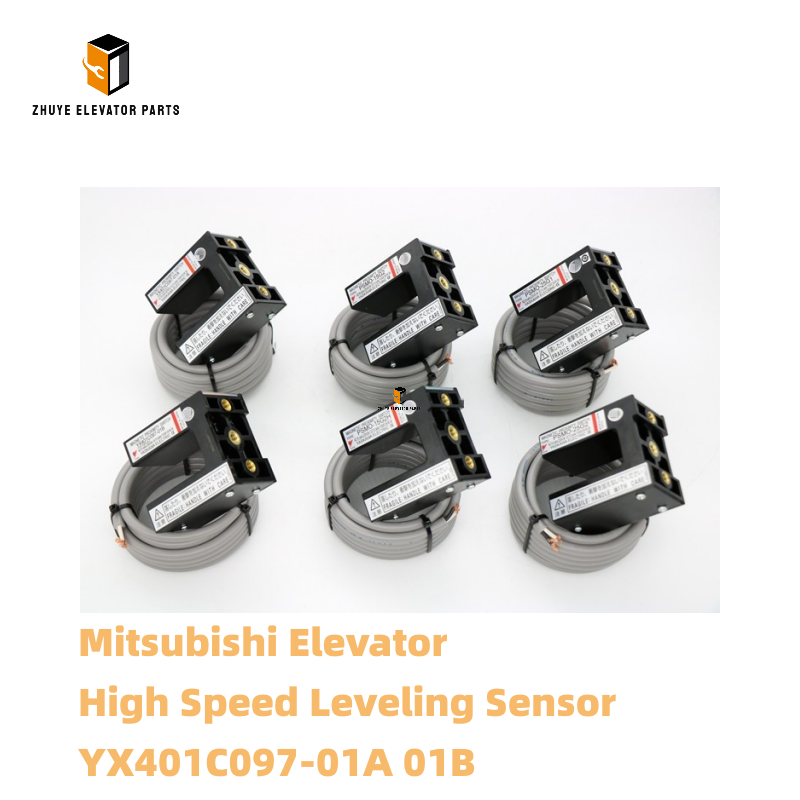

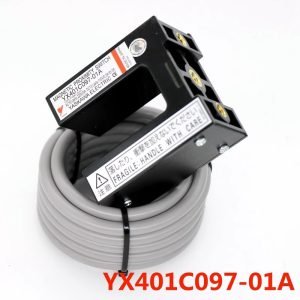

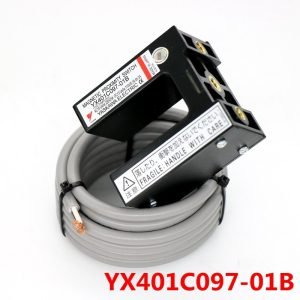

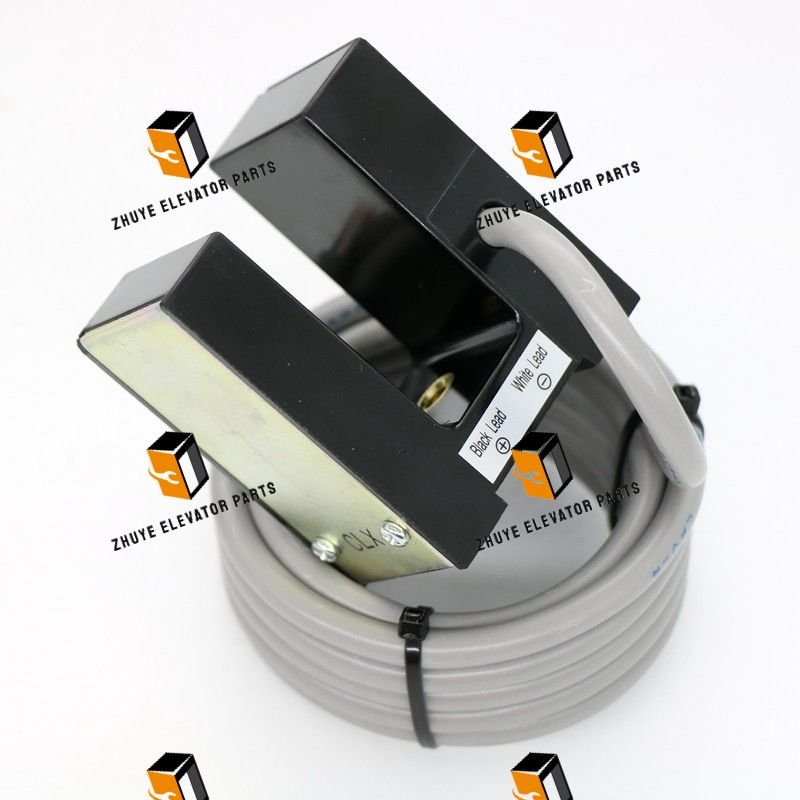

Mitsubishi Elevator High-Speed Leveling Sensor YX401C097-01A 01B Brief introduction
| Mitsubishi Elevator High-Speed Leveling Sensor | |
| Brand | Original |
| Model | YX401C097-01A 01B |
| Goods No. | PE2401 |
| MOQ | 1 |
| Warranty Time | 1 year |
| Certificates | ISO9001 |
| Brand | Mitsubishi |
Mitsubishi Elevator Leveling Sensor YX401C097-01A – The ±1 mm Precision Eye That Guarantees Perfect Landings
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Passengers judge an elevator by how level the car stops. The YX401C097-01A leveling sensor is Mitsubishi’s ±1 mm precision eye, originally designed for NPX, NEX and GVF-L systems. This 24 VDC, 4–20 mA inductive probe continuously measures car-to-landing distance and feeds real-time corrections to the VVVF drive, eliminating the need for mechanical cams or magnets. Nanjing Zhuye Elevator Parts keeps factory-calibrated YX401C097-01A units in anti-static stock for next-day despatch. Below we explain what the sensor does, how to install it in under ten minutes, and the replacement cycle that prevents expensive “out of level” call-backs.
1. What YX401C097-01A Really Is
-
Principle: high-frequency inductive, 2 mm sensing face, non-contact
-
Range: 0–20 mm, linear 4–20 mA, 12-bit resolution (±1 mm)
-
Supply: 24 VDC ±10 %, ripple <200 mV, 20 mA consumption
-
Output: 4–20 mA loop, 500 Ω max load, short-circuit protected
-
Body: M18 × 1 mm stainless, IP67, -25 °C to +70 °C
-
Cable: 3 m PVC, oil-resistant, 4-way M12 plug, gold-plated pins
-
Approvals: CE, RoHS, REACH, UL file E501843
If the signal drifts >±2 mm, the controller logs “Level Deviation” and re-levels before opening doors.
2. Where It Is Used
-
Mitsubishi NPX, NEX, GVF-L passenger elevators 1.0–2.5 m s⁻¹
-
Machine-room-less (MRL) or machine-room (MR) installations
-
New build or modernisation — one part number fits all guide rails 16–19 mm
-
Suitable for indoor shopping malls, outdoor scenic lifts, coastal high-rise
3. Installation – 10-Minute Plug-and-Play
Safety: place lift on inspection, lock main breaker, tag out, prop car to floor level.
-
Remove old sensor — unscrew M18 × 1; unplug 4-way M12.
-
Clean mounting face — remove rust, paint, oil; check gap 2–3 mm to rail web.
-
Hand-tighten YX401C097-01A until face touches rail, back off ½ turn (gap ≈1 mm).
-
Connect M12 plug — brown +24 V, blue 0 V, white 4–20 mA, black shield.
-
Power on — green LED steady; multimeter reads 12 mA ±0.5 mA at floor level.
-
Run one full trip — verify 4 mA at bottom, 20 mA at top, 12 mA at every landing.
No laptop is required; zero and span are pre-calibrated at the factory.
4. Daily Operation – What the Sensor Actually Does
-
Samples gap every 1 ms; averaged over 10 ms to eliminate vibration noise
-
Auto-compensates for temperature; built-in 20 °C reference
-
Built-in self-test every 24 h — if output <3.8 mA or >20.2 mA, “Level Sensor Fault” is logged
-
IP67 stainless body resists pressure washing and coastal salt spray
-
Consumes 20 mA — meets EN 81-20 standby power limits
5. Replacement Cycle & Preventive Maintenance
-
High-speed office (>1,000 starts day⁻¹) – inspect every 6 months, replace sensor every 5 years
-
Residential tower (300–600 starts day⁻¹) – inspect annually, replace every 8 years
-
Low-rise freight (≤200 starts day⁻¹) – inspect every 18 months, replace every 10 years
Replace immediately if:
-
Zero drift >±1 mm after re-teach
-
Output ripple >50 µA (oscilloscope test)
-
Cable insulation cracked or oil-soaked
-
LED off with 24 V present
-
Housing temperature >85 °C with normal ambient
6. Extending Life – 3 Pro Tips
-
Keep gap 1–2 mm; smaller gap causes saturation, larger gap reduces resolution
-
Wipe sensor face monthly; brake-dust paste absorbs HF signal
-
Torque M18 to 25 N·m; over-tightening crushes the O-ring
7. Why Buy YX401C097-01A from Nanjing Zhuye Elevator Parts?
-
Factory-new, not refurbished; passes 10,000-cycle linearity test at 60 °C
-
Pre-calibrated; matches Mitsubishi original zero/span, no re-teach required
-
Anti-static foam box + silica gel — safe for air freight
-
Dual stock: 420 pcs Nanjing, 150 pcs Dubai — next-day delivery to 65 countries
-
Bundle kit: sensor + 3 m M12 cable + 22 mm lock-nut — 5 % discount
-
24 months warranty against drift or leakage
-
7×24 WhatsApp/WeChat video support; average response 10 minutes
Conclusion
The YX401C097-01A leveling sensor is the invisible eye that guarantees perfectly flat landings. A single millimetre of drift can trigger re-levels, callbacks and one-star reviews. Stock a spare from Nanjing Zhuye on every service truck, swap it on schedule, and replace “out of level” panic with a five-minute planned fix — one perfectly flat entrance at a time.
