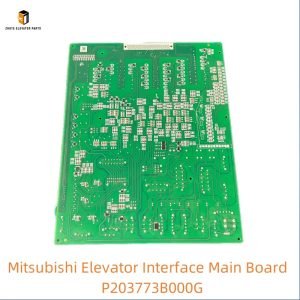

Mitsubishi Elevator Interface Main Board P203773B000G: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi Elevator Interface Main Board P203773B000G

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the Mitsubishi elevator control cabinet and locate the designated slot for the interface main board. Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, signal, and communication cables—label all cables clearly to ensure correct reconnection. Clean the mounting slot and backplane connector to remove dust or debris that could interfere with electrical contact.
  • Align the P203773B000G with the cabinet’s guide rails and backplane connector. Insert the board firmly until it locks into place, ensuring proper seating to establish reliable electrical connections. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables to the corresponding terminals: power wires to the 24V DC input, sensor/signaling wires to the I/O ports, and communication cables to the main controller and subsystems.
• Configuration Setup:
  • Power on the control cabinet and confirm the P203773B000G initializes correctly (status LED illuminates green, and the Mitsubishi system displays “Board Initialized”). Access the configuration menu via Mitsubishi-approved diagnostic software (e.g., MELDAS, GX Works) by certified technicians:
    • Parameter Restoration: If replacing an existing board, restore Mitsubishi-specific parameters (e.g., subsystem addresses, communication baud rates, safety interlock settings) from a backup (saved from the old board) to maintain operational consistency. Alternatively, load default parameters for your Mitsubishi model (provided by Nanjing Zhuye or Mitsubishi).
    • Protocol Configuration: Select and configure the appropriate communication protocols to match connected subsystems (e.g., CAN bus for main controller, RS485 for BMS integration) ensuring alignment with Mitsubishi’s system specifications.
    • Functionality Validation: Run a communication test to verify data exchange between the interface board and all connected subsystems (door operators, safety sensors, display panels)—confirm signals are transmitted and received without delay.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Communication Integrity Test: Trigger subsystem actions (e.g., open/close doors, activate emergency stop) and verify the board transmits commands accurately and receives status feedback in real time (≤10ms delay), adhering to Mitsubishi’s response time standards.
    • Fault Simulation Test: Simulate subsystem disconnections or signal interference to confirm the board logs errors correctly and activates fail-safe modes (e.g., elevator stop, alarm) as required by Mitsubishi’s safety protocols.
    • BMS Integration Test: If connected to a building management system, verify the board transmits elevator status data (operation mode, fault codes, energy consumption) to the BMS and responds to remote commands (e.g., maintenance mode activation).
  • Document test results in maintenance records to demonstrate compliance with Mitsubishi’s safety and performance standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged terminal blocks. Remove dust with compressed air—avoid water or chemical cleaning agents that can damage components or corrode gold-plated connectors.
• Monthly Diagnostic Scans: Use Mitsubishi diagnostic software to monitor data transmission rates, error logs, and subsystem connectivity. Address minor issues (e.g., intermittent connections) promptly to prevent major communication failures.
• Quarterly Cable Inspections: Inspect power, signal, and communication cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye—poor cable quality is a leading cause of communication errors in Mitsubishi systems.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Mitsubishi or Nanjing Zhuye) to enhance protocol compatibility, fix software bugs, and improve data transmission stability for Mitsubishi-specific features.
• Annual Backplane & Connector Checks: Inspect the control cabinet’s backplane connector for corrosion, wear, or bent pins—clean or replace the connector if necessary to ensure reliable electrical contact with the interface board.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Communication Failures: Persistent subsystem disconnections, delayed data transmission, or inability to send/receive commands—despite cable checks and configuration resets, indicating Mitsubishi-specific protocol mismatches or hardware failure.
• Error Log Anomalies: Frequent, unresolvable communication error codes (e.g., “Subsystem Timeout,” “Data Corruption”) that appear after firmware updates and troubleshooting, specific to Mitsubishi’s error coding system.
• Physical Damage: Cracked circuit board, burned components, water intrusion, or irreparable terminal block damage—compromising electrical safety and communication reliability.
• Performance Degradation: Significant increases in data transmission latency (≥50ms), or intermittent system crashes linked to the interface board in Mitsubishi elevators.
• Compatibility Issues: Inability to integrate with Mitsubishi system upgrades (e.g., new BMS protocols, enhanced safety sensors) due to outdated hardware or firmware.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes or sags—common causes of circuit board and capacitor damage in Mitsubishi systems.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Avoid exposure to dust, water, or extreme temperatures that can degrade Mitsubishi’s precision components.
• Protect Cables & Connectors: Route communication cables away from high-voltage power lines (minimum distance of 30cm) to avoid electromagnetic interference. Use cable management tools to prevent bending or stretching of cables connected to the board.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Mitsubishi components from Nanjing Zhuye. Counterfeit boards lack Mitsubishi’s quality control, firmware compatibility, and communication protocol validation—compromising system performance and safety in Mitsubishi elevators.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Mitsubishi Compatibility: All P203773B000G boards are manufactured to Mitsubishi’s original specifications, ensuring seamless integration with Mitsubishi elevator systems and compliance with global safety/electronic standards.
• Strict Mitsubishi-Specific Quality Assurance: Each unit undergoes rigorous testing—including communication protocol validation (Mitsubishi CAN bus, RS485), data transmission speed, error rate measurement, and thermal resistance—to guarantee reliable performance in critical communication scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in Mitsubishi elevator systems, providing 24/7 assistance for installation, configuration, and troubleshooting board-specific issues (e.g., Mitsubishi error codes, firmware updates).
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers interface boards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on Mitsubishi’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant Mitsubishi elevator components.
