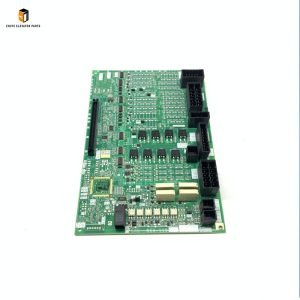

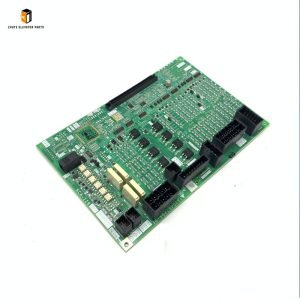

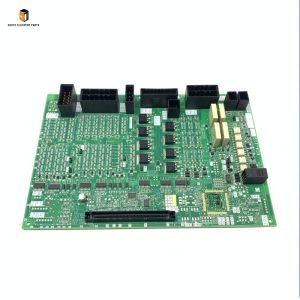

Mitsubishi elevator interface board KCA-1190B/1190A Introduction

Product Name	Mitsubishi elevator interface board
Model Number	KCA-1190B KCA-1190A
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Interface Board KCA-1190B/1190A: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Interface Board KCA-1190B/1190A stands as a critical communication backbone exclusively engineered for Mitsubishi’s renowned elevator systems—including NexWay Standard, ELENESSA Eco, and MAXIEZ Mid-Rise series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As the “central information bridge” of the elevator control architecture, this dual-variant board (KCA-1190A for basic subsystem configurations, KCA-1190B for expanded I/O and advanced functionality) enables real-time, error-free data transmission between the main control unit, key subsystems (door operators, floor call panels, landing indicators, safety interlocks), and auxiliary devices. It integrates Mitsubishi’s proprietary communication protocols, redundant signal paths, and high-precision I/O interfaces—upholding the brand’s uncompromising standards for signal stability, response speed (≤10ms latency), and operational safety.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61158, UL 1012, ISO 9001), the KCA-1190B/1190A series features an industrial-grade, durable design: a multi-layer PCB with conformal coating (resisting dust, moisture, and electromagnetic interference), flame-retardant ABS housing (UL94 V0 rating), gold-plated I/O terminals (ensuring corrosion-resistant, long-lasting connections), and built-in surge protection for signal lines (withstanding ±2kV transients). This robust construction enables reliable 24/7 operation in machine room environments, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration (up to 3g), and electrical grid noise—critical for preventing communication breakdowns, subsystem misalignment, or unexpected elevator shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and consistent elevator performance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the KCA-1190B/1190A series that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable data transmission, and long-term reliability.

Proper Usage Methods of Mitsubishi KCA-1190B/1190A Interface Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, implementing lockout-tagout (LOTO) procedures, and securing the work area (machine room control cabinet) with warning signs. Inspect the new KCA-1190B/1190A for physical damage—cracked PCB traces, bent terminals, loose connectors, burned resistors, or swollen capacitors—defects that can cause communication errors, short circuits, or subsystem failures. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact communication chips (e.g., Mitsubishi’s proprietary CAN controller), functional I/O ports, secure solder joints, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board variant (KCA-1190A: 16 digital I/O ports for standard subsystems; KCA-1190B: 24 I/O ports with analog input support for advanced configurations) matches the elevator’s subsystem count and functionality requirements, (2) the mounting dimensions (180x140x60mm) fit the control cabinet’s dedicated slot, and (3) the communication protocol (Mitsubishi’s CANopen/Modbus RTU) is compatible with the main control board (e.g., KCD-602A, KCE-901B). Using an incompatible interface board can result in failed subsystem communication, incorrect signal translation, or total control system misalignment. Additionally, prepare the installation area: Clean the control cabinet to remove dust and debris, ensure a minimum 10cm clearance around the board for ventilation, and document the wiring layout of the old board (or reference Mitsubishi’s wiring schematic) to avoid connection errors—labeling cables with their corresponding terminals simplifies reinstallation.

2. Installation & Configuration Steps

Board Installation: Align the KCA-1190B/1190A with the mounting brackets in the control cabinet, ensuring the I/O terminals face outward for easy wiring access. Secure the board with corrosion-resistant Phillips screws (torque to 1.0–1.2 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or terminal solder joints. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference and ensure electrical safety.
Wiring & Connection: Follow Mitsubishi’s wiring schematic to connect signal cables. Attach subsystem cables (door operator, floor call panel, landing indicator, safety interlock) to the corresponding I/O terminals, ensuring correct polarity and terminal matching (e.g., “DO1” for door open signal, “CI2” for call input 2). Connect the CAN/LIN communication cable to the main control board, and secure all connections with terminal screws (torque to 0.8–1.0 Nm) to avoid loose contacts. Use shielded twisted-pair cables for signal transmission to minimize electromagnetic interference, and route cables away from high-voltage power lines (e.g., 380V AC motor cables) by at least 15cm.
Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and configure the board via Mitsubishi’s diagnostic software (e.g., MELDAS Elevator Tool):
1. Communication Test: Verify bidirectional data transmission between the interface board and each subsystem—no “communication loss” or “signal timeout” faults indicate stable signal flow.
2. I/O Port Calibration: Activate each I/O port to confirm proper signal input/output (e.g., trigger a 3rd-floor call from the landing panel, verify the board transmits a door-open command to the door operator).
3. Safety Circuit Validation: Simulate critical safety signals (e.g., emergency stop, door interlock breach) to ensure the interface board transmits alerts to the main control unit within 10ms—confirming compliance with EN 81-50 safety response standards.

  Document installation details, wiring checks, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.

3. Routine Usage Maintenance

To preserve the KCA-1190B/1190A’s performance and extend its lifespan, implement proactive maintenance practices tailored to communication interface components:

Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discolored components, burning odors, or melted insulation). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Communication Diagnostics: Use the elevator’s built-in diagnostic system to monitor signal transmission quality—no dropped packets, delayed responses, or parity errors indicate normal operation.
Monthly Cleaning: Remove dust from the board and control cabinet using low-pressure compressed air (blow in the direction of PCB traces) to prevent short circuits or overheating. Avoid liquid cleaners, abrasive tools, or static discharge (use an anti-static wristband if handling the board).
Quarterly Wiring Inspection: Inspect signal cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Semi-Annual Firmware Update: Check for firmware updates via Mitsubishi’s official portal and install if recommended—updates enhance communication stability, resolve compatibility issues, and add security patches.

Recommended Replacement Cycle

The service life of the Mitsubishi KCA-1190B/1190A Interface Board depends on communication load (daily subsystem interactions), environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular cleaning, ambient temperature -10°C to +60°C), the KCA-1190B/1190A should be replaced every 7–9 years. This timeframe aligns with the typical lifespan of communication chips (8–10 years) and gold-plated I/O terminals, ensuring proactive replacement before signal degradation or port failure disrupts elevator operation.

2. Signs That Require Immediate Replacement

Replace the interface board immediately if:

Communication Failures: Subsystems (e.g., door operators, call panels) fail to respond, or the main control unit displays recurring “Subsystem Communication Loss” codes—cannot be resolved by wiring checks or reboots.
I/O Port Malfunctions: Specific I/O ports stop transmitting/receiving signals, causing targeted subsystem failures (e.g., unresponsive floor calls, door operation errors, or incorrect landing indicator displays).
Physical Damage: Cracked PCB, water intrusion, burned components, or damaged terminals—poses safety hazards (e.g., short circuits) and disrupts critical data transmission.
Persistent Fault Codes: Recurring “Interface Board Error,” “Signal Transmission Fault,” or “I/O Port Short” codes cannot be resolved by firmware updates or parameter resets.
Safety Compromise: Fails to transmit safety circuit signals (e.g., emergency stop, door interlock) to the main control unit—violates EN 81-20/50 and local safety regulations, risking passenger harm.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 15°C–45°C and humidity <75%—extreme heat or moisture accelerates chip aging and terminal corrosion.
Interference Mitigation: Route signal cables through metal conduits or cable trays to shield against electromagnetic interference from motor drives or power inverters.
Terminal Care: Avoid frequent plugging/unplugging of cables, as this wears out gold-plated terminals. Use locking connectors (if available) to secure connections and prevent accidental disconnection.
Genuine Parts Only: Use exclusively authentic Mitsubishi KCA-1190B/1190A boards from Nanjing Zhuye. Counterfeit units use low-quality communication chips, lack surge protection, and fail to maintain stable data transmission—risking elevator control system failures.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi KCA-1190B/1190A?

When sourcing a critical communication component like the Mitsubishi KCA-1190B/1190A, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ systems—eliminating communication mismatches or subsystem conflicts.
Strict Quality Assurance: Each board undergoes rigorous testing (signal stability, I/O port reliability, interference resistance, surge protection) to meet Mitsubishi’s original manufacturing and safety standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting—even for legacy Mitsubishi models or custom subsystem setups.
Global Efficient Delivery: Fast shipping minimizes downtime, critical for residential and commercial facilities where interface board failures disrupt elevator access and passenger safety.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality, performance, or safety.

Conclusion

The Mitsubishi Elevator Interface Board KCA-1190B/1190A is a foundational communication component that ensures seamless, reliable data transmission between elevator subsystems—safeguarding operational efficiency, passenger comfort, and regulatory compliance. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can extend the board’s lifespan, reduce downtime, and maintain consistent elevator performance. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for complex subsystem configurations, Nanjing Zhuye delivers premium Mitsubishi parts and tailored professional services. Invest in elevator communication reliability and safety—choose Nanjing Zhuye for your KCA-1190B/1190A interface board needs.
