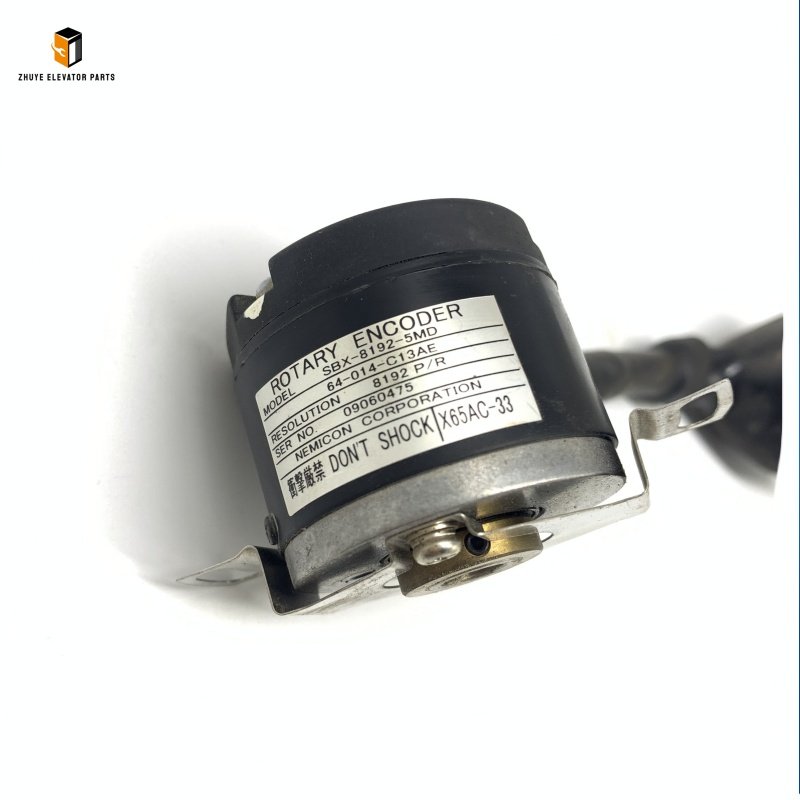

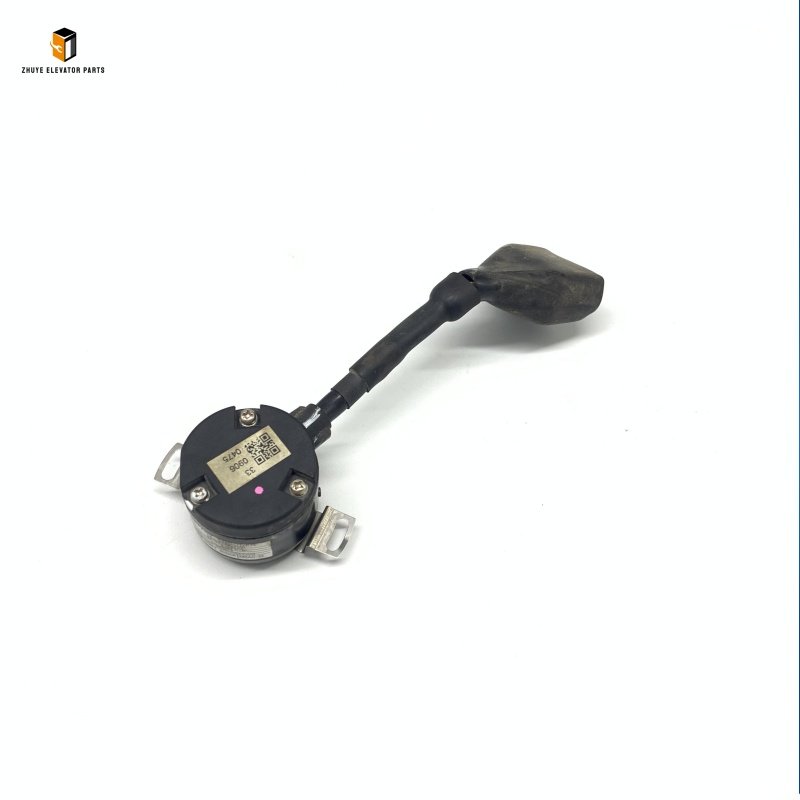

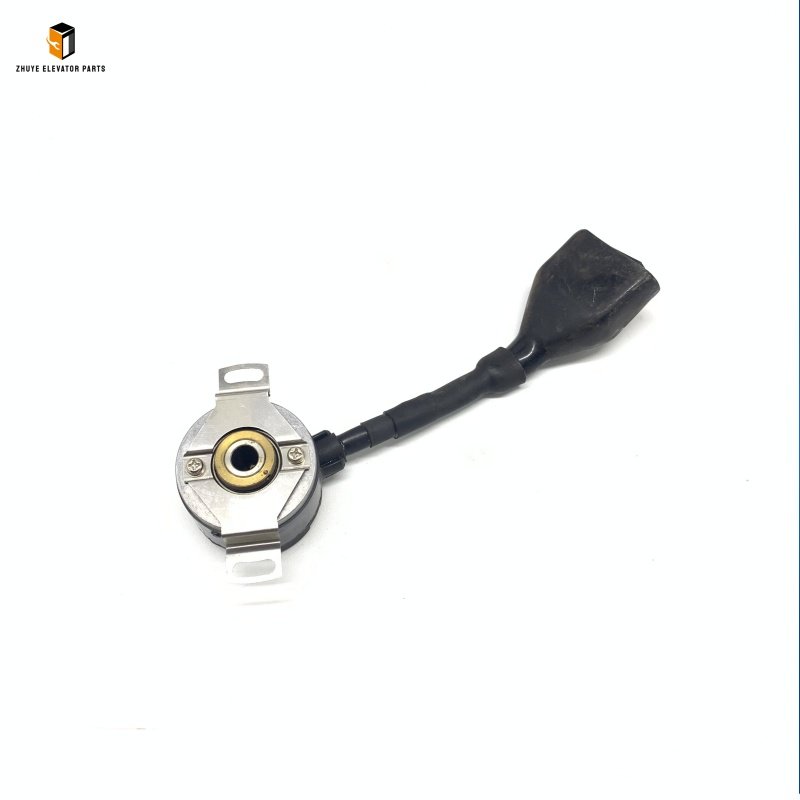

Mitsubishi Elevator Encoder SBX-8192-5MD: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Mitsubishi Elevator Encoder SBX-8192-5MD

1. Pre-Installation Preparation

2. Installation & Calibration Steps

• Encoder Mounting:
  • Align the SBX-8192-5MD with the traction motor’s shaft coupling, ensuring the encoder shaft is concentric with the motor shaft (maximum runout ≤0.1mm). Secure the encoder to the motor bracket using the provided screws (torque to 1.5–2.0 Nm) to prevent vibration-induced movement. Use a flexible coupling if needed to absorb minor misalignment—rigid mounting can cause shaft damage or signal distortion.
  • If replacing an old encoder, disconnect the existing unit by removing the electrical connector and unfastening the mounting screws. Take detailed photos of the old encoder’s position, shaft alignment, and wiring to replicate during installation—consistent positioning ensures accurate feedback.
• Electrical Connection:
  • Connect the encoder’s signal cable to the elevator’s main controller, following Mitsubishi’s wiring schematic. Match the A/B/Z phase wires to the corresponding controller terminals and ensure correct polarity for the 5V DC power supply. Use cable ties to secure the cable and route it away from high-voltage motor wires to reduce EMI—shielded cables are recommended for long runs.
• Calibration & Function Testing:
  • Restore power to the elevator (performed by certified Mitsubishi technicians only) and initiate the encoder calibration process via the main controller’s diagnostic software. The controller will verify signal integrity, pulse count accuracy, and direction detection—confirm a “calibration successful” message before proceeding.
  • Conduct three critical tests:
    1. Speed Accuracy Test: Operate the elevator at rated speed and verify the encoder’s speed feedback matches the controller’s set speed (tolerance ±0.5%).
    2. Floor Leveling Test: Run the elevator to multiple floors and confirm precise floor alignment (deviation ≤±5mm)—the encoder’s position data ensures the car stops at the correct height.
    3. Fault Simulation Test: Temporarily disconnect one signal wire to trigger an encoder fault—confirm the controller logs the error and enters safe mode (e.g., reduced speed or emergency stop).
  • Document installation details, calibration results, and test logs in maintenance records to demonstrate compliance with Mitsubishi’s service requirements and safety regulations.

3. Routine Usage Maintenance

• Daily Visual Inspections: Check the encoder for physical damage, loose mounting screws, or cable wear. Verify the housing is free from dust, moisture, or oil contamination.
• Weekly Shaft Rotation Check: Manually rotate the encoder shaft (with power off) to ensure smooth movement—no grinding or resistance, which indicates bearing wear.
• Monthly Signal Verification: Use an oscilloscope to check A/B/Z phase signal quality—stable, square-wave signals with no distortion confirm proper operation. Replace the cable if signals are noisy or intermittent.
• Quarterly Connection Inspections: Tighten all electrical connectors and mounting screws. Clean the encoder housing with a dry cloth to remove dust buildup that can trap heat.
• Annual Comprehensive Inspection: By authorized technicians, remove the encoder to inspect the shaft, bearings, and optical lens. Test pulse resolution and signal accuracy using specialized equipment—replace the encoder if performance deviates from Mitsubishi’s specifications.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Feedback Failures: Erratic elevator speed, incorrect floor leveling, or stalling—indicating the encoder is not transmitting accurate data.
• Mechanical Damage: Bent shaft, cracked housing, or seized bearings—preventing smooth rotation and signal generation.
• Electrical Issues: No signal output, distorted phase signals, or persistent encoder fault codes that cannot be resolved with wiring checks.
• Performance Degradation: Reduced speed accuracy (deviation >±1%), inconsistent floor leveling, or increased noise in signal output—attributed to worn optical sensors.
• Safety Compromise: Encoder failure that causes the elevator to overshoot floors or operate at unsafe speeds—violating Mitsubishi’s safety standards and risking passenger injury.

3. Maintenance to Extend Service Life

• Environmental Control: Keep the machine room clean, dry, and well-ventilated. Protect the encoder from oil leaks, moisture, or extreme temperatures—install a protective cover if the unit is exposed to contaminants.
• Bearing Care: Avoid excessive force on the encoder shaft during maintenance—use proper tools to prevent bending or damage to internal bearings.
• Cable Protection: Secure signal cables to prevent tension or abrasion. Replace cables every 3–4 years as preventive maintenance, even if no visible damage is present.
• Genuine Parts Only: For replacements or repairs, use exclusively authentic Mitsubishi SBX-8192-5MD encoders and components from Nanjing Zhuye. Counterfeit encoders use inferior optical components, lack EMI shielding, and risk catastrophic elevator control failures.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi SBX-8192-5MD?

• Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
• Strict Quality Assurance: Each encoder undergoes rigorous testing (pulse resolution accuracy, signal stability, mechanical durability, environmental resilience) to meet Mitsubishi’s original manufacturing standards.
• Expert Technical Support: Certified engineers provide 24/7 assistance for installation, calibration, troubleshooting, and maintenance—even for complex elevator control systems.
• Global Efficient Delivery: Fast shipping to worldwide locations minimizes elevator downtime, ensuring uninterrupted passenger service.
• Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
