Description

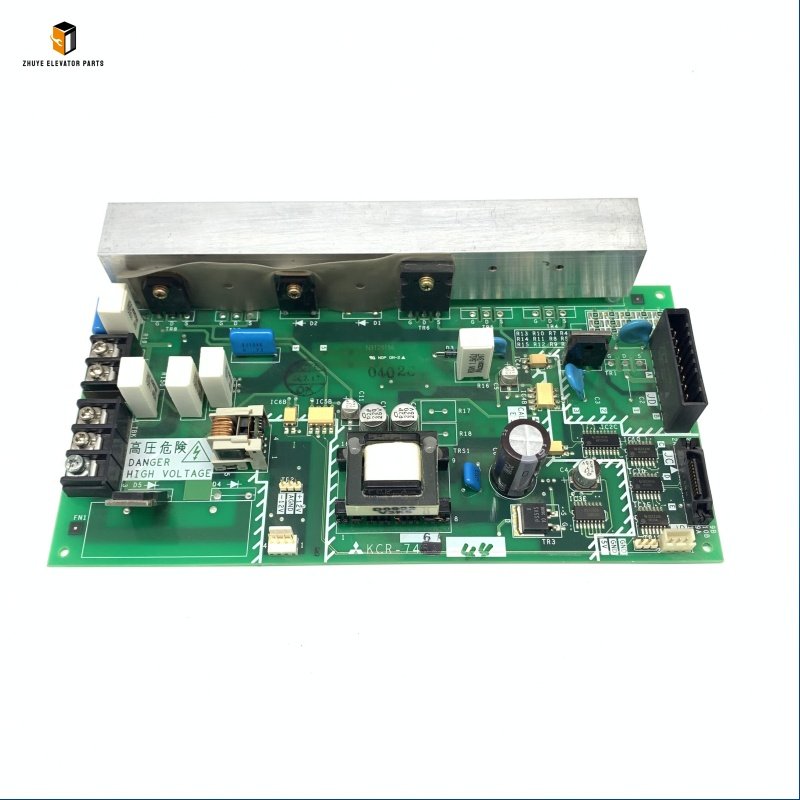

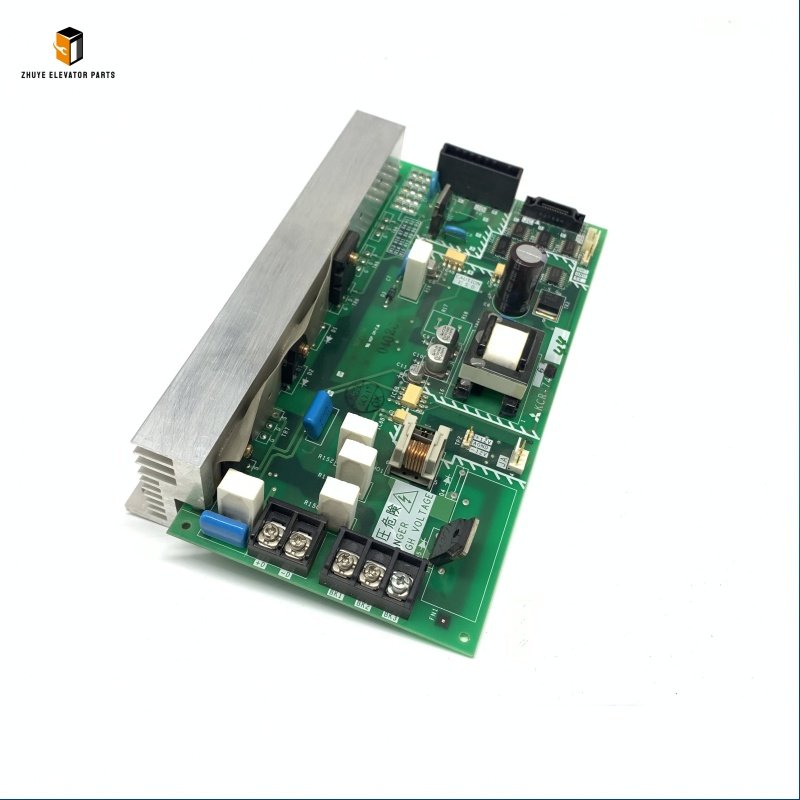

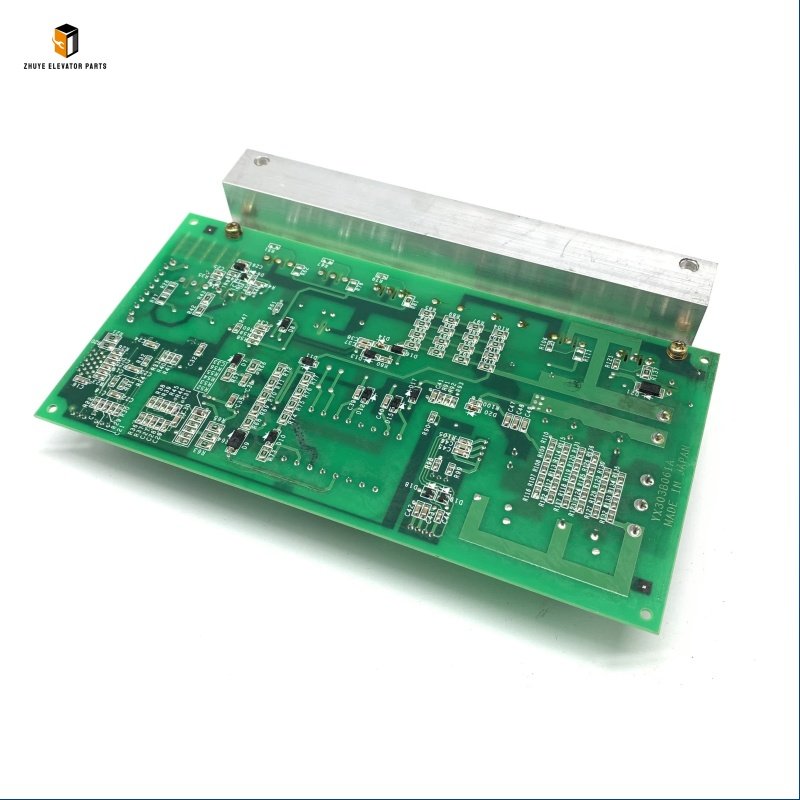

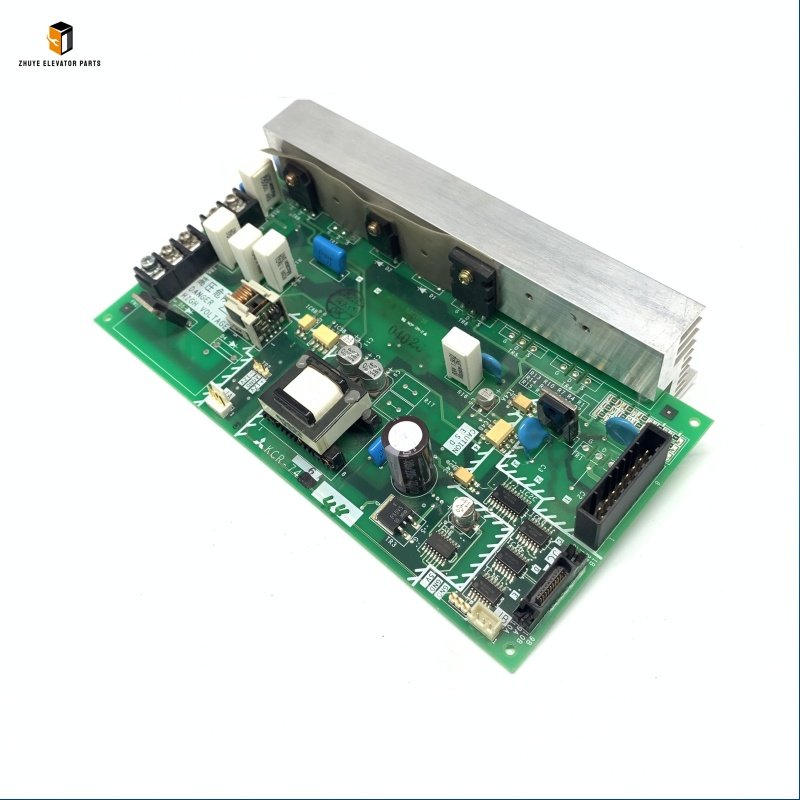

Mitsubishi elevator driver board KCR-746A Introduction

Product Name	Mitsubishi elevator driver board
Model Number	KCR-746A KCR-745A
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Driver Board KCR-746A: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Driver Board KCR-746A is a mission-critical power control component exclusively engineered for Mitsubishi elevator systems—including NexWay, ELENESSA, and MAXIEZ series—essential for commercial high-rises, residential complexes, transit hubs, and public facilities worldwide. As the “power controller” of the elevator’s traction system, this driver board converts AC input power into precise variable-frequency drive (VFD) output to regulate the traction motor, enabling smooth acceleration/deceleration, speed control, and load balancing. It integrates Mitsubishi’s proprietary inverter technology, high-efficiency power modules, and redundant safety circuits—upholding the brand’s strict standards for torque precision, energy efficiency, and operational safety in high-demand environments.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61800-5-1, UL 1012, ISO 9001), the KCR-746A features a rugged, industrial-grade design: multi-layer PCB with conformal coating (resists dust, moisture, and electromagnetic interference), heavy-duty aluminum heat sink (ensures efficient heat dissipation for power modules), flame-retardant epoxy housing (UL94 V0 rating), and built-in protection against overvoltage, overcurrent, short circuits, and overheating. This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing traction motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, passenger safety, and optimal elevator performance. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the KCR-746A that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, precise motor control, and long-term reliability.

Proper Usage Methods of Mitsubishi KCR-746A Driver Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, discharging the DC bus capacitors (wait a minimum of 30 minutes after power-off to avoid electric shock), and securing the work area (machine room control cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new KCR-746A for physical damage—cracked PCB traces, bent power terminals, swollen capacitors, damaged heat sink, or loose solder joints—defects that can cause electrical faults, motor damage, or safety hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact power modules (IGBTs), functional inverter circuits, secure wiring connections, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s power rating (typically 15–30kW) matches the traction motor’s specifications, (2) the mounting dimensions (typically 220x180x80mm) fit the control cabinet’s slot, and (3) the input voltage (380V AC three-phase) and communication protocol are compatible with the elevator’s main control system. Using an incompatible driver board can result in motor overheating, erratic elevator movement, or communication failures with the main control unit. Additionally, prepare the installation area: Clean the control cabinet to remove dust and debris, ensure a minimum 15cm clearance around the board for heat dissipation, and back up the old board’s parameters (via Mitsubishi’s diagnostic software, e.g., MELDAS) to preserve motor control settings (e.g., acceleration rate, speed limits).

2. Installation & Configuration Steps

Board Installation: Align the KCR-746A with the mounting brackets in the control cabinet, ensuring the heat sink faces the cabinet’s ventilation fans or air vents. Secure the board with stainless steel screws (torque to 1.5–2.0 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or power modules. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference and ensure electrical safety.
Wiring & Connection: Follow Mitsubishi’s wiring schematic to connect the power cables and control wires. Connect the three-phase AC input cables (L1/L2/L3) to the board’s main power terminals, and the traction motor cables (U/V/W) to the output terminals—ensure correct phase alignment to avoid motor reverse rotation. Tighten power terminals to 3.0–3.5 Nm to prevent arcing or voltage drop. Connect the control signal cables (speed reference, feedback, emergency stop) to the auxiliary terminals, and the communication cable to the elevator’s main control board. Use cable lugs for stranded wires to enhance contact reliability.
Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and upload the backed-up parameters to the new KCR-746A via diagnostic software. Configure critical settings: motor rated voltage/current, acceleration/deceleration rates (typically 0.8–1.2 m/s²), maximum speed, and torque compensation. Conduct three mandatory tests:
1. No-Load Test: Operate the elevator without passengers to verify smooth motor startup, stable speed, and no abnormal noise (e.g., humming, grinding).
2. Load Test: Run the elevator with 50% and 100% of rated load to confirm consistent acceleration, speed regulation, and proper torque output.
3. Safety Function Test: Trigger the emergency stop and overcurrent protection to ensure the driver board shuts down the motor immediately—confirming compliance with safety standards.

  Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.

3. Routine Usage Maintenance

To preserve the KCR-746A’s performance and extend its lifespan, implement proactive maintenance practices tailored to VFD driver components:

Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discoloration of heat sink, burning odors, or hot components). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Temperature Check: Use an infrared thermometer to measure the heat sink temperature—ensure it remains below 85°C (critical for power module longevity).
Monthly Cleaning: Remove dust from the heat sink and control cabinet using low-pressure compressed air—dust buildup blocks heat dissipation and accelerates component aging. Avoid liquid cleaners or abrasive tools.
Quarterly Wiring Check: Inspect power and signal cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Semi-Annual Parameter Verification: Use diagnostic software to confirm parameter settings remain intact and match the elevator’s operational requirements.

Recommended Replacement Cycle

The service life of the Mitsubishi KCR-746A Driver Board depends on usage intensity (daily elevator cycles, load magnitude), environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular cleaning, ambient temperature -10°C to +60°C), the KCR-746A should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of IGBT power modules (10,000–15,000 operating hours) and inverter circuits, ensuring proactive replacement before power module degradation leads to motor control failures.

2. Signs That Require Immediate Replacement

Replace the driver board immediately if:

Motor Control Failures: Elevator accelerates/decelerates erratically, jitters during operation, or fails to reach rated speed—compromises passenger comfort and safety.
Power Module Damage: Heat sink temperature exceeds 100°C, or the board displays “IGBT Overheat” or “Power Module Fault” codes—risks module burnout or electrical fires.
Persistent Fault Codes: The main control system shows recurring drive-related errors (e.g., “Overcurrent,” “Undervoltage,” “Communication Loss”) that cannot be resolved by wiring checks or parameter resets.
Physical Damage: Cracked PCB, water intrusion, or burned components—signaling irreparable internal damage and safety risks.
Safety Compromise: The board fails to activate protection mechanisms during overcurrent or emergency stop—violates EN 81-20/50 and local safety regulations.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 15°C–45°C and humidity <75%—extreme heat or moisture accelerates power module aging.
Power Stabilization: Install external surge protectors and voltage regulators to shield the board from voltage spikes and transients—reduces stress on IGBT modules.
Heat Dissipation Optimization: Ensure control cabinet fans are functional and air vents are unobstructed. Upgrade cooling systems if the heat sink temperature consistently exceeds 75°C.
Genuine Parts Only: Use exclusively authentic Mitsubishi KCR-746A driver boards from Nanjing Zhuye. Counterfeit units use low-quality IGBTs, lack proper safety circuits, and risk catastrophic motor or elevator failures.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi KCR-746A?

When sourcing a critical power control component like the Mitsubishi KCR-746A, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ elevator systems—eliminating motor control mismatches or safety hazards.
Strict Quality Assurance: Each board undergoes rigorous testing (power module performance, speed regulation precision, safety mechanism reliability) to meet Mitsubishi’s original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and compatibility verification—even for legacy Mitsubishi models.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for residential and commercial facilities where driver board failures disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Mitsubishi Elevator Driver Board KCR-746A is a foundational power control component that ensures smooth, efficient, and safe elevator operation—protecting the traction motor and safeguarding passengers. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Mitsubishi elevators downtime-free, compliant with global safety standards, and optimized for long-term performance. Whether you need a single replacement board, bulk orders for a building fleet, or technical support for maintenance teams, Nanjing Zhuye delivers premium Mitsubishi components and tailored professional services. Invest in elevator power control reliability and safety—choose Nanjing Zhuye Elevator Parts for your KCR-746A driver board requirements.
