Description

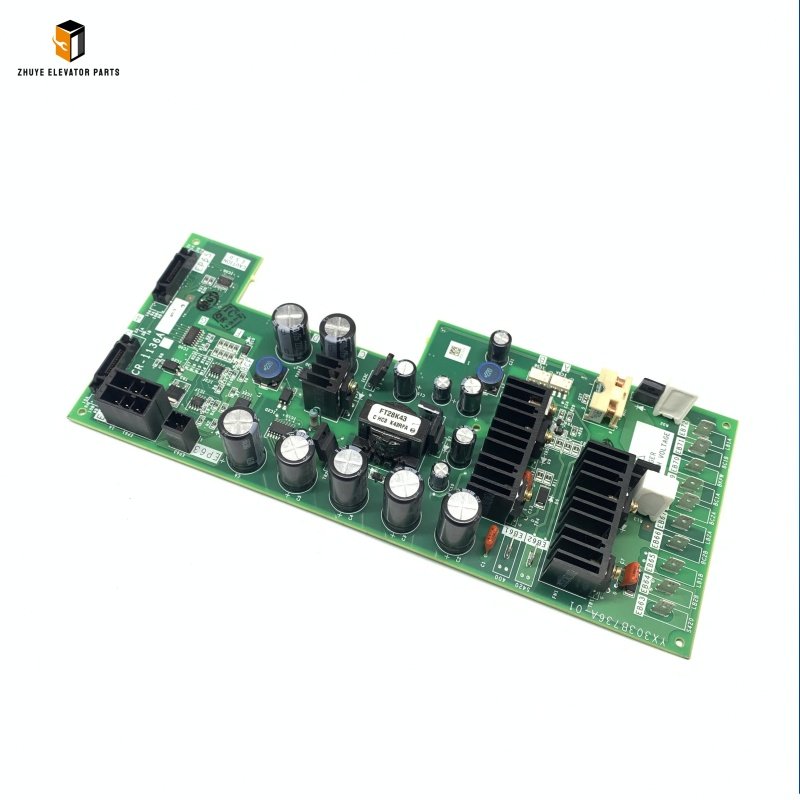

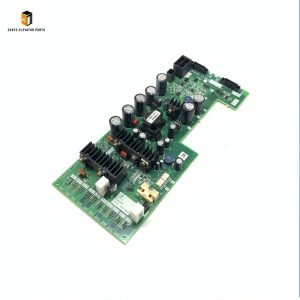

Mitsubishi elevator drive board KCR-1136A Introduction

Product Name	Mitsubishi elevator drive board
Model Number	KCR-1136A KCR-1130A
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Drive Board KCR-1136A: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Drive Board KCR-1136A is a core power control component exclusively engineered for Mitsubishi’s mid-to-high speed elevator systems—including NexWay Standard, ELENESSA Comfort, and MAXIEZ Mid-Rise series—essential for commercial buildings, residential complexes, and public transit hubs worldwide. As the “intelligent control center” of the elevator’s traction system, this drive board integrates Mitsubishi’s advanced variable-frequency drive (VFD) technology and IGBT power modules, converting three-phase AC input into smooth, precise output to regulate traction motor speed, torque, and acceleration/deceleration. It delivers exceptional operational stability, energy efficiency (IE3 compliance), and passenger comfort while maintaining robust safety redundancy, aligning with Mitsubishi’s rigorous quality standards for elevator control systems.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61800-5-1, UL 1012, ISO 9001), the KCR-1136A features an industrial-grade rugged design: a multi-layer PCB with conformal coating (resisting dust, moisture, and electromagnetic interference), a heavy-duty aluminum heat sink (optimized for heat dissipation in continuous operation), a flame-retardant epoxy housing (UL94 V0 rating), and built-in protection against overvoltage, overcurrent, short circuits, overheating, motor stall, and encoder faults. This construction enables reliable 24/7 operation in machine room environments, withstanding temperature fluctuations (-10°C to +60°C), mechanical vibration, and electrical grid instability—critical for preventing traction motor damage, elevator jitter, or unexpected shutdowns. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement protocols is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the KCR-1136A that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, precise motor control, and long-term reliability.

Proper Usage Methods of Mitsubishi KCR-1136A Drive Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, discharging the DC bus capacitors (wait a minimum of 30 minutes after power-off to avoid electric shock), and securing the work area (machine room control cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new KCR-1136A for physical damage—cracked PCB traces, bent power terminals, swollen capacitors, damaged heat sink fins, or loose solder joints—defects that can cause electrical faults, motor burnout, or safety hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact IGBT power modules, functional vector control circuits, secure wiring connections, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s rated power (30kW) matches the traction motor’s specifications, (2) the mounting dimensions (230x190x85mm) fit the control cabinet’s dedicated slot, and (3) the input voltage (380V AC three-phase) and communication protocol (Mitsubishi’s proprietary CANopen) are compatible with the elevator’s main control system. Using an incompatible drive board can result in motor overheating, insufficient torque, or communication failures. Additionally, prepare the installation area: Clean the control cabinet to remove dust and debris, ensure a minimum 20cm clearance around the board for heat dissipation, and back up the old board’s parameters (via Mitsubishi’s diagnostic software, e.g., MELDAS) to preserve motor control settings (acceleration rate, speed limits, torque compensation).

2. Installation & Configuration Steps

Board Installation: Align the KCR-1136A with the mounting brackets in the control cabinet, ensuring the heat sink faces the cabinet’s ventilation fans or air vents to maximize heat dissipation. Secure the board with stainless steel hex screws (torque to 1.8–2.2 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or power module solder joints. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to reduce electromagnetic interference and ensure electrical safety.
Wiring & Connection: Follow Mitsubishi’s wiring schematic to connect power and control cables. Connect three-phase AC input cables (L1/L2/L3) to the board’s main power terminals, and traction motor cables (U/V/W) to the output terminals—ensure correct phase alignment to avoid motor reverse rotation. Tighten power terminals to 3.5–4.0 Nm using a torque wrench (prevents arcing or voltage drop in high-current scenarios). Connect control signal cables (speed reference, motor encoder feedback, emergency stop, brake control) to the auxiliary terminals, and the communication cable to the elevator’s main control board. Use crimped cable lugs for stranded wires to enhance contact reliability.
Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and upload the backed-up parameters to the new KCR-1136A via diagnostic software. Configure critical settings: motor rated voltage/current, vector control parameters, acceleration/deceleration rates (1.0–1.5 m/s²), maximum speed, and brake release timing. Conduct three mandatory tests:
1. No-Load Test: Operate the elevator without passengers to verify smooth motor startup, stable speed regulation, and no abnormal noise (e.g., IGBT switching hum or motor vibration).
2. Load Test: Run the elevator with 50%, 100%, and 110% of rated load to confirm consistent torque output, precise speed control, and no overheating (heat sink temperature <85°C during peak load).
3. Safety Function Test: Trigger emergency stop, overcurrent, and encoder fault conditions to ensure the drive board shuts down the motor immediately and engages the brake—confirming compliance with EN 81-50 safety standards.

  Document installation details, parameter settings, and test results in maintenance records to demonstrate compliance.

3. Routine Usage Maintenance

To preserve the KCR-1136A’s performance and extend its lifespan, implement proactive maintenance practices tailored to high-power VFD components:

Daily Visual Inspections: Check the board for loose wiring, physical damage, or signs of overheating (discolored heat sink, burning odors, or tripped thermal protectors). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Temperature Monitoring: Use an infrared thermometer to measure the heat sink temperature during peak operation—ensure it remains below 85°C (critical for IGBT module longevity).
Monthly Cleaning: Remove dust from the heat sink fins and control cabinet using low-pressure compressed air (blow in the direction of fin alignment)—dust buildup blocks heat dissipation and accelerates component aging. Avoid liquid cleaners.
Quarterly Wiring Check: Inspect power and signal cables for fraying, insulation damage, or corrosion—tighten terminals or replace cables with genuine Mitsubishi-compatible wires from Nanjing Zhuye if needed.
Semi-Annual Parameter Verification: Use diagnostic software to confirm parameter settings remain intact and re-calibrate encoder feedback if speed accuracy deviates by >0.5%.

Recommended Replacement Cycle

The service life of the Mitsubishi KCR-1136A Drive Board depends on usage intensity (daily elevator cycles, load magnitude), environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular cleaning, ambient temperature -10°C to +60°C), the KCR-1136A should be replaced every 8–10 years. This timeframe aligns with the typical lifespan of high-power IGBT modules (12,000–15,000 operating hours) and vector control circuits, ensuring proactive replacement before power module degradation leads to motor control failures.

2. Signs That Require Immediate Replacement

Replace the drive board immediately if:

Motor Control Failures: Elevator accelerates/decelerates erratically, vibrates during operation, or fails to reach rated speed—compromises passenger comfort and safety.
Power Module Damage: Heat sink temperature exceeds 100°C, or the board displays “IGBT Overheat”/“Power Module Fault” codes—risks module burnout or electrical fires.
Persistent Fault Codes: Recurring drive-related errors (e.g., “Overcurrent,” “Encoder Fault,” “Communication Loss”) cannot be resolved by wiring checks or parameter resets.
Physical Damage: Cracked PCB, water intrusion, or burned components—signals irreparable internal damage and safety hazards.
Safety Compromise: Fails to activate protection mechanisms during overcurrent/emergency stop—violates EN 81-20/50 and local safety regulations.

3. Maintenance to Extend Service Life

Environmental Control: Keep the machine room clean, dry, and well-ventilated. Maintain temperature between 15°C–45°C and humidity <75%—extreme heat/moisture accelerates IGBT aging.
Power Stabilization: Install external surge protectors and voltage regulators to shield the board from grid transients—reduces stress on power modules.
Heat Dissipation Optimization: Ensure control cabinet fans are functional and air vents unobstructed. Upgrade to forced-air cooling if heat sink temperature consistently exceeds 75°C.
Genuine Parts Only: Use exclusively authentic Mitsubishi KCR-1136A boards from Nanjing Zhuye. Counterfeit units use low-grade IGBTs, lack safety circuits, and risk catastrophic elevator failures.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi KCR-1136A?

When sourcing a critical power control component like the Mitsubishi KCR-1136A, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ systems—eliminating motor control mismatches.
Strict Quality Assurance: Each board undergoes rigorous testing (power module performance, vector control accuracy, safety redundancy) to meet Mitsubishi’s original standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, and troubleshooting—even for mid-to-high speed elevator models.
Global Efficient Delivery: Fast shipping minimizes downtime, critical for high-traffic facilities where drive board failures disrupt operations.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality.

Conclusion

The Mitsubishi Elevator Drive Board KCR-1136A is a foundational component that ensures smooth, efficient, and safe operation of mid-to-high speed Mitsubishi elevators. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can maintain regulatory compliance, optimize energy efficiency, and safeguard passengers. Whether you need a single replacement board, bulk orders for a building fleet, or technical support, Nanjing Zhuye delivers premium Mitsubishi parts and tailored services. Invest in elevator power control reliability—choose Nanjing Zhuye for your KCR-1136A drive board needs.
