Description

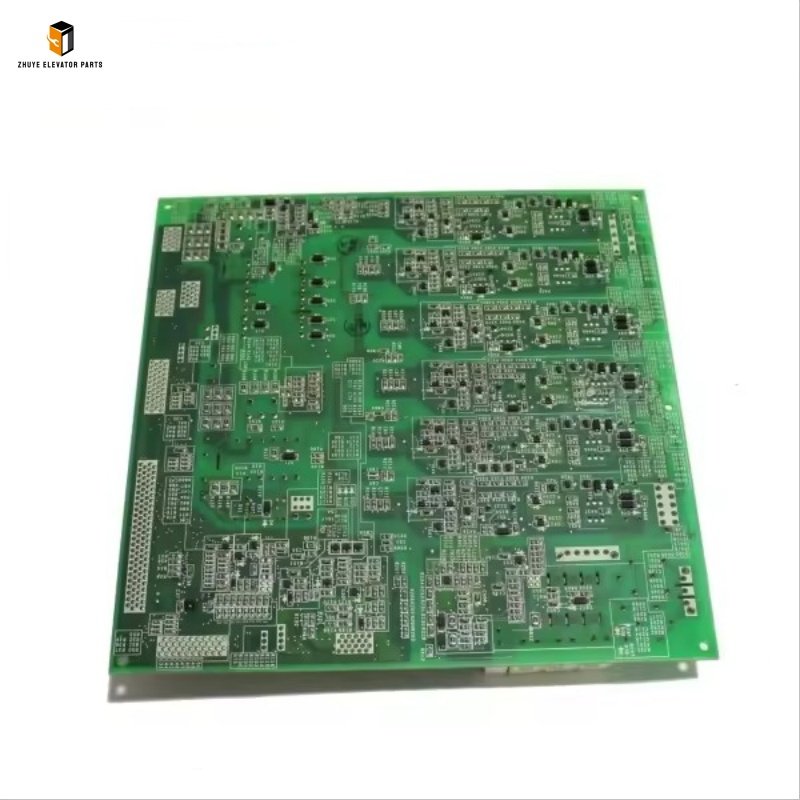

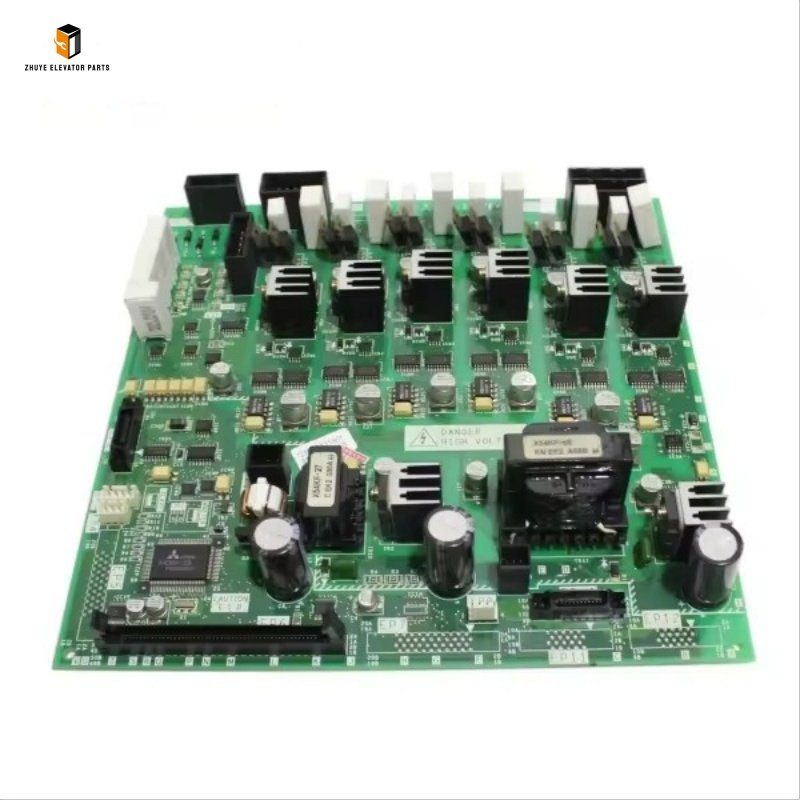

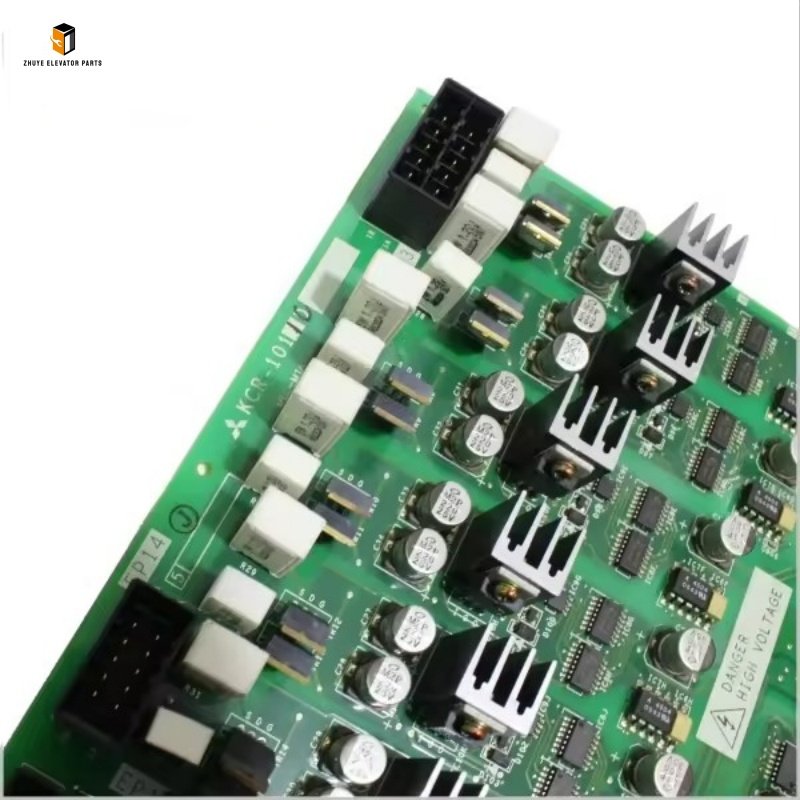

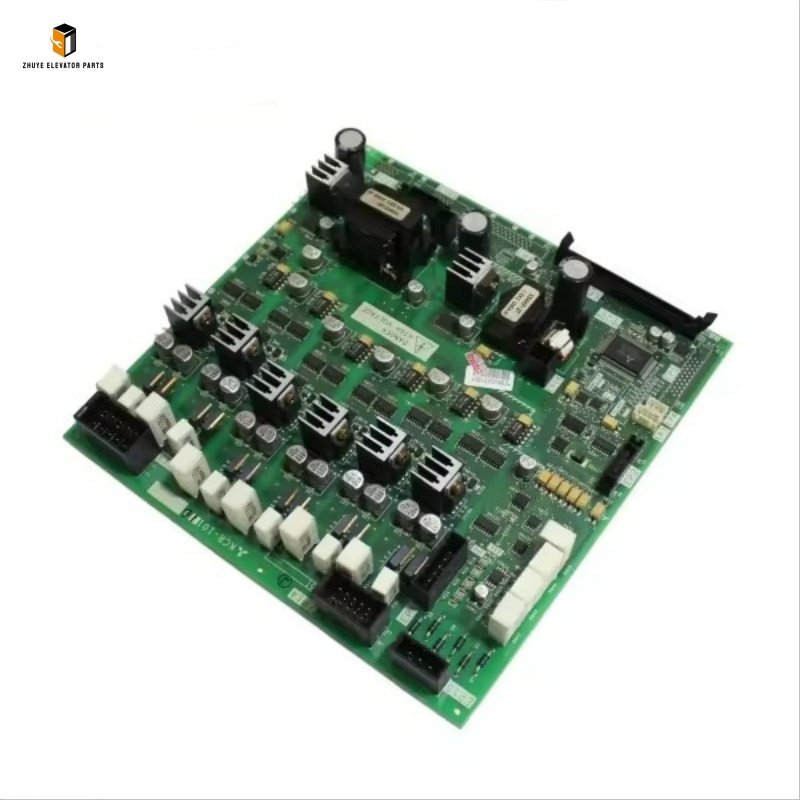

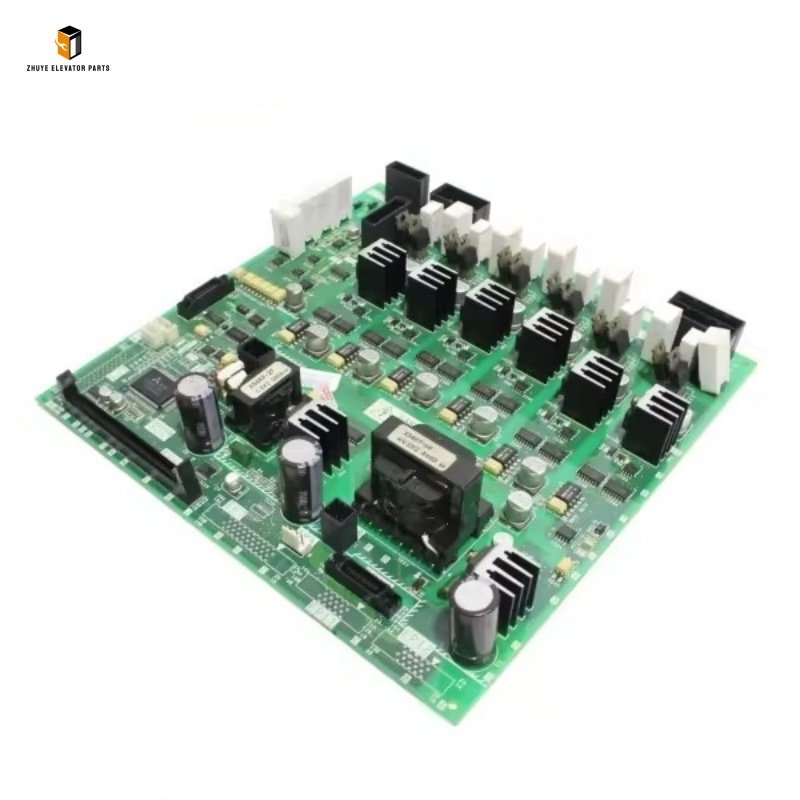

Mitsubishi Elevator Drive Board KCR-1011C/1011D/1011E/1013E/1013F/1013G Brief Introduction
|
Product Name |
Mitsubishi Elevator Drive Board |
| Model Number | KCR-1011C
KCR-1011D KCR-1011E KCR-1013E KCR-1013F KCR-1013G |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Mitsubishi Elevator Drive Board KCR-1011C: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Mitsubishi Elevator Drive Board KCR-1011C is a precision-engineered traction control component exclusively designed for Mitsubishi elevator systems—widely deployed in commercial high-rises, residential complexes, public transit hubs, and office buildings worldwide. As the core “motor control hub” for Mitsubishi NexWay, ELENESSA, and MAXIEZ series elevators, this board regulates the traction motor’s speed, torque, and direction with exceptional accuracy, translating commands from the main controller into smooth, energy-efficient elevator movement. It integrates Mitsubishi’s proprietary PWM (Pulse-Width Modulation) technology, real-time current feedback loops, and multi-layer safety logic to ensure jerk-free acceleration/deceleration, stable operation under varying loads, and compliance with global safety standards—upholding Mitsubishi’s reputation for reliability and passenger protection.
Compliant with international safety and electronic standards (EN 81, IEC 61010, ISO 9001), the KCR-1011C features a robust, interference-resistant design: multi-layer PCB substrate for signal integrity, industrial-grade power driver chips and microcontrollers, sealed connectors for dust and moisture protection, and integrated overcurrent/overvoltage/overtemperature protection. This construction withstands 24/7 operation in machine rooms, enduring temperature fluctuations (-5°C to +45°C), electromagnetic interference (EMI), and mechanical vibration. For maintenance teams, facility managers, and elevator service providers, mastering the correct installation, configuration, and replacement timelines of this drive board is critical to avoiding traction system failures, elevator stalling, or safety hazards. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the KCR-1011C drive board that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, precise motor control, and long-term durability.
Proper Usage Methods of Mitsubishi KCR-1011C Drive Board
1. Pre-Installation Preparation
Before installation, prioritize safety by shutting off the elevator’s main power supply, discharging residual voltage from the drive system, and securing the machine room work area with lockout tags. Inspect the new KCR-1011C drive board for physical damage—such as cracked PCB substrates, damaged connectors, loose components, or burn marks on power chips—defects that can cause motor misoperation, short circuits, or complete traction system shutdown. Nanjing Zhuye Elevator Parts conducts rigorous Mitsubishi-specific quality control checks, so each unit arrives in optimal condition: intact circuit traces, functional driver modules, pre-loaded Mitsubishi-compatible firmware, and clear wiring/connector markings.
Verify compatibility with your Mitsubishi elevator model and traction system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s part number (KCR-1011C) matches the elevator’s drive system design, (2) the current and voltage ratings support the traction motor’s specifications, and (3) the communication protocol is compatible with the main controller. Using an incompatible drive board can result in erratic elevator movement, motor overheating, or failure to respond to safety commands. Additionally, prepare the installation area: clean the drive cabinet, ensure adequate ventilation (minimum 15cm clearance around the board), and confirm the cooling system (fans, heat sinks) is functional.
2. Installation & Configuration Steps
- Board Installation:
- Access the drive cabinet in the machine room and remove the existing drive board by labeling and removing connectors (power supply, traction motor, main controller communication, and sensor feedback). Take detailed photos of the wiring configuration to ensure accurate reinstallation. Clean the mounting area with compressed air to remove dust or debris that could interfere with connections.
- Align the new KCR-1011C board with the mounting brackets and secure it with the provided screws (torque to 0.8–1.2 Nm) to prevent vibration-induced damage during operation. Reconnect all connectors, ensuring each is fully seated and locked—loose connections are the leading cause of intermittent drive system failures.
- Configuration Setup:
- Restore power to the drive system (performed by certified Mitsubishi technicians only) and access the configuration menu via Mitsubishi’s diagnostic software (e.g., MELDAS, GX Works). Complete three critical steps:
- Motor Parameter Calibration: Input the traction motor’s rated voltage, current, speed, and torque values to synchronize the drive board’s control logic with the motor’s performance characteristics.
- Traction Control Setup: Configure acceleration/deceleration time (1.5–3 seconds), speed reference limits, and current feedback gain to optimize passenger comfort and energy efficiency.
- System Synchronization: Initiate communication with the main controller, verifying that speed commands, position feedback, and fault signals are transmitted accurately without latency.
- Restore power to the drive system (performed by certified Mitsubishi technicians only) and access the configuration menu via Mitsubishi’s diagnostic software (e.g., MELDAS, GX Works). Complete three critical steps:
- Functional Testing:
- Conduct comprehensive tests to validate performance:
- No-Load Test: Run the traction motor without the elevator car to confirm smooth speed regulation and no abnormal noise/vibration.
- Load Test: Operate the elevator through empty, half-loaded, and full-loaded cycles to ensure the drive board maintains stable torque and speed under varying loads.
- Safety Function Test: Simulate overcurrent, overvoltage, or overtemperature conditions to verify the drive board triggers automatic shutdown and sends real-time fault alerts to the main controller.
- Document installation details, configuration settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.
- Conduct comprehensive tests to validate performance:
3. Routine Usage Maintenance
To preserve the KCR-1011C’s performance and extend its lifespan, implement these proactive maintenance practices:
- Weekly Visual Inspections: Check for loose connectors, damaged wiring, or signs of overheating (discoloration of the PCB or connectors). Inspect the drive cabinet’s cooling system for unobstructed airflow.
- Monthly Parameter Monitoring: Use Mitsubishi’s diagnostic software to review operating parameters (output current, voltage, temperature) and record data to identify drift trends.
- Quarterly Connection Checks: Tighten input/output/control terminal screws (loose connections cause voltage fluctuations) and inspect cables for fraying, corrosion, or insulation damage. Replace damaged cables with genuine Mitsubishi parts from Nanjing Zhuye.
- Semi-Annual Cleaning: Remove dust from the board’s surface, connectors, and drive cabinet using compressed air—avoid liquid cleaners or high-pressure air that can damage internal components.
- Annual Performance Testing: Conduct a comprehensive test to verify motor control precision, current feedback accuracy, and safety function responsiveness. Compare results against Mitsubishi’s factory specifications and recalibrate parameters if needed.
Recommended Replacement Cycle
The service life of the Mitsubishi KCR-1011C Drive Board depends on usage intensity (daily operating hours, load frequency), environmental conditions (temperature, humidity), and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (12–18 hours of daily use, regular maintenance, ambient temperature -5°C to +45°C), the drive board should be replaced every 6–8 years. This timeframe accounts for gradual degradation of power driver chips, microcontrollers, and current feedback modules—proactive replacement avoids costly unplanned downtime and ensures consistent elevator performance.
2. Signs That Require Immediate Replacement
Replace the drive board immediately if you encounter any of the following issues:
- Traction System Failures: Elevator stalling, erratic speed fluctuations, jerking during acceleration/deceleration, or inability to start—indicative of faulty motor control or power conversion.
- Persistent Critical Errors: Repeated board-related error codes (e.g., “Motor Driver Fault,” “Current Feedback Error,” “Communication Timeout”) that cannot be resolved with troubleshooting or parameter adjustment.
- Physical Damage: Cracked PCB, water intrusion, burned terminals, or component bulging/leakage—compromising electrical safety and functionality.
- Performance Degradation: Increased motor noise, reduced energy efficiency, delayed speed response, or frequent protective shutdowns—attributed to aging components.
- Safety Compromise: Failure to trigger emergency stops or protective shutdowns during fault conditions—violating Mitsubishi’s safety standards and posing severe risks to passengers.
3. Maintenance to Extend Service Life
- Environmental Control: Keep the drive cabinet clean, dry, and well-ventilated. Install air conditioners or dehumidifiers if ambient temperature exceeds 45°C or humidity exceeds 85%.
- Power Stabilization: Install surge protectors and voltage regulators in the input circuit to shield the drive board from mains voltage spikes and transients.
- Load Management: Avoid frequent full-load acceleration/deceleration cycles (reduces stress on power driver chips) and adhere to the elevator’s weight capacity limits.
- Genuine Parts Only: For replacements, rely exclusively on authentic Mitsubishi KCR-1011C drive boards from Nanjing Zhuye. Counterfeit boards use inferior components, lack safety certifications, and risk catastrophic traction system failure.
Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi KCR-1011C?
When sourcing the Mitsubishi KCR-1011C drive board, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:
- Authenticity & Compatibility: All units meet Mitsubishi’s original manufacturing specifications, ensuring seamless integration with NexWay, ELENESSA, and MAXIEZ series elevators.
- Strict Quality Assurance: Each drive board undergoes rigorous testing (motor control precision, thermal resilience, safety function validation) to guarantee reliable operation in critical traction systems.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, configuration, firmware updates, and troubleshooting—even for complex drive system setups.
- Global Efficient Delivery: Fast shipping to worldwide locations minimizes machine room downtime, ensuring uninterrupted elevator service.
- Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.
Conclusion
The Mitsubishi Elevator Drive Board KCR-1011C is a foundational motor control component that ensures efficient, reliable operation of Mitsubishi elevator traction systems—directly impacting passenger safety and operational efficiency. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can ensure Mitsubishi elevators remain compliant, downtime-free, and safe for passengers. Whether you need a single replacement drive board, technical support for system upgrades, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Mitsubishi components and tailored professional services. Invest in the traction system reliability of your Mitsubishi elevators—choose Nanjing Zhuye Elevator Parts for your KCR-1011C drive board requirements.
