Description

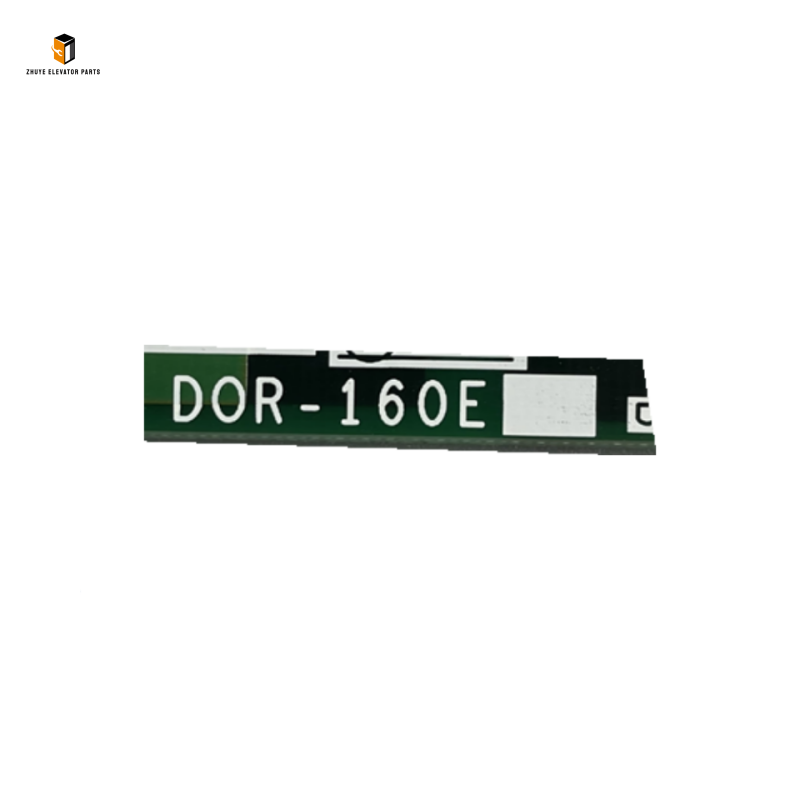

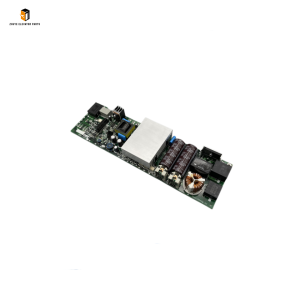

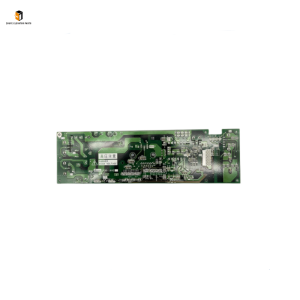

Mitsubishi elevator drive board DOR-160B Brief Introduction

Product Name	Mitsubishi elevator drive board
Model Number	DOR-160B DOR-160E
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Mitsubishi Elevator Drive Board DOR-160B: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Drive Board DOR-160B is a mission-critical power control component exclusively engineered for Mitsubishi elevator door systems—including NexWay, ELENESSA, and MAXIEZ series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As the “power backbone” of elevator door operations, this drive board converts low-voltage DC power into precise, variable-speed AC output to control the door motor, enabling smooth opening/closing cycles, obstacle detection response, and synchronization with the elevator’s main control system. It integrates Mitsubishi’s proprietary PWM (Pulse Width Modulation) drive technology, high-efficiency motor control algorithms, and redundant safety mechanisms—upholding the brand’s strict standards for reliability, operational stability, and passenger safety.

Compliant with global elevator safety and electrical standards (EN 81-20/50, IEC 61010, UL 1012, ISO 9001), the DOR-160B features a rugged, fault-tolerant design: multi-layer PCB with conformal coating (resists dust, moisture, and corrosion), anodized aluminum heat sink (ensures efficient heat dissipation), flame-retardant ABS housing (UL94 V0 rating), and built-in protection against overvoltage, overcurrent, short-circuit, and overtemperature. This construction withstands 24/7 operation in elevator car tops or door machine cabinets, enduring temperature fluctuations (-5°C to +55°C), mechanical vibration, and electrical grid instability—critical for preventing door motor damage, erratic door movement, or safety hazards like trapped passengers. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, configuration, and replacement timelines is vital to ensuring regulatory compliance, minimal downtime, and passenger safety. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the DOR-160B that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable motor control, and long-term performance.

Proper Usage Methods of Mitsubishi DOR-160B Drive Board

1. Pre-Installation Preparation

Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (elevator car top or door machine cabinet) with warning signs and lockout-tagout (LOTO) devices. Inspect the new DOR-160B for physical damage—cracked PCB traces, bent terminals, swollen capacitors, damaged heat sink, or loose solder joints—defects that can cause motor malfunctions or electrical hazards. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: intact power modules, functional control circuits, secure wiring connections, and pre-loaded Mitsubishi-compatible firmware.

Verify compatibility with your Mitsubishi elevator model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the board’s power rating (typically 0.5kW–1.2kW) matches the door motor’s specifications, (2) the communication protocol is compatible with the elevator’s door machine control board (e.g., DOR-143A), and (3) the mounting dimensions (typically 140x100x35mm) fit the door machine cabinet’s slot. Using an incompatible drive board can damage the door motor, trigger persistent fault codes, or cause door malfunctions. Additionally, prepare the installation area: Clean the door machine cabinet to remove dust and debris, ensure a minimum 8cm clearance around the board for heat dissipation, and back up the old drive board’s parameters (via Mitsubishi’s diagnostic software, e.g., MELDAS) to preserve door operation settings (e.g., speed, acceleration/deceleration rates).

2. Installation & Configuration Steps

Board Installation: Align the DOR-160B with the mounting brackets in the door machine cabinet, ensuring the heat sink faces the cabinet’s ventilation openings. Secure the board with the provided screws (torque to 0.7–1.0 Nm) to prevent vibration-induced movement—over-tightening can damage the PCB or housing. Connect the cabinet’s grounding cable to the board’s earth terminal (green/yellow) to ensure electrical safety.
Wiring & Connection: Connect the power input cables (24V DC ±10%) to the board’s positive (+) and negative (-) terminals, ensuring tight connections (torque to 1.0–1.2 Nm) to prevent arcing or overheating. Connect the door motor cables (U/V/W) to the corresponding output terminals—note that cable order affects motor direction (adjust only if testing confirms reverse movement). Connect the control signal cable to the door machine control board, matching pin assignments exactly per Mitsubishi’s wiring schematic (incorrect connections are the leading cause of post-installation faults).
Post-Installation Configuration & Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and upload the backed-up parameters to the new DOR-160B via diagnostic software. Configure critical settings: motor rated voltage/current, door opening/closing speed (typically 0.3–0.5 m/s), deceleration rate, and obstacle detection sensitivity. Conduct three mandatory tests:
1. No-Load Test: Operate the doors without obstruction to verify smooth movement, no abnormal noise (e.g., humming, grinding), and no drive board fault codes.
2. Obstacle Response Test: Use a soft object to trigger the door’s safety edge—confirm the drive board reverses the motor immediately to prevent pinching.
3. Cycle Test: Run the doors through 15–20 opening/closing cycles to ensure consistent performance, stable temperature (≤70°C), and proper synchronization with the main control system.

  Document all installation details, parameter settings, and test results in maintenance records to demonstrate compliance with Mitsubishi’s service requirements.

3. Routine Usage Maintenance

To preserve the DOR-160B’s performance and extend its lifespan, implement proactive maintenance practices tailored to door drive components:

Daily Visual Inspections: Check the drive board for loose wiring, physical damage, or signs of overheating (discoloration of heat sink, burning odors, or hot components). Verify the status LED (green = normal, red = fault) shows no active errors.
Weekly Function Test: Test door opening/closing cycles at different floors, ensuring consistent speed and proper safety edge activation.
Monthly Parameter Backup: Use diagnostic software to back up the board’s parameters to a secure location—prevents data loss in case of electrical interference.
Quarterly Cleaning: Remove dust from the board’s heat sink and door machine cabinet using low-pressure compressed air—dust buildup blocks heat dissipation and causes overheating. Avoid liquid cleaners or abrasive tools.
Semi-Annual Wiring Check: Inspect all wiring connections for loose terminals or corrosion—tighten or clean as needed. Replace frayed or damaged cables with genuine Mitsubishi-compatible wires from Nanjing Zhuye.

Recommended Replacement Cycle

The service life of the Mitsubishi DOR-160B Drive Board depends on usage intensity (daily door cycles, obstacle detection frequency), environmental conditions, and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours daily use, regular maintenance, ambient temperature -5°C to +55°C), the DOR-160B should be replaced every 6–8 years. This timeframe aligns with the typical lifespan of power modules and capacitors in door drive systems, ensuring proactive replacement before component degradation leads to door malfunctions.

2. Signs That Require Immediate Replacement

Replace the drive board immediately if:

Door Malfunctions: Doors fail to open/close, move erratically, or get stuck—compromising passenger safety and accessibility.
Motor Damage: The door motor overheats, hums without moving, or burns out—indicating unstable power output from the drive board.
Persistent Fault Codes: The main control system displays recurring door drive errors (e.g., “Motor Overload,” “Drive Communication Loss”) that cannot be resolved by wiring checks or parameter resets.
Physical Damage: Cracked PCB, water intrusion, or burned components—signaling irreparable internal damage.
Safety Compromise: The drive board fails to respond to obstacle detection, risking passenger injury—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the door machine cabinet clean, dry, and well-ventilated. Maintain temperature between 10°C–45°C and humidity <80%—extreme conditions accelerate component aging.
Power Stabilization: Install external surge protectors in the elevator’s power system to shield the drive board from voltage spikes.
Motor Care: Regularly lubricate the door motor and inspect for wear—reduces strain on the drive board.
Genuine Parts Only: Use exclusively authentic Mitsubishi DOR-160B drive boards from Nanjing Zhuye. Counterfeit units use inferior power modules, lack Mitsubishi’s safety logic, and risk catastrophic door failures.

Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi DOR-160B?

When sourcing a critical door control component like the Mitsubishi DOR-160B, Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ door systems—eliminating fit or function issues.
Strict Quality Assurance: Each drive board undergoes rigorous testing (power conversion efficiency, motor control precision, safety mechanism reliability) to meet Mitsubishi’s original manufacturing standards.
Expert Technical Support: Certified engineers provide 24/7 assistance for installation, parameter configuration, troubleshooting, and compatibility verification—even for legacy Mitsubishi models.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for residential and commercial facilities where door malfunctions disrupt operation and passenger safety.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality or safety.

Conclusion

The Mitsubishi Elevator Drive Board DOR-160B is a foundational component that ensures smooth, safe, and reliable elevator door operation—directly impacting passenger experience and safety. By following proper installation, configuration, and maintenance practices—paired with Nanjing Zhuye Elevator Parts’ authentic components—you can keep Mitsubishi elevators downtime-free, compliant with global safety standards, and optimized for performance. Whether you need a single replacement drive board, bulk orders for a building fleet, or technical support for maintenance teams, Nanjing Zhuye delivers premium Mitsubishi components and tailored professional services. Invest in passenger safety and operational reliability—choose Nanjing Zhuye Elevator Parts for your DOR-160B drive board requirements.
