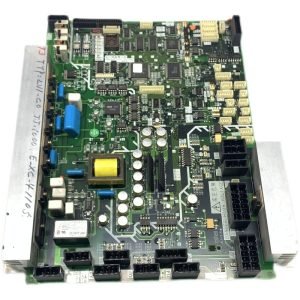

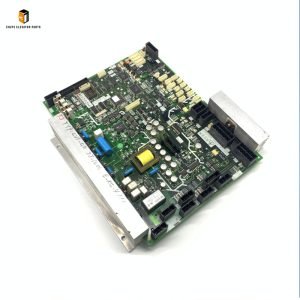

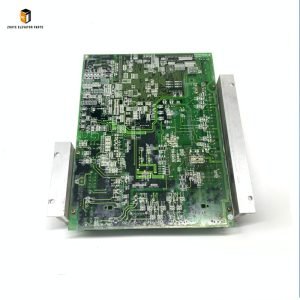

Mitsubishi elevator door operator board DOR-120C Brief Introduction

Product Name	Mitsubishi elevator door operator board
Model Number	DOR-120C DOR-121C DOR-122 DOR-123C DOR-125B
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

125B: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Mitsubishi Elevator Door Operator Board series—including DOR-120C, DOR-121C, DOR-122, DOR-123C, and DOR-125B—is a family of mission-critical control components exclusively engineered for Mitsubishi elevator door systems. Designed to compatibility with Mitsubishi NexWay, ELENESSA, and MAXIEZ series elevators, these multi-variant boards serve as the “brain” of elevator door operation, governing core functions: door opening/closing speed regulation, safety sensor integration (light curtains, edge detectors), door lock actuation, and fault diagnosis. Each variant is tailored to specific elevator models and door configurations—from standard single-speed doors (DOR-122) to high-performance variable-speed systems (DOR-125B)—all upholding Mitsubishi’s strict standards for safety, responsiveness, and operational reliability.

Compliant with global safety and electronic standards (EN 81, IEC 61010, ISO 9001), the DOR series features a rugged, interference-resistant design: multi-layer PCB substrates for signal integrity, conformal coating to resist dust and moisture, shielded power terminals to minimize EMI (electromagnetic interference), and built-in safety interlocks. This construction withstands 24/7 operation in elevator car ceilings or landing door panels, enduring temperature fluctuations (-5°C to +45°C), mechanical vibration from door movement, and electrical stress—critical for preventing door malfunctions, passenger entrapment, or injury risks. For maintenance teams, facility managers, and elevator service providers, mastering variant selection, proper installation, and replacement timelines is vital to ensuring regulatory compliance and uninterrupted operation. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers DOR series boards that meet Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, precise door control, and long-term durability.

Proper Usage Methods of Mitsubishi DOR Series Door Operator Boards

1. Pre-Installation Preparation & Variant Selection

Before installation, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the work area (car ceiling or landing door panel) with warning signs. Variant Selection is critical—consult Mitsubishi’s technical manual or Nanjing Zhuye’s technical support to match the board to your elevator model:

DOR-120C/DOR-121C: For standard-speed door systems in residential or low-traffic commercial elevators.
DOR-122: For basic single-door configurations with simplified control features.
DOR-123C: For mid-range variable-speed doors with enhanced safety sensor compatibility.
DOR-125B: For high-performance doors in high-traffic transit hubs or commercial high-rises, supporting rapid opening/closing cycles.

Inspect the selected board for physical damage—cracked PCB traces, bent connector pins, loose components, or corrosion—defects that can cause door control failures. Nanjing Zhuye’s strict quality control ensures each unit arrives with intact circuits, functional connectors, pre-loaded Mitsubishi-compatible firmware, and clear labeling. Prepare the installation area: Clean the mounting surface, ensure 5cm clearance for ventilation, and verify the door system’s wiring harness matches the board’s terminal layout.

2. Installation & Configuration Steps

Board Installation:
- Align the DOR series board with the mounting bracket (in car ceiling or landing panel) and secure with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced movement. If replacing an old board, label and disconnect all wiring, then take photos of the original configuration to replicate—incorrect wiring can damage the board or door subsystems.
Wiring & Connection:
- Connect the door operator motor, safety sensors, lock actuator, and power supply to the corresponding terminals, following Mitsubishi’s wiring schematic. Ensure correct polarity for DC power (typically 24V DC) and secure signal cables to avoid contact with moving parts. Use shielded cables for sensor connections to reduce EMI, and torque terminal screws to 1.0–1.5 Nm to prevent loose connections.
Post-Installation Testing:
- Restore power (by certified Mitsubishi technicians) and conduct three critical tests:
  1. Door Operation Test: Operate doors through multiple open/close cycles—verify smooth speed regulation (no jittering) and consistent alignment with floor levels.
  2. Safety Interlock Test: Trigger light curtains or edge detectors—confirm immediate door reversal or stop, and verify the board logs no false faults.
  3. Fault Simulation Test: Disconnect a sensor to trigger an error—ensure the board enters safe mode (e.g., disabled door operation) and displays a clear fault code.
- Document installation details, wiring diagrams, and test results in maintenance records to demonstrate compliance with Mitsubishi’s standards.

3. Routine Usage Maintenance

To preserve performance and extend lifespan, implement these proactive practices:

Weekly Visual Inspections: Check for loose wiring, physical damage, or overheating (discoloration, burning odors). Verify the board’s status LED (green = normal, red = fault).
Monthly Diagnostic Checks: Use Mitsubishi’s diagnostic software to scan for door system error codes. Monitor motor current and sensor signal integrity—address anomalies promptly.
Quarterly Connection Inspections: Tighten terminal screws and replace frayed cables with genuine Mitsubishi parts from Nanjing Zhuye.
Semi-Annual Cleaning: Remove dust from the board’s surface and connectors with low-pressure compressed air. Clean the surrounding area to prevent dust buildup.
Annual Firmware Update: Install manufacturer-recommended firmware updates (via Nanjing Zhuye’s support) to enhance compatibility and safety features.

Recommended Replacement Cycle

The service life of DOR series boards depends on variant, usage intensity (daily door cycles), and environmental conditions. Based on Mitsubishi’s standards and Nanjing Zhuye’s expertise:

1. Standard Replacement Cycle

DOR-120C/121C/122 (Standard/Entry-Level): Replace every 5–6 years under normal use (12–18 hours daily, -5°C to +45°C).
DOR-123C/125B (Mid-Range/High-Performance): Replace every 4–5 years (higher stress from variable-speed or high-cycle operation).

2. Signs That Require Immediate Replacement

Replace the board if:

Control Failures: Doors fail to open/close, operate erratically, or misalign with floors—indicating faulty speed regulation or sensor integration.
Persistent Faults: Repeated error codes that cannot be resolved with troubleshooting (e.g., “Sensor Communication Loss,” “Motor Overload”).
Physical Damage: Cracked PCB, water intrusion, or burned components—posing fire or electrical hazards.
Safety Compromise: Safety sensors fail to trigger door reversals, or doors do not lock/unlock properly—violating EN 81/ASME safety standards.

3. Maintenance to Extend Service Life

Environmental Control: Keep the installation area clean, dry, and well-ventilated. Protect against moisture in humid environments.
Power Stabilization: Install external surge protectors to shield the board from grid spikes.
Load Management: Avoid excessive door cycling (e.g., prolonged open-door mode) to reduce thermal stress.
Genuine Parts Only: Use authentic DOR series boards from Nanjing Zhuye—counterfeit units lack safety features and compatibility.

Why Choose Nanjing Zhuye Elevator Parts for DOR Series Boards?

Nanjing Zhuye offers unmatched advantages for safety-focused professionals:

Authenticity & Compatibility: All boards are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ elevators.
Strict Quality Assurance: Each unit undergoes testing for signal stability, thermal resilience, and fault detection accuracy.
Expert Technical Support: Certified engineers provide 24/7 assistance for variant selection, installation, and troubleshooting.
Global Efficient Delivery: Fast shipping minimizes elevator downtime, critical for high-traffic facilities.
Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising quality.

Conclusion

The Mitsubishi DOR-120C/121C/122/123C/125B series is the backbone of reliable, safe elevator door operation—directly impacting passenger experience and safety. By following proper variant selection, installation, and maintenance practices, paired with Nanjing Zhuye’s authentic components, you can keep Mitsubishi elevators downtime-free and compliant with global standards. Whether you need a single replacement board, technical support, or bulk orders for a fleet, Nanjing Zhuye delivers premium Mitsubishi components and tailored services. Invest in your elevator’s door system reliability—choose Nanjing Zhuye Elevator Parts for your DOR series requirements.
