Description

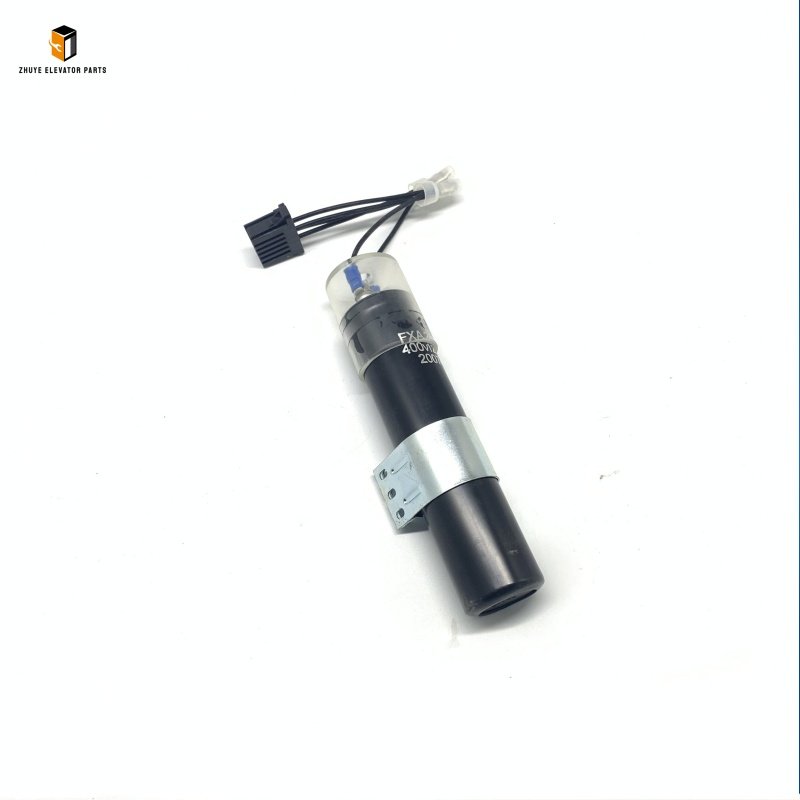

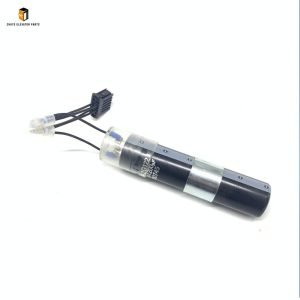

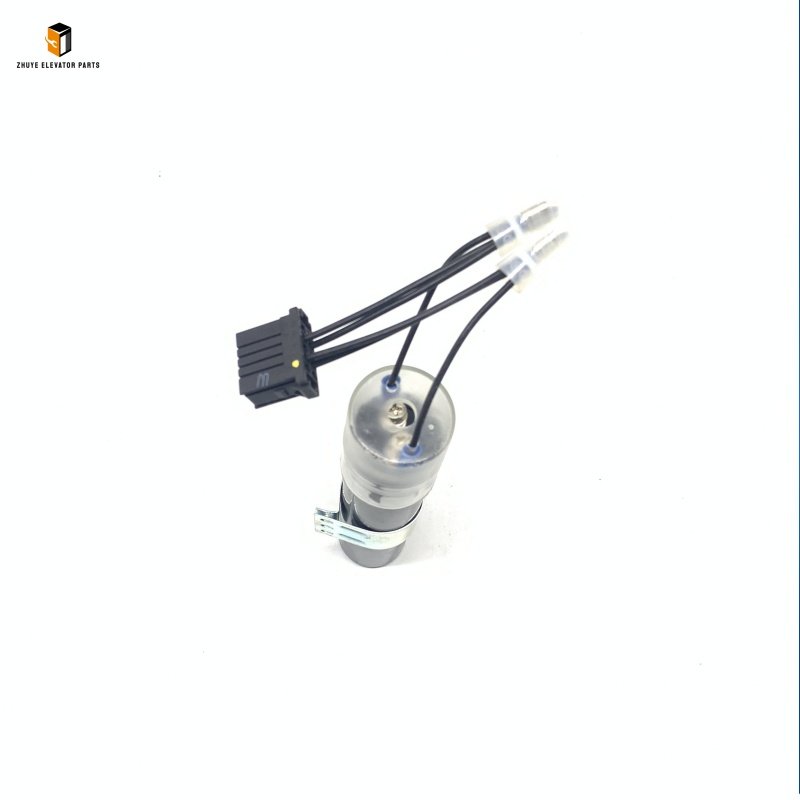

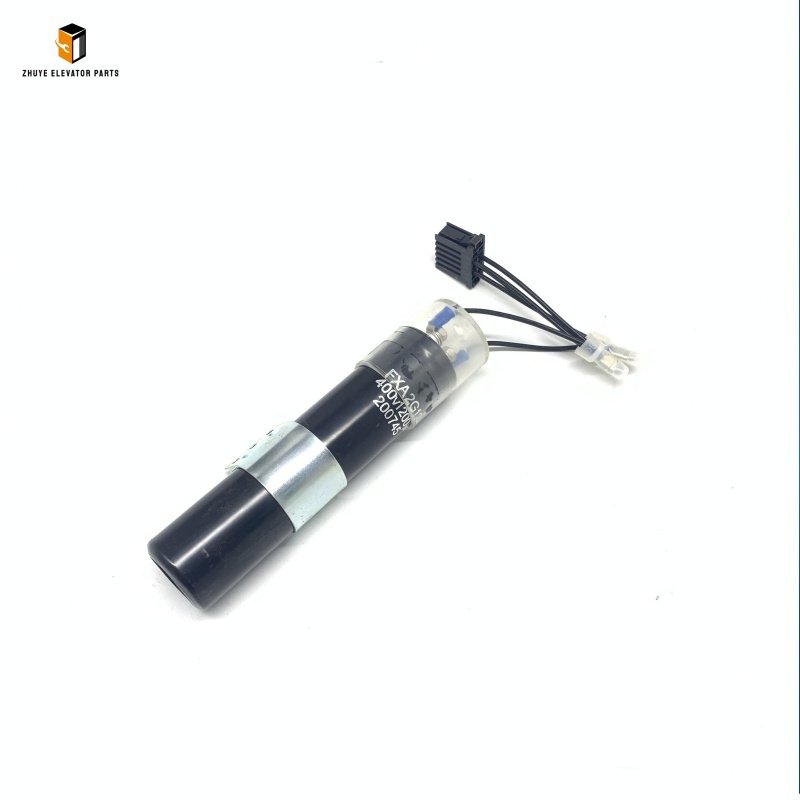

Mitsubishi elevator door machine capacitor FXA2G122 Introduction
|
Product Name |
Mitsubishi elevator door machine capacitor |
| Model Number | FXA2G122 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Mitsubishi Elevator Door Machine Capacitor FXA2G122: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye
The Mitsubishi Elevator Door Machine Capacitor FXA2G122 is a critical power-stabilizing component exclusively engineered for Mitsubishi elevator door systems—including NexWay, ELENESSA, and MAXIEZ series—essential for residential complexes, commercial buildings, transit hubs, and public facilities worldwide. As the “energy reserve and voltage regulator” for door machines, this capacitor provides instant power support during door opening/closing cycles, stabilizes AC voltage for the door motor, and reduces current fluctuations. It integrates Mitsubishi’s proprietary metallized polypropylene film technology, hermetically sealed construction, and high-temperature resistance design—upholding the brand’s strict standards for capacitance stability (tolerance ≤±5%), ripple current handling (≥10A rms), and operational reliability in frequent-cycle environments.
Compliant with global electrical safety and capacitor standards (EN 60252-1, IEC 60252, UL 810, JIS C4901), the FXA2G122 features a durable, industry-grade design: a cylindrical aluminum case (corrosion-resistant), epoxy resin sealing (moisture-proof, dust-proof), internal overpressure protection (rupture disc), and wide operating temperature range (-25°C to +85°C). This robust construction withstands the harsh operating conditions of elevator door machines—frequent charge/discharge cycles, temperature variations, and mechanical vibration—critical for preventing door motor hesitation, slow operation, or sudden door failures. For maintenance teams, facility managers, and elevator service providers, mastering proper installation, inspection, and replacement timelines is vital to ensuring door system efficiency, passenger safety, and minimal elevator downtime. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic Mitsubishi components, delivers the FXA2G122 that meets Mitsubishi’s original manufacturing specifications—guaranteeing seamless compatibility, stable power output, and long-term durability.
Proper Usage Methods of Mitsubishi FXA2G122 Door Machine Capacitor
1. Pre-Installation Preparation
Before installation or replacement, prioritize safety by shutting off the elevator’s main power supply, engaging the emergency stop button, and securing the door machine area (car top or landing) with warning signs and lockout-tagout (LOTO) devices. Ensure the elevator car is positioned at a convenient floor to access the door machine unit. Discharge the old capacitor (if replacing) by connecting a resistor across its terminals for 5–10 minutes to eliminate residual voltage—preventing electric shock. Inspect the new FXA2G122 for physical damage—dented case, cracked epoxy sealing, leaking electrolyte, or bent terminals—defects that compromise performance or safety. Nanjing Zhuye’s strict quality control process ensures each unit arrives in optimal condition: consistent capacitance, intact sealing, secure terminals, and factory-tested voltage resistance.
Verify compatibility with your Mitsubishi elevator door machine model by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team. Ensure three key details align: (1) the capacitor’s specifications (2000µF capacitance, 450V AC voltage rating, 50/60Hz frequency) match the door machine’s power requirements, (2) the physical dimensions (Φ60x110mm) fit the door machine’s capacitor mounting bracket, and (3) the terminal type (radial leads with spade connectors) is compatible with the door machine’s wiring. Using an incompatible capacitor can result in door motor overheating, reduced door speed, or capacitor failure. Additionally, prepare the installation area: Clean the door machine’s capacitor mounting bracket to remove dust and debris, disconnect the old capacitor’s wiring (label terminals “L” and “N” for easy reinstallation), and gather necessary tools (insulated screwdriver, wire crimpers, multimeter, anti-static wristband).
2. Installation & Testing Steps
- Mounting Preparation: Position the FXA2G122 on the door machine’s mounting bracket, ensuring the terminal leads face upward for easy wiring access. Secure the capacitor with the mounting clamp (included) or existing hardware—tighten gently to avoid damaging the aluminum case. Ensure the capacitor is installed with at least 10mm clearance from other components to allow heat dissipation.
- Wiring & Connection: Connect the door machine’s power cables to the FXA2G122’s terminals, matching the labeled “L” (line) and “N” (neutral) connections—reverse polarity can damage the capacitor or door motor. Crimp spade connectors to the cable ends (if needed) for secure contact, and fasten the connectors to the capacitor’s terminals. Tighten terminal screws to 0.5–0.7 Nm using an insulated screwdriver—over-tightening can strip terminals, while under-tightening causes poor contact and overheating.
- Post-Installation Testing: Restore power to the elevator (performed exclusively by certified Mitsubishi technicians) and conduct functional tests:
- Capacitance Verification: Use a multimeter to measure the FXA2G122’s capacitance—ensure it falls within the ±5% tolerance range (1900–2100µF) for optimal performance.
- Door Operation Test: Activate door opening/closing cycles 10–15 times to verify smooth, consistent operation—no hesitation, jitter, or slow movement. Check that door opening/closing times meet Mitsubishi’s specifications (typically 2–3 seconds).
- Voltage Stability Test: Monitor the door motor’s input voltage during operation using a multimeter—ensure fluctuations are ≤±10% (indicates effective capacitor voltage regulation).
Document installation details, capacitance measurements, and test results in maintenance records to demonstrate compliance.
3. Routine Usage Maintenance
To preserve the FXA2G122’s performance and extend its lifespan, implement proactive maintenance practices tailored to door machine capacitors:
- Daily Visual Inspections: Check the capacitor for physical damage (dents, cracks), electrolyte leakage (sticky residue around terminals), or bulging case—these are early signs of failure.
- Weekly Function Check: Observe door opening/closing cycles for smooth operation—hesitation, slow speed, or unusual noise may indicate capacitor degradation.
- Monthly Terminal Inspection: Inspect the capacitor’s terminal connections for looseness, corrosion, or overheating (discolored wires)—tighten connections or clean corrosion with a wire brush if needed.
- Quarterly Capacitance Test: Use a multimeter to measure capacitance—if the value falls outside the ±5% tolerance range, schedule replacement. Check for voltage drop across the capacitor (should be ≤5V AC during operation).
- Semi-Annual Environmental Check: Ensure the door machine area is free of moisture, dust, and extreme temperatures—install a protective cover if the area is prone to water intrusion or debris accumulation.
Recommended Replacement Cycle
The service life of the Mitsubishi FXA2G122 Door Machine Capacitor depends on usage intensity (daily door cycles), environmental conditions (temperature, humidity), and maintenance quality. Based on Mitsubishi’s engineering standards and Nanjing Zhuye’s technical expertise:
1. Standard Replacement Cycle
Under normal operating conditions (regular cleaning, moderate temperature, 1000–1500 daily door cycles), the FXA2G122 should be replaced every 5–7 years. This timeframe aligns with the typical lifespan of metallized polypropylene film capacitors in elevator door systems, ensuring proactive replacement before capacitance degradation impacts door performance.
2. Signs That Require Immediate Replacement
Replace the capacitor immediately if:
- Capacitance Loss: Measured capacitance falls below 1900µF (more than -5% tolerance) or above 2100µF (more than +5% tolerance)—causes door motor inefficiency or failure.
- Physical Degradation: Bulging case, electrolyte leakage, cracked epoxy sealing, or dented aluminum case—risks short circuits, overheating, or capacitor explosion.
- Door Operation Issues: Persistent door hesitation, slow opening/closing, jitter, or failure to fully open/close—indicates insufficient power support from the capacitor.
- Overheating: The capacitor’s case temperature exceeds 85°C during operation (measured with an infrared thermometer)—accelerates internal component degradation.
- Electrical Faults: The door machine’s control board displays “Capacitor Fault” or “Voltage Instability” codes—cannot be resolved by re-wiring or terminal cleaning.
3. Maintenance to Extend Service Life
- Temperature Control: Maintain the door machine area temperature between -10°C and +60°C—extreme heat (>60°C) drastically reduces capacitor lifespan.
- Moisture Protection: Repair any leaks in the elevator car top or landing area to prevent water contact with the capacitor—moisture causes terminal corrosion and internal damage.
- Terminal Care: Apply dielectric grease to the capacitor’s terminals annually to prevent corrosion and ensure stable electrical contact.
- Genuine Parts Only: Use exclusively authentic Mitsubishi FXA2G122 capacitors from Nanjing Zhuye. Counterfeit units use low-quality film materials, inconsistent capacitance, and lack overpressure protection—risking door system failures, passenger inconvenience, or safety hazards.
Why Choose Nanjing Zhuye Elevator Parts for Mitsubishi FXA2G122?
When sourcing a critical door machine component like the Mitsubishi FXA2G122, Nanjing Zhuye offers unmatched advantages for safety and efficiency-focused professionals:
- Authenticity & Compatibility: All units are genuine Mitsubishi components, ensuring seamless integration with NexWay/ELENESSA/MAXIEZ door systems—eliminating door operation issues or compatibility faults.
- Strict Quality Assurance: Each capacitor undergoes rigorous testing (capacitance stability, voltage resistance, temperature tolerance, leakage current) to meet Mitsubishi’s original manufacturing and safety standards.
- Expert Technical Support: Certified engineers provide 24/7 assistance for installation, capacitance testing, troubleshooting, and compatibility verification—even for legacy Mitsubishi door machine models.
- Global Efficient Delivery: Fast shipping minimizes downtime, critical for facilities where door machine capacitor failures disrupt elevator operation and passenger flow.
- Competitive Pricing: Direct sourcing from Mitsubishi’s authorized channels eliminates middlemen, offering cost-effective solutions without compromising capacitor quality or performance.
Conclusion
The Mitsubishi Elevator Door Machine Capacitor FXA2G122 is a foundational power-stabilizing component that ensures reliable, efficient operation of Mitsubishi elevator door systems—safeguarding passenger safety, user experience, and regulatory compliance. By following proper installation, testing, and maintenance practices—paired with Nanjing Zhuye’s authentic components—you can extend the capacitor’s lifespan, reduce elevator downtime, and maintain consistent door performance. Whether you need a single replacement capacitor, bulk orders for a building fleet, or technical support for door machine maintenance, Nanjing Zhuye delivers premium Mitsubishi parts and tailored professional services. Invest in elevator door system reliability and safety—choose Nanjing Zhuye for your FXA2G122 door machine capacitor needs.
